Customize Your Product
Phase
Cabinet Compatibility
Explore Sizes & Options
| Add to Cart Add | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
E1-2010-E | IEC 60309 60A 3P+N+E | (30) C13 Locking + (12) C19 Locking Outlets | 220-240/380-415V | Three-Phase | 60A | 34.5kW | 42U or Higher | Glacier White | $2,138.94 | |
E1-2010-C | IEC 60309 60A 3P+N+E | (30) C13 Locking + (12) C19 Locking Outlets | 220-240/380-415V | Three-Phase | 60A | 34.5kW | 42U or Higher | Black | $2,138.94 | |
E1-2089-C | IEC 60309 100A 3P+E | (30) C13 Locking + (12) C19 Locking Outlets | 208V | Three-Phase | 100A | 28.8kW | 42U or Higher | Black | $2,799.90 | |
E1-2011-E | AC Terminal Block 3P4W | (30) C13 Locking + (12) C19 Locking Outlets | 208V | Three-Phase | 100A | 28.8kW | 42U or Higher | Glacier White | $1,881.90 | |
E1-2001-E | C20 Inlet to NEMA L5-20P | (24) 5-20 Standard Outlets | 120V | Single-Phase | 20A | 1.9kW | 42U or Higher | Glacier White | $883.70 | |
E1-2002-C | NEMA L5-30P | (24) 5-20 Standard Outlets | 120V | Single-Phase | 30A | 2.9kW | 42U or Higher | Black | $1,064.11 | |
E1-2192-C | IEC 60309 100A 3P+N+E | (12) C13 Locking + (24) C19 Locking Outlets | 220-240/380-415V | Three-Phase | 100A | 57.5kW | 45U or Higher | Black | $3,512.27 | |
E1-2192-CE | IEC 60309 100A 3P+N+E | (12) C13 Locking + (24) C19 Locking Outlets | 220-240/380-415V | Three-Phase | 100A | 57.5kW | 45U or Higher | 1 Black + 1 Glacier White | $6,883.16 | |
E1-2010-CE | IEC 60309 60A 3P+N+E | (30) C13 Locking + (12) C19 Locking Outlets | 220-240/380-415V | Three-Phase | 60A | 34.5kW | 42U or Higher | 1 Black + 1 Glacier White | $4,191.59 | |
E1-2089-E | IEC 60309 100A 3P+E | (30) C13 Locking + (12) C19 Locking Outlets | 208V | Three-Phase | 100A | 28.8kW | 42U or Higher | Glacier White | $2,799.90 | |
E1-2004-CE | NEMA L6-30P | (24) C13 Locking Outlets | 208V | Single-Phase | 30A | 5kW | 42U or Higher | 1 Black + 1 Glacier White | $1,804.24 | |
E1-2001-C | C20 Inlet to NEMA L5-20P | (24) 5-20 Standard Outlets | 120V | Single-Phase | 20A | 1.9kW | 42U or Higher | Black | $883.70 | |
E1-2001-CE | C20 Inlet to NEMA L5-20P | (24) 5-20 Standard Outlets | 120V | Single-Phase | 20A | 1.9kW | 42U or Higher | 1 Black + 1 Glacier White | $1,732.06 | |
E1-2003-CE | C20 Inlet to NEMA L6-20P | (24) C13 Locking Outlets | 208V | Single-Phase | 20A | 3.3kW | 42U or Higher | 1 Black + 1 Glacier White | $1,633.60 | |
E1-2089-CE | IEC 60309 100A 3P+E | (30) C13 Locking + (12) C19 Locking Outlets | 208V | Three-Phase | 100A | 28.8kW | 42U or Higher | 1 Black + 1 Glacier White | $5,487.80 | |
E1-2004-C | NEMA L6-30P | (24) C13 Locking Outlets | 208V | Single-Phase | 30A | 5kW | 42U or Higher | Black | $884.47 | |
E1-2003-E | C20 Inlet to NEMA L6-20P | (24) C13 Locking Outlets | 208V | Single-Phase | 20A | 3.3kW | 42U or Higher | Glacier White | $833.47 | |
E1-2002-CE | NEMA L5-30P | (24) 5-20 Standard Outlets | 120V | Single-Phase | 30A | 2.9kW | 42U or Higher | 1 Black + 1 Glacier White | $2,085.64 | |
E1-2002-E | NEMA L5-30P | (24) 5-20 Standard Outlets | 120V | Single-Phase | 30A | 2.9kW | 42U or Higher | Glacier White | $1,064.11 | |
E1-2011-C | AC Terminal Block 3P4W | (30) C13 Locking + (12) C19 Locking Outlets | 208V | Three-Phase | 100A | 28.8kW | 42U or Higher | Black | $1,881.90 |
Product Description

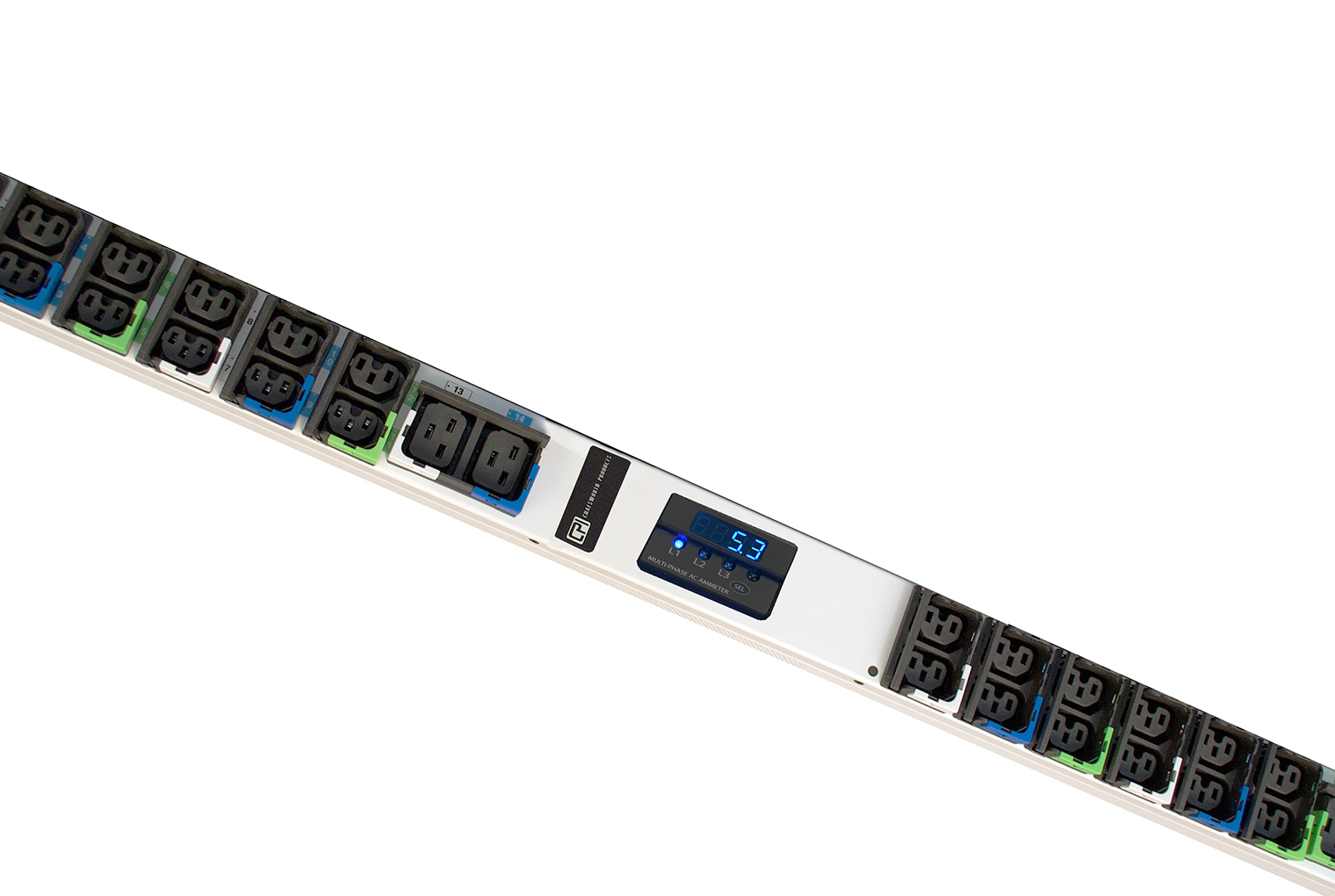

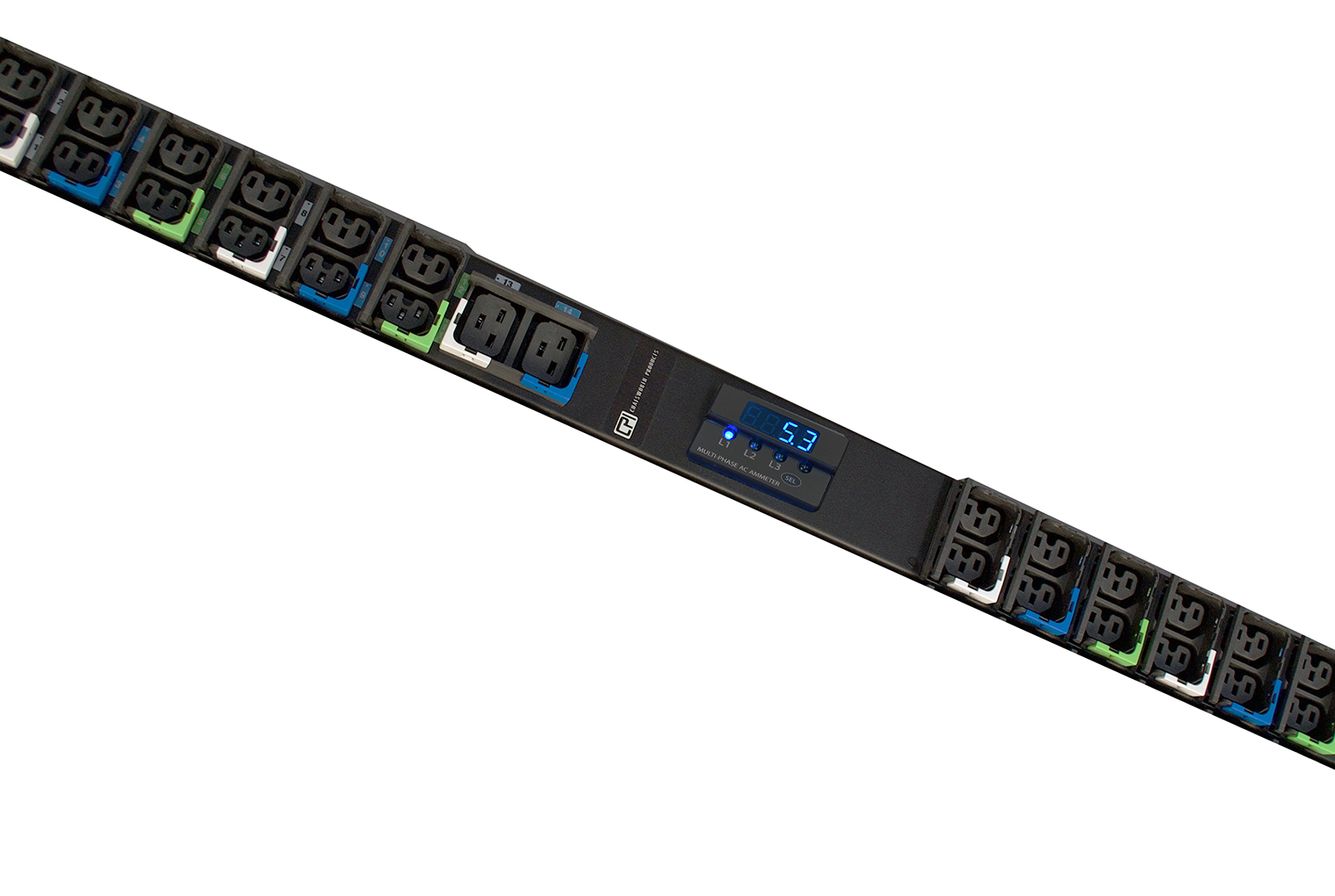

Metered eConnect® PDUs feature a local display for easy reading of input current to help with initial installation and properly balanced operations.
Key Features and Benefits
- Resistance to High Temperature – Marketleading temperature ratings of up to 149°F (65°C) ensures reliability when mounted toward hot aisles.
- Simplified Load Balancing – Phase-balance outlets on three-phase models ensure equal loading across all phases; allows use of shorter equipment power cords for better cable and airflow management.
- No Accidental Disconnections – Patented, low-profile locking outlets prevent accidental disconnections without requiring special cords.

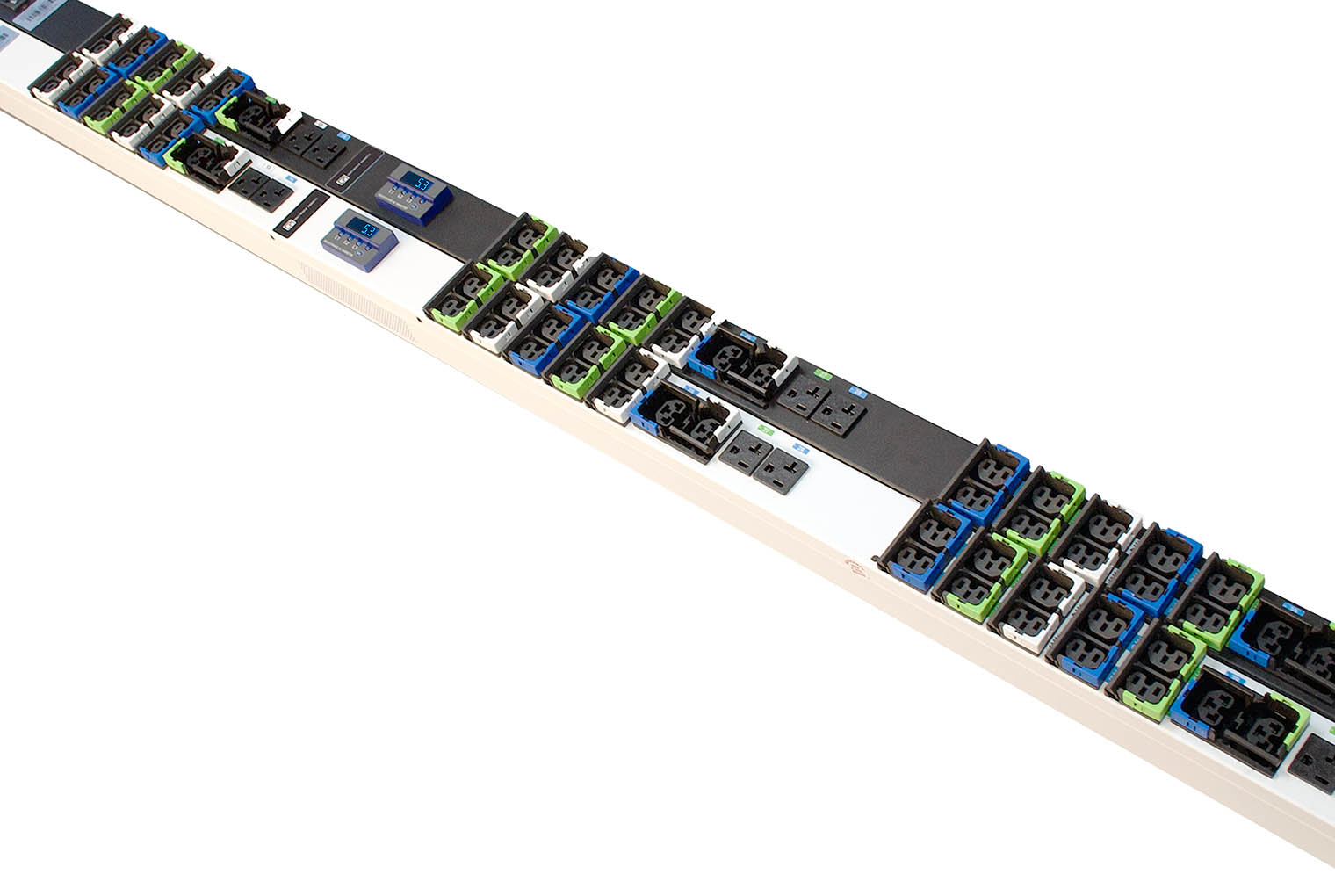

- Easy Identification of Failover Unit – Redundancy Pack includes 2 PDUs (one in Black and one in Glacier White) for easy identification of the primary and secondary unit.
- Latest UL Compliance – Meets UL and IEC 62368 for compliance with new listing requirements for North America and the European Union.
- Cabinet Preinstallation – Complete ecosystem ships ready for IT equipment integration, and saves deployment time and reduces packaging waste.
- High Power Configurations – Configurations supporting up to 100A Input provide an optimized solution for GPU & AI based applications. 30A branch circuit breakers provide flexibility when plugging high power IT equipment.
