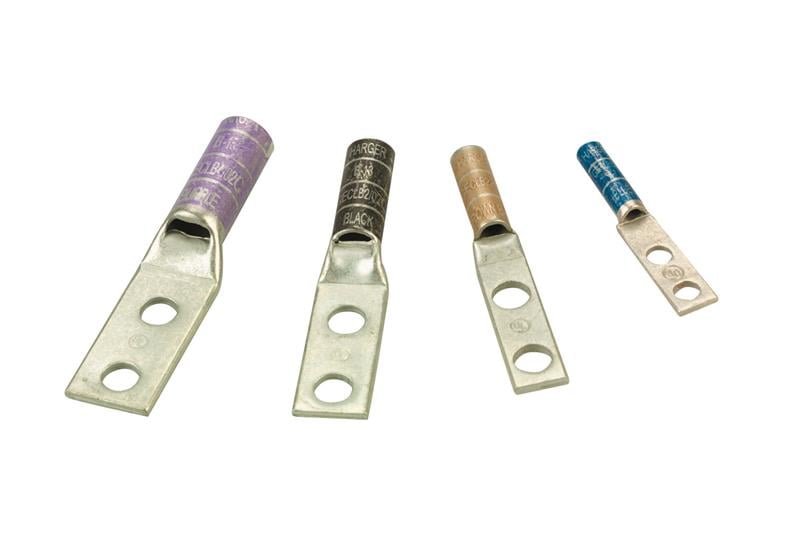

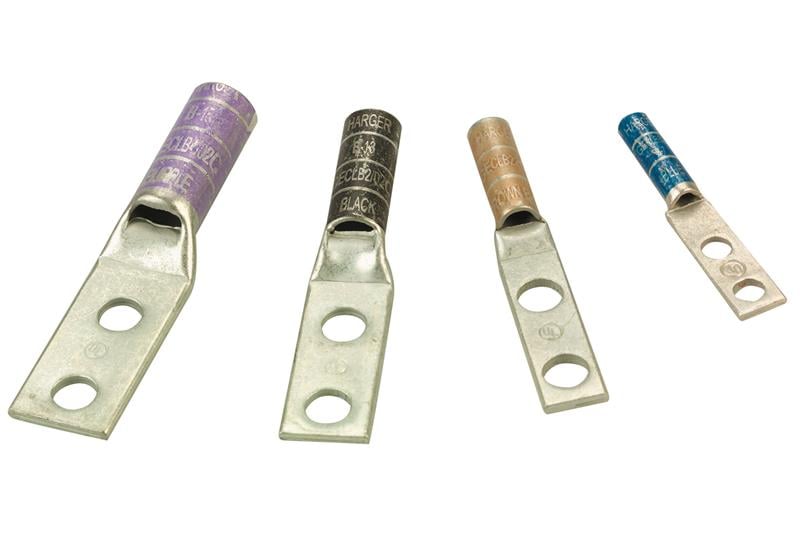

Compression Lugs
Explore Sizes & Options
| Add to Cart Add | |||||||
|---|---|---|---|---|---|---|---|
40162-903 | Two-Hole Lug | 1.00" (25.4 mm) | .375" (9.5 mm) | #6 | $13.35 | ||
40162-905 | Two-Hole Lug | .750" (19.1 mm) | .375" (9.5 mm) | #2 | $13.62 | ||
40162-904 | Two-Hole Lug | .625" (15.9 mm) | .250" (6.4 mm) | #2 | $12.54 | ||
40162-951 | Two-Hole Lug | .625" (15.9 mm) | .250" (6.4 mm) | #6 | $503.41 | ||
40162-902 | Two-Hole Lug | .750" (19.1 mm) | .375" (9.5 mm) | #6 | $13.35 | ||
40162-952 | Two-Hole Lug | .750" (19.1 mm) | .375" (9.5 mm) | #6 | $567.40 | ||
40162-910 | Two-Hole Lug | 1.75" (44.5 mm) | .500 (12.7 mm) | 2/0 | $15.88 | ||
40162-912 | Two-Hole Lug | 1.75" (44.5 mm) | .500 (12.7 mm) | 4/0 | $19.52 | ||
40162-901 | Two-Hole Lug | .625" (15.9 mm) | .250" (6.4 mm) | #6 | $11.84 | ||
40162-954 | Two-Hole Lug | .625" (15.9 mm) | .250" (6.4 mm) | #2 | $266.64 | ||
40162-953 | Two-Hole Lug | 1.00" (25.4 mm) | .375" (9.5 mm) | #6 | $567.40 | ||
40162-909 | Two-Hole Lug | 1.00" (25.4 mm) | .375" (9.5 mm) | 2/0 | $15.88 | ||
40162-907 | Two-Hole Lug | 1.00" (25.4 mm) | .375" (9.5 mm) | #2 | $13.35 | ||
40162-911 | Two-Hole Lug | 1.00" (25.4 mm) | .375" (9.5 mm) | 4/0 | $19.52 | ||
40162-960 | Two-Hole Lug | 1.75" (44.5 mm) | .500 (12.7 mm) | 2/0 | $135.74 | ||
40162-914 | 90° Slotted Lug | .500" (12.7 mm)/ .625" (15.9 mm) | .250" (6.4 mm) | #6 | $13.94 | ||
40162-961 | Two-Hole Lug | 1.00" (25.4 mm) | .375" (9.5 mm) | 4/0 | $166.38 | ||
40162-955 | Two-Hole Lug | .750" (19.1 mm) | .375" (9.5 mm) | #2 | $290.11 | ||
40162-957 | Two-Hole Lug | 1.00" (25.4 mm) | .375" (9.5 mm) | #2 | $283.72 | ||
40162-913 | Slotted Lug | .500" (12.7 mm)/ .625" (15.9 mm) | .250" (6.4 mm) | #6 | $11.97 |
Product Description
Compression Lugs connect electrical wires to copper or tinned copper conductors.
- Manufactured from electroplated tinned copper conductors
- Available individually or in bulk quantities in three styles; Two-hole, Slotted, and 90º Slotted
- Other configurations available
Product Information
Robust Construction and Versatile Applications
Compression lugs are essential electrical connectors designed to join wires securely to conductors, such as copper or tinned copper, in a wide range of applications including data centers and industrial facilities. These components are crucial for maintaining electrical continuity and safety in bonding and grounding systems, where reliable connections prevent faults and ensure operational integrity. Chatsworth Products (CPI) offers a comprehensive range of compression lugs that are built to withstand rigorous use and provide consistent performance.
Manufactured from electroplated tinned copper, CPI's compression lugs exhibit excellent conductivity and corrosion resistance, which are vital for long-term reliability in harsh environments. The lugs are available in various configurations to suit different installation requirements, with options for hole spacings and cable sizes that enhance versatility. This attention to material quality and design ensures that each lug meets high standards for electrical and mechanical performance.
Among the available styles, two-hole compression lugs are particularly popular for their secure mounting capabilities, while slotted lugs and 90-degree slotted lugs offer alternative solutions for space-constrained applications. Each style is engineered to provide a firm grip and easy installation, reducing the time and effort required for electrical work. Customers can select from individual lugs or bulk quantities, making it convenient for projects of any scale.
In bonding and grounding applications, compression lugs serve as critical components for establishing safe electrical paths, often functioning as ground lugs to direct fault currents away from sensitive equipment. Their robust design ensures that connections remain stable under vibration, thermal cycling, and other stresses, thereby enhancing system safety. Proper use of these lugs in electrical systems helps comply with industry standards and reduces the risk of electrical incidents.
With CPI's expertise in infrastructure solutions, these compression lugs are part of a broader offering that supports advanced technologies like AI and high-performance computing, where reliable power distribution is key. The lugs are designed for compatibility with standard compression tools, facilitating quick and error-free installations that save time and resources. By investing in CPI's high-quality compression lugs, users can achieve improved system reliability, lower maintenance costs, and greater peace of mind.
