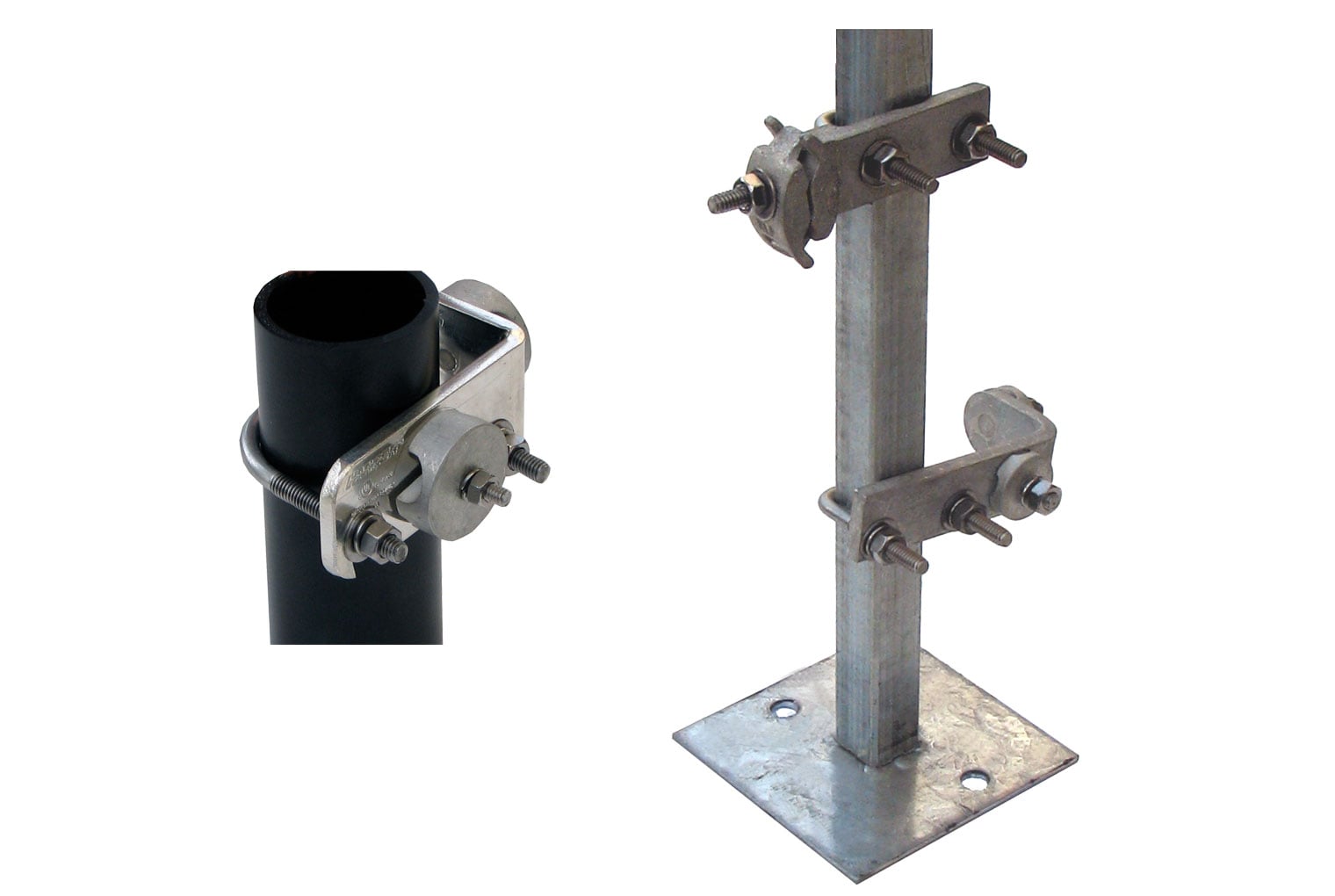

Pedestal Clamp with Bonding Connector

The raised floor grounding clamp is engineered to provide a low‑impedance path between a raised floor pedestal and the facility grounding system. By securely attaching to the pedestal, the clamp creates a continuous conductive loop that protects sensitive equipment from stray voltage and electromagnetic interference. CPI's design complies with UL‑listed Category KDER standards, delivering dependable grounding performance in data‑center, hyperscale and enterprise environments. The pedestal clamp variant features a robust body made from electrotin‑plated copper or bronze, offering corrosion resistance and long‑term reliability. It accommodates both round and square pedestal styles, supporting up to four #6 AWG or 2/0 bare conductors, which enables flexible signal‑reference grid configurations. Installation hardware is stainless‑steel, ensuring a secure fit that tolerates vibration and thermal cycling typical of high‑density racks. Ground clamp connector options include cross‑style and straight‑style configurations, allowing designers to tailor the grounding topology to specific layout requirements. Cross connectors provide intersecting points for a comprehensive grid, while straight connectors fill gaps between intersections, each supporting up to two conductors per side. These modular options simplify field assembly and reduce the time required to achieve a fully bonded floor system. In addition to the primary grounding function, the bond clamp design integrates bonding connectors that can be used to tie together multiple grounding points, improving overall system redundancy. The bonding connectors are compatible with standard copper distribution pedestals, facilitating seamless integration with existing infrastructure. This versatility helps meet stringent NEC and IEC grounding codes while supporting future expansion of power‑dense equipment. All components are UL® listed and meet international grounding specifications, giving installers confidence in safety and performance certifications. CPI provides detailed specification sheets and installation guides that outline torque values, conductor sizing, and recommended testing procedures. By choosing the raised floor grounding clamp and pedestal clamp with bonding connector, facilities benefit from a proven, scalable solution that safeguards critical IT assets.
