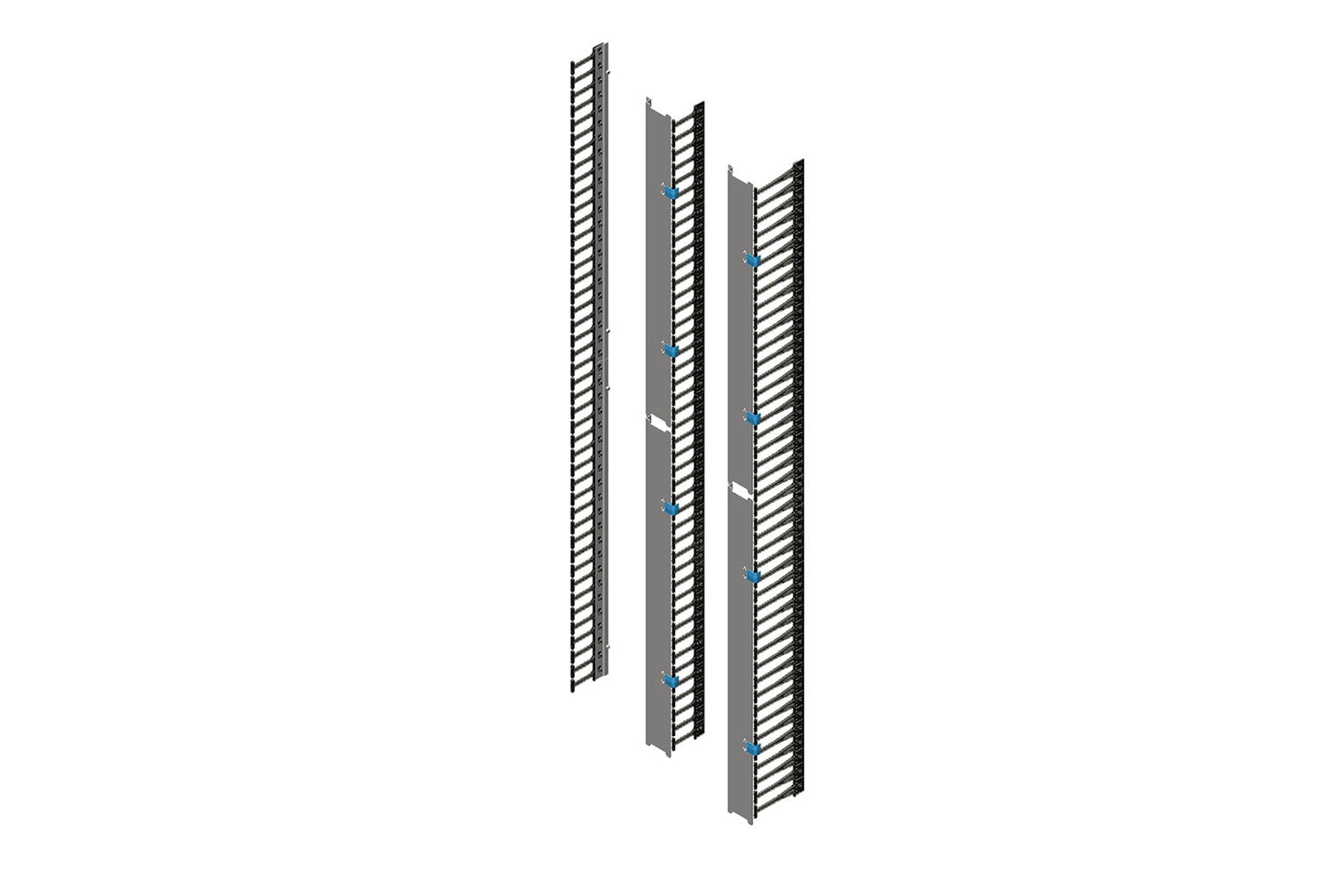

Vertical Cable Manager for ZetaFrame Cabinet
Explore Sizes & Options
| Add to Cart Add | |||||
|---|---|---|---|---|---|
39835-700 | 23.6"W (600 mm) | 42U | Short Finger | $196.76 | |
39835-703 | 23.6"W (600 mm) | 45U | Short Finger | $136.34 | |
39835-706 | 23.6"W (600 mm) | 48U | Short Finger | $240.82 | |
39835-E03 | 23.6"W (600 mm) | 45U | Short Finger | $136.34 | |
39835-E06 | 23.6"W (600 mm) | 48U | Short Finger | $240.82 | |
39835-E10 | 23.6"W (600 mm) | 52U | Short Finger | $268.86 | |
39835-710 | 23.6"W (600 mm) | 52U | Short Finger | $268.86 | |
39835-E00 | 23.6"W (600 mm) | 42U | Short Finger | $196.76 | |
38646-711 | 27.6"W (700 mm) | 42U | Short Finger | $302.98 | |
38646-717 | 27.6"W (700 mm) | 48U | Short Finger | $323.05 | |
38646-728 | 29.5"W (750 mm) | 48U | Short Finger | $327.74 | |
38646-714 | 27.6"W (700 mm) | 45U | Short Finger | $311.79 | |
38646-721 | 27.6"W (700 mm) | 52U | Short Finger | $345.70 | |
38646-722 | 29.5"W (750 mm) | 42U | Short Finger | $307.80 | |
38646-E17 | 27.6"W (700 mm) | 48U | Short Finger | $323.05 | |
38647-717 | 27.6"W (700 mm) | 48U | Long Finger | $360.65 | |
38646-739 | 31.5"W (800 mm) | 48U | Short Finger | $332.45 | |
38646-725 | 29.5"W (750 mm) | 45U | Short Finger | $316.53 | |
38646-732 | 29.5"W (750 mm) | 52U | Short Finger | $350.35 | |
38646-736 | 31.5"W (800 mm) | 45U | Short Finger | $321.27 |
Product Description
Keep network cables separate and organized using the following cable management accessories.
Key Features and Benefits
- Fully compatible with Air Dam Kit and Cable Lashing Panel
- Openings between fingers align with each U on the mounting rail
- Short or long plastic T-shaped finger options
- Rail setback: - 7-1/4 (184 mm) for Managers with long fingers - 4-3/4 (121 mm) for Managers with short fingers
- Long fingers pass up to (48) cables per U space through openings
- Short fingers pass up to (24) cables per U space through openings
- Hinged cover included with managers in cabinets wider than 600 mm
- Material: aluminum panels, fingers are black, hinges/latches are blue
- Finish: Black or Glacier White; fingers are black, hinges/latches are blue
- Select part number to match cabinet usable height, width and color of the cabinet
Product Information
Features and Benefits of the Vertical Cable Manager
The Vertical Cable Manager for ZetaFrame® Cabinet provides essential organization for vertical cabinets in data center environments. This accessory enhances cable management cabinet systems by routing network cables vertically, reducing clutter and improving airflow. Its design ensures seamless integration with ZetaFrame cabinets for reliable performance.
Key features include short and long finger options, accommodating different cable densities with up to 48 cables per U space. The manager includes hinged covers for cabinets wider than 600 mm, offering easy access and protection. Constructed from aluminum with black fingers and blue hinges, it delivers durability and a professional appearance.
This vertical cable manager is fully compatible with CPI solutions like the Air Dam Kit and Cable Lashing Panel. Rail setbacks are optimized for efficient cable routing and space utilization in cabinet cable management. Available in Black or Glacier White finishes, it matches various cabinet aesthetics for a cohesive look.
Installation is straightforward with openings aligned to each U on the mounting rail, speeding deployment. This design reduces labor costs and minimizes errors during cable routing. The manager supports high-density applications, making it ideal for modern data centers and enterprise networks.
Chatsworth Products combines decades of experience with innovative cabinet cable management solutions. The Vertical Cable Manager exemplifies CPI's commitment to quality, customization, and support for advanced technologies. Trust CPI to deliver reliable accessories that optimize your infrastructure investment.
