J-Bolt Kit Auxiliary Framing Channel/Runway

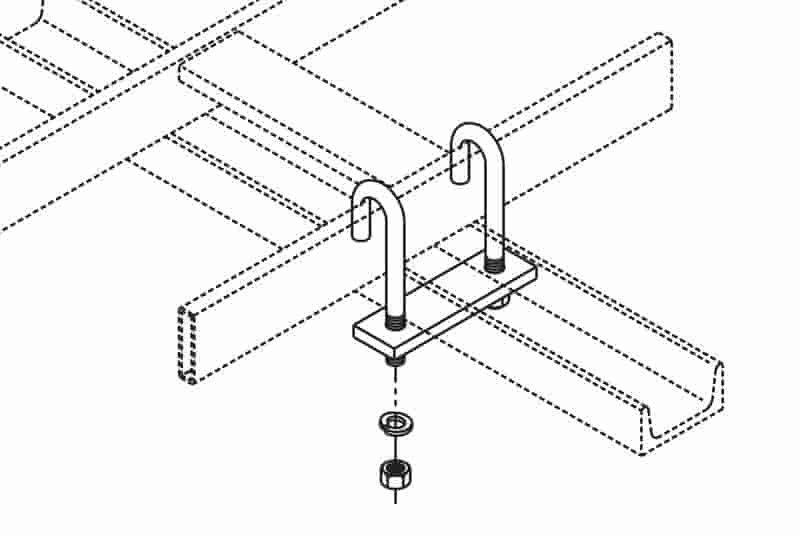

The J‑Bolt kit provides a secure attachment method for linking a 1‑1/2‑inch cable runway to a 1‑inch x 2‑inch auxiliary framing channel. Utilizing a dedicated channel bolt design eliminates the need for custom drilling, thereby accelerating deployment in high‑density environments. This approach enhances structural integrity while supporting the rigorous performance standards of data‑center and industrial applications. Each kit contains one 1/4‑inch x 1‑inch x 3‑1/2‑inch cold‑rolled steel plate, two 5‑16‑18 x 3‑1/4‑inch J‑Bolts, two matching 5‑16‑18 hex nuts, and split lock washers. All hardware is finished with a gold‑over‑zinc plating to resist corrosion and maintain a consistent appearance. The components are sized to fit standard framing channel dimensions, ensuring universal compatibility. By eliminating on‑site drilling, the J‑Bolt kit reduces installation labor and the risk of compromising enclosure strength. The pre‑drilled bolt pattern aligns precisely with the framing channel, delivering repeatable, reliable connections across multiple cabinets using these j bolts. This fast, tool‑free method helps technicians meet tight project schedules without sacrificing quality. The kit is engineered for use with 1‑1/2‑inch cable runways and 1‑inch x 2‑inch auxiliary framing channels commonly found in CPI's Cable Pathway product line. The channel bolt geometry provides a firm grip that resists vibration and movement in dynamic environments. Users can rely on the J‑Bolt system to maintain cable alignment and protect sensitive equipment. CPI offers downloadable CAD, Visio, and BIM files for the J‑Bolt kit, allowing designers to incorporate the hardware into detailed enclosure layouts. These digital resources streamline the planning phase and ensure that the bolt placement conforms to engineering standards. Leveraging CPI's design tools helps organizations achieve efficient, error‑free installations.
