Auxiliary Framing Channel Splice Cable Runway
Explore Sizes & Options
| Add to Cart Add | |||
|---|---|---|---|
10715-001 | For 9/16" x 2" Channel | $35.76 | |
11307-000 | For 1" x 2" Channel | $23.46 |
Product Description

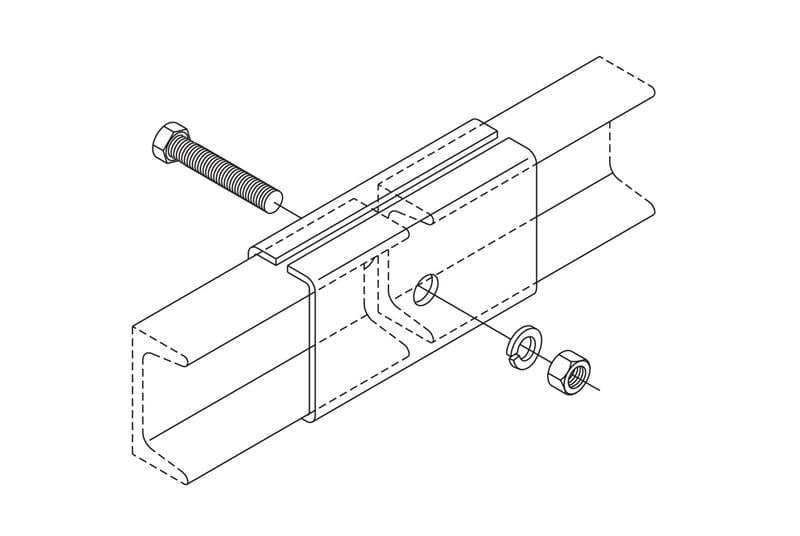

Used to butt-splice either 9/16" x 2" or 1" x 2" Auxiliary Framing Channel.
Kit consists of :
- (2) splice plates (no drilling required)
- (1) 3/8-16 hex cap screw
- (1) 3/8-16 hex nut and split lock washers
Product Information
Design Tools
Key Features of the Auxiliary Framing Channel Splice
The auxiliary framing channel splice cable runway provides a reliable channel splice connection for high‑density cable management. Designed for 9/16" x 2" and 1" x 2" auxiliary framing channels, the kit simplifies the joining of two sections without drilling. Engineers appreciate the quick‑fit splice plates that maintain structural integrity. A secure splice channel solution reduces installation time and minimizes the risk of cable movement during service. The three‑point fastening system--two splice plates, a hex cap screw, and a lock washer--delivers consistent clamping force across the joint. This results in a stable auxiliary framing channel that supports heavy‑weight cable bundles. Because the auxiliary framing channel splice requires no drilling, field technicians can complete the connection in confined spaces. The hex‑head hardware aligns precisely with the existing channel dimensions, ensuring a flush finish that preserves airflow pathways. The design also complies with industry standards for cable routing and grounding. The product integrates seamlessly with CPI's Cable Runway and Tray accessories, extending the modularity of any data‑center enclosure. It is compatible with both standard and custom‑engineered rack systems, allowing designers to maintain a uniform aesthetic across the infrastructure. The splice kit is also suitable for hyperscale, multitenant, and edge data‑center environments. Technical drawings, Visio stencils, CAD and BIM files are available for download to aid detailed planning. CPI's global network of authorized distributors provides rapid delivery and expert consultation for every project. Contact CPI for additional support and ensure your auxiliary framing channel splice meets all performance requirements.
