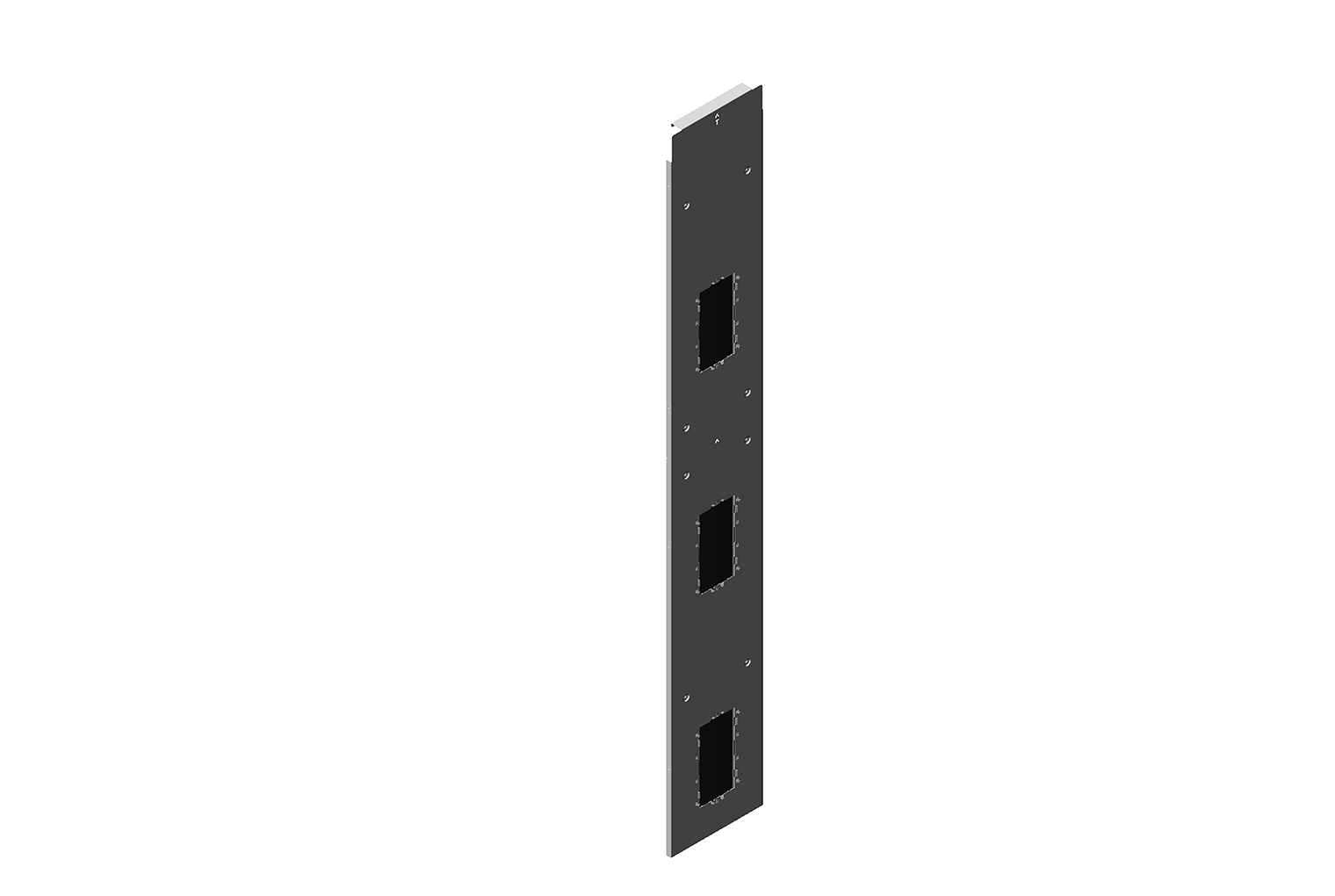

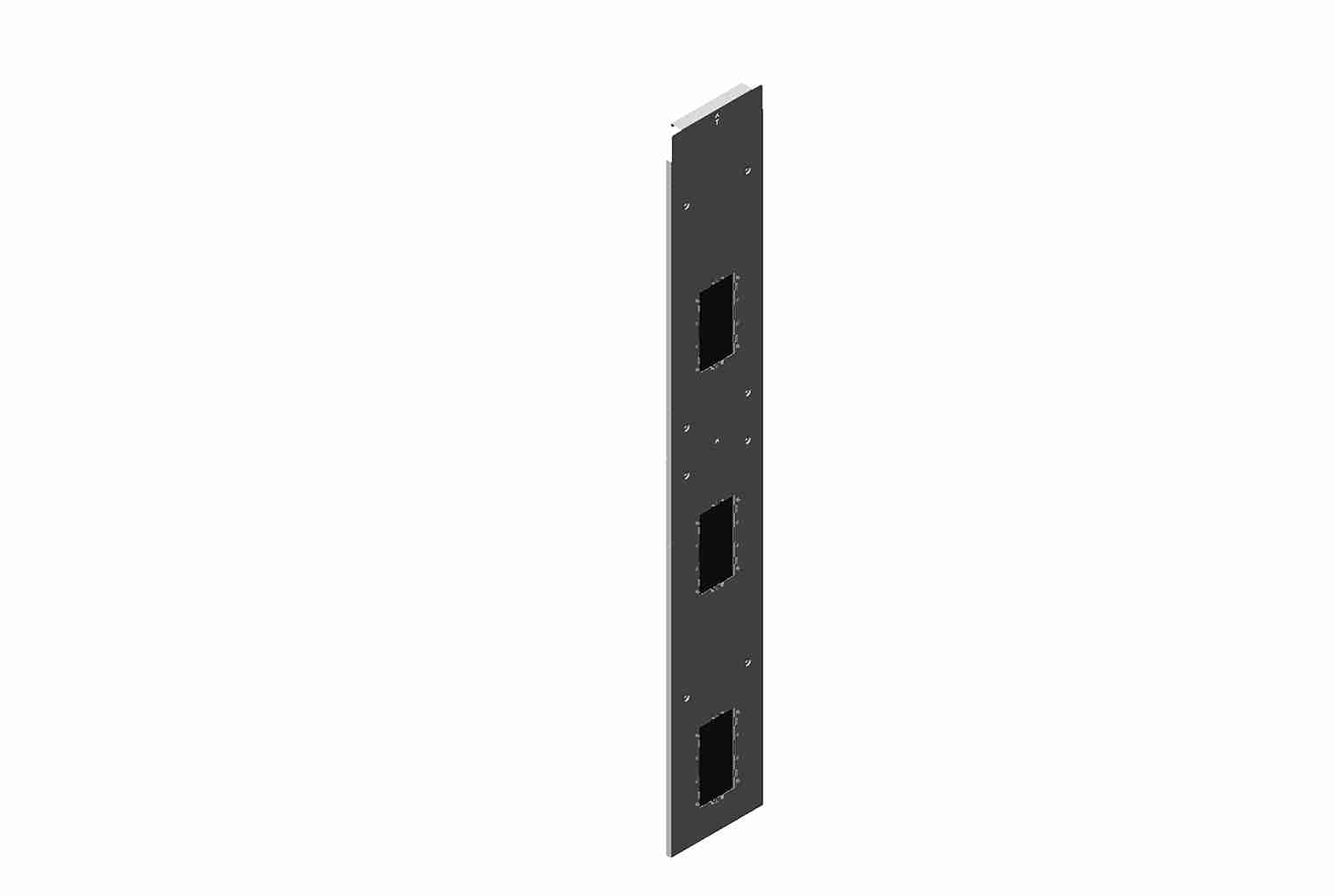

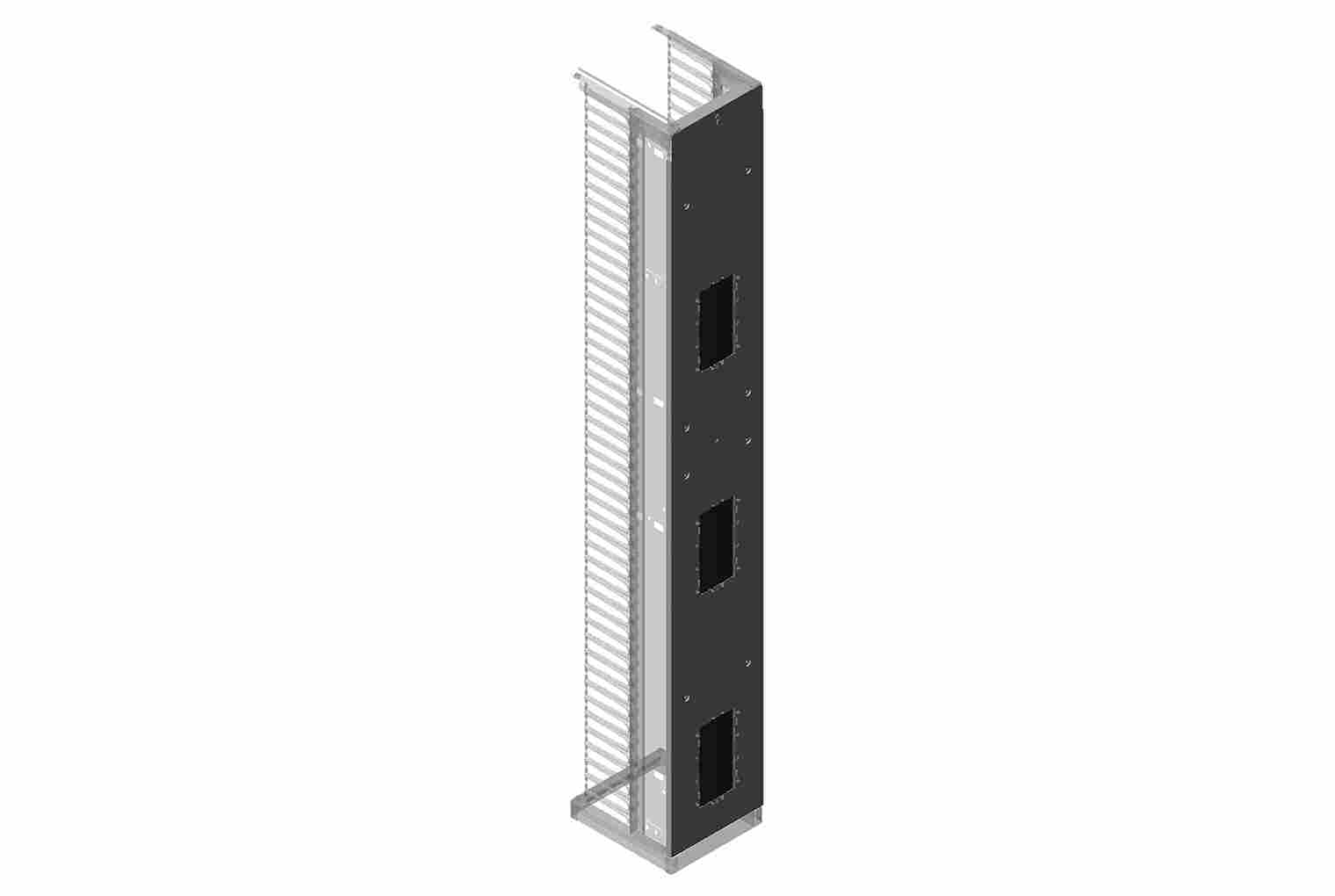

Full Height Mid-Panel Assembly Kit for Evolution Single-Sided Vertical Cable Manager
Explore Sizes & Options
| Add to Cart Add | |||||
|---|---|---|---|---|---|
33545-703 | 7" (2134 mm) | 10" (254 mm) | Brush-Sealed | $290.62 | |
33545-705 | 8" (2438 mm) | 10" (254 mm) | Brush-Sealed | $340.39 | |
33545-712 | 9" (2743 mm) | 12" (305 mm) | Brush-Sealed | $448.83 | |
33545-715 | 7" (2134 mm) | 15" (381 mm) | Brush-Sealed | $347.48 | |
33545-711 | 8" (2438 mm) | 12" (305 mm) | Brush-Sealed | $369.99 | |
33545-717 | 8" (2438 mm) | 15" (381 mm) | Brush-Sealed | $406.95 | |
33545-724 | 9" (2743 mm) | 10" (254 mm) | Grommet-Sealed | $344.12 | |
33545-706 | 9" (2743 mm) | 10" (254 mm) | Brush-Sealed | $412.95 | |
33545-709 | 7" (2134 mm) | 12" (305 mm) | Brush-Sealed | $315.90 | |
33545-730 | 9" (2743 mm) | 12" (305 mm) | Grommet-Sealed | $374.03 | |
33545-733 | 7" (2134 mm) | 15" (381 mm) | Grommet-Sealed | $289.57 | |
33545-735 | 8" (2438 mm) | 15" (381 mm) | Grommet-Sealed | $339.13 | |
33545-718 | 9" (2743 mm) | 15" (381 mm) | Brush-Sealed | $493.76 | |
33545-721 | 7" (2134 mm) | 10" (254 mm) | Grommet-Sealed | $242.19 | |
33545-723 | 8" (2438 mm) | 10" (254 mm) | Grommet-Sealed | $283.66 | |
33545-E03 | 7" (2134 mm) | 10" (254 mm) | Brush-Sealed | $319.70 | |
33545-727 | 7" (2134 mm) | 12" (305 mm) | Grommet-Sealed | $263.25 | |
33545-E09 | 7" (2134 mm) | 12" (305 mm) | Brush-Sealed | $347.48 | |
33545-729 | 8" (2438 mm) | 12" (305 mm) | Grommet-Sealed | $308.32 | |
33545-E11 | 8" (2438 mm) | 12" (305 mm) | Brush-Sealed | $406.95 |
Product Description
This kit manages airflow from the front to rear sections of the cable manager, for Hot/Cold aisle containment applications, by utilizing either brushes or grommets for cable pass-thru.
Legacy Accessories Compatibility: For all Evolution® Vertical Cable Managers ordered prior to January 29, 2024, only legacy accessories are compatible. We strongly advise customers who have purchased these units before this date to procure and use legacy accessories for optimal performance and fit.
Key Features and Benefits
- Can be ordered with brushes or grommets
- Allows for cable pass-thru
- Isolates the mixture of cold & hot air
- Height & Width Specific
- Only available for 10”W or wider Cable Managers
- Single Set
Product Information
Key Features and Benefits of the Mid-Panel Assembly Kit
The Full Height Mid-Panel Assembly Kit for Evolution® Single-Sided Vertical Cable Manager provides essential airflow management in data center environments. This mid panel solution isolates hot and cold air mixtures, enhancing thermal efficiency for containment applications. It supports cable pass-thru with brush or grommet seals, ensuring organized and secure routing.
Engineered for compatibility with Evolution® vertical cable managers, this assembly panel kit is available in multiple heights and widths to fit various configurations. The assembled height options include 7 inches (2134 mm), 8 inches (2438 mm), and 9 inches (2743 mm), allowing customization for specific rack setups. Each panel is designed for 10 inches (254 mm) or wider cable managers, offering flexibility in deployment.
Key benefits include improved airflow isolation, which reduces cooling costs and maximizes density in high-performance computing environments. The assembly cable management features prevent tangling and damage, supporting reliable data center operations. These panels contribute to future-ready infrastructure by facilitating easy upgrades and maintenance.
Installation is straightforward, with the kit including all necessary components for a single set deployment. The mid panel assembly enhances seismic stability and compliance with industry standards for secure mounting. Its durable construction ensures long-term performance in demanding applications like AI and hyperscale data centers.
For optimal results, consult CPI’s expertise to select the right assembly panel configuration for your needs. This kit is part of CPI’s comprehensive cable management solutions, backed by decades of innovation. Explore how these panels can optimize your infrastructure for efficiency and reliability.
