Floor Seal Kit
Explore Sizes & Options
| Add to Cart Add | |||||
|---|---|---|---|---|---|
39996-E00 | Floor Seal Kit, Front and Rear | For 23.6"W (600 mm) Cabinet | Glacier White | $132.69 | |
39996-703 | Floor Seal Kit, Front and Rear | For 31.5"W (800 mm) Cabinet | Black | $146.66 | |
39997-700 | Floor Seal Kit, Sides | For 31.5"D (800 mm) Cabinet | Black | $132.69 | |
39996-E03 | Floor Seal Kit, Front and Rear | For 31.5"W (800 mm) Cabinet | Glacier White | $146.66 | |
39997-708 | Floor Seal Kit, Sides | For 39.4"D (1000 mm) Cabinet | Black | $144.33 | |
39996-700 | Floor Seal Kit, Front and Rear | For 23.6"W (600 mm) Cabinet | Black | $132.69 | |
39997-E00 | Floor Seal Kit, Sides | For 31.5"D (800 mm) Cabinet | Glacier White | $132.69 | |
39996-E01 | Floor Seal Kit, Front and Rear | For 27.6"W (700 mm) Cabinet | Glacier White | $139.66 | |
39997-710 | Floor Seal Kit, Sides | For 41.3"D (1050 mm) Cabinet | Black | $146.66 | |
39997-E08 | Floor Seal Kit, Sides | For 39.4"D (1000 mm) Cabinet | Glacier White | $144.33 | |
39996-701 | Floor Seal Kit, Front and Rear | For 27.6"W (700 mm) Cabinet | Black | $139.66 | |
39997-E10 | Floor Seal Kit, Sides | For 41.3"D (1050 mm) Cabinet | Glacier White | $146.66 | |
39996-702 | Floor Seal Kit, Front and Rear | For 29.5"W (750 mm) Cabinet | Black | $144.33 | |
39997-E16 | Floor Seal Kit, Sides | For 47.2"D (1200 mm) Cabinet | Glacier White | $155.97 | |
39996-E02 | Floor Seal Kit, Front and Rear | For 29.5"W (750 mm) Cabinet | Glacier White | $133.64 | |
39997-E12 | Floor Seal Kit, Sides | For 43.3"D (1100 mm) Cabinet | Glacier White | $151.30 | |
39997-712 | Floor Seal Kit, Sides | For 43.3"D (1100 mm) Cabinet | Black | $151.30 | |
39997-716 | Floor Seal Kit, Sides | For 47.2"D (1200 mm) Cabinet | Black | $155.97 |
Product Description

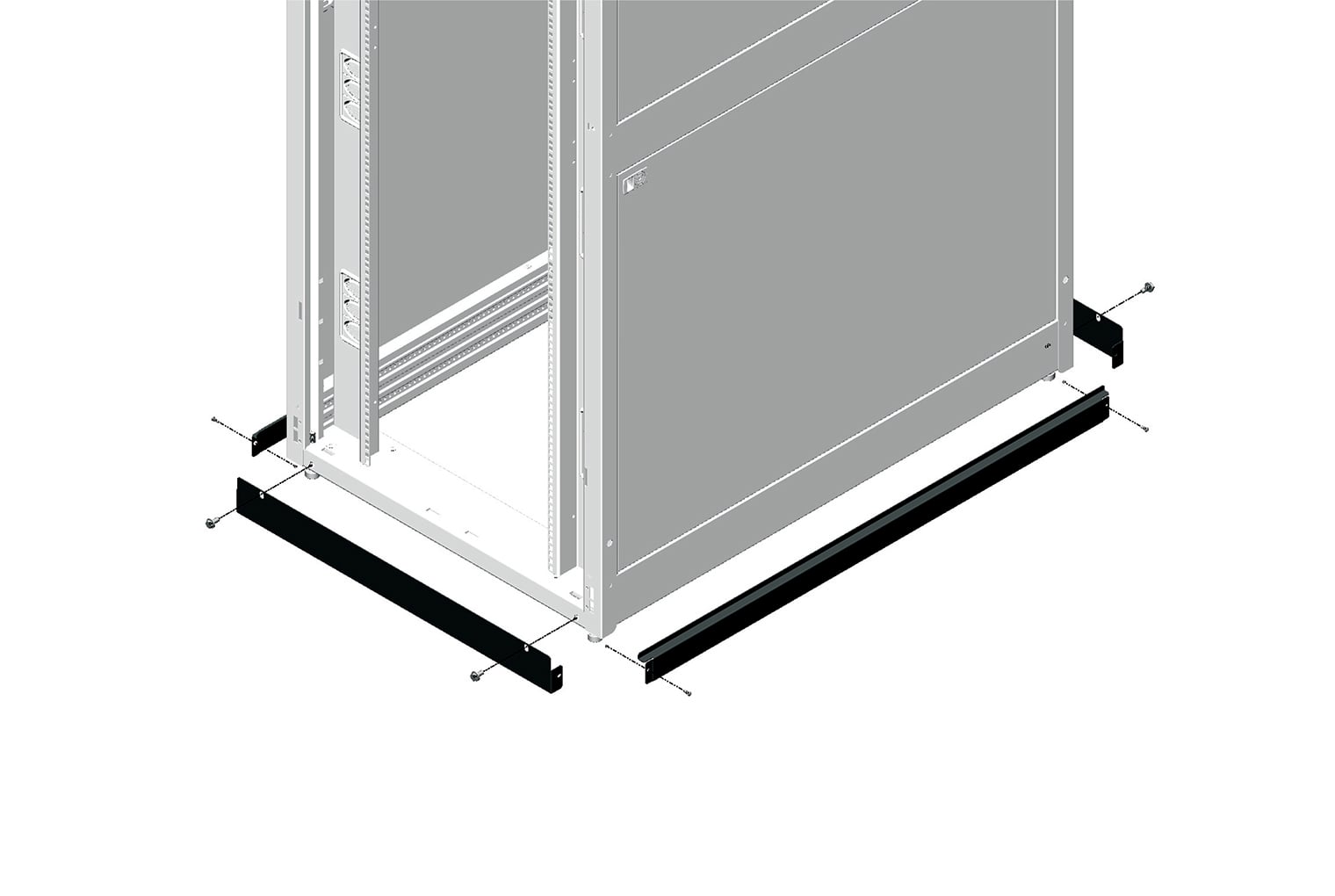

Place at the bottom of cabinets to seal the space between the bottom of the cabinet and the floor when leveling feet or casters are in use. Ideal for aisle containment applica-tions. Compatible with ZetaFrame® Cabinet.
Key Features and Benefits
- Blocks bypass airflow underneath cabinets to prevent leakage from the contained aisle
- Fits snug against cabinets and the floor
- Includes sheet steel covers
- Front and Side Seals are ordered separately
- Use one front seal kit on each cabinet; select to match the overall width of the cabi-net
- Use one side seal kit on each cabinet row; select to match the depth of the cabinet/frame
Product Information
Enhancing Cooling Efficiency with Floor Seal Installation
CPI's Floor Seal Kit provides a critical component for effective air containment in data center environments. This kit seals the gap between cabinet bottoms and floors, preventing bypass airflow that compromises cooling performance. Proper installation supports overall data center cooling strategies by maintaining contained aisles.
The Floor Seal Kit features durable sheet steel covers that fit snugly against cabinets and floors. This design blocks air leakage, which is essential for maximizing the efficiency of air containment systems. By eliminating bypass airflow, the kit helps reduce energy costs and improve thermal management.
Compatible with ZetaFrame® Cabinet systems, the Floor Seal Kit offers versatile sizing options for various cabinet widths and depths. Front and side seal kits are ordered separately to match specific cabinet configurations. This flexibility ensures seamless integration into existing data center infrastructure.
In aisle containment applications, the Floor Seal Kit acts as a reliable cabinet entry seal, preventing cool and hot air mixing. This enhancement directly contributes to superior data center cooling by maintaining precise temperature control. Data centers achieve higher cooling efficiency and operational reliability with this solution.
Implementing CPI's Floor Seal Kit as part of a comprehensive containment solutions approach delivers long-term benefits for data center operations. The kit supports sustainable cooling practices and enhances overall system performance. Data center managers can rely on this solution to uphold stringent air containment standards.
