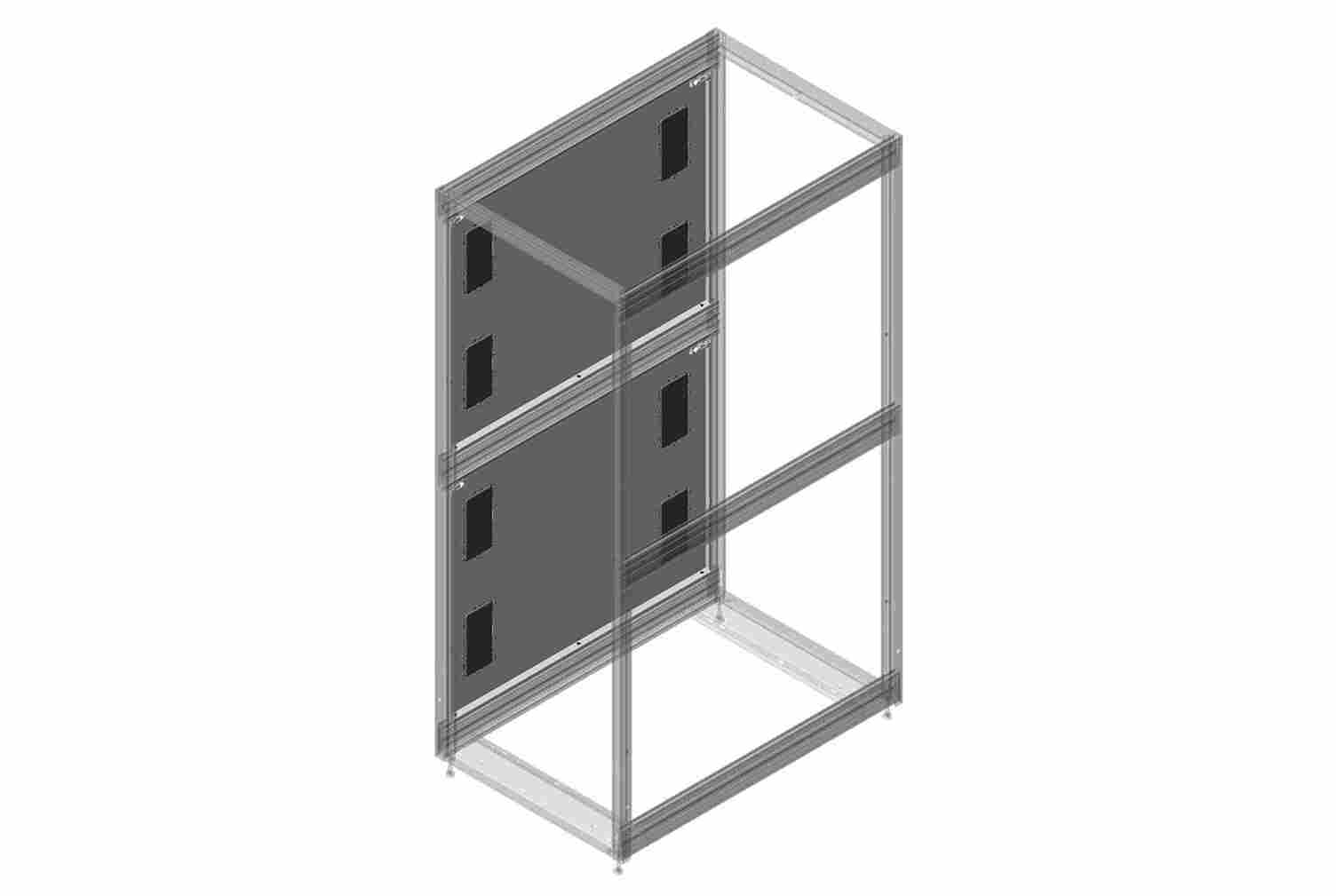

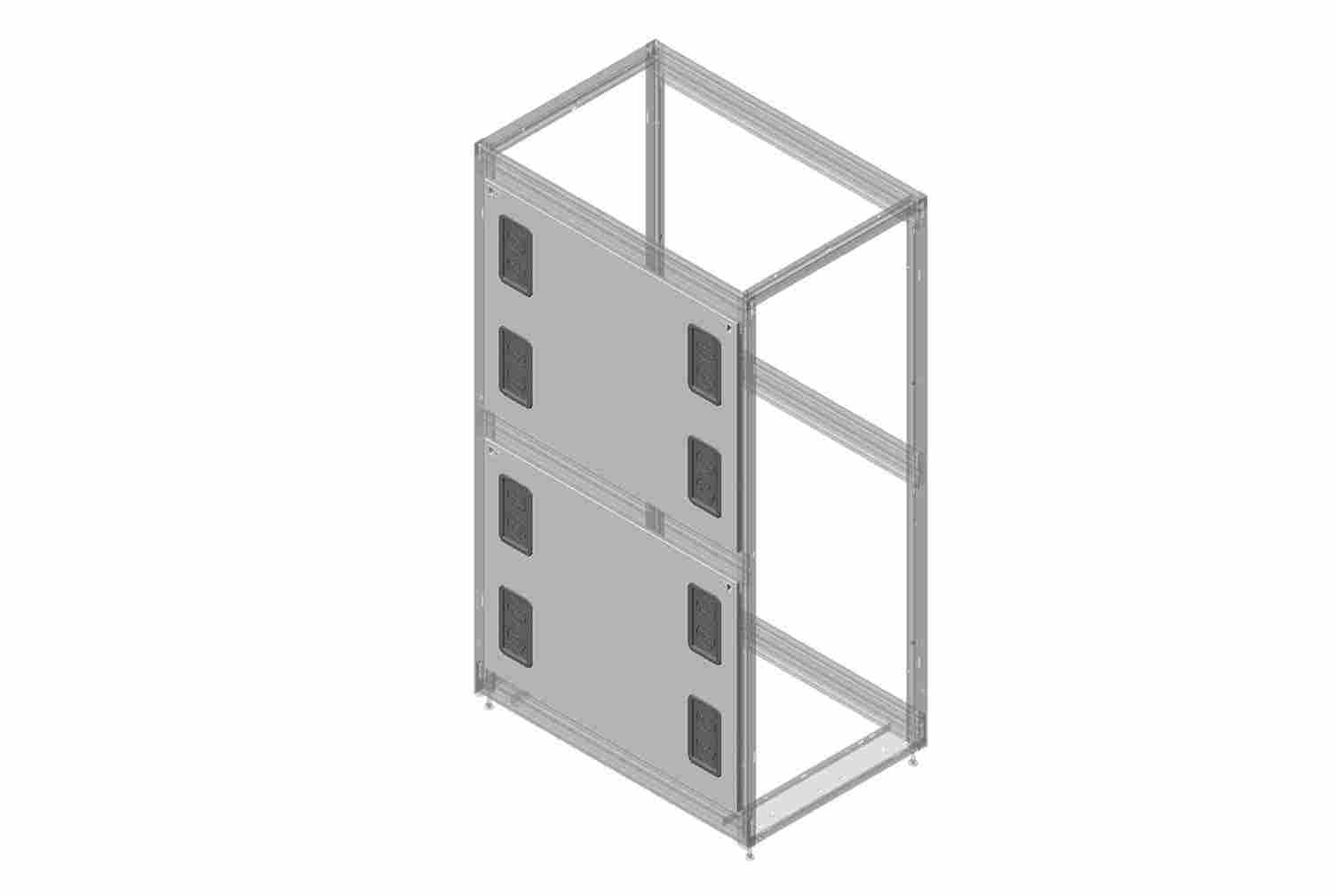

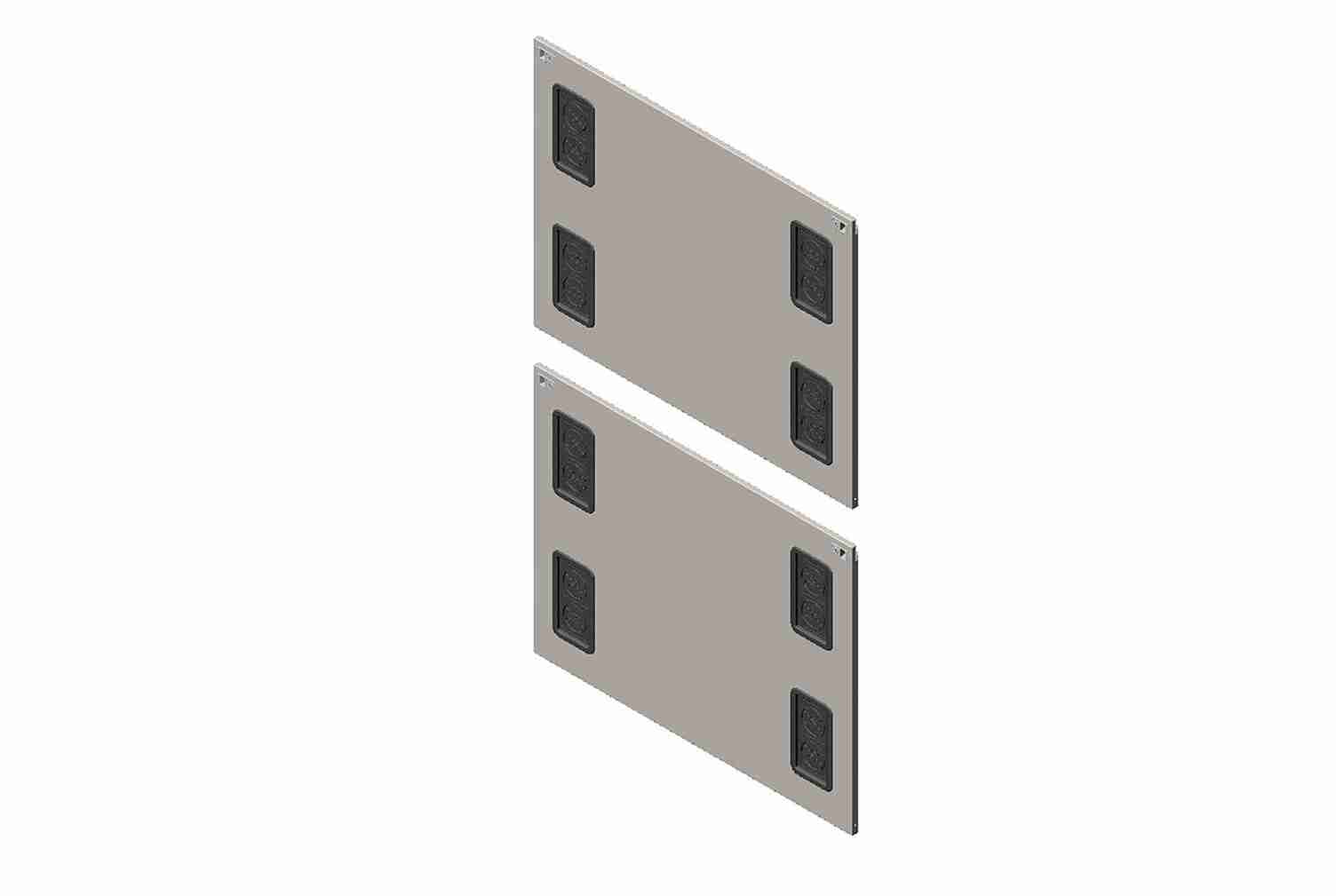

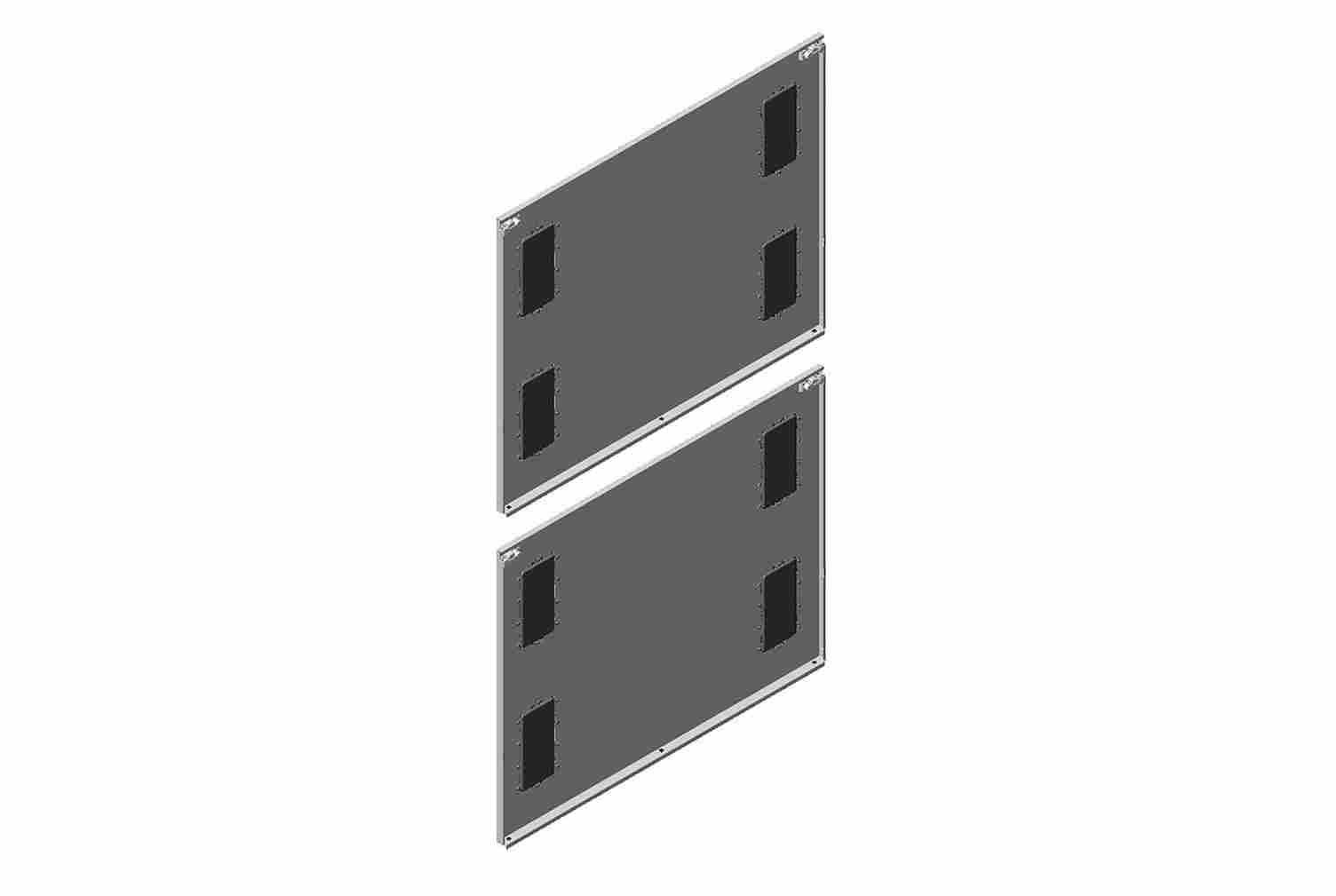

Side Panel with Grommets for ZetaFrame®Cabinet; for 52U x 47.2"D (1200 mm) Cabinet; 8 Cable Openings; Glacier White

MSRP $789.13
Cabinet Frame Depth47.2" (1200 mm)
ColorGlacier White
Height RMU52U
Product Description

To optimize cooling performance in your facility, you must isolate conditioned and exhaust air, guide conditioned air to equipment and remove exhaust air from equipment.

Key Features and Benefits
  • Includes: Side panel (two halves, solid or with grommets), set of keys
  • Two-piece design with top and bottom halves for easier handling
  • Tool-less removal, drop-in design with integrated locking spring latch secures the side panel to the cabinet frame
  • Features integral bonding, no bonding strap required
  • Side Panel with Grommets feature multiple grommet-sealed cable openings, allowing cables to enter the side of the cabinet while containing exhaust air within each cabinet
  • Side Panel with Grommets feature (8) cable openings per side, (4) per half-height panel, (1) per corner; Cable opening size without grommet is 4.5”W x 9”D (114 mm x 228 mm), sized for large power plugs
  • Grommets are plastic, snap-on and can be cut to pass cables
