13496-E60

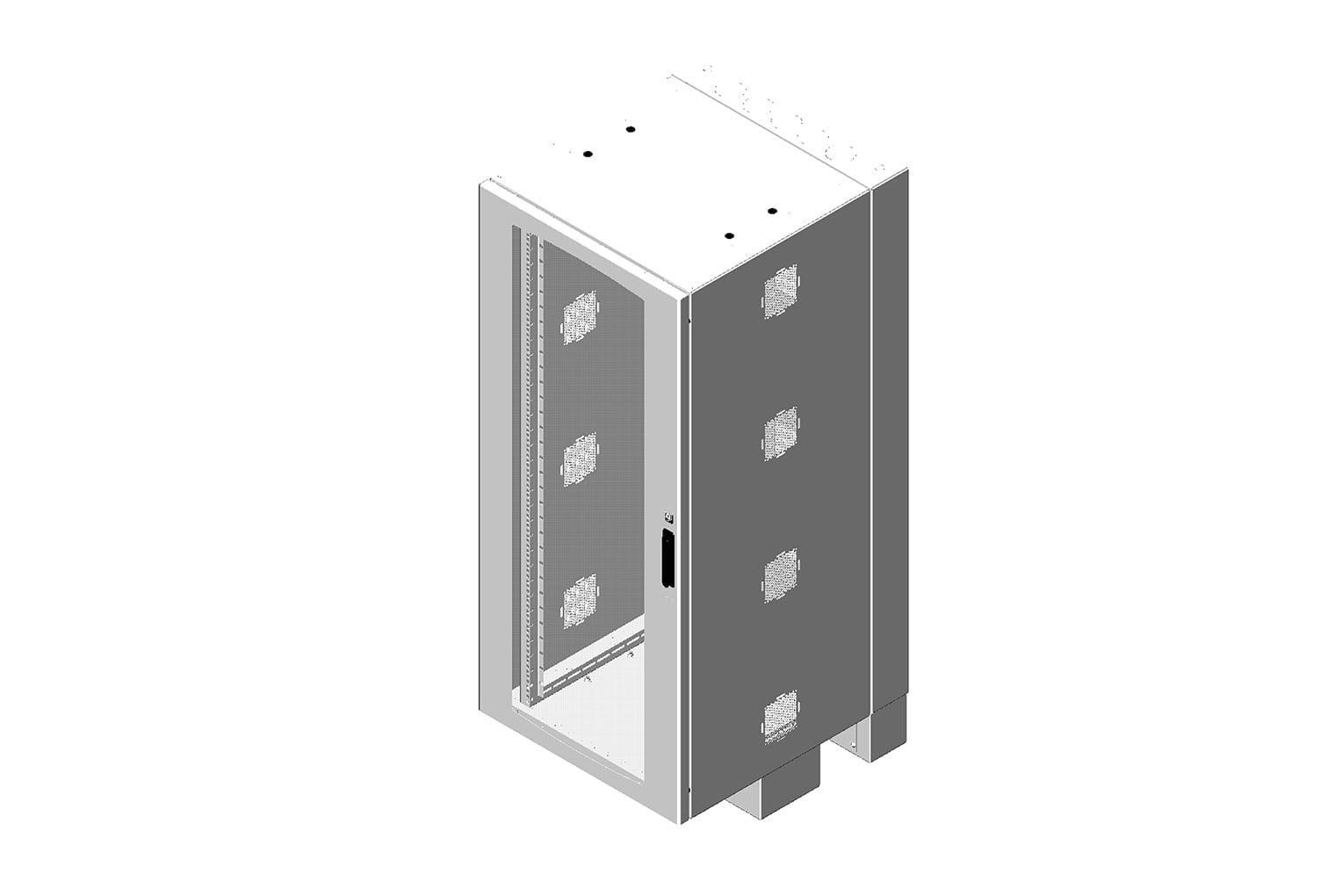

CUBE-iT®Wall-Mount Floor-Supported Cabinet; Gen 3; 60"H x 27.3"W x 30"D (1520 mm x 693 mm x 760 mm); 33U; Square-Punched Rails; Tempered Glass Door; Glacier White
| Height | 60" (1524 mm) 33U |
| Color | Glacier White |
| Door Style | Tempered Glass Door |
| Depth | 30" (762 mm) |
Product Description
The CUBE-iT® Wall-Mount Floor-Supported Cabinet protects and secures up to 40U of equipment in areas where floor space is limited.
Key Features and Benefits
- Three-part, swing-out design allows access and service to the front and rear of equipment. The cabinet body is supported on the floor by an attached wheeled base.
- A single lock and key on the front door provides access to the entire cabinet
- Cabinet body includes two pairs of adjustable depth 19" EIA square-punched equipment mounting rails and Clik-Nut Hardware Kit
- Rear panel includes 1” (25.4 mm) and 3" (76 mm) knockouts, and can accept 3/4” (19 mm) and 2.5” (63.5 mm) conduit. Edge-protection grommets are included for the 3" (76 mm) knockouts
- Rear panel features fixing points for cable slack management and attachment points for accessory rack-mount brackets
- Optional low-decibel (31 dB), dual-fan kit provides quiet operation while cooling equipment
- Factory-prepped bonding feature provides convenience and reduces installation time
Product Information
Key Benefits of the CUBE-iT® 13496‑E60 Cabinet
The CUBE-iT® 13496‑E60 cabinet delivers a compact, floor‑supported solution that maximizes usable floor space in crowded data‑center environments. Its three‑part swing‑frame design provides unobstructed front and rear access for rapid servicing. The integrated lock and key mechanism ensures that only authorized personnel can open the tempered‑glass door, aligning with the mounts lock and key services requirement. Constructed from high‑strength steel, the cabinet supports up to 33U of equipment while maintaining a sleek Glacier White exterior that matches the white e60 aesthetic preferred in modern facilities. Square‑punched rails with the Clik‑Nut® hardware kit simplify equipment installation and future reconfiguration. The optional low‑decibel dual‑fan kit offers quiet cooling for noise‑sensitive areas. The rear panel features versatile 1‑inch and 3‑inch knockouts, accommodating conduit and cable management accessories without compromising structural integrity. Edge‑protection grommets protect cables passing through the larger knockouts, extending service life. Adjustable depth rails allow precise positioning of servers and networking gear. The floor‑mounted wheeled base provides stable support while enabling easy relocation during re‑layout projects. Integrated bonding points streamline grounding procedures, reducing installation time and enhancing safety. CPI's global network of authorized distributors ensures rapid delivery and local technical support. Engineers can download CAD and BIM models to incorporate the 13496‑E60 into detailed designs, accelerating project timelines. The cabinet complies with industry standards for security and environmental performance, delivering reliable protection for critical IT assets. Selecting the CUBE-iT® 13496‑E60 equips data‑center operators with a durable, secure, and visually consistent enclosure solution.
