13812-001

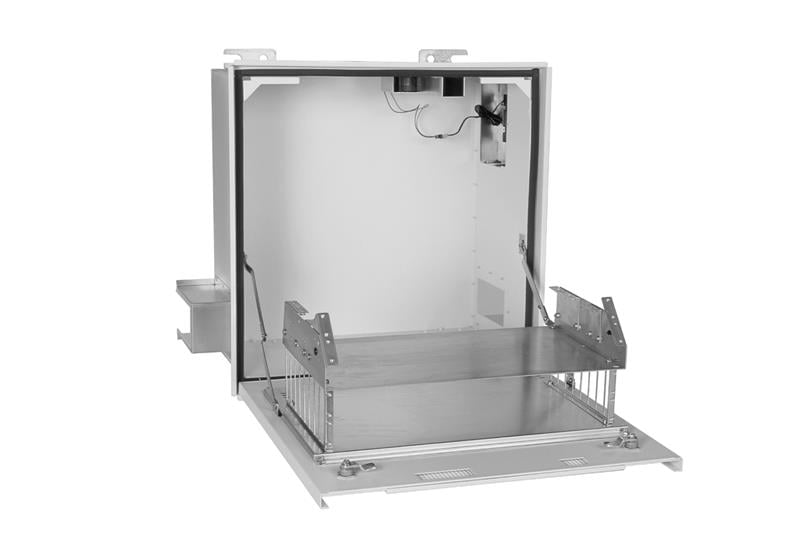

Ceiling Enclosure for Hubs; Switches and Patch Panels; 2' x 2' Ceiling Enclosure

MSRP $2,915.48
Type2' x 2' Ceiling; Large Cable Ports
Height13" (330.2 mm)
Width25" (635 mm)
Depth12" (305 mm)
Country Of OriginUS
BABA CompliantYes
Ship Width28" (71 cm)
Ship Length/Depth84" (2134 mm)
Ship Height15" (38 cm)
Shipping Weight39 LB (17.69 kg)
Product Description

Telecommunications enclosures supports a combination of active components and patch panels or other panel-mount termination hardware. Enclosures include a junction box for power and a fan to remove heat generated by active components. Order #12-24 equipment mounting screws separately.

Key Features and Benefits

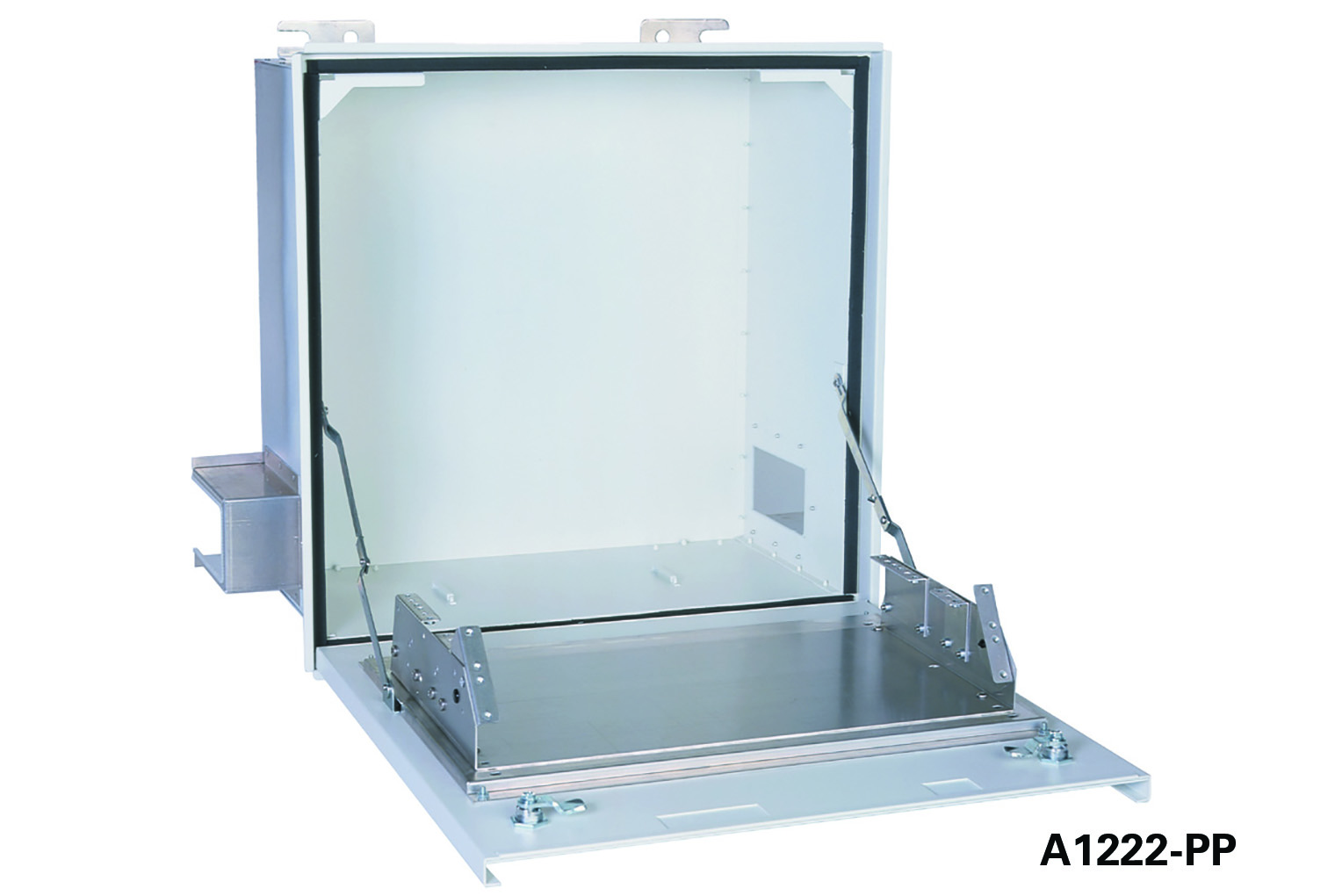

  • A1222-HR provides 5U for patch panels and 2U x 15"D (380 mm) for active equipment; equipment mounts on the door
  • 13812-001 provides larger cable openings for Cat 6A; one 3-1/4" x 14-3/4" (82.6 mm x 374.7 mm) and one 6-1/4" x 6-7/8" (158.8 mm x 174.6 mm)
  • A1024-HR provides 5U for patch panels and 2U x 15"D (380 mm) for active equipment; equipment mounts on the door
  • A1224-HR provides a total of 10U with (3) brackets sized 4U - 2U - 4U to support a combination of patch panels and 15"D (380 mm) or less active equipment; brackets may be mounted on the door or the back of the enclosure
