12121-112

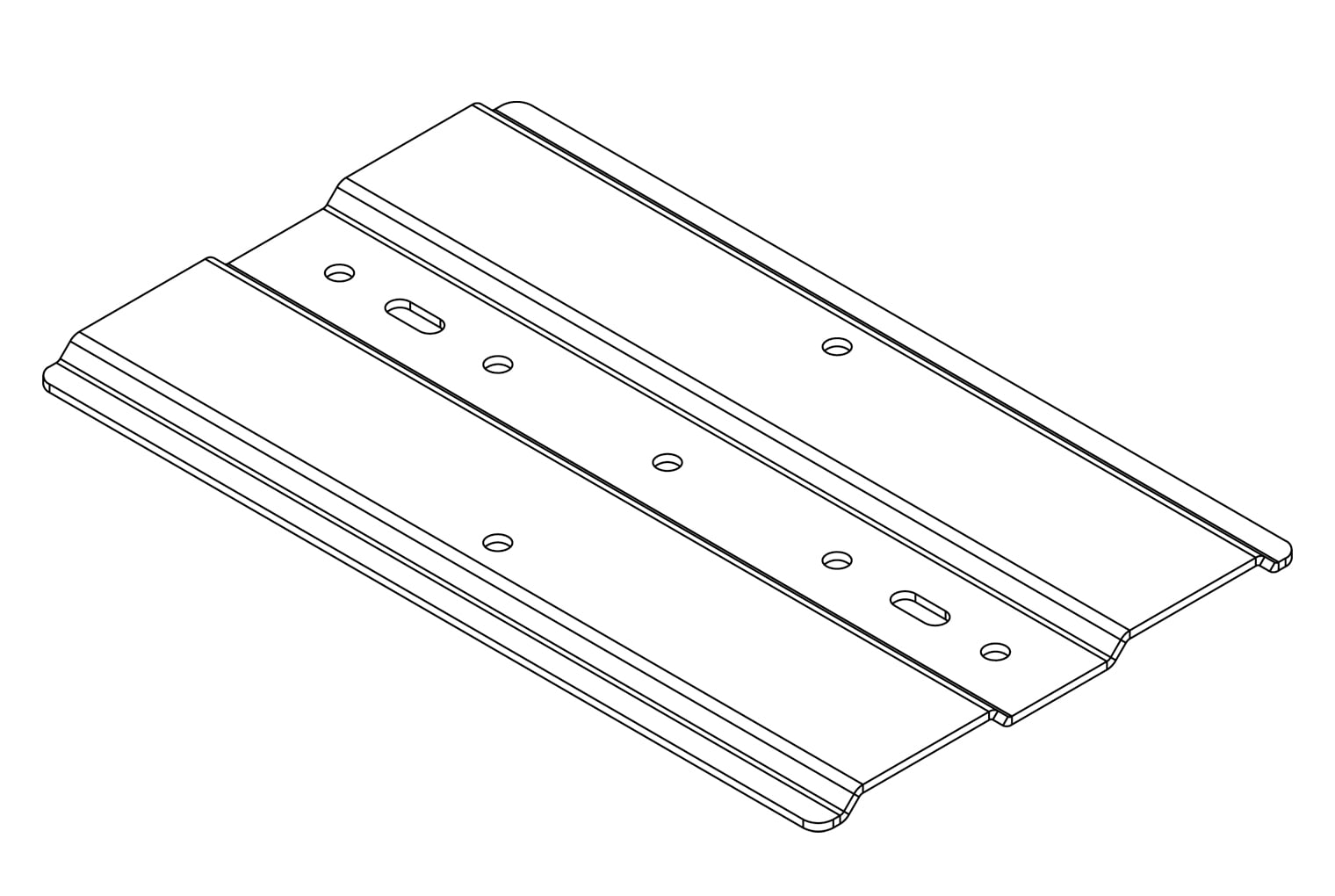

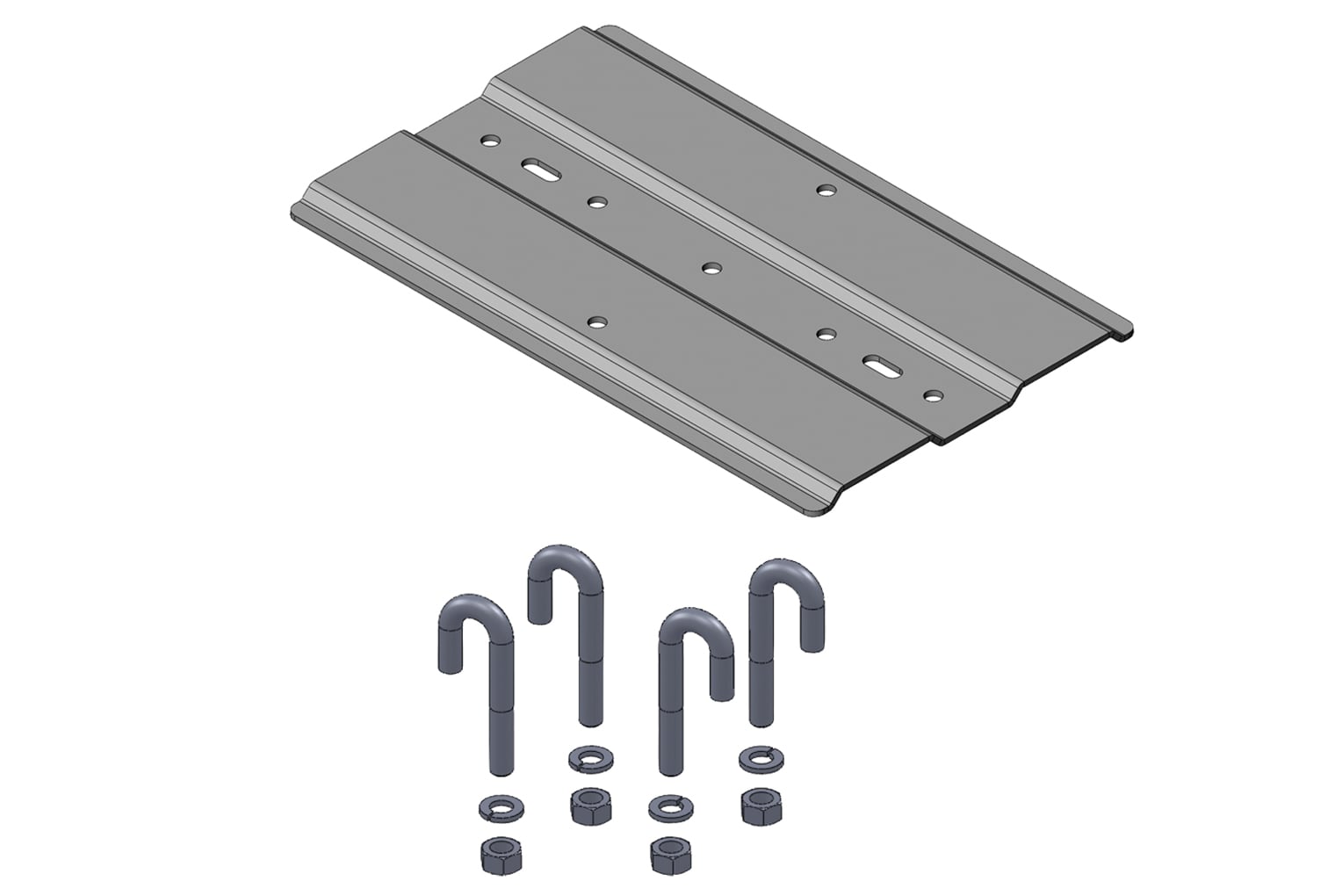

The 12121‑112 mounting plate provides a robust interface between a standard 6" (150 mm) rack and a cable runway, supporting runway power washing procedures for clean, reliable installations. Its steel construction and precision‑drilled holes ensure alignment and durability in demanding data‑center environments. Engineers appreciate the simplicity of securing the plate with four J‑Bolts and matching lock washers. Designed for both parallel and perpendicular runway configurations, the plate accommodates the 112 channel layout commonly used in high‑density cable management systems. The universal design eliminates the need for custom brackets, reducing lead time and inventory complexity. This flexibility makes the rack‑to‑runway mounting plate a preferred choice for scalable infrastructure projects. Proper installation begins with the recommended Runway Elevation Kit (P/N 10506‑XXX) to achieve optimal clearance for airflow and maintenance access. Use the supplied 5/16‑18 x 2 ¼″ J‑Bolts, hex nuts, and split lock washers to fasten the plate securely to the rack's top rail. Verify that the plate sits flush and that all J‑Bolts are torqued to the manufacturer's specifications. CPI offers downloadable CAD and Visio stencil files to streamline integration of the 12121‑112 plate into your design workflow. The CAD bundle includes 3‑D models compatible with major engineering platforms, while the Visio stencil enables quick schematic documentation. These tools help ensure that the mounting plate fits seamlessly within your overall cable‑runway layout. When you choose this mounting plate, you benefit from CPI's global support network and rapid product customization capabilities. Our technical specialists can advise on best practices for runway power washing and assist with any fit‑check questions. Trust CPI to deliver high‑quality, field‑proven solutions that keep your data‑center operations running smoothly.
