60507-702

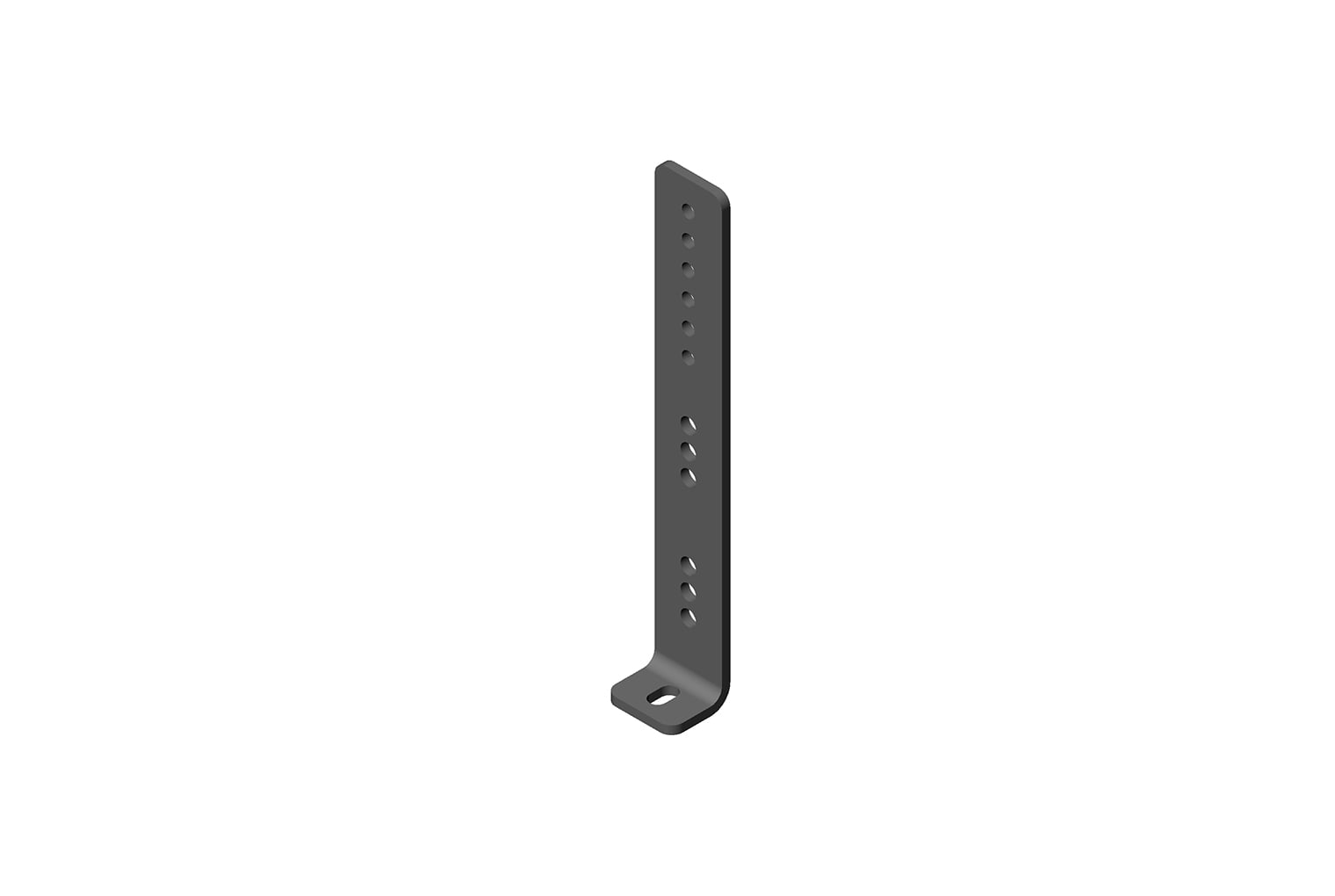

Combination Elevation Kit for Wire Basket Tray and CPI Cable Runway, Non-Zeta Cabinets; 2"-3"H (50 mm-75 mm); Black; Each
| Type | For Use With Wire Basket Tray and CPI Cable Runway |
| Height Range | 2"- 3"H (50 mm-75 mm) Elevation |
| Color | Black |
Product Description
Supports Cable Runway above a continuous row of CPI Racks or Cabinets of varying heights and provides additional space between the tops and the cable runway and trays.
10506 Series - Supports One Tier of Pathway:
- Three ranges of incremental elevation
- Can be mounted perpendicular or parallel
- Rack kit includes a single pair of brackets and assembly hardware
- Rack kits attach to the top of the rack with a Rack-To-Runway Mounting Plate (P/N 10595 or 12121, sold separately)
- Cabinet kits include two pairs of brackets and assembly hardware
- Cabinet kits attach directly to the top of the cabinets
- Compatible with Adjustable Cable Runway
60507 Series - Supports Two Tiers of Pathway:
- Two Tier version supports two levels of cable runway or wire mesh cable tray
- Recommended pathway support span is 5' (1.5 m).
- Attaches to top track of Cabinet/Rack frame. Position pathway front-to-rear on track
- Kit includes (1) pair of elevation brackets, all hardware to attach the brackets to the cabinet, and all required hardware to attach Cable Runway to elevation brackets
Product Information
Design Tools
Key Benefits of the 60507 Elevation Kit
The 60507 Cable Runway Elevation Kit provides a reliable method for raising a cable runway above a row of CPI racks or cabinets. Designed for heights between 2‑3 in. (50‑75 mm), the kit creates a uniform gap that protects cables and improves airflow. Its black finish blends seamlessly with most data‑center environments. Engineers can pair the kit with a Wire Basket Tray to route power and data cables in a tidy, organized manner. The kit's brackets attach directly to the top track of the cabinet or rack, eliminating the need for custom fabrication. This standardization speeds deployment and reduces installation errors. Robust elevation brackets are fabricated from high‑strength steel and include all necessary mounting hardware. The brackets support a single tier of pathway in the 10506 series or a dual‑tier configuration in the 60507 series, offering flexibility for future expansion. Their design allows both perpendicular and parallel mounting to suit diverse layout constraints. For installations that require additional lift, the kit can be combined with the elevation Skybar™ accessory, delivering up to three inches of extra height without compromising structural integrity. The Skybar™ solution integrates smoothly with the existing brackets, maintaining the clean aesthetic of the system. This option is ideal for high‑density racks where additional clearance is critical. By using the 60507 Elevation Kit, facilities gain consistent cable management, enhanced cooling efficiency, and easier maintenance access. The modular nature of the kit aligns with CPI's commitment to rapid product customization and global availability. Contact an authorized CPI distributor to integrate the kit into your next data‑center design.
