Customize Your Product
Type
Explore Sizes & Options
| Add to Cart Add | |||
|---|---|---|---|
14666-001 | eConnect® RFID Electronic Lock Kit | $1,548.02 | |
14668-001 | Security System RFID Electronic Lock Kit | $1,477.69 | |
14667-001 | Networked RFID Electronic Lock Kit | $2,538.14 |
Product Description

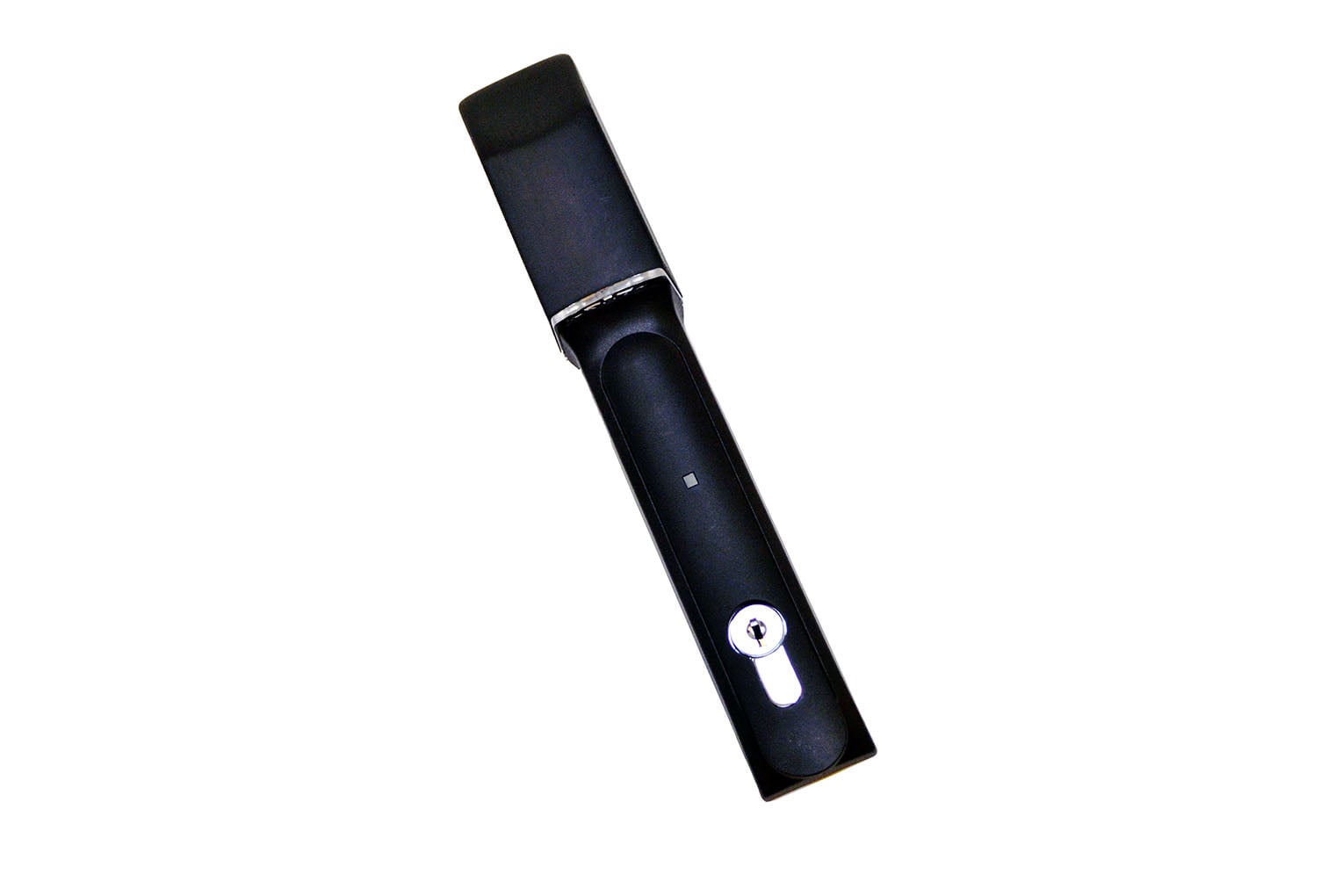

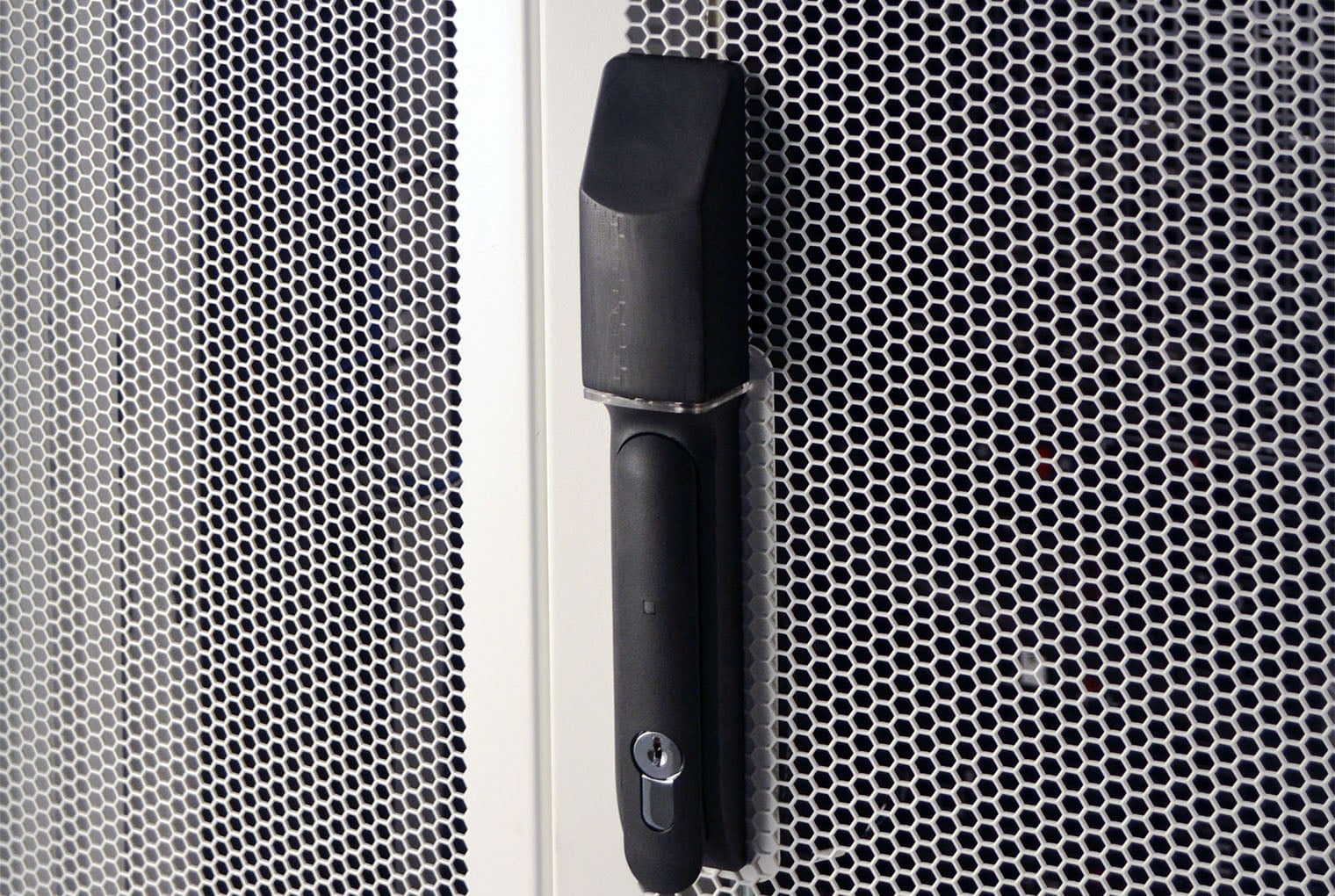

The Electronic Lock Kit solution can be preinstalled in CPI Cabinets and features swinghandles with integrated dual-frequency card reader technology. Audit trail capability allows for enhanced regulatory compliance.
Key Features and Benefits
- Integrated RFID Card Reader – Separate lock options recognize existing employee 125 kHz or 13.56 MHz RFID cards, including HID, iClass®, MIFARE® and DESFire technologies
- Future-proof Design – Modular reader allows the use of the same swing-handle as card technologies evolve
- Flexible Management – Multiple methods of integration: through eConnect PDUs, networked controller or building security access control system
- Regulatory Compliance – Allows audit trail to be maintained for every access attempt within DCIM software or access control systems in order to comply with HIPAA, PCI DSS, GDPR, FISMA, Saas SOC 2®, HITECH and more
- eConnect Integration – Eliminates the need for a separate IP address or a separate source of power for the lock. Saves significant deployment costs normally associated with wiring the locks to security panels
- Remote Access Control – Ability to remotely open/close doors allows administrators to provide access to contractors without badges
- Centralized Authentication – Ability to use the permissions set within RADIUS server to provide higher levels of security

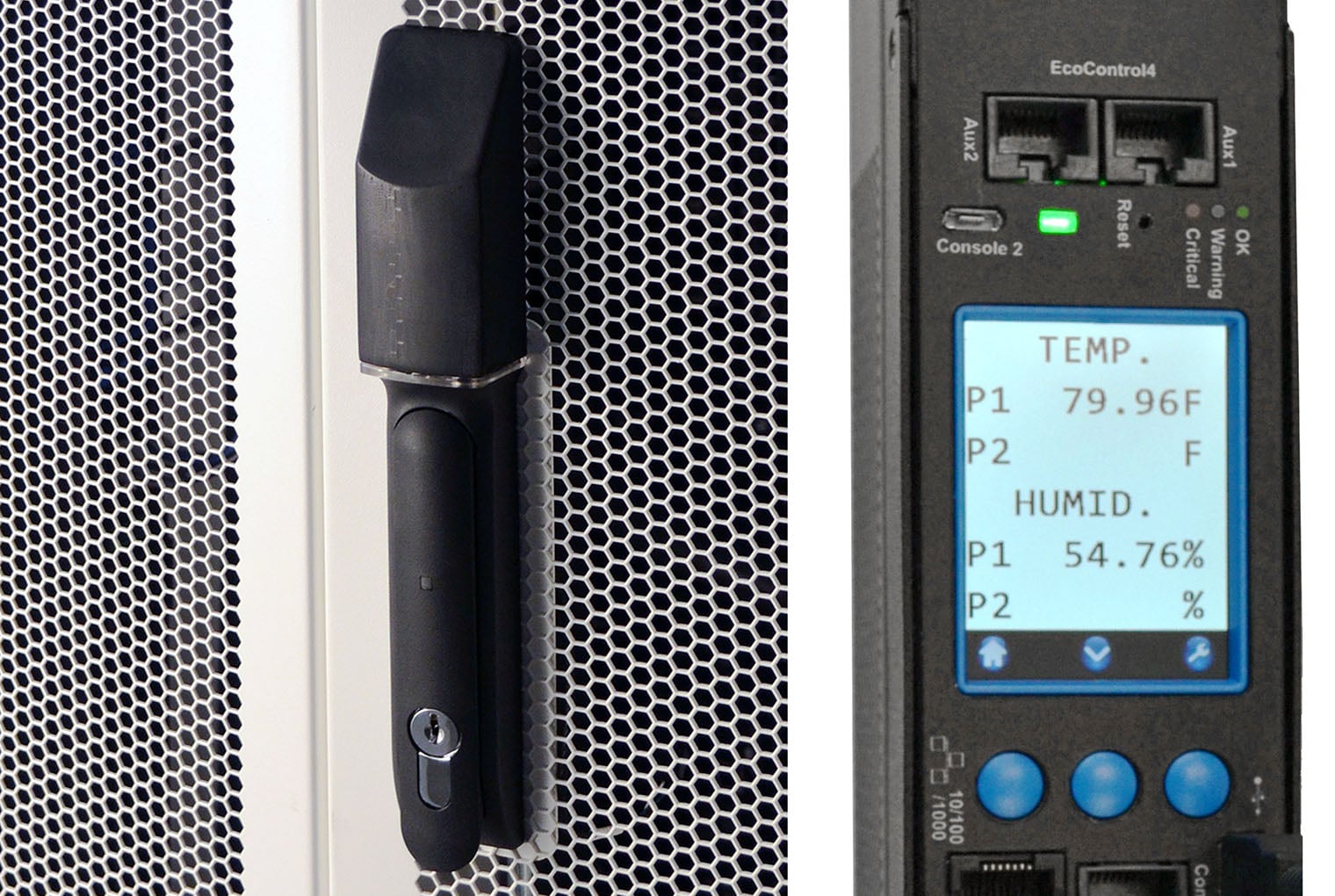

- eConnect® RFID Electronic Lock Kit
Kit includes:- Integration with eConnect PDU and environmental monitoring into a single platform and web interface
- Front and rear swinghandles
- 3 door sensors (front and rear doors)
- 2 wiring harnesses (for front and rear connection)
- 2 mechanical override keys

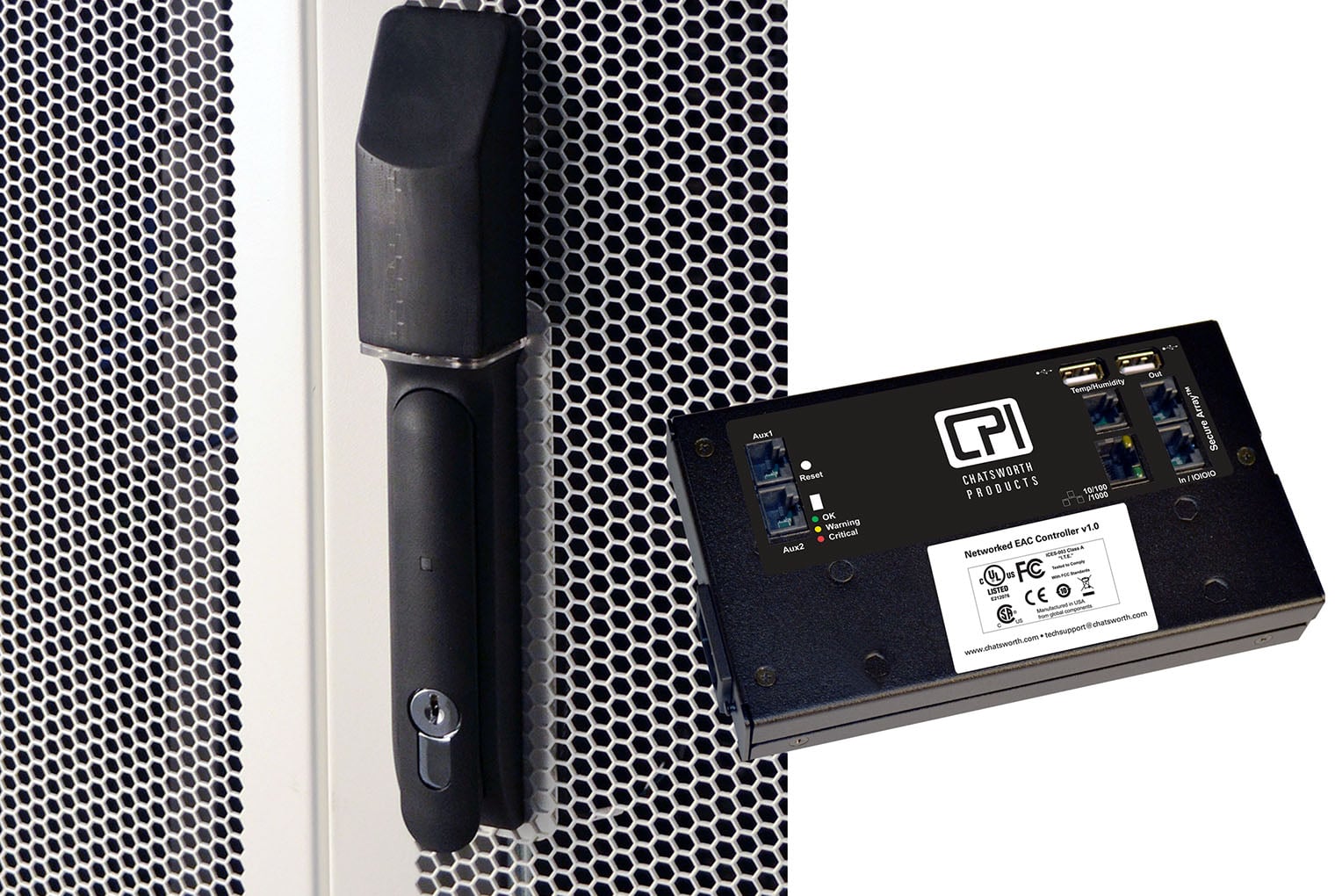

- Networked RFID Electronic Lock Kit

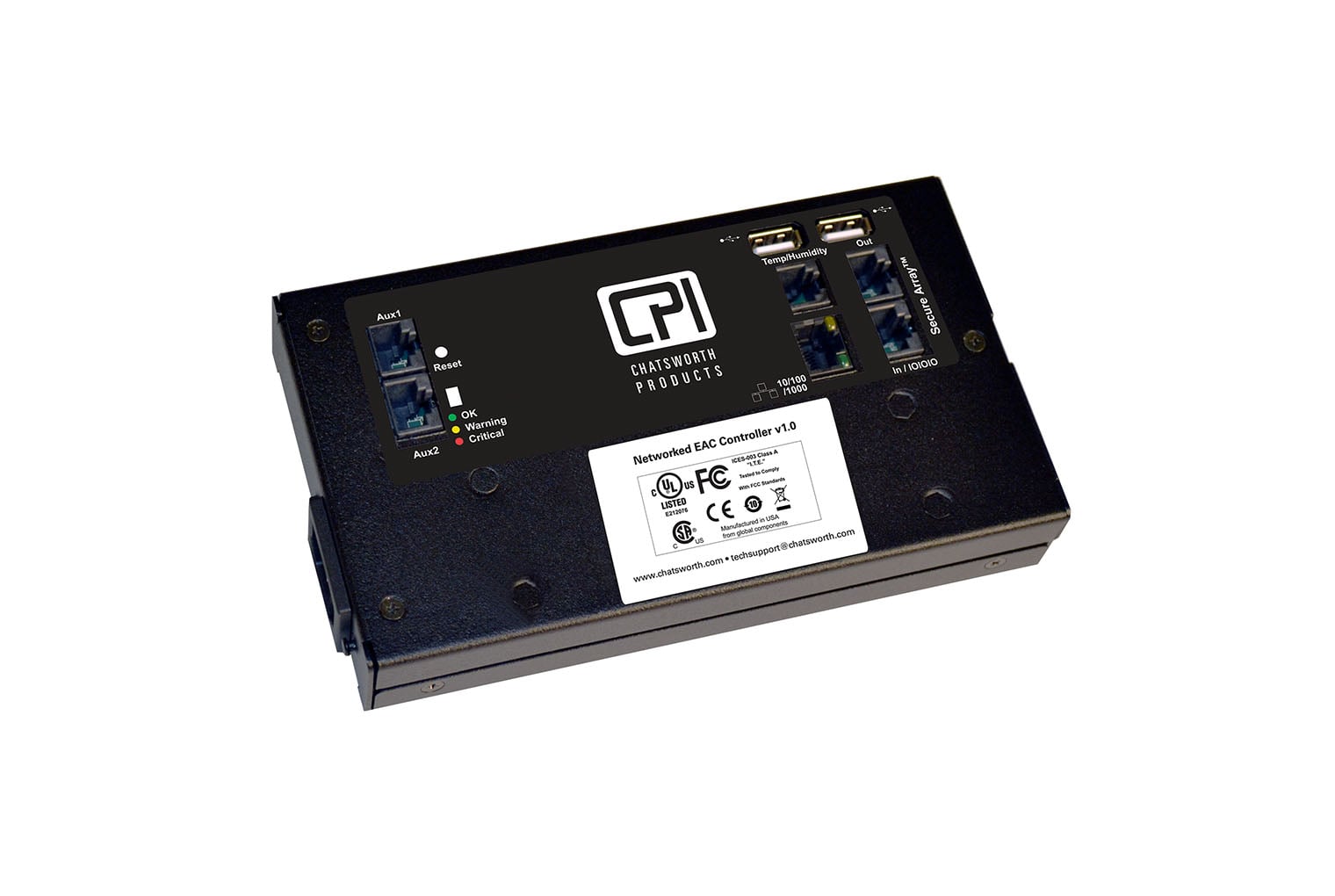

Kit includes:- Controller module with Gigabit Ethernet port & built-in web interface
- Secure Array IP Consolidation for up to 16 cabinets
- Capability to integrate with USB Temperature and Humidity Sensor
- Front and rear swinghandles
- 3 door sensors (front and rear doors)
- 2 wiring harnesses (for front and rear connection)
- 2 mechanical override keys
- Security System RFID Electronic Lock Kit

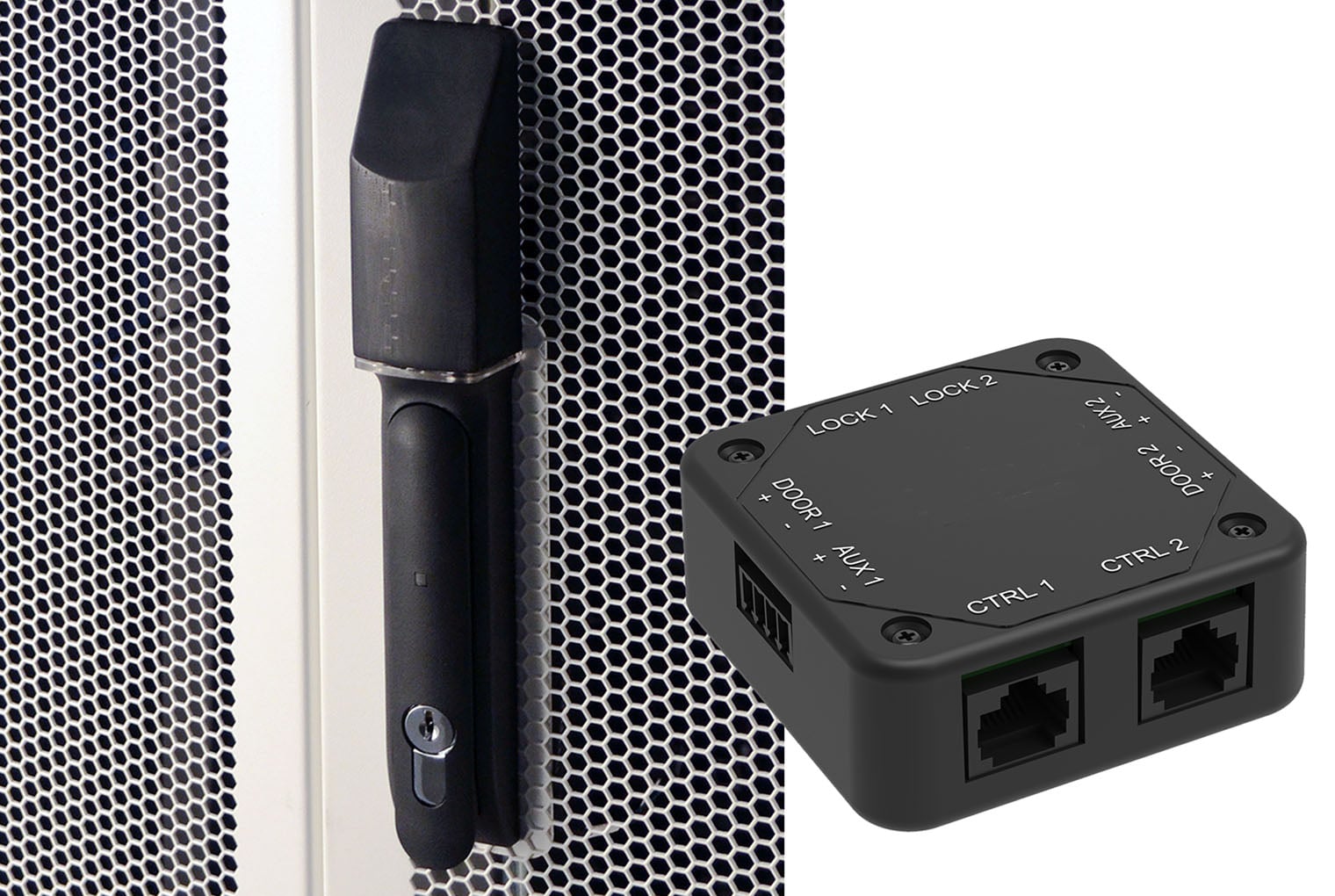

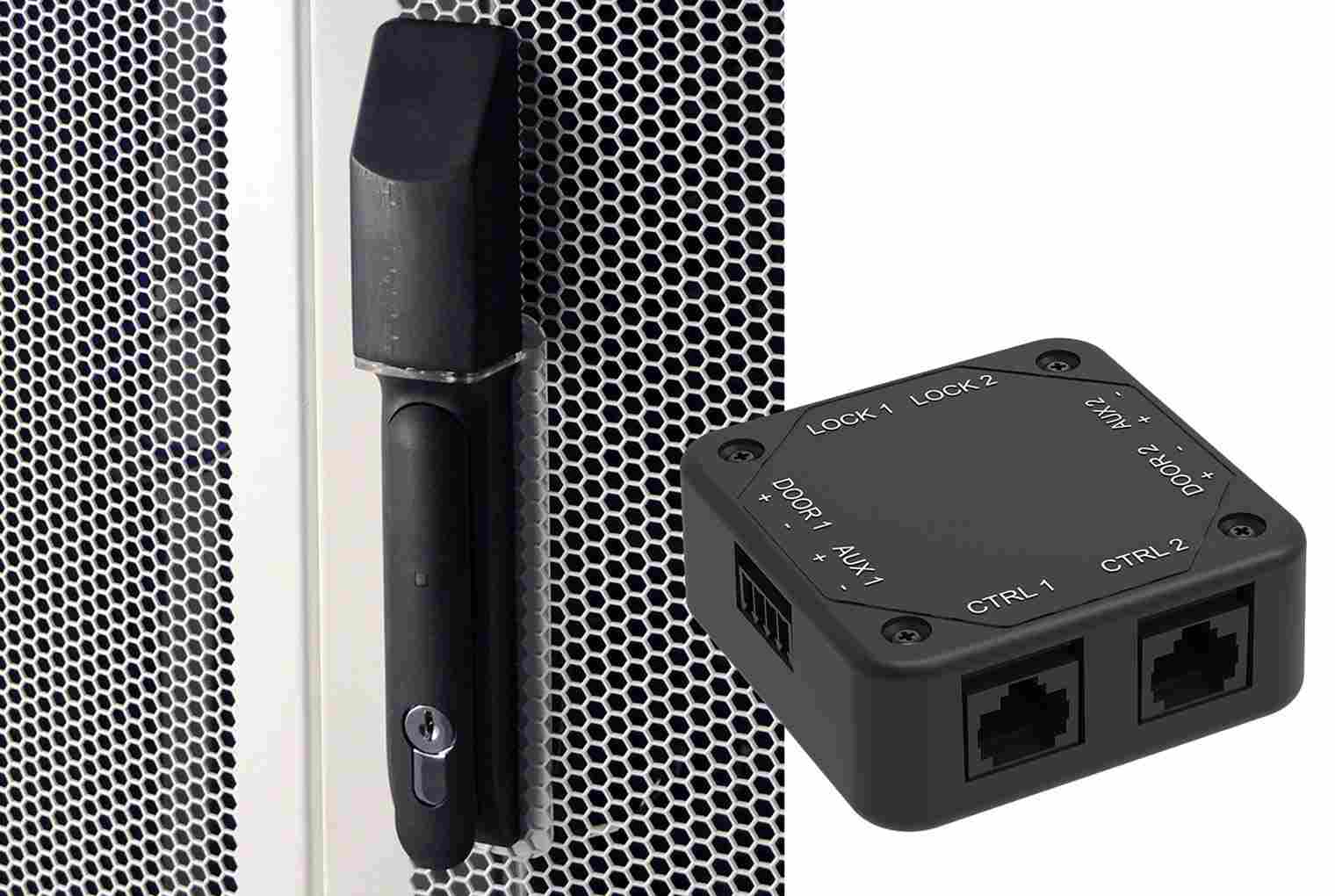

Kit features:- Security System Integration Kit for Wiegand-based security panels
- Supports connection of two separate channels for independent system control
- Front and rear swinghandles
- 3 door sensors (front and rear doors)
- 2 wiring harnesses (for front and rear connection)
- 2 mechanical override keys
