12820-703
Basic Power Strip; for CUBE-iT PLUS Cabinet System; 110-125 Volt; Single-Phase; Surge-Protected; 15 Amp; 1.4 kW; NEMA 5-15P; 1 x 15A; (6) 5-15R Outlets; 19.2"H x 1.8"W x 2.7"D (488 mm x 44 mm x 68 mm); Black
| Volts | 110-125V |
| Plug | NEMA 5-15P |
| Phase | |
| Outlets | |
| Breakers | |
| Input Current |
Product Description

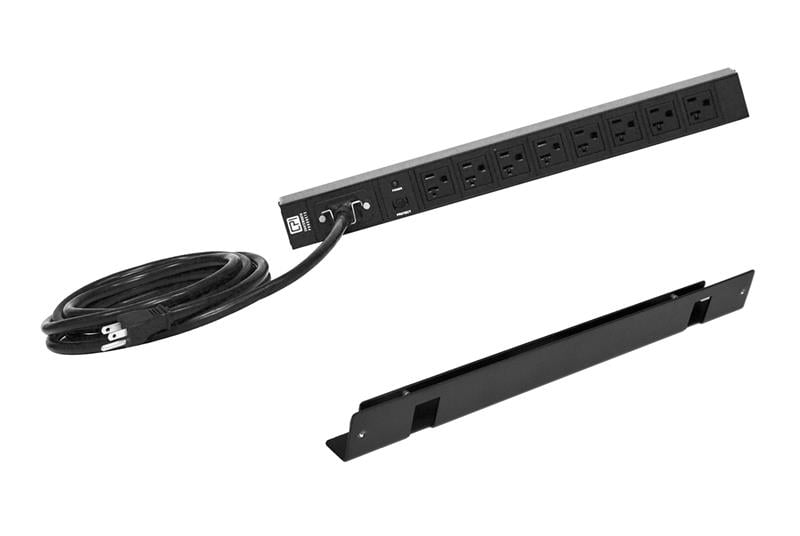

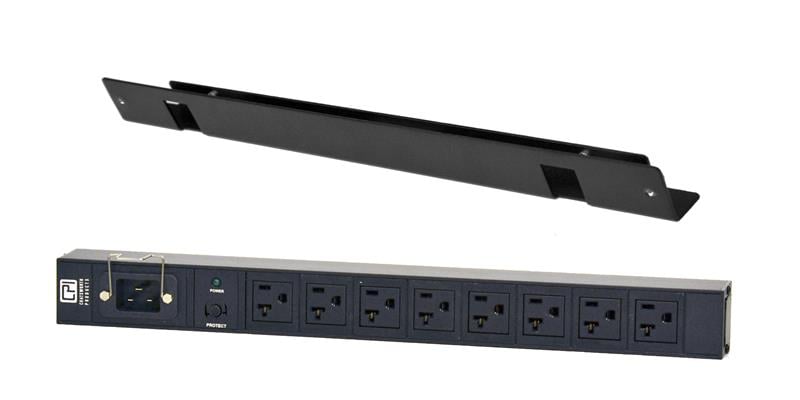

Power strip mounts inside top, bottom or side of Cube-iT Cabinets.
- Six or eight 3-prong, 15A or 20A, 110-125 Vac outlets
- Circuit breaker provides basic over-current protection
- Optional surge protection provides basic voltage spike protection (1100 Joules, LED indicator)
- IEC C20 power inlet with cord retention bracket
- Includes detachable power cord with NEMA plug
- Select straight or locking plug
- Includes mounting bracket and installation hardware
- UL® Listed
Product Information
Power Outlet Cube Features and Applications
The 12820-703 power strip from Chatsworth Products is engineered for seamless integration with CUBE-iT® cabinet systems, offering reliable power distribution for data center and network applications. This cube power strip provides six grounded NEMA 5-15R outlets in a compact form factor, optimizing space within the enclosure while supporting equipment with its 15-amp capacity. Its design ensures efficient power management in high-density environments, making it a versatile solution for various IT infrastructure needs.
Specifications include operation at 110-125 volts single-phase, delivering up to 1.4 kW of power with integrated surge protection rated at 1100 joules for enhanced safety. The power strip cube features a NEMA 5-15P plug and a detachable power cord with cord retention, ensuring secure connections in demanding setups. Dimensions of 19.2 inches high by 1.8 inches wide by 2.7 inches deep (488 mm x 44 mm x 68 mm) allow flexible mounting inside cabinet tops, bottoms, or sides.
Key benefits of the 12820-703 include robust surge suppression with an LED indicator to monitor protection status, safeguarding connected devices from voltage spikes. The integrated circuit breaker provides over-current protection, reducing the risk of damage to sensitive electronics and maintaining uptime. This power outlet cube solution is ideal for critical applications where reliable power distribution is essential, such as in enterprise data centers or edge computing environments.
Installation is straightforward, with multiple mounting options enabling customization within CUBE-iT cabinets to suit specific layout requirements. The power strip includes all necessary hardware and brackets for quick deployment, minimizing setup time and ensuring a secure fit. This flexibility supports efficient power management across diverse cabinet configurations, enhancing overall system organization and accessibility.
Compliance with UL Listed standards ensures the 12820-703 power strip meets rigorous safety and performance criteria, reflecting CPI's commitment to quality and reliability. Built for durability in challenging conditions, this power strip cube offers long-term value by protecting investments in IT infrastructure. Trust CPI's expertise to deliver power distribution solutions that optimize performance and support advanced technologies like AI and high-performance computing.
