Aisle Containment Door Assembly

32770-E02

Aisle Containment Door Assembly

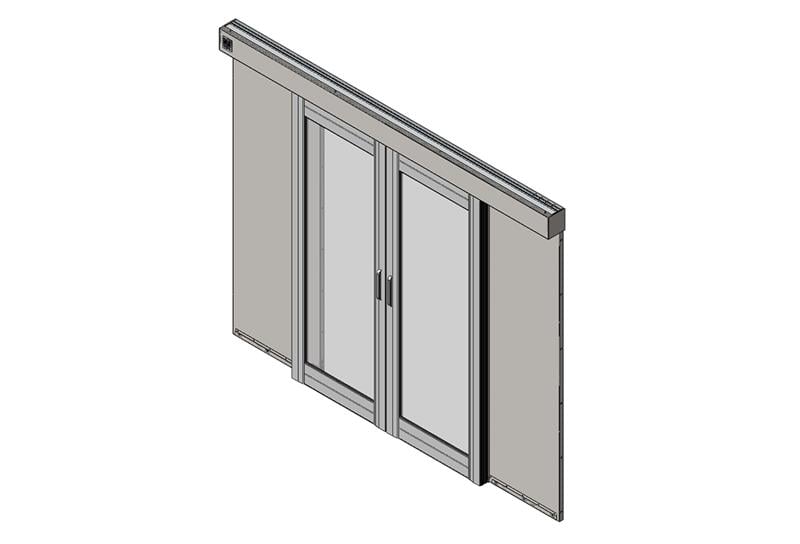

Aisle Containment Double Door Assembly; 88.5"H x 106.9"W x 5.5"L (2248 mm x 2715 mm x 140 mm); Clear Anodized Frame; Glacier White Panels

MSRP $6,912.52

Type	Anodized Aluminum Door Frames
Door Style	Double Door
Color	Glacier White

Aisle Containment Doors are used on the ends of two adjacent rows of cabinets. The doors are part of a complete Aisle

Containment Solution that captures cold air or vents hot air from an enclosed aisle.

• Encloses the end of an aisle between adjacent cabinet rows

• Compatible with F-Series TeraFrame® Cabinets and GF-Series GlobalFrame® Cabi-nets or CPI’s Frame Supported Exhaust Duct

Fits snug against cabinets/frame
Sliding action minimizes clearance requirements
Door frames feature an integrated interior handle, full height vertical edge seals, height adjustable brush floor seals and a magnetic door seal
Automatic close system ensures maximum performance by minimizing airflow dis-ruptions and includes a speed control damper for safe operation
Detents open feature for easy access during extended service periods
No threshold under the door when opened
Low profile design conceals floor installation hardware
Door frames are anodized aluminum with a large, full-height, transparent polycar-bonate window
Door track is aluminum extrusion; end panels, cover and brackets are steel
One size, assembly is 88.5” (2248 mm) high by 106.9” (2715 mm) wide by 5.5” (140 mm) deep with an 82” (2083 mm) high by 42” (1067 mm) wide door opening
Spans 48” (1200 mm) to 72” (1800 mm) wide aisles (two to three tiles)
Not compatible with cabinets/frames less than 42” (1050 mm deep on seven tile, 168” (4200 mm) pitch
End panels are painted glacier white or black; option for paint matched door frames available
