14520-E02

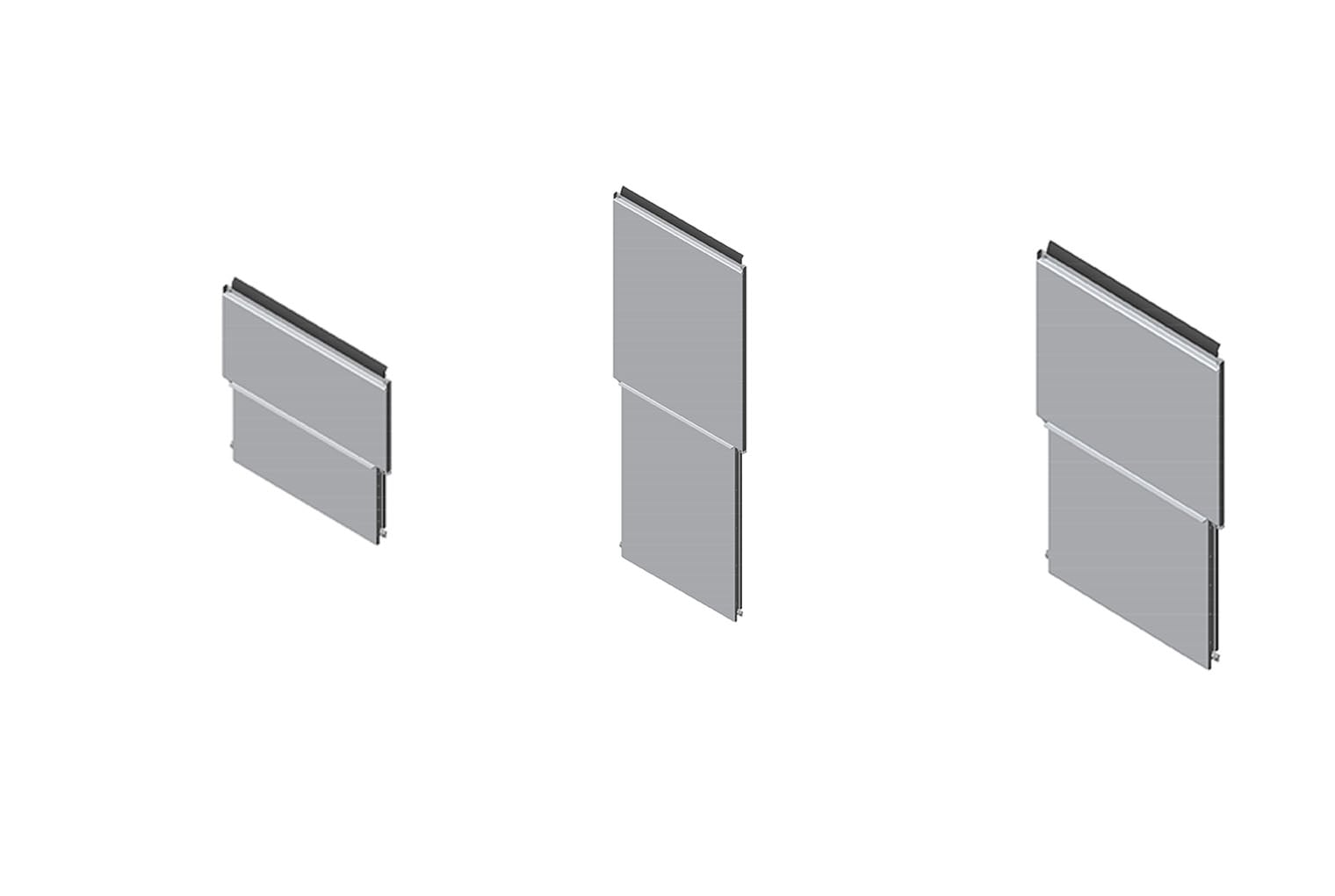

Elevate™ Adjustable Containment Solution End Of Row Exhaust Duct Panel; 34"-60" H x 26.12" W x 2.48" D (864-1524 x 663.4 x 63.0); Glacier White
| Height Range | 34"-60" (864-1524 mm) |
| Width | 26.1" (663 mm) |
| Color | Glacier White |
Product Description
Panels mount to the top of a single row of cabinets to create a shared Vertical Exhaust Duct. The panels allow infinite adjustment within the specified height range. The panels mount to the side of 14500-XXX Adjustable Containment Solution Panels to create the Vertical Exhaust Duct. Two kits are required per row to complete both ends of the duct.
Elevate™ Adjustable Containment Solution for Row Level Vertical Exhaust Duct offers a cutting-edge approach to improving data center efficiency through effective hot air management. This innovative system is designed for a single row of cabinets, forming a sealed pathway that channels hot air from the tops of the cabinets to an overhead drop ceiling, thus creating an efficient closed hot air return system. The solution features a telescoping twopiece panel that precisely fits between the cabinet roof and the ceiling, allowing for seamless adjustment to form a duct connecting the ZetaFrame® cabinet to the ceiling and eliminating the need for custom modifications on-site.
Key Features and Benefits
Telescoping Design :
Versatile design that easily adjusts to form a duct connecting the ZetaFrame cabinet to the ceiling
Flexibility to adjust the containment height as needed, minimizing complexity and maximizing efficiency
Time to Deploy :
Pre-assembled panels, no on-site fabrication required for frames or panels
No drilling required, mounts to ZetaFrame top track
Mounting hardware pre-loaded onto part
Engineered for quick setup - less than 2 minutes per panel per cabinet
Reduced deployment times
Ease of Specification :
Width sizes matched to standard ZetaFrame cabinet widths
Telescoping design in 3 height ranges
Supports row level vertical exhaust duct applications
Streamlined experience with our ZetaFrame cabinet-supported containment solution
Serviceability :
Sliding service panel allows access to cabling infrastructure and other overhead structures
Options for alignment to frame rear or cabinet mid-point for maximum airflow
Product Information
Design Tools
Telescoping Design Enables Precise Height Adjustment
The Elevate™ Adjustable Containment Solution creates a sealed pathway that channels hot air from the tops of cabinets directly to the ceiling. This design delivers reliable data center air containment while using an adjustable duct that fits a wide range of cabinet heights. By forming a dedicated vertical exhaust duct, the system eliminates hot‑air recirculation and improves overall cooling efficiency. A telescoping two‑piece panel provides precise height adjustment within a 34‑inch to 60‑inch (864‑1524 mm) range. The vertical exhaust duct aligns with the ZetaFrame® cabinet top track, allowing a seamless connection without on‑site fabrication. The adjustable duct's smooth glide mechanism ensures a tight seal that adapts to changes in rack layout. Pre‑assembled components and pre‑loaded mounting hardware reduce installation time to less than two minutes per panel. No drilling or custom framing is required, so deployment can be completed during normal maintenance windows. Faster installation translates to lower labor costs and quicker time‑to‑operation for new or expanded rows. The solution mounts directly to the side of the Elevate™ 14500‑XXX Adjustable Containment panels, completing a closed‑loop exhaust path at both ends of the row. Service panels slide open for easy access to cabling and ceiling infrastructure, while alignment options allow placement at the frame rear or cabinet midpoint for optimal airflow. This modular approach supports future reconfiguration without replacing core components. Implementing this solution improves cooling performance and can lower data center energy consumption. The vertical exhaust duct maintains consistent airflow across the row, enabling higher rack densities while keeping temperatures safe. CPI's global network and rapid customization ensure the Elevate™ Adjustable Containment Solution fits hyperscale, colocation and enterprise environments.
