1039-CCOAP3800

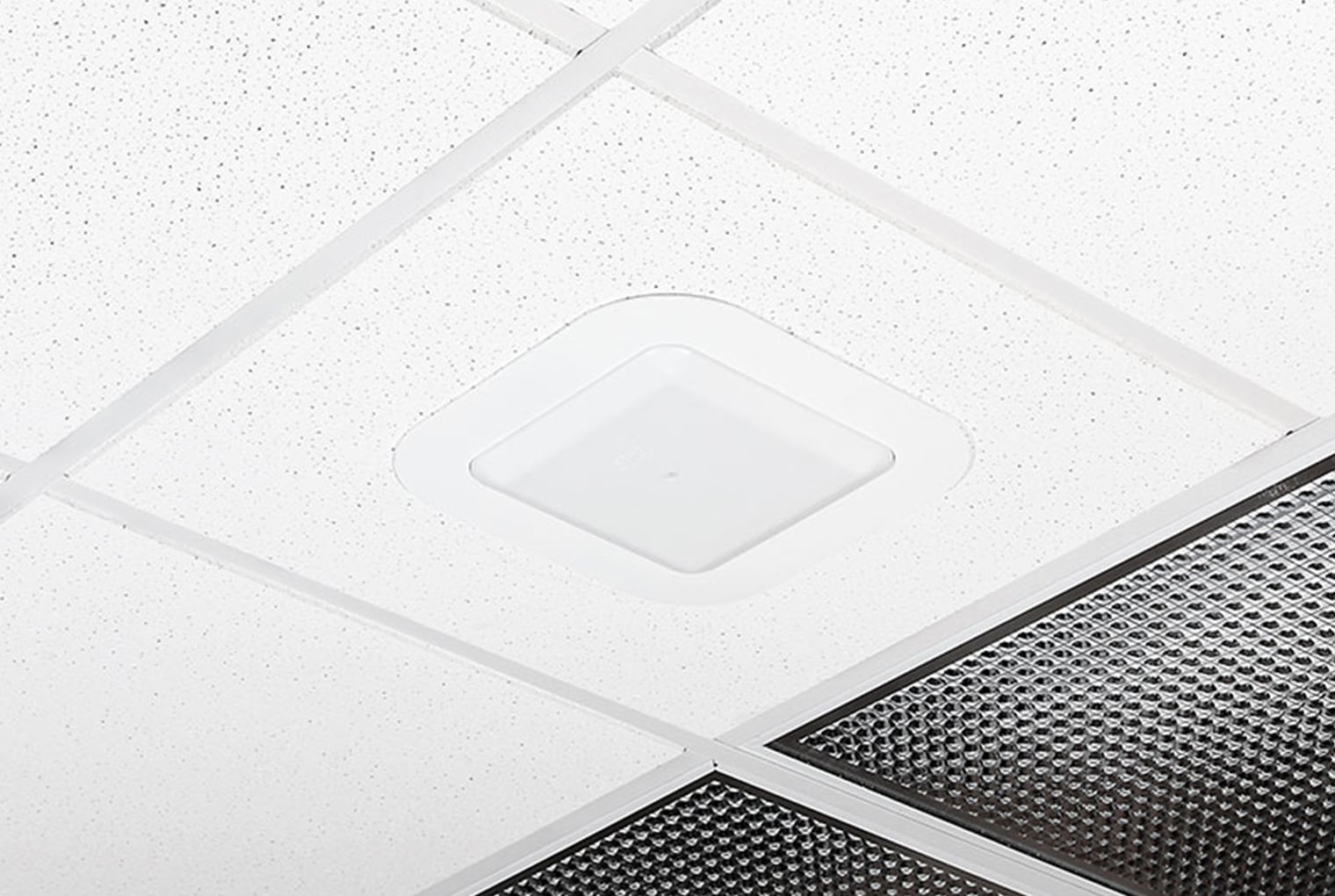

Steel Recessed Suspended Ceiling Access Point Installation Kit, Panel Bridge with Cisco 2800/3800 Access Point Trim
| Access Point Vendor | Cisco |
| Access Point Model | Cisco 3802i |
Product Description
Suspended ceiling mounting kit for most vendors' Wi-Fi APs. A cutout is made in the ceiling tile, the tile bridge is placed above the ceiling tile, and the AP is attached to the white trim. The AP and trim assembly is then drawn into the tile bridge with a wing nut, with only the front face of the AP exposed for optimal wireless coverage.
Key Features and Benefits
- Economical and easy to install
- Conveniently and quickly install APs and antennas from most vendors into 24 in. wide suspended ceiling tiles
- AP mounts flush to the ceiling, providing an aesthetic, professionally installed appearance
- 16 ga. galvanized steel tile bridge and support wire prevent ceiling tile sag or cracking
Technical Specifications
- Design: Recessed installation kit for installing Wi-Fi APs in 24 in. wide suspended ceiling tiles. Comprised of steel ceiling tile bridge, support wire, AP bracket, and trim for AP from leading vendors
- Performance: Designed to meet NEC300-22 and 300-23 for plenum installations
- Wi-Fi AP trim attaches with wing nuts
- Construction: 16 ga. galvanized steel tile bridge, all metal bracket and trim
- Use included support wire to attach to building structure
- Size: 23.375 x 3 x 3 in. (594 x 76 x 76mm)
- Suitable for both North American and European (metric) sized ceilings
Product Includes:
- (1) Galvanized steel ceiling tile bridge
- (1) AP specific bracket and trim
- (2) Grid Wires
- Required Hardware
- Installation instructions
Access Point Vendor
- Cisco
Access Point Model
- Cisco 3802i
Product Information
Features and Benefits of the Ins-1039 Recessed Mount System
The Ins-1039 recessed mount from Oberon® provides an economical and straightforward solution for installing wireless access points in suspended ceiling tiles. This ceiling tile bridge ensures a flush, professional appearance while optimizing wireless coverage by exposing only the front face of the access point. Designed for 24-inch wide ceilings, it meets NEC standards for plenum installations and includes a galvanized steel bridge with support wires to prevent sagging or cracking.
Key features include a robust 16-gauge galvanized steel construction that offers durability and reliability in various environments. The system comes with an access point-specific bracket and trim, along with all necessary hardware for quick deployment. This Oberon AP mount supports easy integration with Cisco 2802i and 3802i models, making it ideal for enterprise, education, and healthcare settings where aesthetics and performance are critical.
Installation is simplified with the included grid wires and wing nuts, allowing technicians to secure the assembly without specialized tools. The tile bridge attaches to the building structure, providing stable support that complies with North American and European ceiling standards. This recessed mount design helps maintain clean sightlines in offices and facilities, enhancing the overall environment while ensuring consistent network performance.
Compatibility with leading vendors like Cisco ensures seamless integration into existing wireless infrastructures. The Ins-1039 kit includes detailed instructions for efficient setup, reducing installation time and labor costs. Its versatile design accommodates both metric and imperial measurements, supporting global deployments without modification.
By choosing this Oberon In-Plane™ solution, organizations benefit from a future-ready approach that scales with evolving network demands. The recessed mount protects access points from damage and tampering, extending equipment lifespan. This ceiling tile bridge solution exemplifies CPI's commitment to quality and innovation in wireless enclosure systems.
