1026-18164-C
18" (457 mm) Low Profile NEMA 4X Plastic Wi-Fi Access Point Enclosure with Hinged Clear Door
| Door Style | Clear |
| Height | 19.4" (493 mm) |
| Width | 17.4" (442 mm) |
| Depth | 5.9" (150 mm) |
| Color | Gray |
Product Description

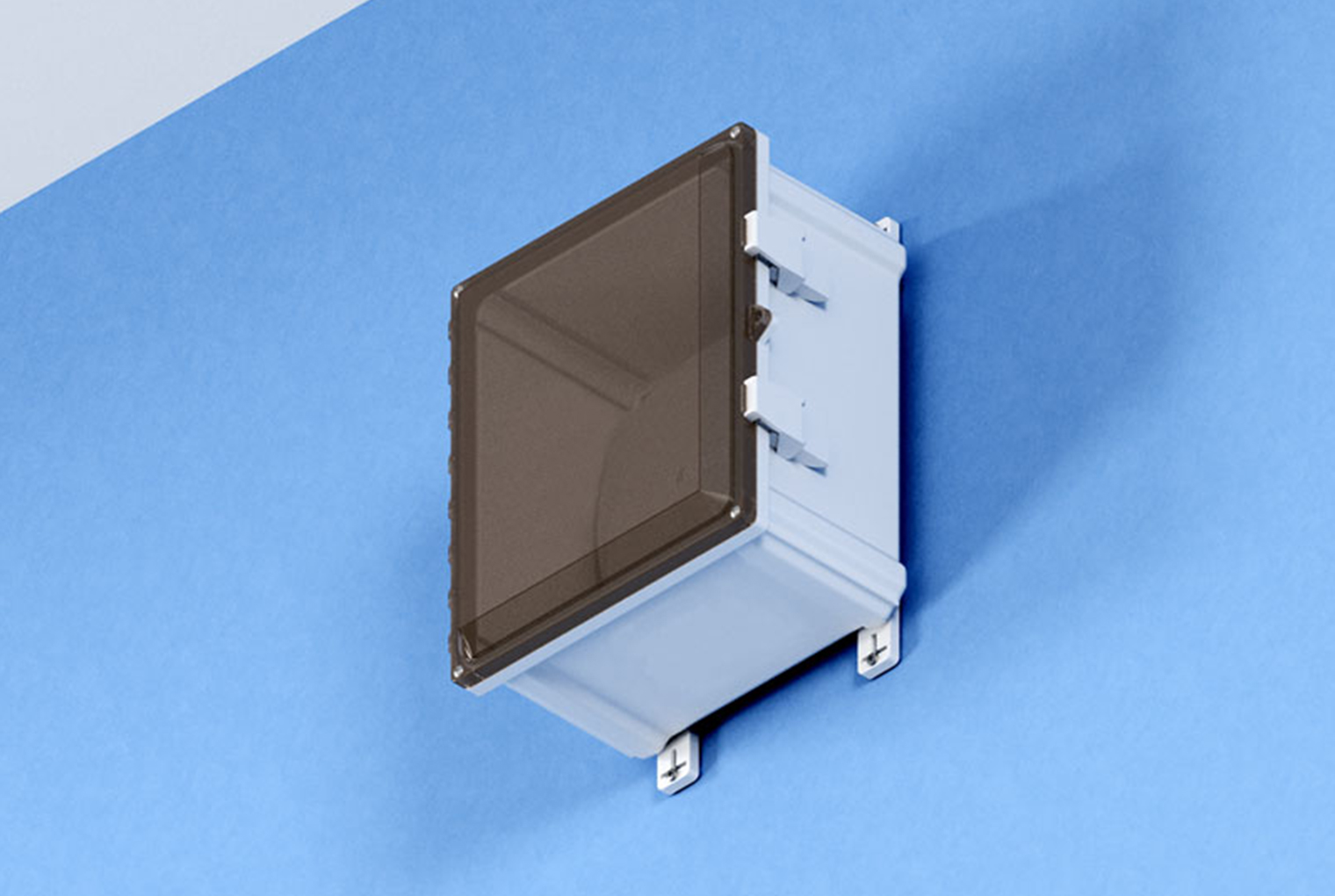

Oberon® Skybar™ Environmental Enclosures 1026 protects access points (APs) with internal or external antennas from all vendors in challenging indoor/outdoor environments. This rugged polycarbonate enclosure protects the AP from falling water, dust, and impacts, and is transparent to wireless signals so APs with body integrated antennas or small detachable antennas may be protected. The enclosure has a hinged door, molded-in padlock hasps for locking, and interior ABS panel for attaching APs.
NOTE: 6 GHz Access Points (e.g. Wi-Fi 6E) may only operate outdoors in the United States in the Standard Power mode (requiring AFC coordination). Low Power Indoor (LPI) Access Points are restricted to indoor only operation.
Key Features and Benefits
- NEMA 4X AP enclosure for indoor and outdoor applications such as stadiums and public hotspots
- UV-stabilized for exposure to direct sunlight
- Virtually transparent to wireless signals
- Universal mounting plate allows easy installation of most vendors’ APs
- Cover is hinged; cover can be latched and locked with padlock (not included)
Technical Specifications
- Design: Polycarbonate AP enclosure designed for wall or mast mounting indoors or outdoors, where secure mounting is required. Opaque or clear, fully hinged, lockable door
- Performance: Designed to NEMA 4X specifications for indoor/outdoor wet, dirty, or corrosive environments. UV stabilized for exposure to direct sunlight. Transparent to wireless signals. Temperature rating from -20 to 240°F. Paintable
- Fully hinged, gasketed door with hasps for padlock
- Internal plastic universal mounting panel
- Construction: UL94-5VA Light Gray Polycarbonate Plastic Enclosure Base, UL94-5VA Light Gray Polycarbonate Plastic Enclosure Door (For -00 SKUs Only), UL94-V0 Tinted Clear Polycarbonate Plastic Enclosure Door (For -C SKUs Only), UL94-5VA Black ABS Plastic Internal Mounting Plate, UL94-5VA Light Gray Polycarbonate Plastic Mounting Feet
- Specify opaque grey door as -00 or tinted clear door as -C. See ordering guide below
- For outdoor installation, the 1026 is very light grey to reduce solar loading. Painting the 1026 a darker color will increase solar loading. Avoid mounting the 1026 where it is directly exposed to the sun
Product Includes:
- (1) Enclosure
- (1) Internal Mounting Plate
- (4) Mounting Feet (For All SKUs Except -242410 and -18164)
- (4) 1/4-20 x 1/2 in. Mounting Feet Screws (For All SKUs Except -242410 amd -18164)
- (4) #10 x 3/8 in. Mounting Plate Screws
- (4) #10 x 5/8 in. Lid Screws
- (4) #10 Washers
- (4) Small Hole Covers
- (1) Large Hole Cover
- Installation Instructions
Access Point Vendor
- Arista
- Cisco
- Extreme
- Meraki
- Ubiquiti
Access Point Model
- Arista O-235
- Cisco IW9167IH-AP
- Extreme AP360i
- Extreme AP460i
- Extreme AP460C
- Extreme AP560i
- Extreme AP5050U
- Meraki MR78
- Ubiquiti UAP-AC-M-PRO
Product Information
Key Features of the 1026‑18164‑C Enclosure
The Oberon® Skybar™ 1026‑18164‑C provides rugged protection for wireless access points in both indoor and outdoor settings. Its NEMA 4X rating shields equipment from water, dust, corrosion and impacts, ensuring reliable operation in harsh environments. The clear, hinged door preserves wireless signal integrity while allowing quick visual inspection. The polycarbonate construction is UV‑stabilized, reducing degradation from direct sunlight and extending the enclosure's service life. With a temperature tolerance from -20 degreesF (‑29 degreesC) to 240 degreesF (115 degreesC), the enclosure maintains performance across extreme climate conditions. The design complies with UL94‑5VA and UL94‑V0 material standards for fire safety. The universal mounting plate fits a broad range of vendors, including Netgear WGB and Meraki AFC access points, simplifying installation across mixed‑vendor deployments. Internal ABS mounting hardware secures the AP while the lockable door deters tampering. The enclosure's transparent polycarbonate wall remains virtually invisible to RF signals, preserving throughput. Four molded mounting feet and optional padlock hasps provide secure, vibration‑resistant mounting on walls or mast poles. All necessary hardware, including 1/4‑20 screws and washers, is supplied for fast field deployment. Detailed installation instructions guide technicians through wiring and mounting steps. Choosing the 1026‑18164‑C supports high‑density Wi‑Fi deployments in stadiums, campuses, and public hotspots where durability and signal integrity are critical. Its paintable surface enables visual integration with existing infrastructure while maintaining the enclosure's protective performance. CPI's global network of distributors ensures rapid availability and localized support for your project.
