1075-CW9166

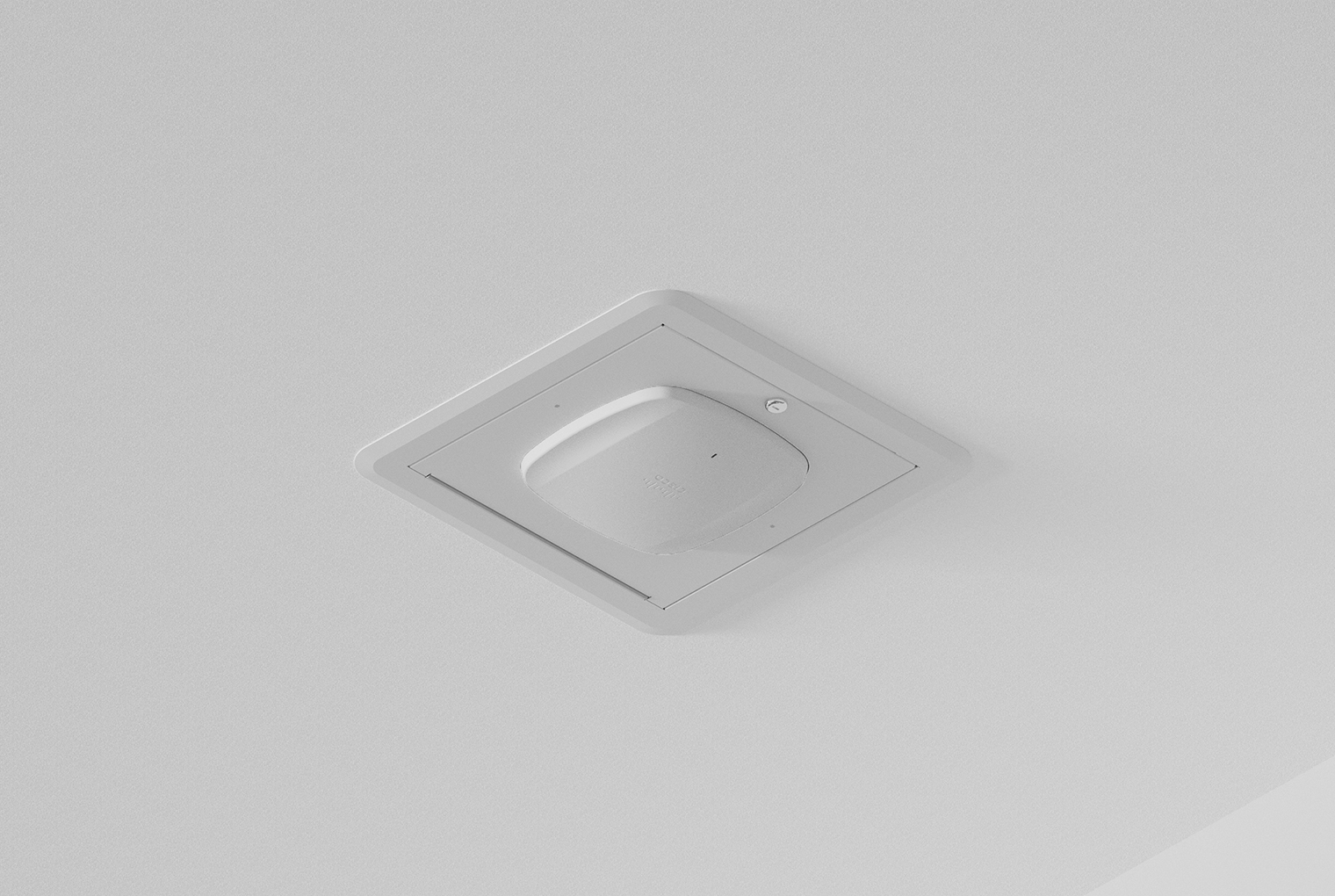

Locking Recessed Hard Ceiling Access Point Enclosure, 2.8"H x 14.3"W x 14.3"D (72 mm x 364 mm x 364 mm) Back Box, Cisco CW9164 and CW9166 Access Point Door
| Door Style | AP-Specific |
| Access Point Vendor | Cisco |
| Access Point Model | Cisco CW9166I |
Product Description
The 1075 series can be used in any interior application with hard-lid ceilings to recess and secure Wi-Fi APs. It features a smooth exterior design with beveled edges and rounded corners and a locking, impact-resistant dome door that hides the AP. Alternately, several AP-specific doors are also available. It will fit ceilings with 16-inch support spacing and provides the largest backbox for this application. Mounting hardware is recessed at the corners and secures the enclosure tightly to the ceiling. It has a full backbox that creates a suitable dust barrier to the space above the ceiling and a firestop grommet to seal the opening in the backbox for cables.
These features allow the 1075 series to be used in plenum ceiling spaces, to address infection control risk assessment (ICRA) procedures in healthcare facilities or to address ligature-resistant design requirements in behavioral healthcare facilities. Use the dome door options in behavioral healthcare facilities.
Key Features and Benefits
- Use in Behavioral Health Applications – Ligature-resistant design on dome door models includes a screw-activated latching mechanism to secure the enclosure to the hard-lid ceiling surface, smooth bezel and rounded corners to minimize points of sustainable attachment, and impact-resistant dome and locking door to secure equipment
- Optimal Wireless Coverage – Position equipment for optimal wireless coverage in hard-lid ceiling locations
- Secure Wireless Equipment – Physically secure and conceal wireless equipment and associated network components

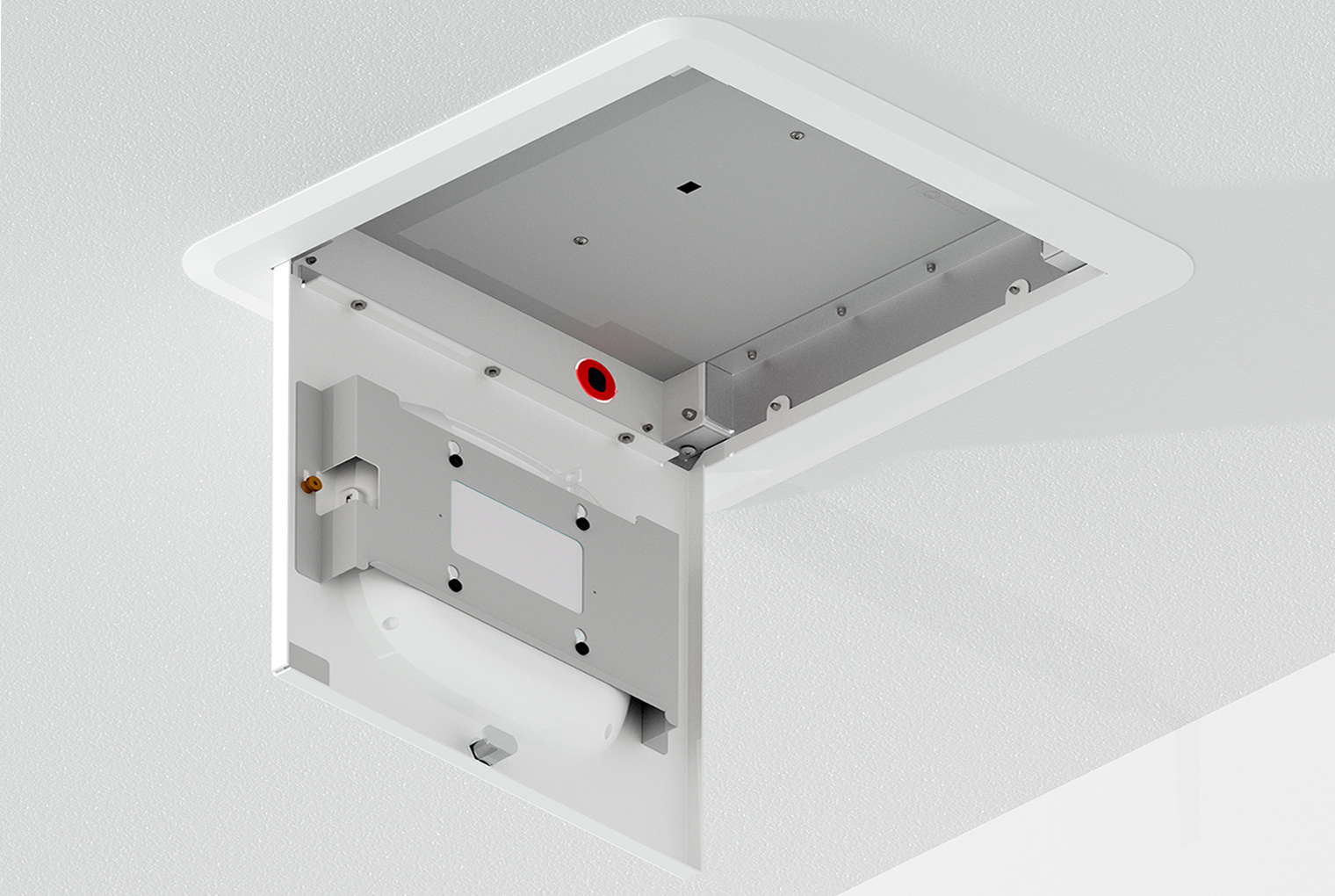

- Simplify Service – Internal swing down mounting plate included with dome door options simplifies wireless equipment installation, maintenance and migration
- Conceal and Blend the AP – Dome doors are virtually transparent to wireless signals
- Use in Plenum Spaces – Included fire stop grommet allows cable egress/ingress while maintaining plenum ceiling rating
- Address Infection Control concerns in Healthcare Facilities – Lockable full enclosure back box simplifies Infection Control Risk Assessment (ICRA) procedures by allowing access to the wireless equipment and network connections, which helps eliminate the possible spread of airborne contaminants
- Easy to Upgrade – Wireless AP-specific door options are also available; doors are interchangeable to support technology changes
- Attractive Finish - Attractive, textured, powder-coat finish provides a quality professional installation
Technical Specifications
- Design: Recessed hard lid ceiling enclosure designed for APs. Designed for pre-existing drywall, sheetrock, gypsum board, plaster and lathe ceiling (remodeling or old construction). Designed for all leading vendors’ APs and antennas
- Performance: UL listed and designed to meet NEC300-22 and 300-23 for plenum installations. Back box is effective as a dust barrier for ICRA procedure compliance. De-rate AP operating temperature range by 8°C when mounted in enclosure.
- Locking, fully hinged dome door or AP-specific door
- Includes firestop grommet for cable egress. Large enough for two Cat 6A cables
- 1 in. trade size knockouts on two walls
- Construction: 16 ga. and 14 ga. riveted aluminum back-box and mounting plate, 18 ga. textured white powder coated steel flange and mounting plate, 14 ga. Textured white powder coated steel door, ABS white opaque or clear translucent plastic dome
- Maximum weight in enclosure is 25 lbs. (11.3 kg)
- Flange is 17.9”W x 17.9”D (455 mm x 255 mm)
- Back box is 2.8”H x 14.3”W x 14.3”D (71 mm x 363 mm x 363 mm)
Product Includes:
- (1) Enclosure and interchangeable door
- (1) Swing down universal AP mounting plate (DOME models)
- (1) Dual cable egress firestop grommet
- (1) 1 in. trade size conduit connector
- (1) Ceiling support wire
- (2) Keys for lock
- (1) Grounding screw
- Wireless Access point attachment hardware
- Installation instructions
Access Point Vendor
- Cisco
Access Point Model
- Cisco CW9166I
Product Information
Design Tools
Secure Enclosure for Hard Lid Ceiling Applications
The Oberon® Wi-Tile® Ceiling Enclosure 1075-CW9166 provides a robust solution for recessing and securing Cisco CW9166 access points in hard lid ceiling environments. This locking enclosure features a full backbox that acts as an effective dust barrier, simplifying infection control risk assessment procedures in healthcare facilities. Its design supports optimal wireless coverage while physically concealing and protecting valuable equipment.
Key benefits include a ligature-resistant dome door with smooth bezel and rounded corners, ideal for behavioral healthcare applications. The enclosure includes a swing-down mounting plate for easy installation, maintenance, and technology migration. Additionally, the firestop grommet allows cable egress while maintaining plenum ceiling ratings, ensuring compliance with NEC standards.
Technical specifications highlight a 2.8-inch height by 14.3-inch width by 14.3-inch depth backbox constructed from 16-gauge and 14-gauge riveted aluminum. The enclosure supports up to 25 pounds and includes pre-drilled knockouts for conduit connections. These features make it suitable for various interior applications, from enterprise networks to industrial settings.
Applications extend to environments requiring secure wireless equipment deployment, such as education, government, and healthcare facilities. The enclosure's attractive, textured powder-coat finish blends seamlessly with ceiling tiles, maintaining aesthetic appeal. It addresses specific needs like ICRA compliance and ligature resistance, providing versatile solutions for modern infrastructure.
Installation is streamlined with included components like ceiling support wire, grounding screw, and universal mounting hardware. The design allows for quick upgrades with interchangeable AP-specific doors, such as the 1075-mpdome variant. This flexibility ensures long-term value and adaptability to evolving wireless technologies.
