1075-CW9176
Locking Recessed Hard Ceiling Access Point Enclosure, 2.8"H x 14.3"W x 14.3"D (72 mm x 364 mm x 364 mm) Back Box, Cisco Wireless 9176 Access Point Door
| Door Style | AP-Specific |
| Access Point Vendor | Cisco |
| Access Point Model | Cisco CW9176I |
Product Description

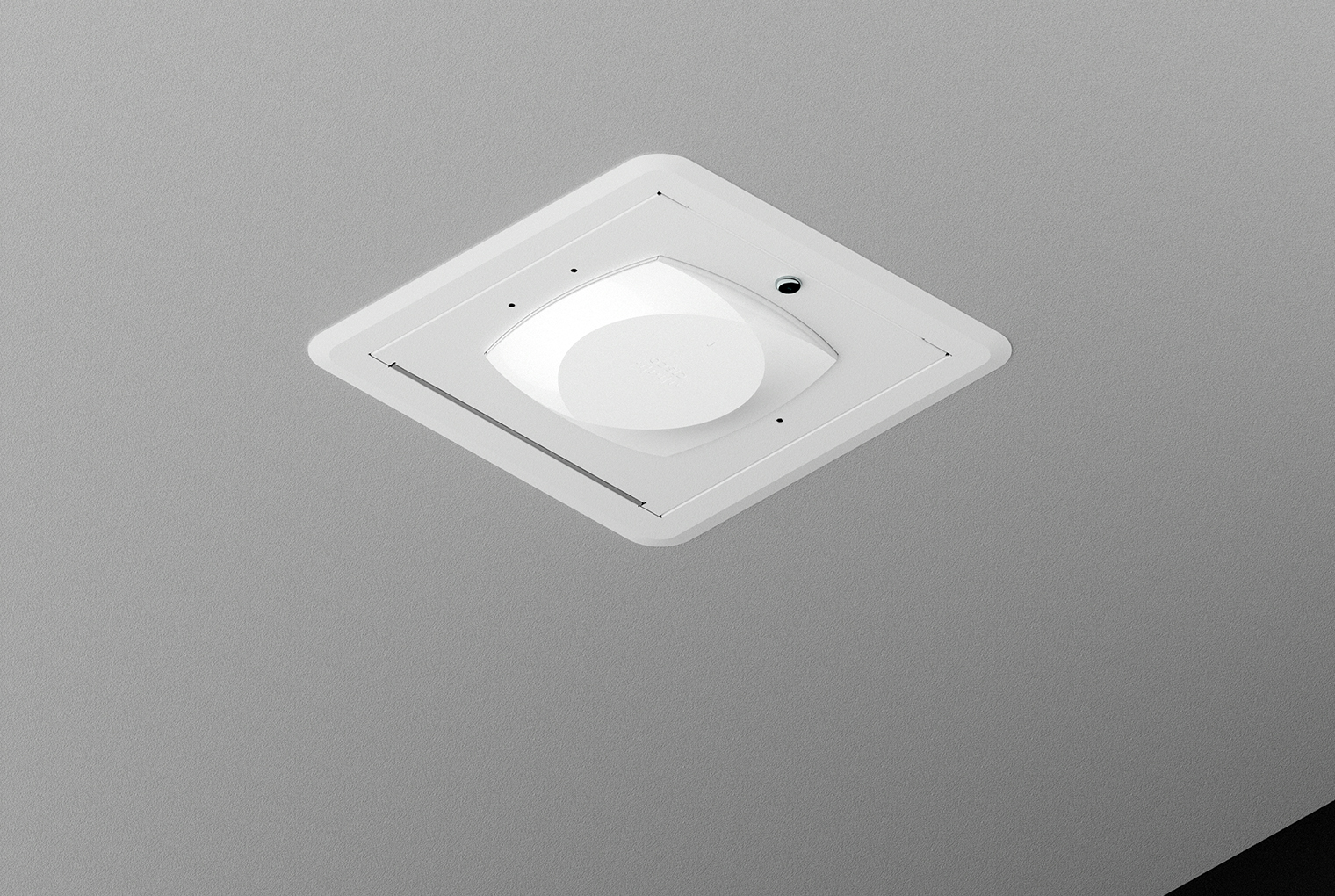

The 1075 series can be used in any interior application with hard-lid ceilings to recess and secure Wi-Fi APs. It features a smooth exterior design with beveled edges and rounded corners and a locking, impact-resistant dome door that hides the AP. Alternately, several AP-specific doors are also available. It will fit ceilings with 16-inch support spacing and provides the largest backbox for this application. Mounting hardware is recessed at the corners and secures the enclosure tightly to the ceiling. It has a full backbox that creates a suitable dust barrier to the space above the ceiling and a firestop grommet to seal the opening in the backbox for cables.
These features allow the 1075 series to be used in plenum ceiling spaces, to address infection control risk assessment (ICRA) procedures in healthcare facilities or to address ligature-resistant design requirements in behavioral healthcare facilities. Use the dome door options in behavioral healthcare facilities.
Key Features and Benefits
- Use in Behavioral Health Applications – Ligature-resistant design on dome door models includes a screw-activated latching mechanism to secure the enclosure to the hard-lid ceiling surface, smooth bezel and rounded corners to minimize points of sustainable attachment, and impact-resistant dome and locking door to secure equipment
- Optimal Wireless Coverage – Position equipment for optimal wireless coverage in hard-lid ceiling locations
- Secure Wireless Equipment – Physically secure and conceal wireless equipment and associated network components

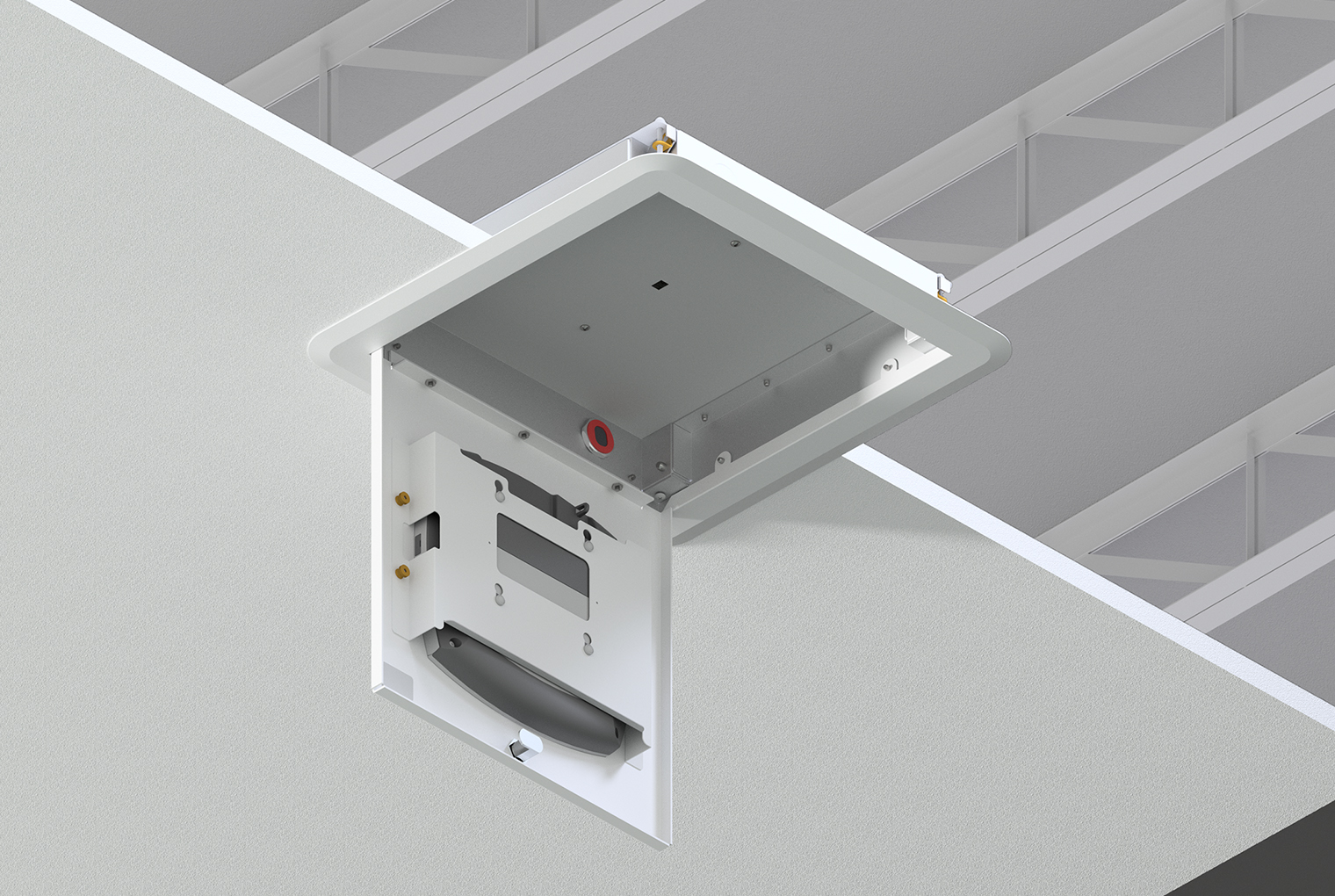

- Simplify Service – Internal swing down mounting plate included with dome door options simplifies wireless equipment installation, maintenance and migration
- Conceal and Blend the AP – Dome doors are virtually transparent to wireless signals
- Use in Plenum Spaces – Included fire stop grommet allows cable egress/ingress while maintaining plenum ceiling rating
- Address Infection Control concerns in Healthcare Facilities – Lockable full enclosure back box simplifies Infection Control Risk Assessment (ICRA) procedures by allowing access to the wireless equipment and network connections, which helps eliminate the possible spread of airborne contaminants
- Easy to Upgrade – Wireless AP-specific door options are also available; doors are interchangeable to support technology changes
- Attractive Finish - Attractive, textured, powder-coat finish provides a quality professional installation
Technical Specifications
- Design: Recessed hard lid ceiling enclosure designed for APs. Designed for pre-existing drywall, sheetrock, gypsum board, plaster and lathe ceiling (remodeling or old construction). Designed for all leading vendors’ APs and antennas
- Performance: UL listed and designed to meet NEC300-22 and 300-23 for plenum installations. Back box is effective as a dust barrier for ICRA procedure compliance. De-rate AP operating temperature range by 8°C when mounted in enclosure.
- Locking, fully hinged dome door or AP-specific door
- Includes firestop grommet for cable egress. Large enough for two Cat 6A cables
- 1 in. trade size knockouts on two walls
- Construction: 16 ga. and 14 ga. riveted aluminum back-box and mounting plate, 18 ga. textured white powder coated steel flange and mounting plate, 14 ga. Textured white powder coated steel door, ABS white opaque or clear translucent plastic dome
- Maximum weight in enclosure is 25 lbs. (11.3 kg)
- Flange is 17.9”W x 17.9”D (455 mm x 255 mm)
- Back box is 2.8”H x 14.3”W x 14.3”D (71 mm x 363 mm x 363 mm)
Product Includes:
- (1) Enclosure and interchangeable door
- (1) Swing down universal AP mounting plate (DOME models)
- (1) Dual cable egress firestop grommet
- (1) 1 in. trade size conduit connector
- (1) Ceiling support wire
- (2) Keys for lock
- (1) Grounding screw
- Wireless Access point attachment hardware
- Installation instructions
Access Point Vendor
- Cisco
Access Point Model
- Cisco CW9176I
Product Information
Design Tools
Enhanced Security and Performance for Cisco CW9176
The Oberon® Wi-Tile® Ceiling Enclosure 1075 is engineered specifically for the Cisco CW9176I access point, offering a secure and recessed solution for hard-lid ceiling installations. This enclosure optimizes wireless coverage by correctly positioning the access point while concealing and protecting it from physical tampering. Its design meets industry standards for plenum spaces and supports infection control risk assessment protocols in healthcare environments.
Key features include a locking, impact-resistant dome door that discreetly houses the Cisco CW9176 access point and a full backbox that serves as an effective dust barrier. The enclosure incorporates a swing-down mounting plate to simplify installation, maintenance, and future technology migrations. Additionally, it includes a firestop grommet for safe cable egress, ensuring compliance with plenum ceiling ratings and enhancing overall safety.
In behavioral healthcare settings, the ligature-resistant design minimizes potential attachment points, supporting a safer environment through smooth bezels and rounded corners. The locking mechanism and robust construction help secure wireless equipment, addressing stringent security requirements. For healthcare facilities, the enclosure allows access to the Cisco 9176 AP without lifting ceiling tiles, reducing the risk of spreading airborne contaminants during maintenance.
Technical specifications include a backbox measuring 2.8 inches high by 14.3 inches wide by 14.3 inches deep (71 mm x 363 mm x 363 mm), crafted from durable 16 ga. and 14 ga. riveted aluminum. With a maximum weight capacity of 25 pounds (11.3 kg), it accommodates the Cisco CW9176 and associated components reliably. The enclosure also features 1-inch trade size knockouts for flexible cable management and integrates grounding screws for electrical safety.
To facilitate deployment, CPI provides extensive resources such as the Cisco CW9176 datasheet and detailed installation guides for seamless integration. The interchangeable door options allow easy upgrades to newer access point models, ensuring long-term versatility and cost-efficiency. By leveraging this enclosure, organizations achieve enhanced wireless performance, physical security, and adherence to regulatory standards for various applications.
