Cabinet-level environmental monitoring has long been a foundation of data center design. But the operating context those systems were built for has changed.
Early monitoring architectures emerged when cabinet requirements were relatively constrained:
- Sensor counts were modest
- Cabinet designs were less dense
- PDUs typically had available connectivity capacity
Today, AI workloads, liquid cooling, and the expansion of edge deployments are increasing both the scope and granularity of cabinet-level monitoring. Designers and operators are now balancing higher sensor density, more diverse monitoring signals, and tighter integration within the cabinet itself.
This article examines how cabinet-level monitoring requirements have evolved—and the architectural considerations that now shape modern monitoring approaches.
Environmental Risk Starts Inside the Cabinet
As cabinet densities increase and workloads become more dynamic, environmental conditions are increasingly driven by cabinet-specific behavior, not room-level averages.
High-density cabinets introduce sharper thermal gradients caused by uneven equipment loading, transient workload behavior, and localized airflow interactions. Short-duration load spikes—common in AI and mixed-use environments—may resolve before room sensors register a change yet still stress thermal margins.
Liquid cooling further localizes risk. Leak exposure is inherently cabinet-adjacent and does not propagate uniformly across a space. Even minor leaks or condensation events can have significant impact if not detected close to the source.
Physical access and service activity add another variable that shapes cabinet behavior, operational risk, and service outcomes. Modern monitoring strategies treat access events not just as security checkpoints, but as operational signals—providing visibility into who accessed a cabinet, when it occurred, and under what conditions. This context is essential for audits, incident response, and root-cause analysis, especially in healthcare, financial, and research-driven facilities.
The Expanding Scope of Cabinet-Level Monitoring
These cabinet-specific dynamics expand not just where monitoring must occur, but what must be monitored. Modern cabinet-level strategies account for both environmental conditions and the physical interactions that influence them.
As a result, cabinet-level monitoring increasingly includes:
- Temperature sensors positioned to capture localized thermal gradients
- Humidity sensors to detect conditions that increase condensation risk
- Leak detection sensors placed near liquid-cooled components and water paths
- Access control to log cabinet entry events for security, audit, compliance, and risk exposure
- Visual status indicators that provide at-a-glance feedback during operations and maintenance
Rather than replacing room-level systems, cabinet-level monitoring complements them by adding the resolution needed to correlate environmental changes with access events, enable earlier detection, support compliance requirements, and drive more targeted response at the source.
Design Challenges of Higher Sensor Density
As sensor counts and sensor types increase, the challenge shifts from sensing capability to how monitoring is connected and scaled.
Expanding monitoring often means extending connectivity through PDU USB ports or adding third-party devices. Over time, this can lead to crowded cabinets, constrained connectivity, and increased service complexity.
Managing connectivity pathways, physical placement, and incremental expansion becomes as critical as the monitoring data itself.
Simplified deployment supports:
- Consistent installation practices across cabinets and sites
- Cleaner cabinet layouts that are easier to service
- Predictable expansion as monitoring requirements increase
How Dedicated Sensor Hubs Change the Model
One architectural response to expanding monitoring requirements is moving beyond USB-based sensor connectivity at the PDU.
Dedicated sensor hubs introduce a purpose-built connection layer for environmental and access sensors—supporting higher sensor density and a broader mix of sensor types without relying on PDU USB ports or third-party protocol converters. Hubs can be connected in a daisy-chain architecture, allowing monitoring capacity to scale incrementally across a cabinet or row while keeping power distribution and monitoring functions clearly organized within the cabinet.
Compact, magnet-mounted hubs can be placed where monitoring is most effective—near airflow paths, liquid cooling components, or access points—rather than being constrained by PDU USB port location. This enables more intentional sensor placement and reduces the need for workaround cabling or indirect routing.
As monitoring needs evolve, additional sensors or hubs can be added into the chain without reworking existing connections, reducing redesign cycles and supporting cleaner, more serviceable cabinet layouts over time.

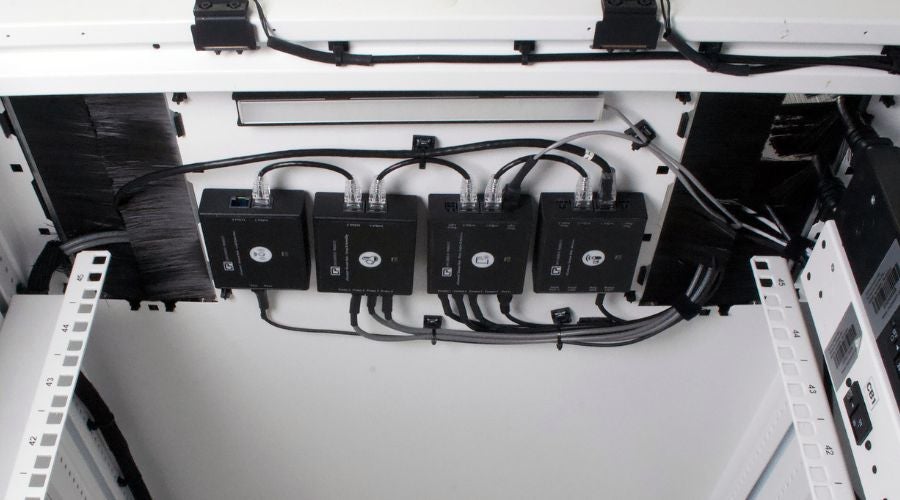

CPI eConnect® Sensor Array Hubs installed inside a data center cabinet for centralized cabinet-level monitoring.
What a Modern Cabinet Monitoring Architecture Looks Like
CPI’s eConnect® Sensor Array applies these principles by accommodating growth in both sensor density and monitoring scope without increasing deployment or operational complexity.
eConnect Sensor Array supports:
- Comprehensive cabinet-level visibility, including temperature, humidity, leak detection, door status, and access activity—capturing conditions where risk manifests
- A modular, scalable connection model, using dedicated sensor hubs and plug-and-play sensors to expand monitoring as environmental, security, or compliance requirements grow
- Simplified deployment and integration, with native compatibility across , CPI cabinets, DCIM platforms, and access-control systems
- Integrated security and serviceability, combining audit-ready access monitoring with cabinet status indicators and built-in work lighting to support efficient operations
If you’re looking for a way to expand monitoring to support higher sensor density and cleaner deployments—this approach provides a practical model across enterprise, edge, and distributed infrastructure environments.
