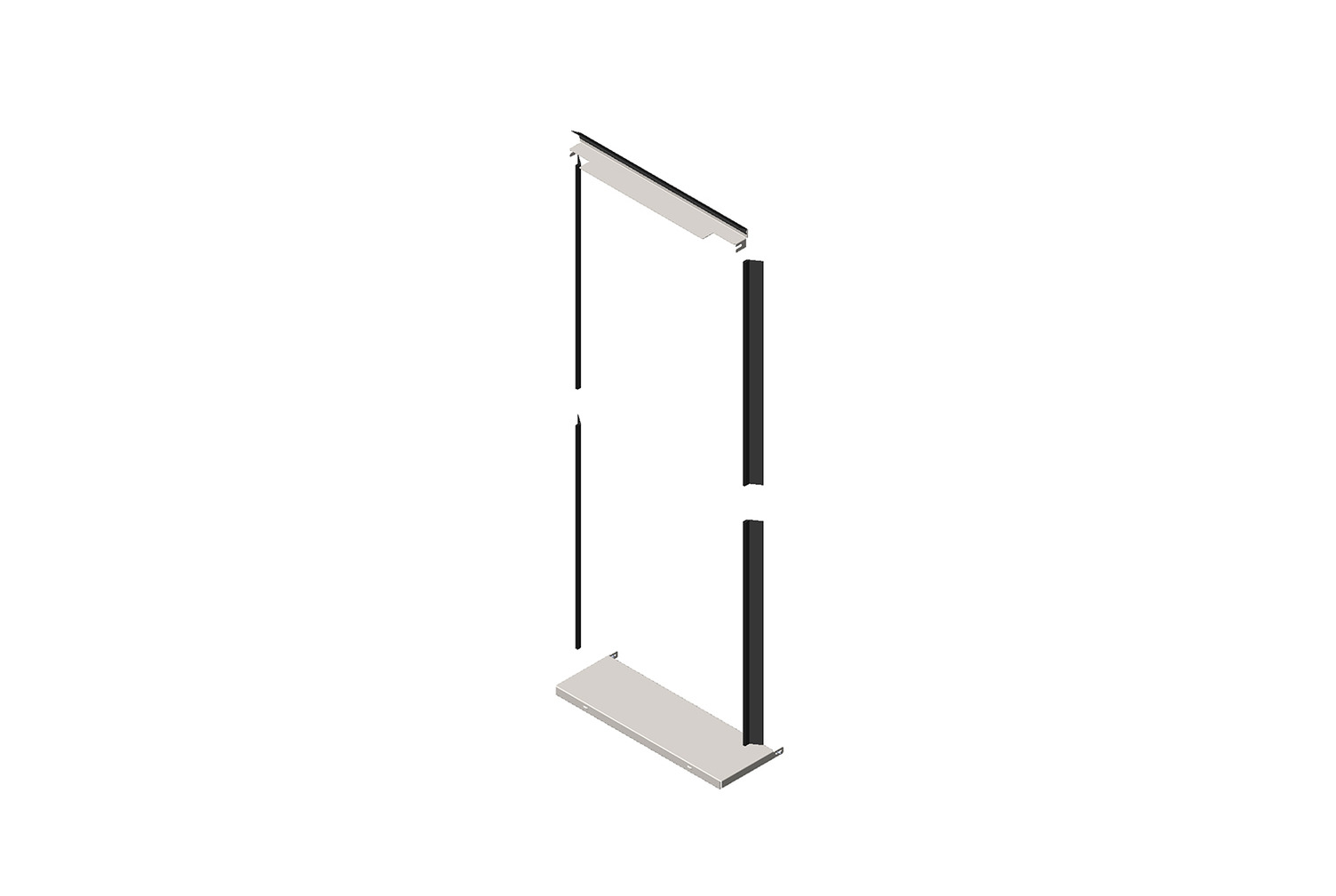

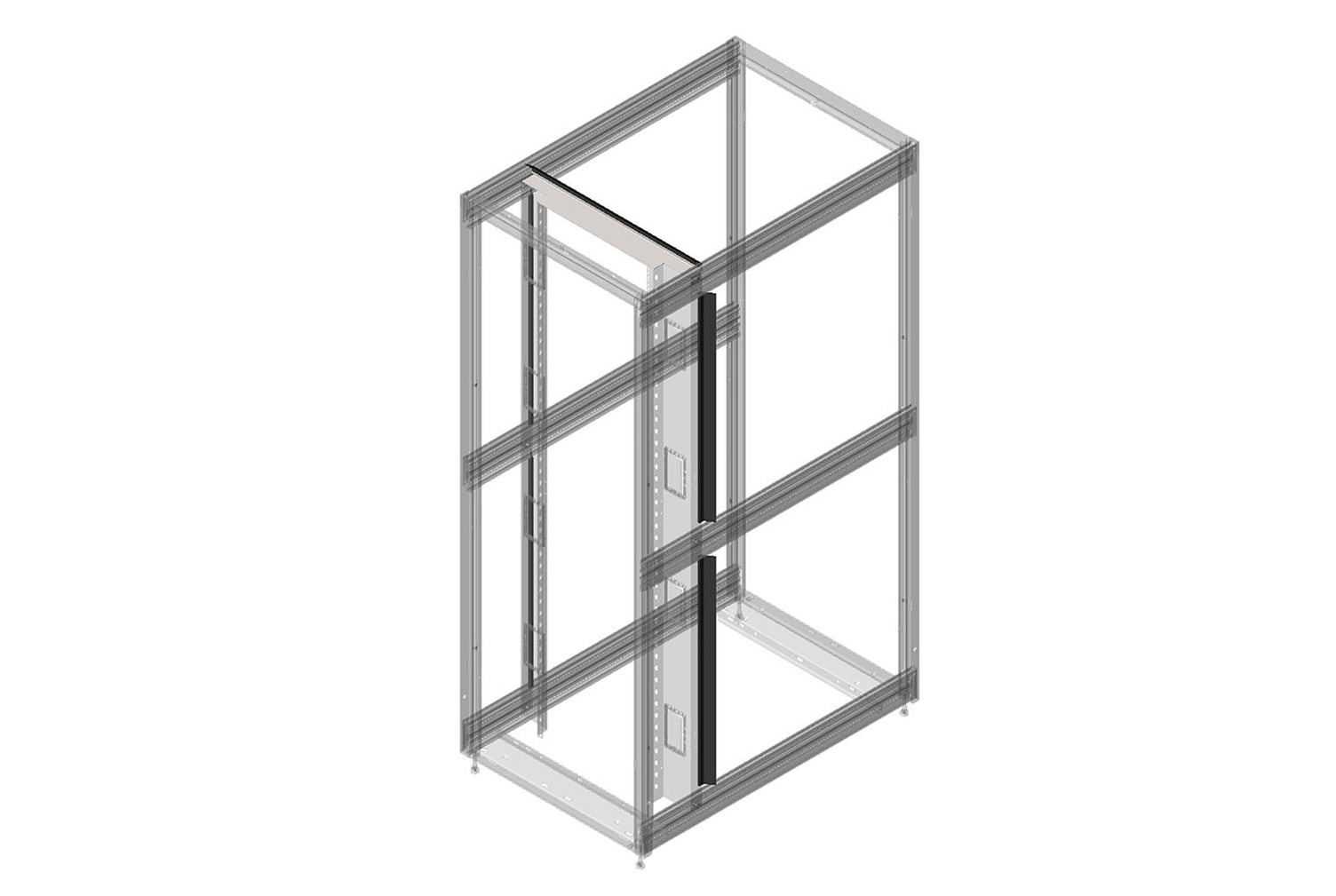

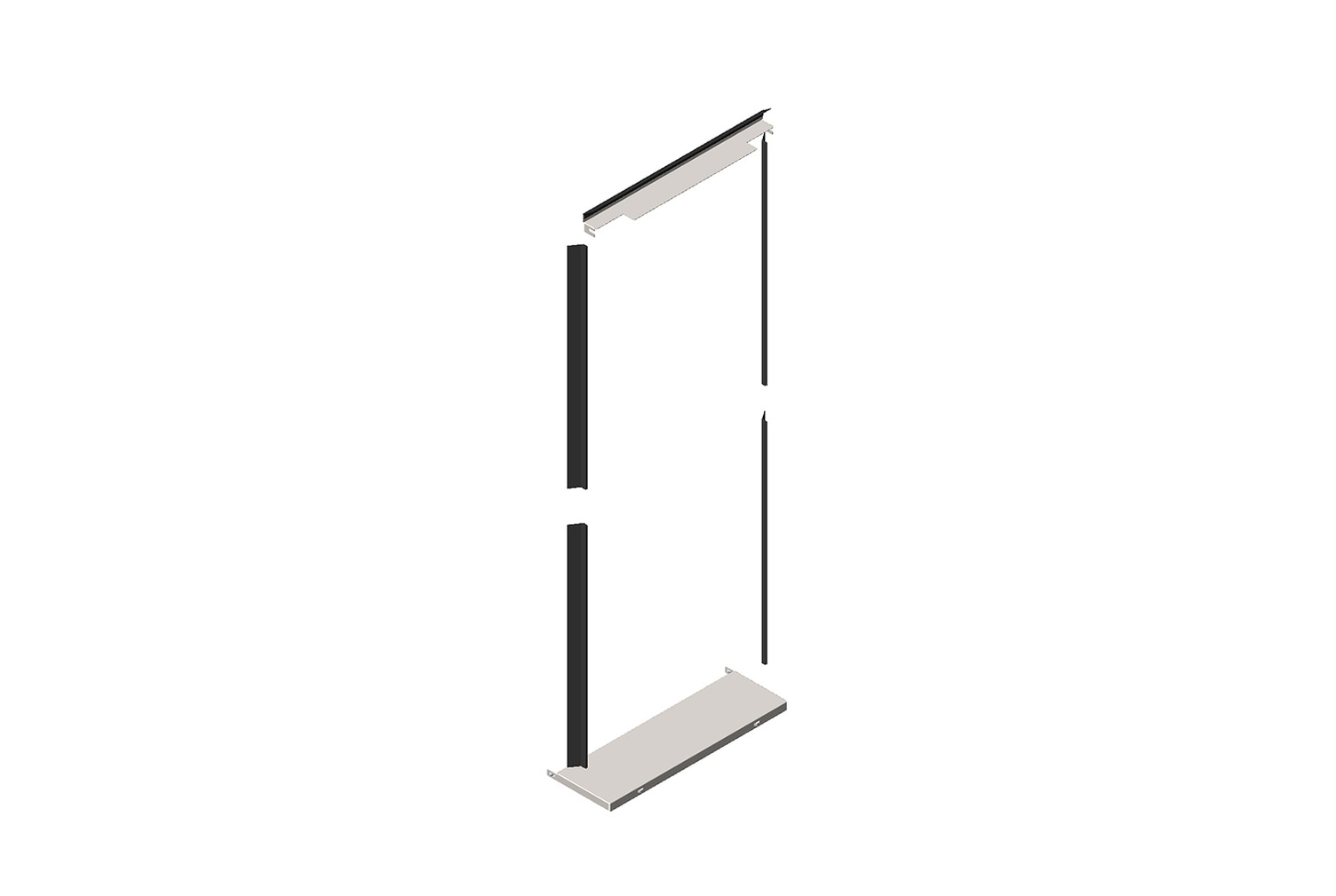

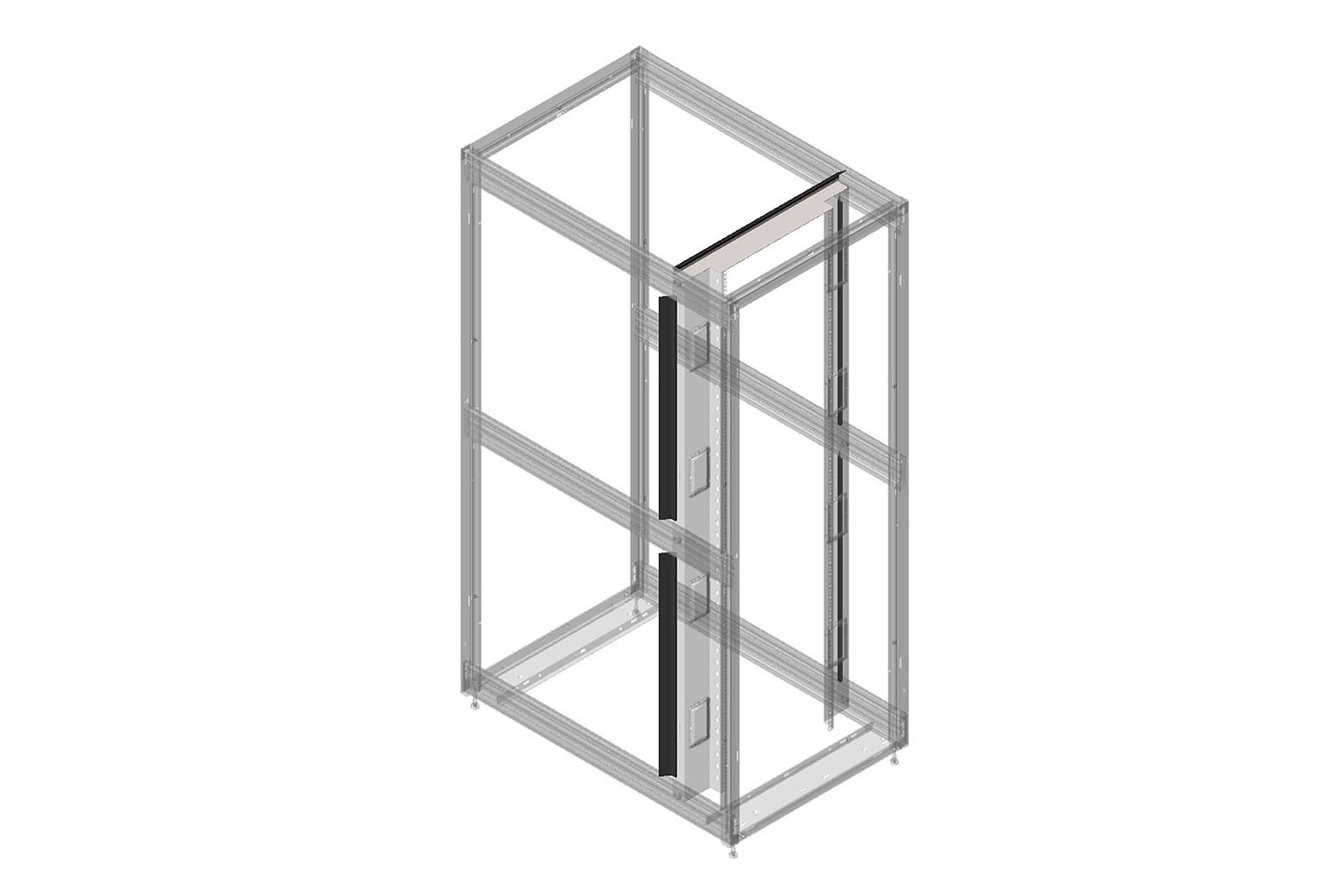

Air Dam Kit for ZetaFrame Cabinet; for 48U x 29.5"W (750 mm) Cabinet; Glacier White

MSRP $328.91
Cabinet Width31.5"W (800 mm)
ColorGlacier White
Height RMU48U
Product Description

Air Dam blocks airflow around the sides and top of the equipment mounting space, so conditioned air passes through equipment and exhaust air does not recirculate around equipment.

Key Features and Benefits
  • Use with Equipment Mounting Rail Grommet Brush Kit and Bottom Panel
  • Includes: Top, bottom and side baffles; installation hardware
  • 600 mm attaches by wrapping around flange, 700, 750 & 800 mm attaches by snapping onto half lance
  • Requires a minimum rail setback of 1.4” (36 mm) from the front of the cabinet frame; maximum rail setback is 13.7” (348 mm)
  • Flexible seal against top and side panels
  • Select part number to match the frame style, width, usable height and color of the cabinet
  • Material: Steel, sheet metal
  • Finish: Black or Glacier White; seals are black
