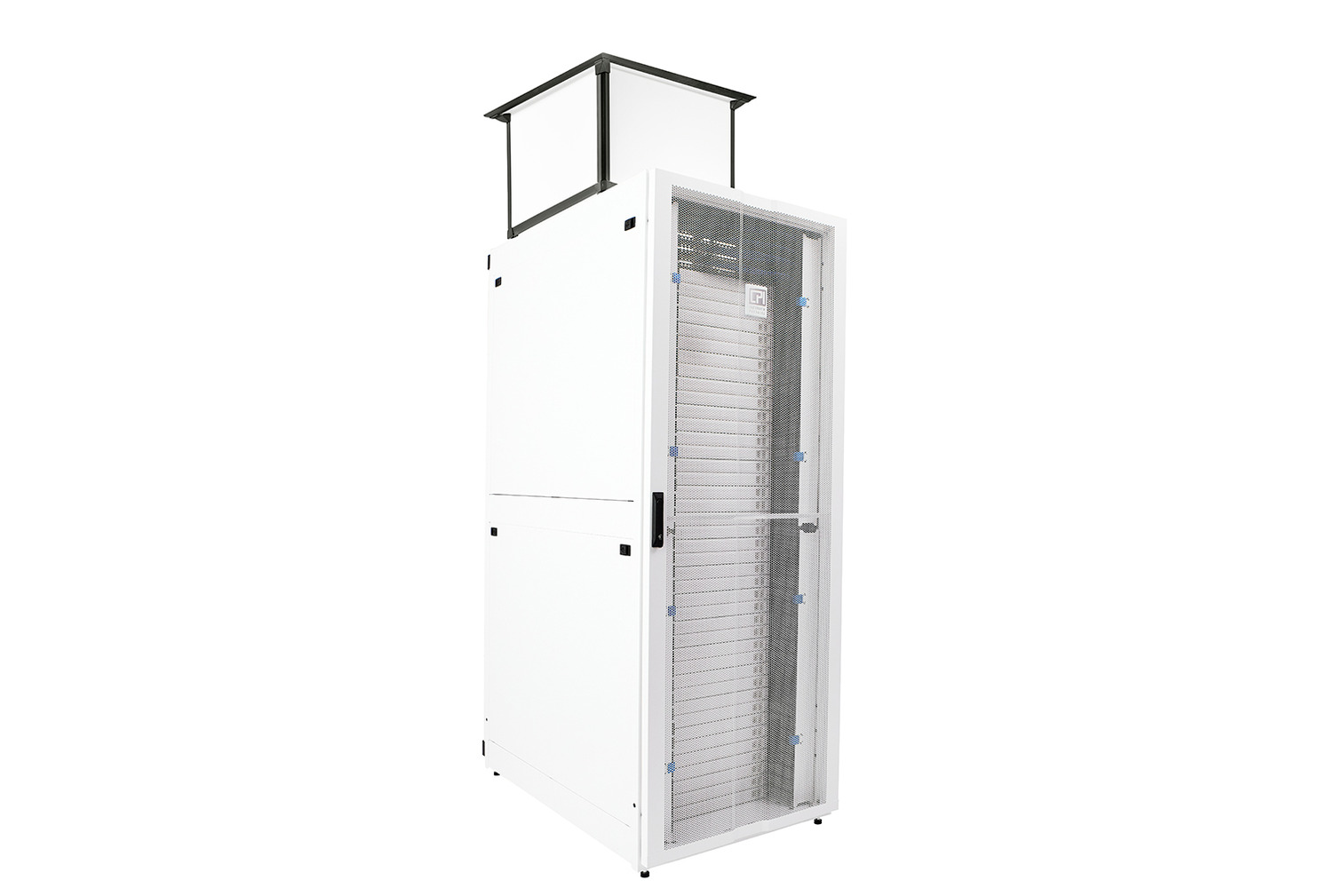

ZA45-DA21A-E1

ZetaFrame® Cabinet; 79.4"H x 31.5"W x 47.2"D (2017 mm x 800 mm x 1200 mm); 42U; Perf Front Door; Solid Rear Door; Vertical Exhaust Duct 15"H-20"H (381 mm - 508 mm); 2 Side Panels; Grommet Bottom Panel; Air Dam; Rail Grommets; Standard Pallet; Glacier White

MSRP $5,536.42
Height79.4" (2017 mm) 42U
Width31.5" (800 mm)
Depth47.2" (1200 mm)
DoorsPerf Front Door/Solid Rear Door
Top PanelVertical Exhaust Duct 12"H-20"H (305 mm - 508 mm)
Side PanelsTwo Side Panels
Bottom PanelBottom Panel
Thermal ManagementAir Dam ; Grommets To Seal Cable Openings
ColorGlacier White
ShippingStandard Pallet
Product Description

A highly engineered data center cabinet solution that delivers fast built-to-order configurability, industry-leading strength and scalability, regardless of the application. ZetaFrame® Cabinet is a total, turnkey solution that integrates with power, cable and thermal management accessories to support next-generation compute.

Key Features and Benefits

Speedy Deployment

  • Customer-specified, factory-assembled solution reduces component count, packaging and on-site assembly, saving time and delivery cost
  • Order a cabinet integrated with power, cable and thermal management preinstalled under a unique, project-specific part number
  • Easy attachment and positioning of accessories allow for faster deployment and maintenance
  • Optional shock pallet ensures safe delivery of racked ICT equipment

Fast Selection and Customization

Wide range of standard configurations and one-on-one consultation services allow customers to create a unique solution that meets their exact requirements

Future-Proof Strength

Roll-formed, tubular and fully welded steel frame architecture supports 5,000 lb (2268 kg) static and 4,000 lb (1814 kg) dynamic loads

Integrated Bonding

Doors and panels automatically bond to the frame through door hinges and contact points, eliminating the need for attaching separate grounding straps to cabinet components

Enhanced Cable Management

ZetaFrame's simple and versatile cable management accessories can be used independently or in combinations to accommodate a wide variety of applications

Integrated Airflow Management

Seamless integration with optional airflow management accessories ensures effective conditioned/exhaust air separation and maximum equipment cooling

What This Page Covers

Key Features of the ZA45-DA21A-E1 Cabinet

The ZetaFrame Cabinet System delivers a modular, turn‑key approach that shortens on‑site build time while preserving structural integrity. Its roll‑formed, fully welded steel frame supports up to 5,000 lb static load, making it ideal for dense server deployments. Integrated bonding through hinges and contact points eliminates the need for separate grounding straps, enhancing safety in any data center cabinet environment. Thermal management is built in, with a vertical exhaust duct and optional air‑dam accessories that separate hot and cold aisles for efficient cooling. The design accommodates a range of airflow accessories, ensuring the cabinet can meet the cooling demands of high‑performance server cabinet installations. Cable management is streamlined with grommeted panels and versatile accessories that reduce clutter and simplify maintenance. Customization is fast and precise; the ZA45‑DA21A‑E1 configuration can be ordered with pre‑installed power strips, PDU mounts, and monitoring hardware under a single part number. This reduces part count and packaging, delivering a cleaner supply chain and quicker deployment for enterprise and colocation projects. The system's Glacier White finish provides corrosion resistance while matching modern data center aesthetics. Compliance and durability are core to the ZetaFrame design. The cabinet meets industry standards for seismic protection and is UL listed for safety, giving confidence to operators of mission‑critical infrastructure. Its solid rear door and perforated front door enable secure access while supporting high‑density rack unit arrangements typical of server cabinet environments. Overall, the ZetaFrame® ZA45‑DA21A‑E1 offers a future‑proof, high‑density solution that aligns with the needs of modern data center cabinets, supporting AI, HPC, and edge compute workloads. Its scalable architecture, rapid configurability, and integrated management accessories provide a competitive edge for enterprises seeking reliable, adaptable infrastructure.
