BDM1B

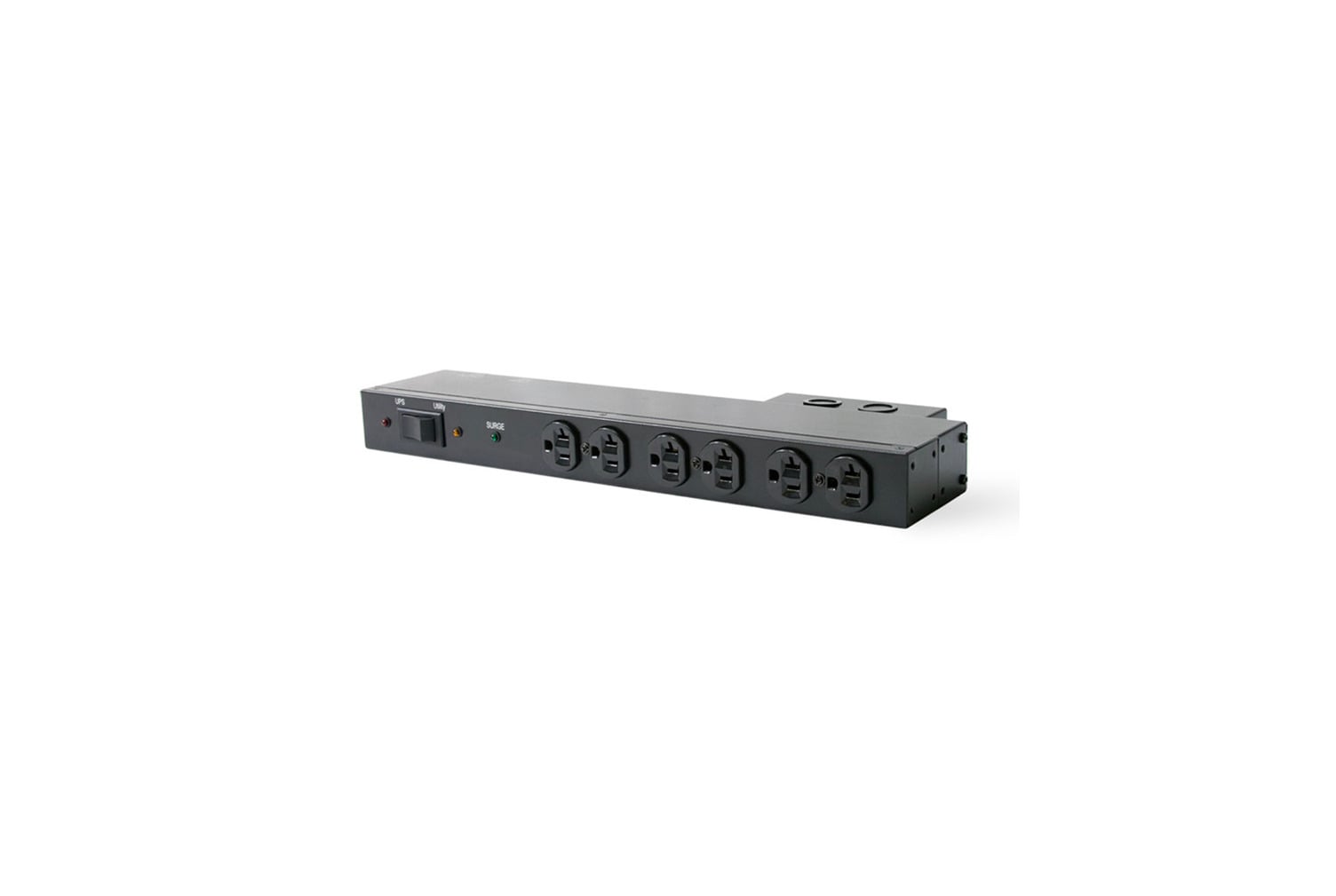

Maintenance Bypass Distribution Module; 1U; Single-Phase; 120V; 15A; 12'L (3.6 m) Input Cord with 5-20P; (6) 5-20R Outlets Front + (4) 5-20R Outlets Rear; 3 Year Warranty; 1.75"H x 19"W x 3.5"D (45 mm x 489 mm x 89 mm); Black
| Input Plug | 5-20P |
| Nominal Input Voltage | 120V |
| Output Receptacles | (6) 5-20R Outlets Front + (4) 5-20R Rear |
Product Description
Manually transfer critical load from UPS power to utility power to prevent power interruption when repairing or replacing the UPS. Two styles are available. For 1kVA to 3kVA UPS, a 1U rack-mount module provide surge protection on input power and a toggle switch for easy transition between utility and UPS power. For 5kVA to 10kVA UPS, choose from several modules that attach to the rear of battery packs and provide several higher power output options.
Key Features and Benefits
- Power Distribution - Adds receptacles and bypass functionality with power distribution capability in one enclosure
- Replace or service the UPS - while maintaining power to critical loads
- Easy Installation - Both UPS and Utility power are connected with supplied cords
- Simple to operate - LED Indicators verify availability of UPS and Utility sources prior to transfer of load
- Surge protection on BDM1x models - loads are protected even when UPS is in bypass mode
Product Information
Overview of the BDM1B Maintenance Bypass Distribution Module
The BDM1B UPS maintenance bypass distribution module is designed to manually transfer critical loads from UPS power to utility power. This process prevents power interruptions during UPS repair or replacement, ensuring continuous operation for essential systems. It serves as a reliable ups bypass module for maintaining uptime in various environments.
Key features include surge protection on input power and a toggle switch for easy transition between utility and UPS power. The module provides power distribution capability with multiple outlets front and rear, enhancing flexibility. These ups maintenance bypass units simplify maintenance procedures while protecting connected equipment.
Installation is straightforward with supplied cords for connecting both UPS and utility power sources. LED indicators verify the availability of power sources prior to transfer, reducing operational risks. The rack-mount design in a 1U space makes these maintenance bypass solutions easy to integrate into existing setups.
These modules are ideal for data centers, enterprise networks, and industrial environments requiring dependable power management. They support UPS systems from 1kVA to 3kVA, ensuring compatibility and reliability. The BDM1B model includes a 3-year warranty, reflecting CPI's commitment to quality and durability.
With global availability and rapid customization, CPI delivers trusted infrastructure solutions for demanding applications. The BDM1B bypass module exemplifies innovation in power protection and maintenance bypass functionality. It helps organizations safeguard critical investments and maintain operational efficiency without interruption.
