BDM1C

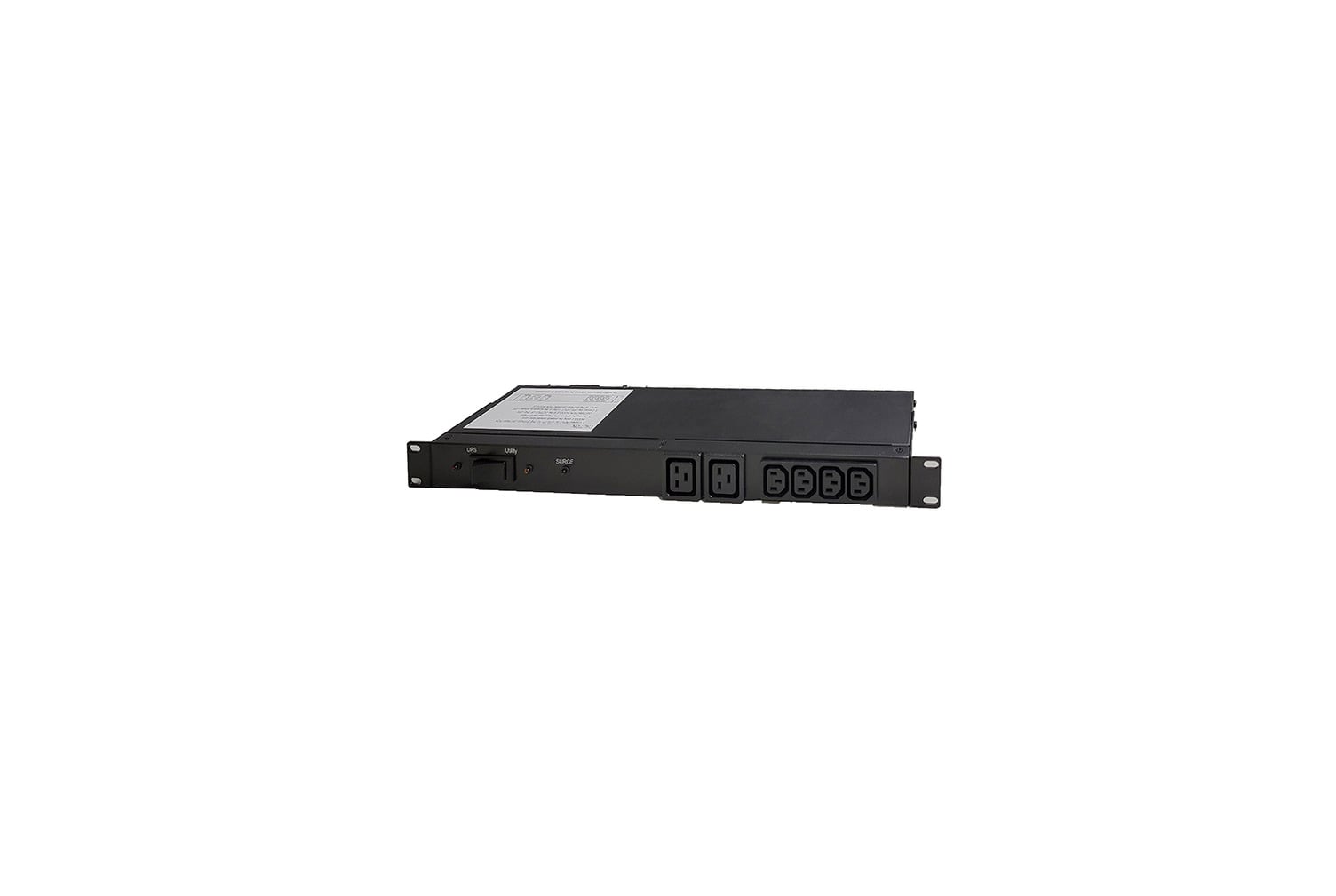

Maintenance Bypass Distribution Module; 1U; Single-Phase; 200-240V; 16A; C20 Inlet; (2) C19 + (4) C13 Outlets Front + (4) C13 Outlets Rear; Includes (2) C20 to (C19) Cord Kits; 3 Year Warranty; 1.75"H x 19"W x 3.5"D (45 mm x 483 mm x 89 mm), Black
| Input Plug | C20 |
| Nominal Input Voltage | 200-240V |
| Output Receptacles | (2) C19 + (4) C13 Front; (4) C13 Rear |
Product Description
Manually transfer critical load from UPS power to utility power to prevent power interruption when repairing or replacing the UPS. Two styles are available. For 1kVA to 3kVA UPS, a 1U rack-mount module provide surge protection on input power and a toggle switch for easy transition between utility and UPS power. For 5kVA to 10kVA UPS, choose from several modules that attach to the rear of battery packs and provide several higher power output options.
Key Features and Benefits
- Power Distribution - Adds receptacles and bypass functionality with power distribution capability in one enclosure
- Replace or service the UPS - while maintaining power to critical loads
- Easy Installation - Both UPS and Utility power are connected with supplied cords
- Simple to operate - LED Indicators verify availability of UPS and Utility sources prior to transfer of load
- Surge protection on BDM1x models - loads are protected even when UPS is in bypass mode
Product Information
Advanced Features of the BDM1C Bypass Module
The BDM1C UPS bypass module provides a manual transfer switch to shift critical loads from UPS power to utility power, ensuring no interruption during maintenance or repairs. This ups maintenance bypass unit includes surge protection on input power, safeguarding equipment even when the UPS is in bypass mode. With LED indicators for source availability, operators can confidently manage power transitions for maintenance bypass ups scenarios.
This ups maintenance bypass unit distributes power through multiple outlets, including C19 and C13 receptacles, supporting various devices in data center environments. The compact 1U design allows for easy rack-mount installation, saving valuable space while adding bypass functionality with power distribution. Simple toggle switch operation makes it straightforward to replace or service the UPS without downtime, enhancing reliability for ups modules.
Key benefits of the BDM1C include the ability to maintain power to critical loads during UPS servicing, reducing risks associated with power loss. The integration of surge protection ensures loads remain protected, a crucial feature for maintenance bypass operations in sensitive applications. Easy connection with supplied cords simplifies setup, making this ups bypass module a practical solution for IT and industrial settings.
Installation is streamlined with both UPS and utility power connections facilitated by included cord kits, minimizing deployment time and effort. The intuitive design with clear LED status lights verifies power source availability before transferring loads, preventing errors during maintenance bypass ups procedures. This ups maintenance bypass unit is built for durability and complies with industry standards, supporting long-term performance.
Ideal for data centers, enterprise networks, and industrial facilities, the BDM1C supports uninterrupted operations with its robust construction and reliable performance. As part of CPI's power management solutions, this ups bypass module exemplifies quality and innovation, backed by a three-year warranty. It addresses the growing demand for efficient ups maintenance bypass units in modern infrastructure, ensuring power continuity and equipment protection.
