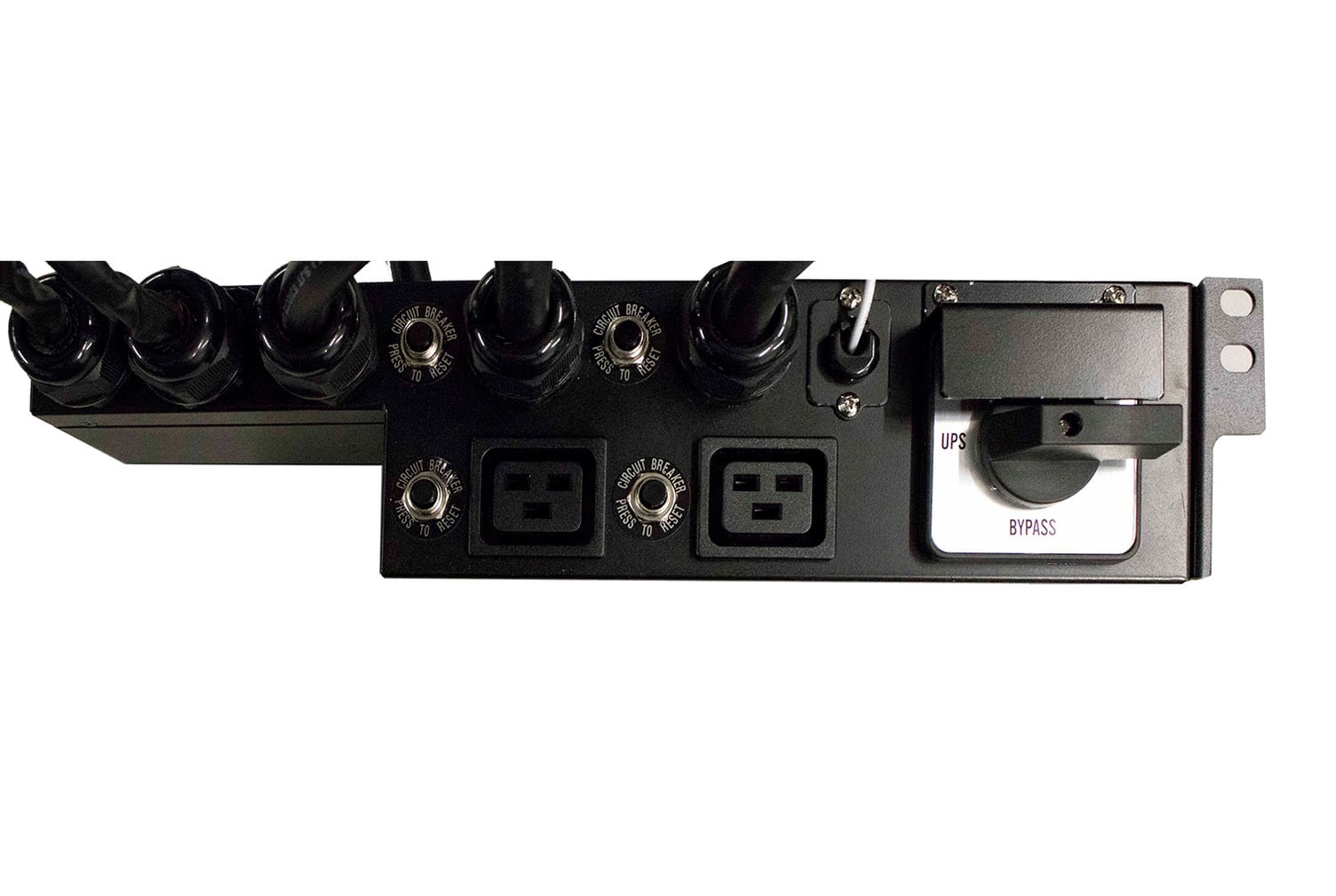

BDM2A

Maintenance Bypass Distribution Module for VD5000B/VD6000B Single-Phase UPS; L6-30P Input; (2) L6-30R + (2) C19 Outlets; Mounts to Rear of Battery Pack or in Rear of Rack; 3 Year Warranty; 3.5"H x 14.6"W x 5"D (89 mm x 371 mm x 127 mm); Black

MSRP $1,278.71
Input PlugL6-30P
Nominal Input Voltage200-240V
Output Receptacles(2) L6-30R + (2) C19
Product Description

Manually transfer critical load from UPS power to utility power to prevent power interruption when repairing or replacing the UPS. Two styles are available. For 1kVA to 3kVA UPS, a 1U rack-mount module provide surge protection on input power and a toggle switch for easy transition between utility and UPS power. For 5kVA to 10kVA UPS, choose from several modules that attach to the rear of battery packs and provide several higher power output options.

Key Features and Benefits
  • Power Distribution - Adds receptacles and bypass functionality with power distribution capability in one enclosure
  • Replace or service the UPS - while maintaining power to critical loads
  • Easy Installation - Both UPS and Utility power are connected with supplied cords
  • Simple to operate - LED Indicators verify availability of UPS and Utility sources prior to transfer of load
  • Surge protection on BDM1x models - loads are protected even when UPS is in bypass mode
What This Page Covers

Key Features of the BDM2A UPS Maintenance Bypass

The UPS bypass module enables operators to shift load from the UPS to utility power without interruption. This capability is essential during routine UPS maintenance or unexpected failures. By using a manual transfer switch, the system ensures continuous power to critical equipment. Our BDM2A model belongs to the family of UPS maintenance bypass units that combine power distribution with bypass functionality. It mounts conveniently to the rear of a battery pack or directly in a rack, simplifying installation. The design includes surge protection to guard downstream loads even while the UPS is in bypass mode. When UPS bypass thyristor modules are required, the BDM2A provides clear LED indicators that confirm the status of both UPS and utility sources. Operators can verify source availability before initiating load transfer, reducing the risk of accidental power loss. The module's toggle switch offers intuitive control for fast, reliable switching. Maintenance bypass solutions like this module support a wide range of UPS sizes, from small 1 kVA units up to larger 10 kVA systems. The flexible outlet configuration accommodates various equipment types, ensuring seamless integration into existing power architectures. This versatility helps data centers maintain uptime while servicing UPS equipment. Integrating a UPS bypass module improves overall system resilience and simplifies service procedures. Customers benefit from reduced downtime, protected equipment, and streamlined maintenance workflows. CPI's commitment to quality and global support ensures the bypass solution performs reliably in demanding enterprise environments.
