1018-00
11" (279 mm) Recessed Wall Mounted Plastic Access Point Enclosure with Low Profile Snap-on Cover
| Application | Wall Recessed Mount |
| Mount Style | Recessed Wall Mount |
Product Description
Oberon™ In-Plane™ Recessed Mounts 1018 provides a convenient way to conceal Wi-Fi and Small Cell Wireless Access Points (APs) into a dry-wall wall for an aesthetic, professional installation. Oberon™ In-Plane™ Recessed Mounts 1018 is an all-plastic recess box with mounting features for leading vendor's APs.

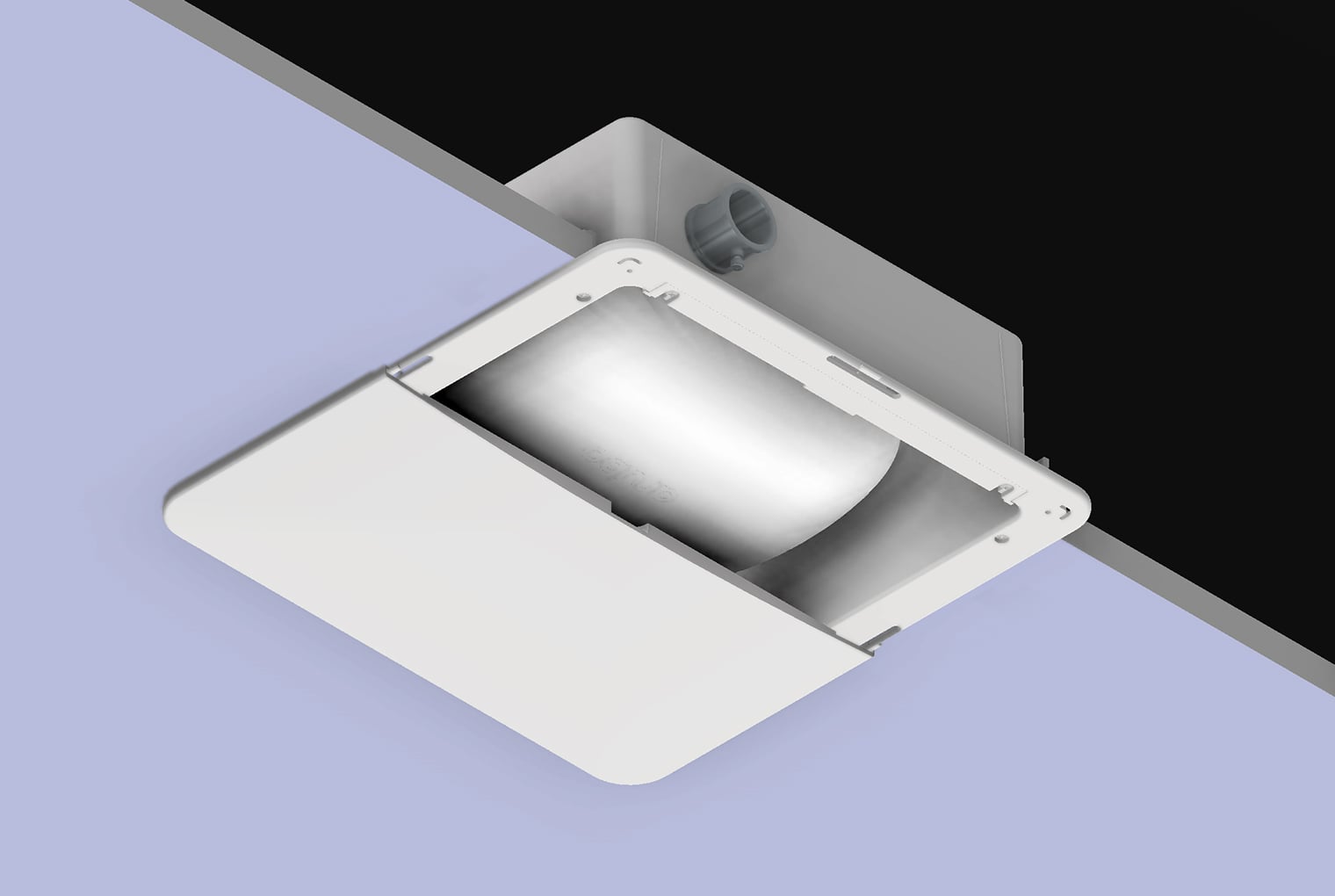

The recessed box installs into an opening in the wall in minutes. The AP, surface mount box, patch cord, and associated cabling can be organized inside the recess box, and the low-profile cover snaps into place. The paintable white cover largely blends into most walls. The cover is a thin PC/ABS composite plastic, which is virtually transparent to the wireless signal. Oberon™ In-Plane™ Recessed Mounts 1018 is the ideal solution in venues where the AP needs to ‘visually disappear’ without compromising wireless coverage and performance.
Oberon™ In-Plane™ Recessed Mounts 1018 is uniquely designed to satisfy UL 2416 requirements for in-wall mounted enclosure systems. Oberon™ In-Plane™ Recessed Mounts 1018 is constructed of a suitably-rated plastic material for recess wall mounting. Unlike metal in-wall boxes, Oberon™ In-Plane™ Recessed Mounts 1018 will have minimum impact on wireless performance.
Key Features and Benefits
- Recess and conceal Wi-Fi APs into a dry-wall wall
- Paintable snap-on cover is almost flush to wall
- Easily fastens to drywall using swivel fasteners
- Plastic construction minimizes impact on wireless performance
Technical Specifications
- Design: Non-metallic wireless AP flush-mount enclosure. Designed to conceal and secure APs with integrated or non-detachable antennas. UL 2416 listed for recess installation in walls
- Performance: Paintable, impact resistant plastic enclosure is virtually transparent to wireless signals. UL listed for recess installation in walls. De-rate AP operating temperature range by 8°C when mounted in enclosure.
- Snap-on cover with concealed attachment points can optionally be screwed on for added security
- Swivel fasteners mount box into wall opening with minimal hardware
- Includes UL Listed Conduit Connector which accommodates up to 2 Cat 6A cables, permits code compliant recess wall installation
- Universal mounting T-bar for most vendor’s APs, mounting features for Cisco and Aruba APs
- Construction: Flame retardant PC/ABS plastic. All PC/ABS components are white. 18 gauge galvanized steel T-bar
- Size: 13 x 13 x 4 in.
- Assembled in the USA

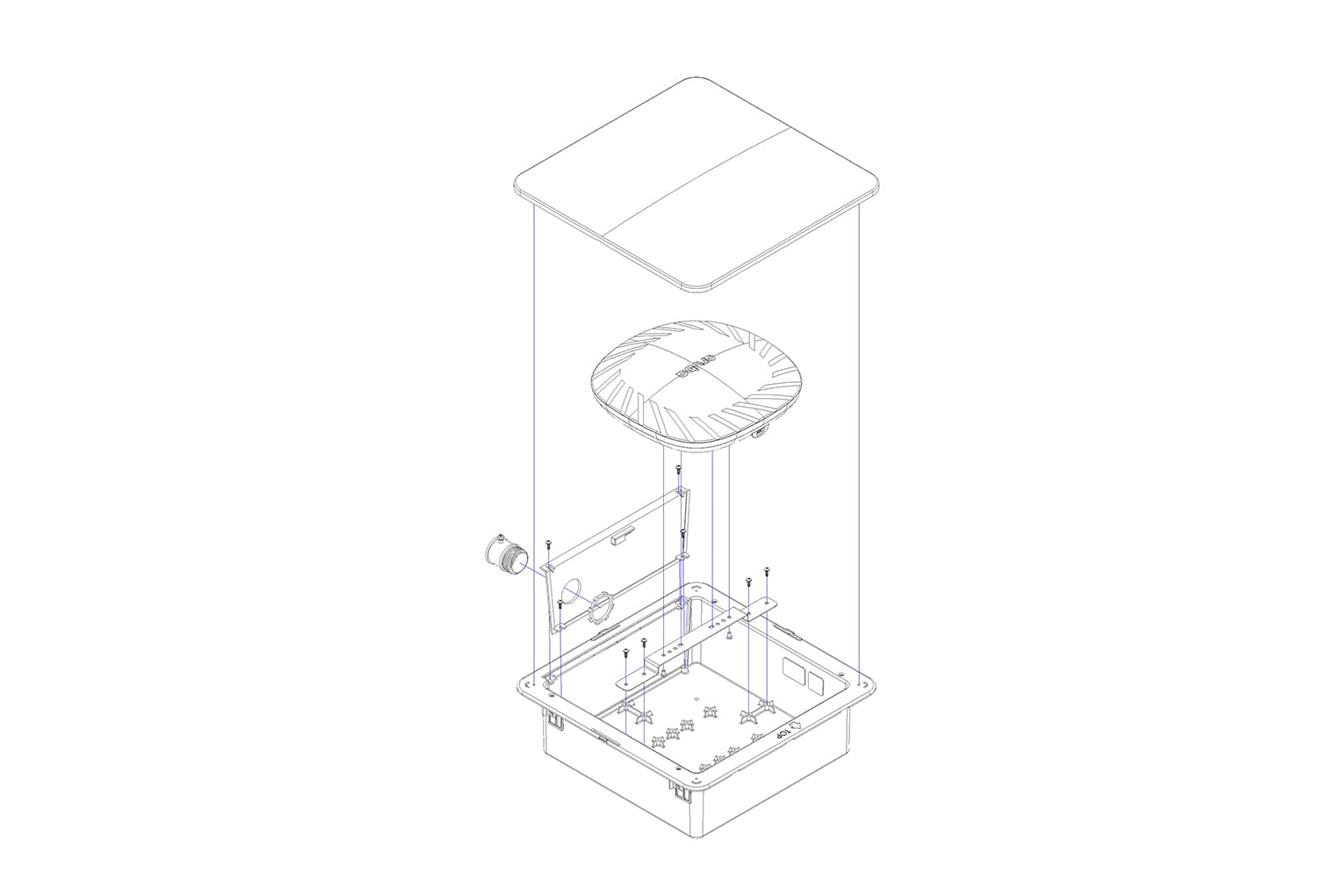

Product Includes:
- (1) Base Enclosure
- (1) Removable bottom panel
- (1) Cover
- (1) T-Bar Mount
- (4) Press Pads
- (10) #6-19 x 3/8 in. Pan Head Thread-Forming Screws for Plastic
- (4) #4-24 x 1-1/2 in. Pan Head Screws for Sheet Metal
- (1) Self-Centering 1 in. Trade Size Hole Plug, UL Listed
- (1) 1 in. Trade Size Conduit Connector
Access Point Vendor
- Arista
- Aruba
- Cisco
- Extreme
- Juniper
- Meraki
- Ruckus
- Ubiquiti
Access Point Model
- Arista C-200
- Aruba AP-505
- Aruba AP-515
- Aruba AP-535
- Aruba AP-615
- Aruba AP-635
- Aruba AP-735
- Cisco C9105AXI
- Cisco C9115AXI
- Cisco C9120AXI
- Cisco C9130AXI
- Cisco C9136I
- Cisco CW9162I
- Cisco CW9164I
- Cisco CW9166I
- Cisco CW9166D1
- Cisco CW9172I
- Cisco CW9176I
- Cisco CW9176D1
- Cisco CW9178I
- Extreme AP305C
- Extreme AP310i
- Extreme AP410i
- Extreme AP410C
- Extreme AP3000
- Extreme AP4000
- Juniper BT11
- Juniper AP21
- Juniper AP24
- Juniper AP33
- Juniper AP34
- Juniper AP43
- Juniper AP45
- Juniper AP47
- Juniper AP47D
- Meraki MR28
- Meraki MR36
- Meraki MR57
- Ruckus R350
- Ruckus R550
- Ruckus R650
- Ruckus R750
- Ruckus R850
- Ruckus R560
- Ruckus R670
- Ruckus R770
- Ubiquiti UAP-U6-PRO
- Ubiquiti UAP-U6-LITE
- Ubiquiti UAP-U6-PLUS
- Ubiquiti UAP-U6-ENTERPRISE
- Ubiquiti UAP-U7-PRO
- Ubiquiti UAP-U7-PRO-MAX
- Ubiquiti UAP-E7
Product Information
Design Tools
Key Features of the Oberon® 1018-00 Recessed Wall Box
The Oberon® In-Plane™ 1018-00 recessed wall box, one of the Oberon mounts, provides a discreet solution for mounting Wi‑Fi access points directly behind drywall. Its low‑profile, paintable white cover blends seamlessly with interior finishes, giving a professional appearance without exposing hardware. Installation requires only a simple cutout and the swivel fasteners secure the box in minutes. Designed as a plastic recessed wall box, the 1018-00 model includes a snap‑on cover that can be optionally fastened with screws for added security. The flame‑retardant PC/ABS composite is virtually transparent to wireless signals, preserving performance while protecting the equipment. The dimensions of 13 x 13 x 4 in. (330 x 330 x 102 mm) fit standard wall openings. The Oberon® 1018‑00 meets UL 2416 requirements for in‑wall mounted enclosure systems, ensuring code‑compliant installations. An UL‑listed conduit connector accommodates up to two Cat 6A cables, simplifying cable management within the recess. The recessed box also features a universal T‑bar that supports a wide range of vendor APs. Signal integrity is maintained because the non‑metallic enclosure introduces minimal attenuation compared with metal boxes. The thin PC/ABS cover does not interfere with antenna patterns, allowing the AP to deliver full coverage. This makes the 1018‑00 an ideal choice for venues where the AP must visually disappear. Compatible with leading manufacturers, the Oberon® 1018‑00 supports Aruba, Cisco, Meraki, Ruckus, Ubiquiti, Juniper, Extreme and others, covering models such as Aruba AP‑535, Cisco C9115AXI and Ubiquiti UAP‑U6‑PRO. By consolidating the access point, patch cord and cabling in a single recess, the solution reduces clutter and protects the equipment. The result is a clean, secure, and high‑performance wireless deployment.
