Oberon In-Plane Recessed Mounts 1018
Explore Sizes & Options
| Add to Cart Add | ||||
|---|---|---|---|---|
1018-00 | Wall Recessed Mount | Recessed Wall Mount | $125.00 |
Product Description
Oberon™ In-Plane™ Recessed Mounts 1018 provides a convenient way to conceal Wi-Fi and Small Cell Wireless Access Points (APs) into a dry-wall wall for an aesthetic, professional installation. Oberon™ In-Plane™ Recessed Mounts 1018 is an all-plastic recess box with mounting features for leading vendor's APs.

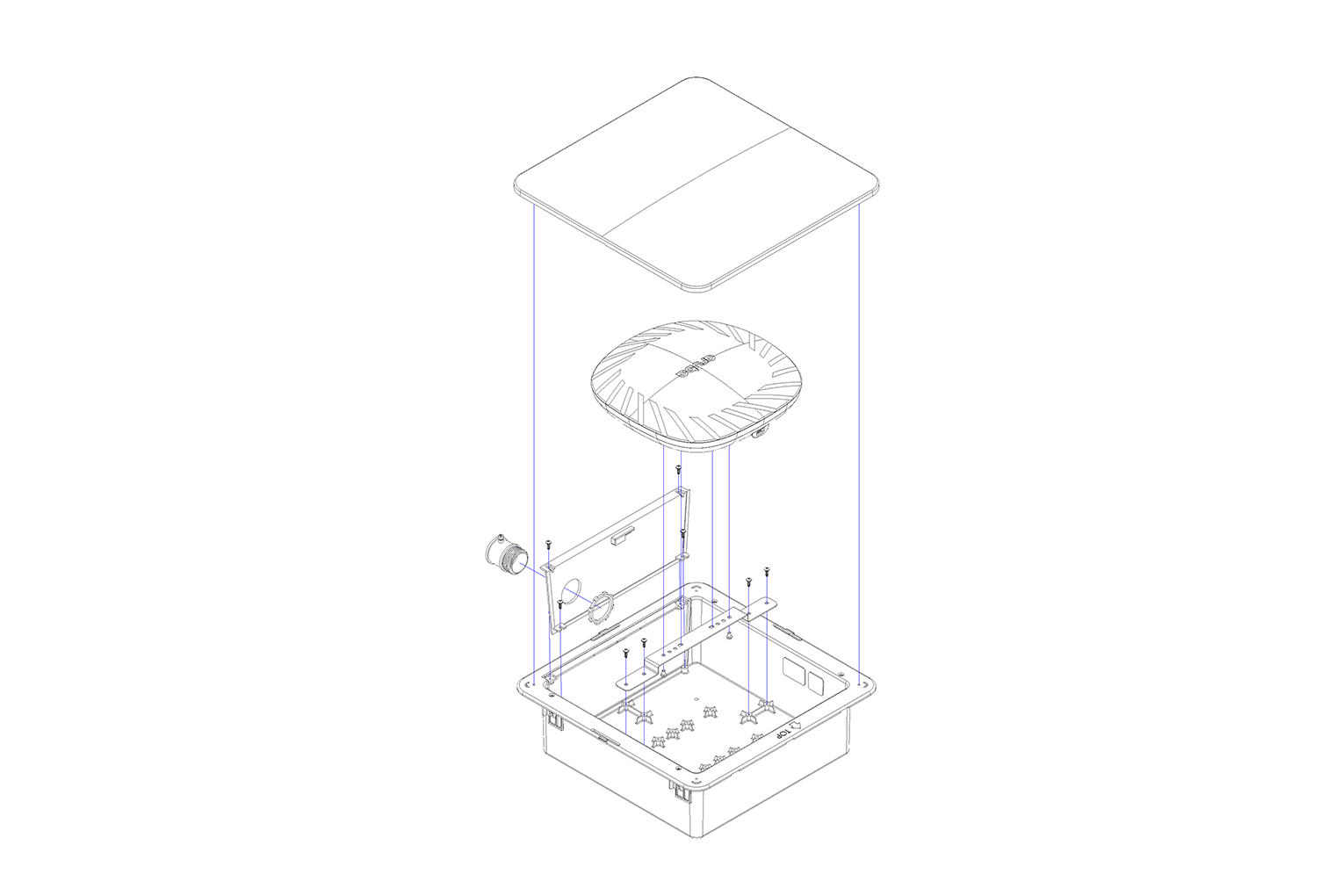

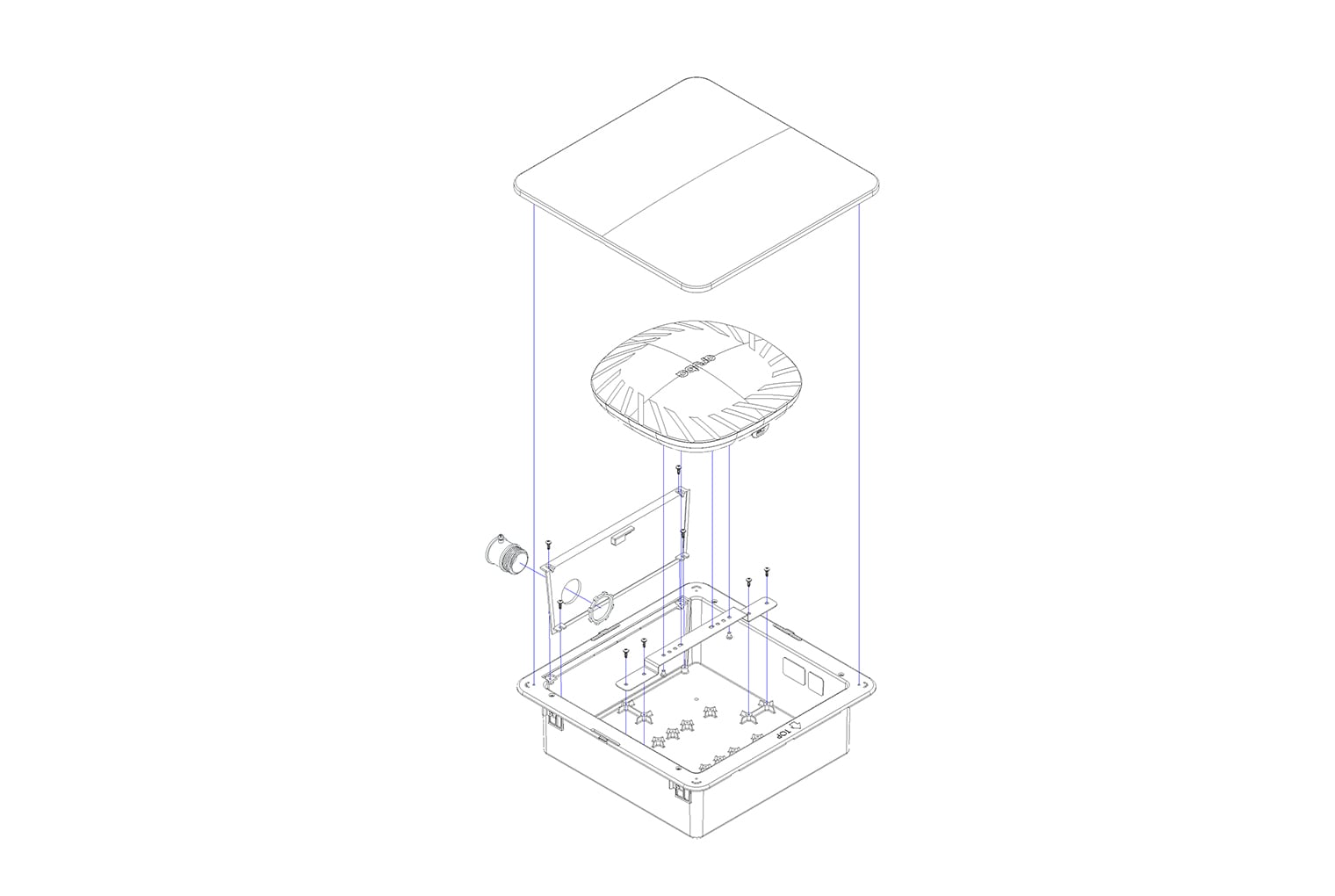

The recessed box installs into an opening in the wall in minutes. The AP, surface mount box, patch cord, and associated cabling can be organized inside the recess box, and the low-profile cover snaps into place. The paintable white cover largely blends into most walls. The cover is a thin PC/ABS composite plastic, which is virtually transparent to the wireless signal. Oberon™ In-Plane™ Recessed Mounts 1018 is the ideal solution in venues where the AP needs to ‘visually disappear’ without compromising wireless coverage and performance.
Oberon™ In-Plane™ Recessed Mounts 1018 is uniquely designed to satisfy UL 2416 requirements for in-wall mounted enclosure systems. Oberon™ In-Plane™ Recessed Mounts 1018 is constructed of a suitably-rated plastic material for recess wall mounting. Unlike metal in-wall boxes, Oberon™ In-Plane™ Recessed Mounts 1018 will have minimum impact on wireless performance.
Key Features and Benefits
- Recess and conceal Wi-Fi APs into a dry-wall wall

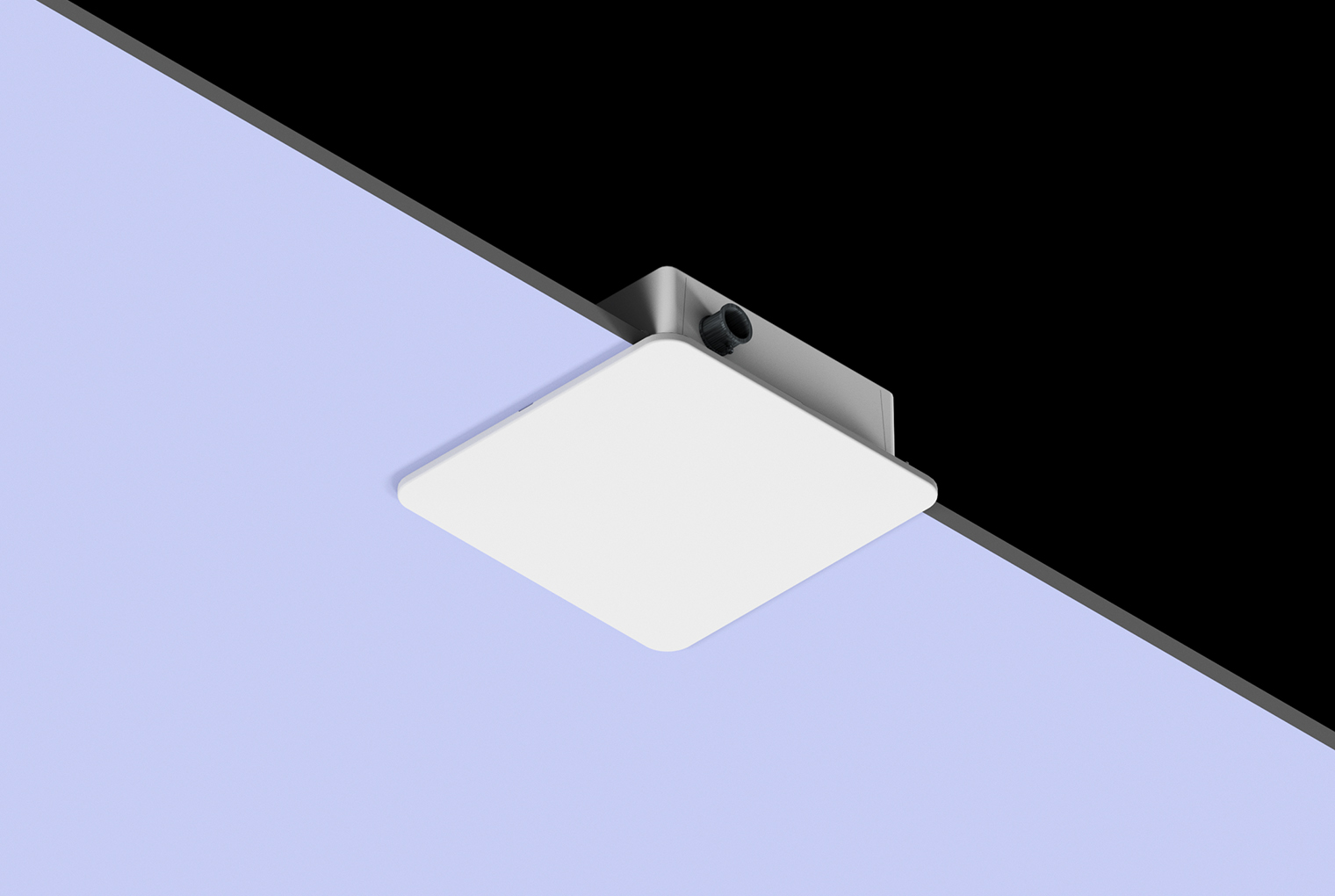

- Paintable snap-on cover is almost flush to wall
- Easily fastens to drywall using swivel fasteners
- Plastic construction minimizes impact on wireless performance
Technical Specifications
- Design: Non-metallic wireless AP flush-mount enclosure. Designed to conceal and secure APs with integrated or non-detachable antennas. UL 2416 listed for recess installation in walls
- Performance: Paintable, impact resistant plastic enclosure is virtually transparent to wireless signals. UL listed for recess installation in walls. De-rate AP operating temperature range by 8°C when mounted in enclosure.
- Snap-on cover with concealed attachment points can optionally be screwed on for added security
- Swivel fasteners mount box into wall opening with minimal hardware
- Includes UL Listed Conduit Connector which accommodates up to 2 Cat 6A cables, permits code compliant recess wall installation
- Universal mounting T-bar for most vendor’s APs, mounting features for Cisco and Aruba APs
- Construction: Flame retardant PC/ABS plastic. All PC/ABS components are white. 18 gauge galvanized steel T-bar
- Size: 13 x 13 x 4 in.
- Assembled in the USA
Product Includes:
- (1) Base Enclosure
- (1) Removable bottom panel
- (1) Cover
- (1) T-Bar Mount
- (4) Press Pads
- (10) #6-19 x 3/8 in. Pan Head Thread-Forming Screws for Plastic
- (4) #4-24 x 1-1/2 in. Pan Head Screws for Sheet Metal
- (1) Self-Centering 1 in. Trade Size Hole Plug, UL Listed
- (1) 1 in. Trade Size Conduit Connector
Product Information
Design Tools
Key Features of Oberon 1018 Recessed Mounts
The Oberon® 1018 In-Plane™ recessed mounts offer a discreet solution for hiding Wi-Fi and small cell wireless access points in dry-wall walls, ensuring a professional and aesthetic installation. These recessed mounts help maintain optimal wireless coverage by minimizing visual clutter in various environments. With their design focused on seamless integration, they are ideal for offices, healthcare facilities, and educational institutions where appearance matters.
Key benefits include a paintable snap-on cover that sits almost flush with the wall, reducing obtrusiveness while allowing easy access for maintenance. The plastic construction is virtually transparent to wireless signals, preventing interference and supporting reliable network performance. Additionally, the enclosure is UL 2416 listed for safe recessed installation, ensuring compliance with industry standards.
Installation is simplified with swivel fasteners that securely mount the box into wall openings without complex tools. A universal mounting T-bar accommodates leading vendor access points, such as Cisco and Aruba models, for versatile deployment. All necessary components, including screws and conduit connectors, are included for a code-compliant and efficient setup.
Constructed from flame-retardant PC/ABS plastic, the Oberon 1018 recessed mounts provide durability and impact resistance in demanding settings. Assembled in the USA, they meet high-quality standards and measure 13 x 13 x 4 inches to fit various access points and cabling needs. This design ensures long-term reliability while organizing cables and equipment inside the recess box.
Ideal for applications where access points must visually disappear, these Oberon mounts enhance both security and aesthetics by concealing infrastructure. They support modern wireless networks by reducing signal blockage and simplifying cable management. This solution is perfect for achieving a clean, professional look without sacrificing wireless performance or coverage.
