Uninterruptible Power Supplies
Browse Uninterruptible Power Supplies (6 Products)
Lithium Ion Standby UPS 350VA-600VA
Product Overview
LS Series — This compact design is excellent for use in wall-mount networking and computer equipment cabinets when providing protection to network switches, industrial computers, automation systems, programmable logic controllers (PLCs), video walls, kiosks, and point-of-sale (POS) equipment.
- Compact Design—This compact design will easily fit where a conventional UPS will not
- Long-Life Battery—Lithium iron phosphate batteries provide protection for up to 8-10 years or 2000 discharges
- Highest Efficiency—operates at up to 98% efficiency, saving utility costs and reducing heat output
- High Temperature Tolerance—Lithium Ion battery technology allows continuous operation at up to 104°F (40°C) without reduction in battery life
- Auto restart—after full battery discharge, automatically restarts when utility power returns
Sizes & Options
VA Capacity, Capacity Watts, External Battery Option, Input Plug, Nominal Input Voltage, Output Receptacles, Runtime 100% Load, Runtime 50% Load
Lithium Ion Online UPS 1500VA-3000VA
Product Overview
LD Series —Lithium Ion Uninterruptible Power Supplies (UPS) provide more than twice the life, higher temperature tolerance, longer runtime, and faster recharge when compared to typical lead-acid battery solutions. Double-Conversion Online technology makes this UPS ideal for protection of network, server, edge, light industrial and distributed IT applications.
- 6-Year Full Warranty—industry-leading coverage for both Lithium Ion batteries and UPS electronics.
- Double-Conversion Online—Provides the most robust power protection against blackouts, brownouts, voltage surges, frequency variation and harmonic distortion
- Longer Runtimes—Internal runtimes up to 5 times longer than lead-acid UPS Longer Lifespan—Up to 2000 full discharge cycles. Up to 10 times more than lead-acid UPS
- Quick Recharge—90 minutes to 90% full charge with powerful 8 Amp charger
- Lower Weight—25% less heavy than typical lead-acid UPS
- Battery Management System—insures cell voltage balancing, current sharing and protection for over-charge and over-discharge
- Maintenance Bypass—optional bypass distribution module enables the UPS to be replaced or serviced without power interruption
Sizes & Options
VA Capacity, Capacity Watts, External Battery Option, Input Plug, Nominal Input Voltage, Output Receptacles, Runtime 100% Load, Runtime 50% Load

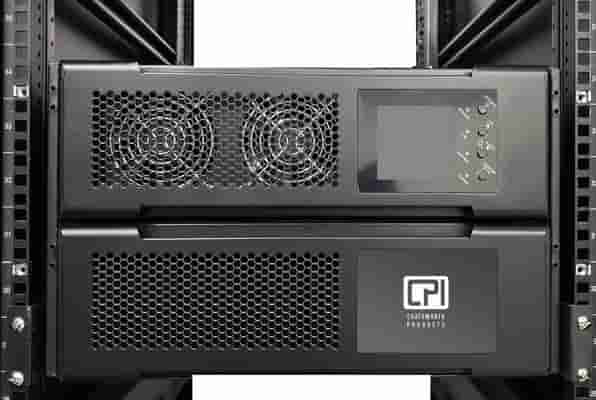

Lead Acid Online UPS 5kVA-8kVA, 3-Phase
Product Overview
VD 3Ph Series —Modular, flexible entry-level three-phase power solution providing continuous power availability and high-efficiency for critical server, network and branch office applications.
- Double-Conversion Online—Provides the most robust power protection against blackouts, brownouts, voltage surges, frequency variation and harmonic distortion.
- Integral Maintenance Bypass—Simplifies UPS repair or replacement and reduces costly downtime without any need for external component connections.
- Efficient operation—Best in class energy efficiency provides low energy consumption and heat output.
- Unity output power factor—Provide more real capacity for high-density loads.
- Optional receptacle panel—Configure with L21-20R or L21-30R output receptacles. Optional input cord set simplifies field installation.
- Multiple output voltages—208V and 120V output without the need for any additional isolation transformers.
- 3-phase input and output—Helps balance loads across all incoming phases into the facility.
Sizes & Options
VA Capacity, Capacity Watts, Input Plug, Nominal Input Voltage, Output Receptacles, Pre-Installed SNMP/Web Card, Runtime 100% Load, Runtime 50% Load
Lead Acid Online UPS 5000VA-10KVA
Product Overview
VD 1Ph Series — Reliable and economical backup power protection for servers and network applications.
- Double-Conversion Online—Provides the most robust power protection against blackouts, brownouts, voltage surges, frequency variation and harmonic distortion
- Unity output power factor—provide more real capacity for high density loads
- Efficient operation—up to 98% ECO mode efficiency lowers energy consumption
- Hot swappable battery—optional battery packs are easy to replace without interrupting the load
- Multiple communications capability– RS-232, USB, and optional Web/SNMP communications card
- Maintenance bypass—optional bypass module enables the UPS to be replaced or serviced without interruption of power to critical loads
- Extended battery runtimes—optional matching battery modules available for extended runtimes
- Isolation transformer—optional transformer provides 240/120 or 208/120V output
Sizes & Options
VA Capacity, Capacity Watts, External Battery Option, Input Plug, Nominal Input Voltage, Output Receptacles, Runtime 100% Load, Runtime 50% Load
Lead Acid Online UPS 1000VA-3000VA
Product Overview
VD 1Ph Series —Reliable and economical backup power protection for servers and network applications.
- Double-Conversion Online—Provides the most robust power protection against blackouts, brownouts, voltage surges, frequency variation and harmonic distortion
- High output power factor—provides near unity output power factor rating (2U units)
- Efficient operation—up to 98% ECO mode efficiency lowers energy consumption
- Charging current—1/2/4/6/8/12A, adjustable from LCD display. Optimize charging for most battery solutions (2U units only)
- Fast recharge—up to 95% battery charge in just 3 hours (2U units)
- Multiple communications capability—RS-232, USB, and optional Web/SNMP communications card
- Programmable receptacles—remote on/off control (2U only) to extend runtimes to critical pieces of equipment in the event of a utility power outage
- Extended battery runtimes—optional matching battery modules available for extended runtimes
Sizes & Options
VA Capacity, Capacity Watts, External Battery Option, Input Plug, Nominal Input Voltage, Output Receptacles, Runtime 100% Load, Runtime 50% Load
Lead Acid Line-Interactive UPS 800VA-5000VA
Product Overview
VL Series — Reliable and economical backup power protection for servers and network applications.
- Pure Sine Wave Line-Interactive Conversion— Provides robust power protection against blackouts, brownouts and voltage surges
- 99% efficient operation—high efficiency ECO mode lowers energy consumption
- Auto restart—Automatically restarts when utility power returns after full battery discharge
- Smart LCD display—vital monitoring and precise information from the front panel
- Programmable receptacle group—maximize uptime for critical loads and equipment by shedding less critical loads
- Temperature compensation—temperature compensated charging to prolong battery life and help reduce replacement costs
- Hot swappable battery—easy to replace without interrupting the load
- Maintenance bypass—an optional maintenance bypass distribution module enables the UPS to be replaced or serviced without interruption of power to critical loads
- Extended battery runtimes—optional matching battery modules available for extended runtimes
Sizes & Options
VA Capacity, Capacity Watts, External Battery Option, Input Plug, Nominal Input Voltage, Output Receptacles, Runtime 100% Load, Runtime 50% Load
