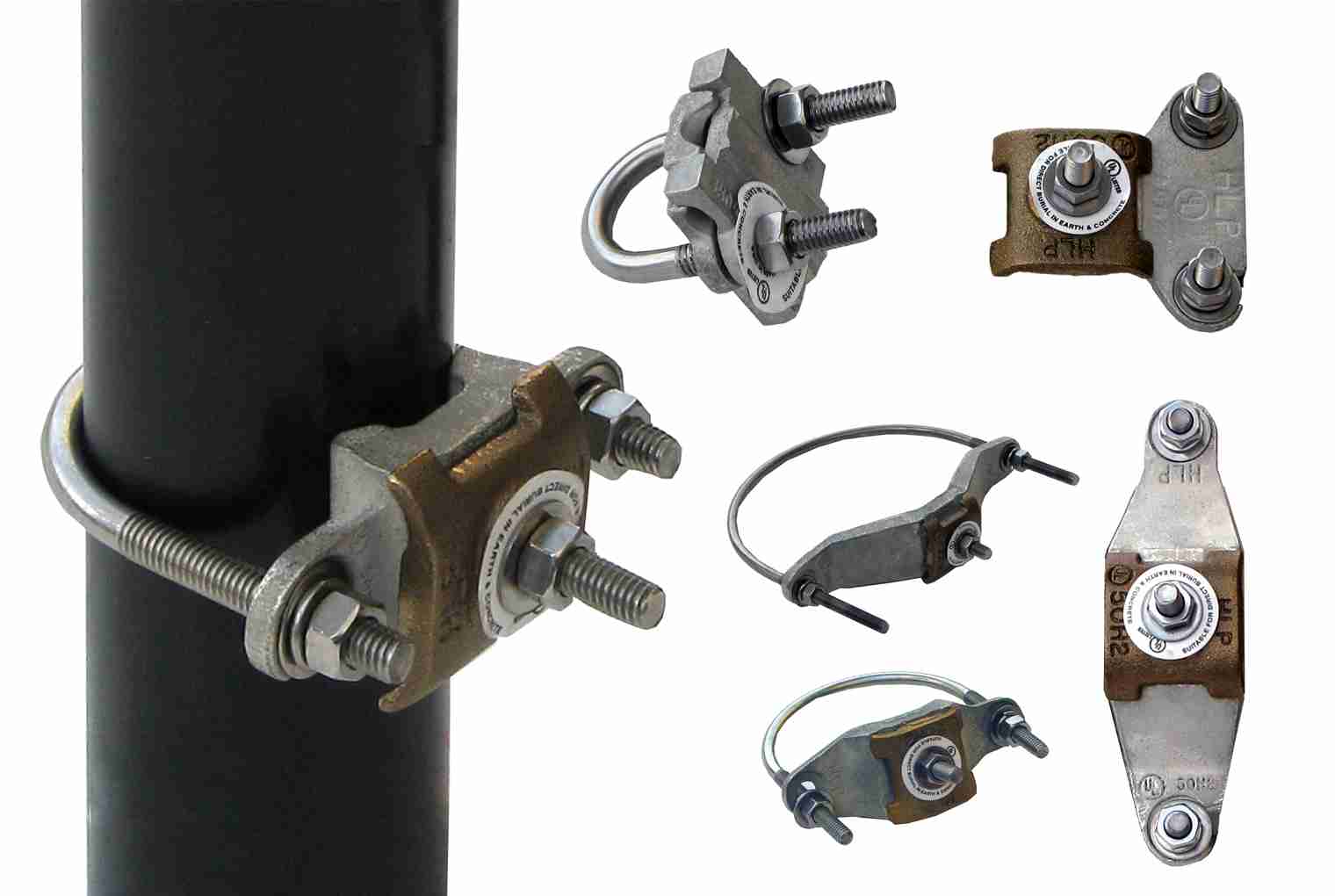

Pipe Clamp with Bonding Connector
Explore Sizes & Options
| Add to Cart Add | |||
|---|---|---|---|
40170-004 | For use with Pipe Size 2.5"-3" (64 mm-80 mm) | $150.55 | |
40170-001 | For use with Pipe Size .5"-75" (10 mm-19mm) | $80.53 | |
40170-005 | For use with Pipe Size 3.5"-4" (89 mm-100mm) | $162.76 | |
40170-006 | For use with Pipe Size 5"- 6" (130 mm-150 mm) | $183.40 | |
40170-002 | For use with Pipe Size 1"-1.25" (30 mm-31.8mm) | $124.90 | |
40170-003 | For use with Pipe Size 1.5"-2" (38 mm-50 mm) | $138.91 |
Product Description
Support bonding conductors from metal pipes of various sizes with the Pipe Clamp with Bonding Connector. The connector provides a bonding connection for the pipe and supports up to two conductors parallel or perpendicular to the pipe. Select the Pipe Clamp with Bonding Connector to match the size of the pipe.
- Attaches to pipes ranging in size from 1/2” to 6” nominal (3/8”to 6.6” outside diameters)
- UL® Listed, File E236184, Category KDER (US), KDER7 (Canada) - Grounding and Bonding Equipment
- Supports 1 or 2 conductors; conductors must be the same size
- Use with conductors ranging in size from #6 up to 250 MCM
- Attach conductors parallel or perpendicular to the pipe
- Manufactured from electroplated tinned bronze with stainless steel hardware
Product Information
Key Features of the Pipe Clamp with Bonding Connector
The pipe connector clamp provides a secure bonding point for metal conduits ranging from ½" to 6" nominal diameter. Constructed from electro‑plated tinned bronze with stainless‑steel hardware, it meets UL® Listing File E236184 for both U.S. and Canadian markets. This design supports one or two conductors of the same size, enabling flexible installation configurations. Installation is straightforward: the clamp slides over the pipe and the bonding connector is fastened with the included hardware, allowing conductors to run parallel or perpendicular to the pipe. The UL‑listed construction ensures long‑term corrosion resistance in harsh industrial environments. Because the connector accepts conductors from #6 up to 250 MCM, it accommodates a wide range of grounding needs. The pipe clamp connector is engineered for data‑center enclosures, rack systems, and industrial cabinets where reliable grounding is critical. Its compact profile minimizes space usage while maintaining high current‑carrying capacity. Engineers often select this product as a pipe clamp coupler when designing grounding loops for high‑density equipment. When multiple clamps are required, the system can be combined with other connector clamps to create continuous grounding paths. The standardized dimensions allow the use of 3.5 pipe clamp sizes alongside larger variants without additional tooling. This modularity supports scalable deployments across multi‑tenant and hyperscale facilities. Overall, the bonded clamps deliver consistent performance, simplifying compliance with grounding codes and improving system safety. Their durable materials and UL certification provide confidence for long‑term operation. Choosing this pipe connector clamp helps ensure that critical infrastructure remains protected and operational.
