Rack Bonding Busbar
Explore Sizes & Options
| Add to Cart Add | |||
|---|---|---|---|
10610-019 | 19" (483 mm) | $106.51 | |
10610-023 | 23" (584 mm) | $109.92 | |
10610-035 | 35" (889 mm) | $125.14 |
Product Description

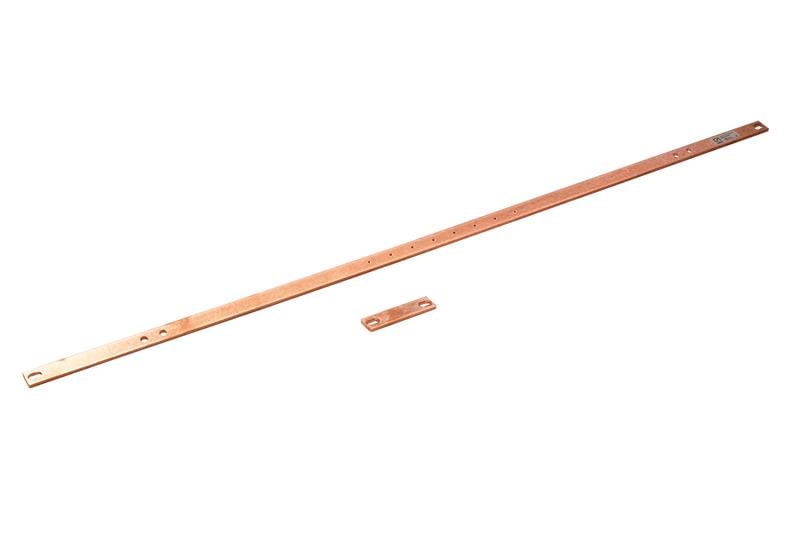

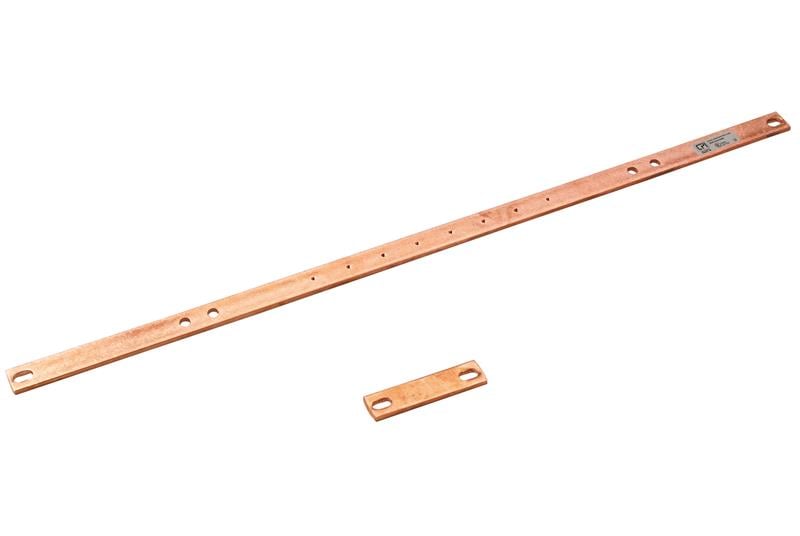

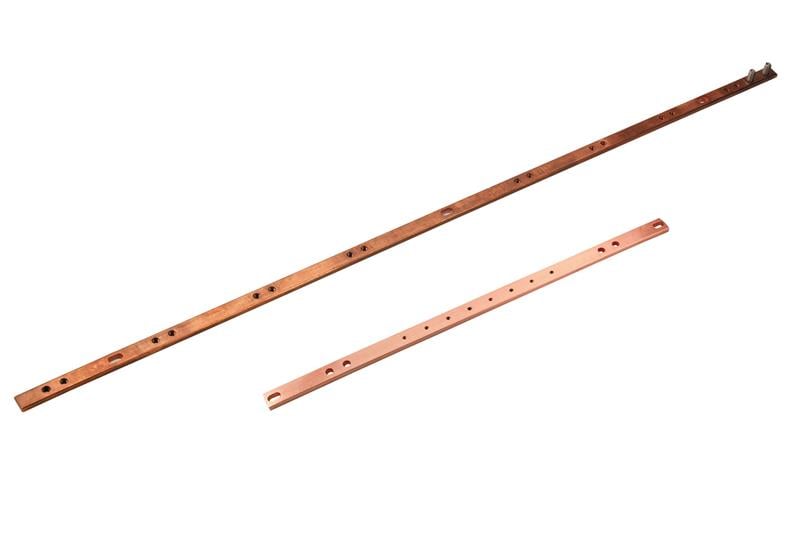

Use Rack Bonding Busbar for consolidating equipment bonding. Constructed of 3/16”-thick x 3/4”H (4.763 mm x 19.1 mm) hard-drawn electrolytic tough pitch 110 alloy copper bar with eight #6-32 tapped lug mounting holes on 1” (25.4 mm) centers and two pairs of 5/16” (7.938 mm) diameter holes spaced 3/4” (19.1 mm) apart for attaching ground jumpers.
- Other configurations available on request
- UL® Listed
Part number consists of Busbar and a hardware kit that includes:
- (1) splice plate bar, 3”L (80 mm)
- (2) #12-24 copper machine screws
- (2) #12 copper flat washers
- (8) #6-32 copper machine screws
- (8) #6 ring terminals
Product Information
Design Tools
Enhanced Grounding and Bonding Performance
Chatsworth Products' Rack Bonding Busbar provides a robust solution for consolidating equipment bonding in data center environments. This rack mount ground bar ensures reliable electrical grounding, enhancing safety and compliance with industry standards. Constructed from high-quality copper, it offers durability and optimal performance for rack busbar applications.
The busbar features a solid design with multiple tapped lug mounting holes for secure connections. Its construction supports efficient bonding bar functionality, reducing installation time and improving system integrity. This rack grounding solution is ideal for various rack configurations, including 19-inch, 23-inch, and 35-inch widths.
Using a rack bonding busbar helps mitigate electrical hazards by providing a centralized grounding point. It simplifies the bonding process, ensuring all equipment within the rack is properly grounded. This approach enhances overall rack grounding effectiveness, supporting stable operations in high-density settings.
CPI's bonding busbar is versatile, suitable for data centers, enterprise networks, and industrial applications. It accommodates standard ground jumpers and accessories, facilitating easy integration into existing infrastructure. The rack busbar design promotes consistent bonding bar performance across diverse environments.
With CPI's expertise, customers benefit from rapid customization and global availability of these rack mount ground bars. The company's commitment to quality ensures that each bonding busbar meets rigorous standards for safety and reliability. Explore CPI's solutions to optimize your rack grounding and bonding needs.
