Vertical Rack Bonding Busbar

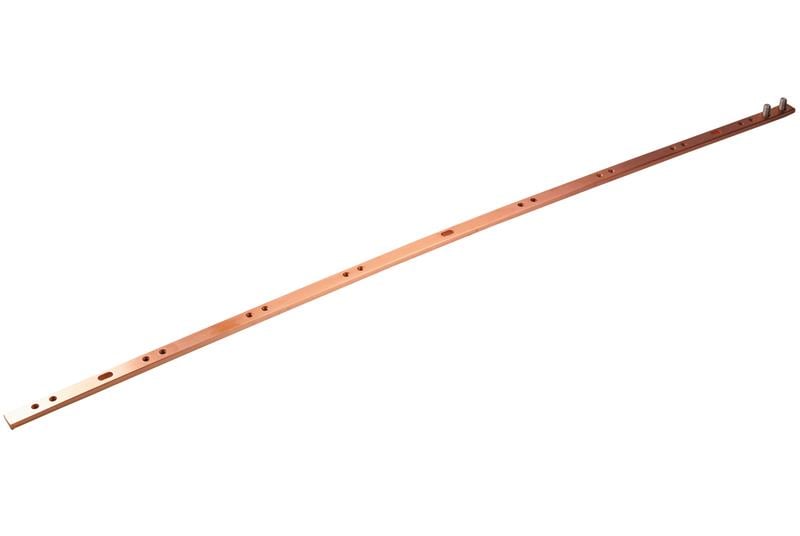

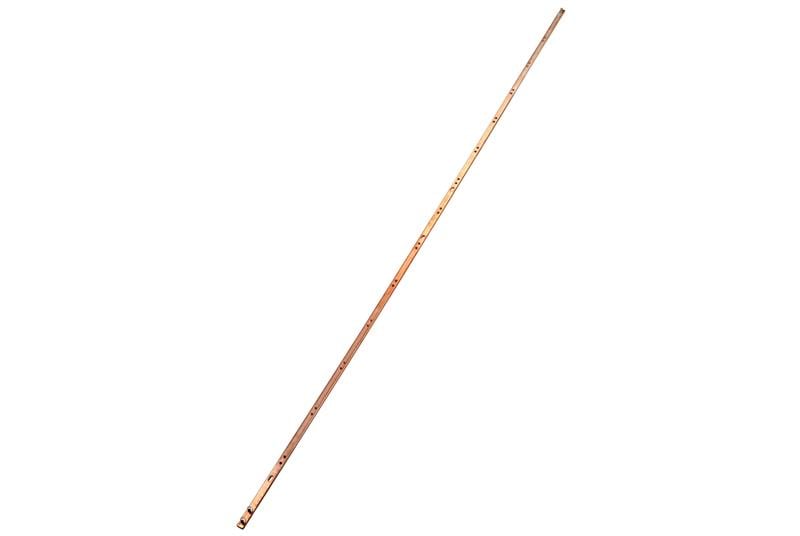

The vertical busbar provides a dedicated path for bonding connections across rack‑mounted equipment. Its hard‑drawn electrolytic tough‑pitch 110 alloy copper construction ensures high conductivity and long‑term durability. Each bar includes #1/4‑20 tapped mounting holes spaced at 5/8 in (15.9 mm) to align with standard rack frames. Available in 36 in (914 mm) and 72 in (1 829 mm) lengths, the rack bonding busbar supports flexible installation in both single‑ and multi‑rack configurations. The shorter model features a set of #5/16 in self‑clinching studs at one end, while the longer model provides studs at both ends for symmetrical conductor attachment. This design simplifies grounding loops and reduces cable clutter. The grounding bus bar is UL® listed (File E236184) for Category KDER in the United States and KDER7 in Canada, meeting stringent safety standards for data‑center environments. Its robust copper cross‑section of 5/8 in x 1/4 in (15.9 mm x 6.4 mm) delivers low‑impedance paths for fault currents. Engineers rely on this bonding bus to protect sensitive electronics from electrical surges. Integration with CPI's design tools, such as the CPI Product Designer and available BIM and Visio assets, enables rapid inclusion of the vertical rack bonding busbar into enclosure layouts. Customization options, including insulated lug kits, allow tailoring to specific grounding schemes without compromising performance. The result is a streamlined deployment that supports high‑density, AI‑driven data‑center workloads. Choosing a vertical busbar from CPI ensures consistent quality across global deployments, backed by over three decades of expertise in grounding and bonding solutions. The product's modular nature facilitates future upgrades and expansion as power and cooling demands evolve. Ultimately, the busbar enhances system reliability while helping facilities meet regulatory compliance.
