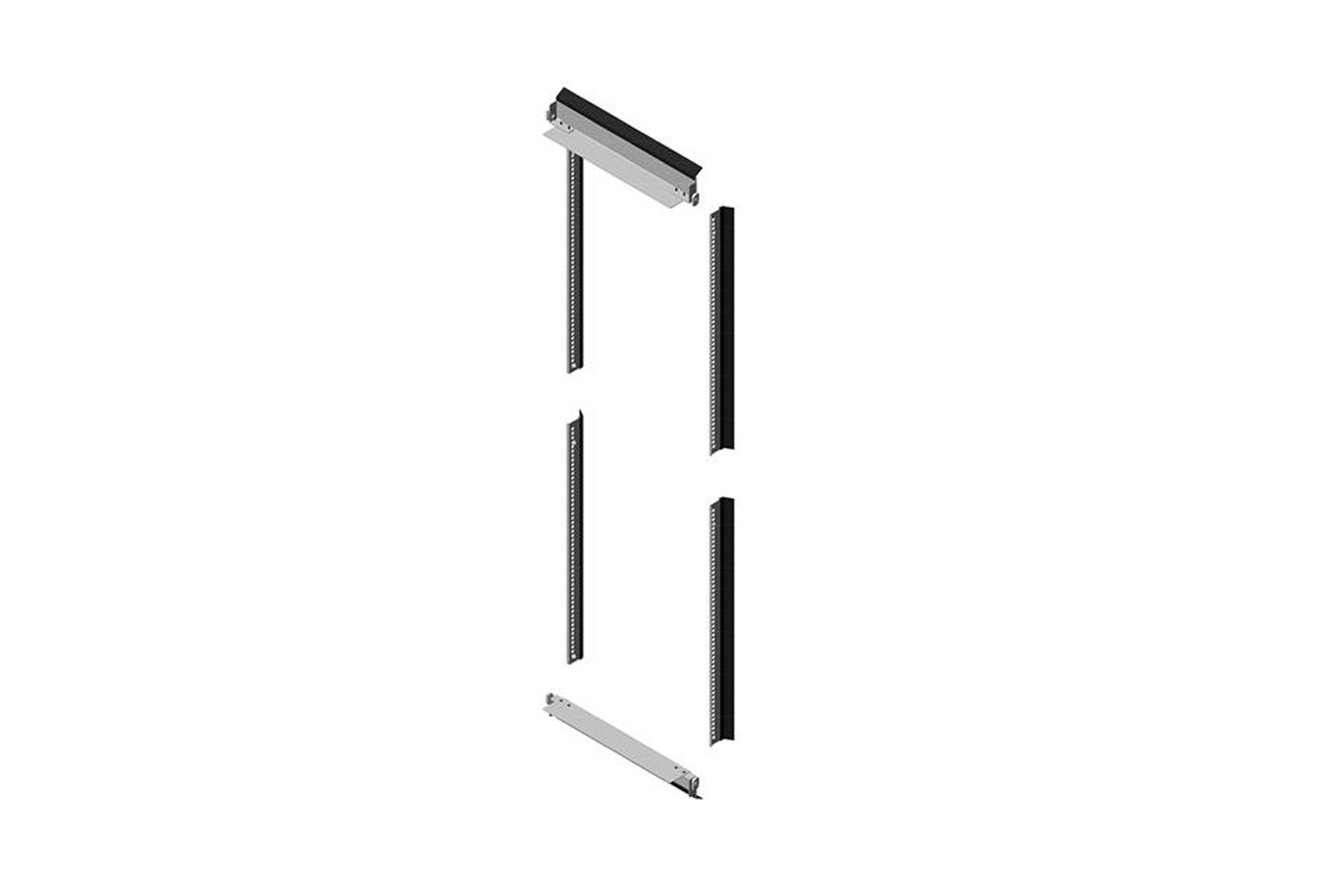

Air Dam Kit for Z4-Series SeismicFrame
Explore Sizes & Options
| Add to Cart Add | |||||
|---|---|---|---|---|---|
14435-E01 | 21.3" (541 mm) | 82.8" (2103.12 mm) | Glacier White | $401.17 | |
14435-C03 | 29.2" (741 mm) | 82.8" (2103.12 mm) | Black | $416.46 | |
14435-C01 | 21.3" (541 mm) | 82.8" (2103.12 mm) | Black | $382.05 | |
14435-E02 | 29.2" (741 mm) | 77.56" (1970.024 mm) | Glacier White | $419.14 | |
14435-C02 | 29.2" (741 mm) | 77.56" (1970.024 mm) | Black | $399.24 | |
14435-C00 | 21.3" (541 mm) | 77.56" (1970.024 mm) | Black | $364.83 | |
14435-E03 | 29.2" (741 mm) | 82.8" (2103.12 mm) | Glacier White | $437.24 | |
14435-E00 | 21.3" (541 mm) | 77.56" (1970.024 mm) | Glacier White | $383.04 |
Product Description
Air Dam blocks airflow around the sides and top of the equipment mounting space in Z4-Series SeismicFrame® Cabinets, so cold air passes through equipment, and hot air does not recirculate around equipment.
Key Features and Benefits
- Attaches to and adjusts with mounting rails
- Requires a minimum rail setback of 2.3" (58 mm) from the front of the cabinet frame
- Flexible seal against top and side panels
- Includes: top, bottom, and side baffles; installation hardware
- Material: Steel baffles, plastic seals
- Finish: Black or Glacier White, seals are Black
Product Information
Key Features of the Air Dam Kit for Z4-Series SeismicFrame
The Air Dam Kit is engineered to direct cool air through equipment while preventing hot‑air recirculation inside Z4-Series SeismicFrame® cabinets. By creating a sealed barrier on the sides and top, it supports effective data center airflow management and improves overall cooling efficiency. The design integrates seamlessly with existing rack rails, requiring only a 2.3‑inch (58 mm) rail setback. Installation is straightforward, using pre‑drilled mounting holes and a complete hardware package that includes top, bottom, and side baffles. The flexible plastic seals conform to panel tolerances, ensuring a tight fit without compromising structural integrity. Because the kit attaches directly to the rail system, it can be added or removed during routine maintenance without tools beyond a standard screwdriver. Steel baffles provide durability, while the black or Glacier White finish matches standard cabinet aesthetics. The sealed enclosure reduces turbulence, which lowers fan power draw and contributes to lower operational costs. This also aids in meeting cabinet thermal management specifications across a range of server densities. The Air Dam Kit complements other server cabinet accessories such as cable management trays and power distribution units, creating a holistic solution for high‑density environments. Its modular nature allows data center operators to scale airflow control as equipment configurations evolve. When combined with CPI's air containment solutions, the kit delivers a consistent thermal envelope throughout the aisle. Overall, the Air Dam Kit enhances reliability by maintaining optimal inlet temperatures, protecting sensitive electronics from overheating. Improved airflow translates to longer component lifespans and reduced risk of thermal throttling in AI and HPC workloads. Selecting this accessory positions your facility for efficient, future‑ready operation.
