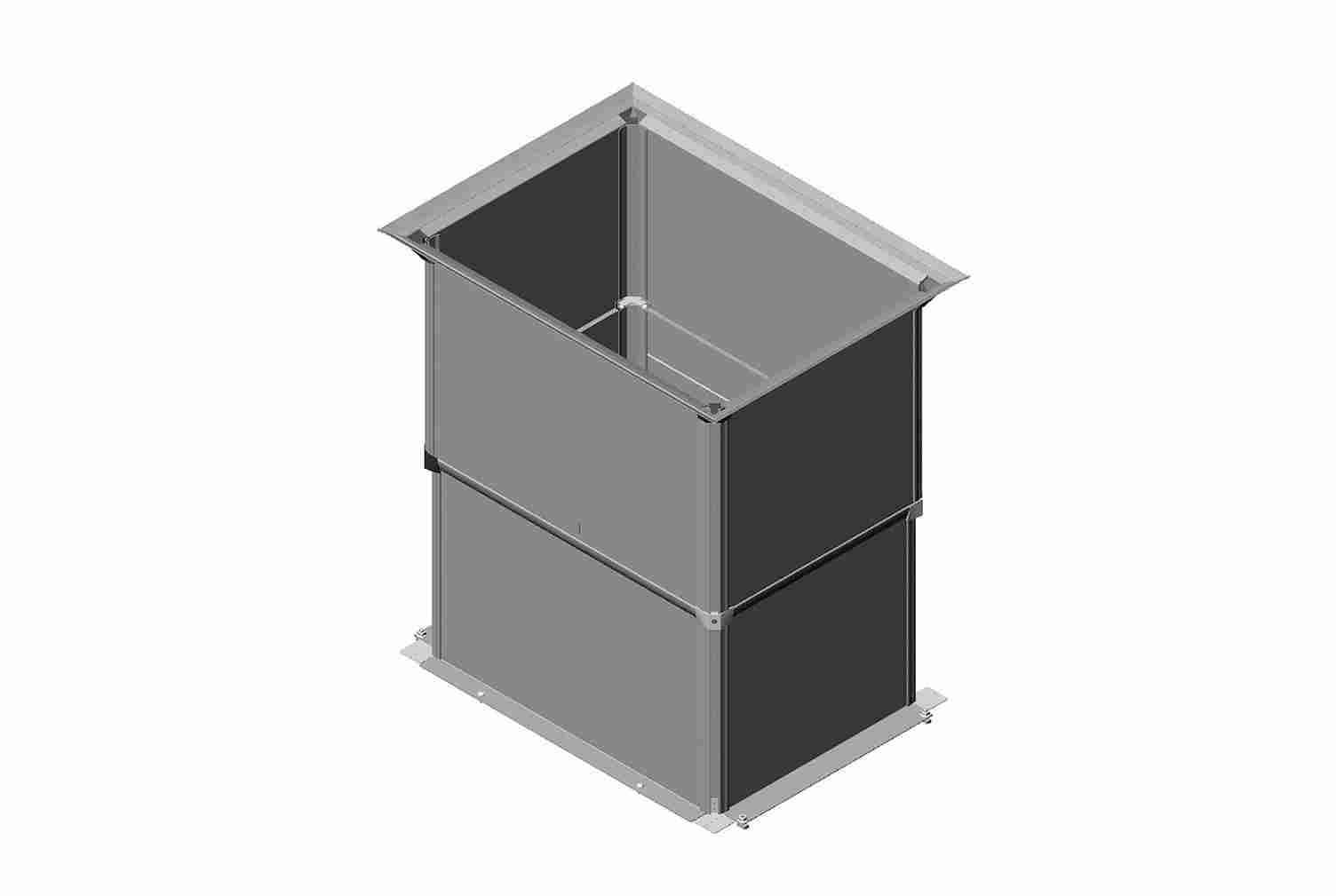

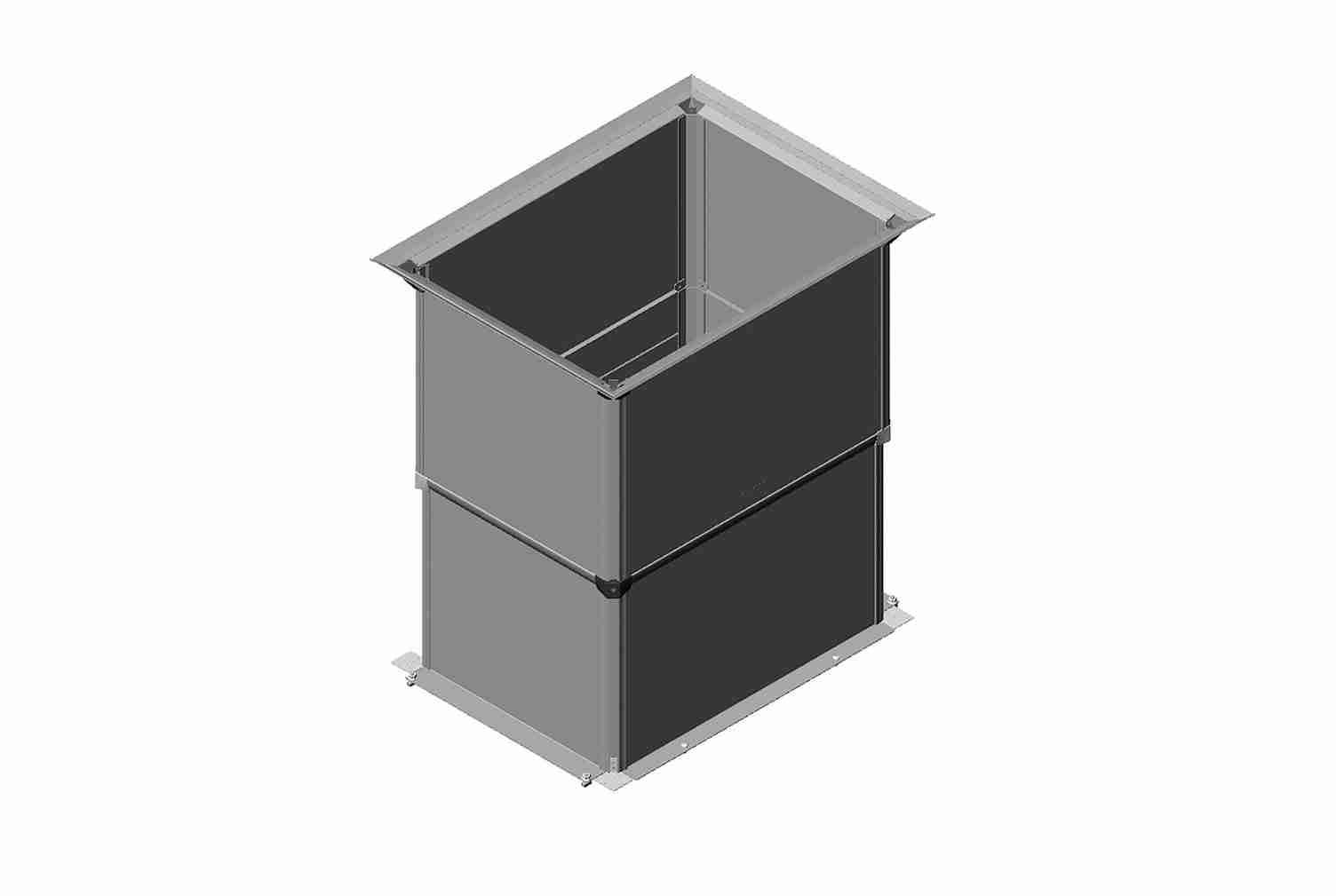

Vertical Exhaust Duct For ZetaFrame Cabinet
Explore Sizes & Options
| Add to Cart Add | |||||
|---|---|---|---|---|---|
39873-700 | 23.6"W (600 mm) | 15”-20”H (381 mm – 508 mm) | Black | $796.13 | |
39873-701 | 27.6"W (700 mm) | 15”-20”H (381 mm – 508 mm) | Black | $800.77 | |
39873-702 | 29.5"W (750 mm) | 15”-20”H (381 mm – 508 mm) | Black | $875.26 | |
39873-710 | 29.5"W (750 mm) | 34”-60”H (863 mm – 1523 mm) | Black | $1,368.76 | |
39873-E01 | 27.6"W (700 mm) | 15”-20”H (381 mm – 508 mm) | Glacier White | $800.77 | |
39873-707 | 31.5"W (800 mm) | 20”-34”H (508 mm – 863 mm) | Black | $952.08 | |
39873-704 | 23.6"W (600 mm) | 20”-34”H (508 mm – 863 mm) | Black | $877.59 | |
39873-711 | 31.5"W (800 mm) | 34”-60”H (863 mm – 1523 mm) | Black | $1,364.11 | |
39873-706 | 29.5"W (750 mm) | 20”-34”H (508 mm – 863 mm) | Black | $956.74 | |
39873-E03 | 31.5"W (800 mm) | 15”-20”H (381 mm – 508 mm) | Glacier White | $870.61 | |
39873-E00 | 23.6"W (600 mm) | 15”-20”H (381 mm – 508 mm) | Glacier White | $796.13 | |
39873-E04 | 23.6"W (600 mm) | 20”-34”H (508 mm – 863 mm) | Glacier White | $877.59 | |
39873-709 | 27.6"W (700 mm) | 34”-60”H (863 mm – 1523 mm) | Black | $1,294.27 | |
39873-E09 | 27.6"W (700 mm) | 34”-60”H (863 mm – 1523 mm) | Glacier White | $1,294.27 | |
39873-705 | 27.6"W (700 mm) | 20”-34”H (508 mm – 863 mm) | Black | $956.74 | |
39873-703 | 31.5"W (800 mm) | 15”-20”H (381 mm – 508 mm) | Black | $870.61 | |
39873-708 | 23.6"W (600 mm) | 34”-60”H (863 mm – 1523 mm) | Black | $1,289.62 | |
39873-E02 | 29.5"W (750 mm) | 15”-20”H (381 mm – 508 mm) | Glacier White | $875.26 | |
39873-E07 | 31.5"W (800 mm) | 20”-34”H (508 mm – 863 mm) | Glacier White | $952.08 | |
39873-E08 | 23.6"W (600 mm) | 34”-60”H (863 mm – 1523 mm) | Glacier White | $1,289.62 |
Product Description

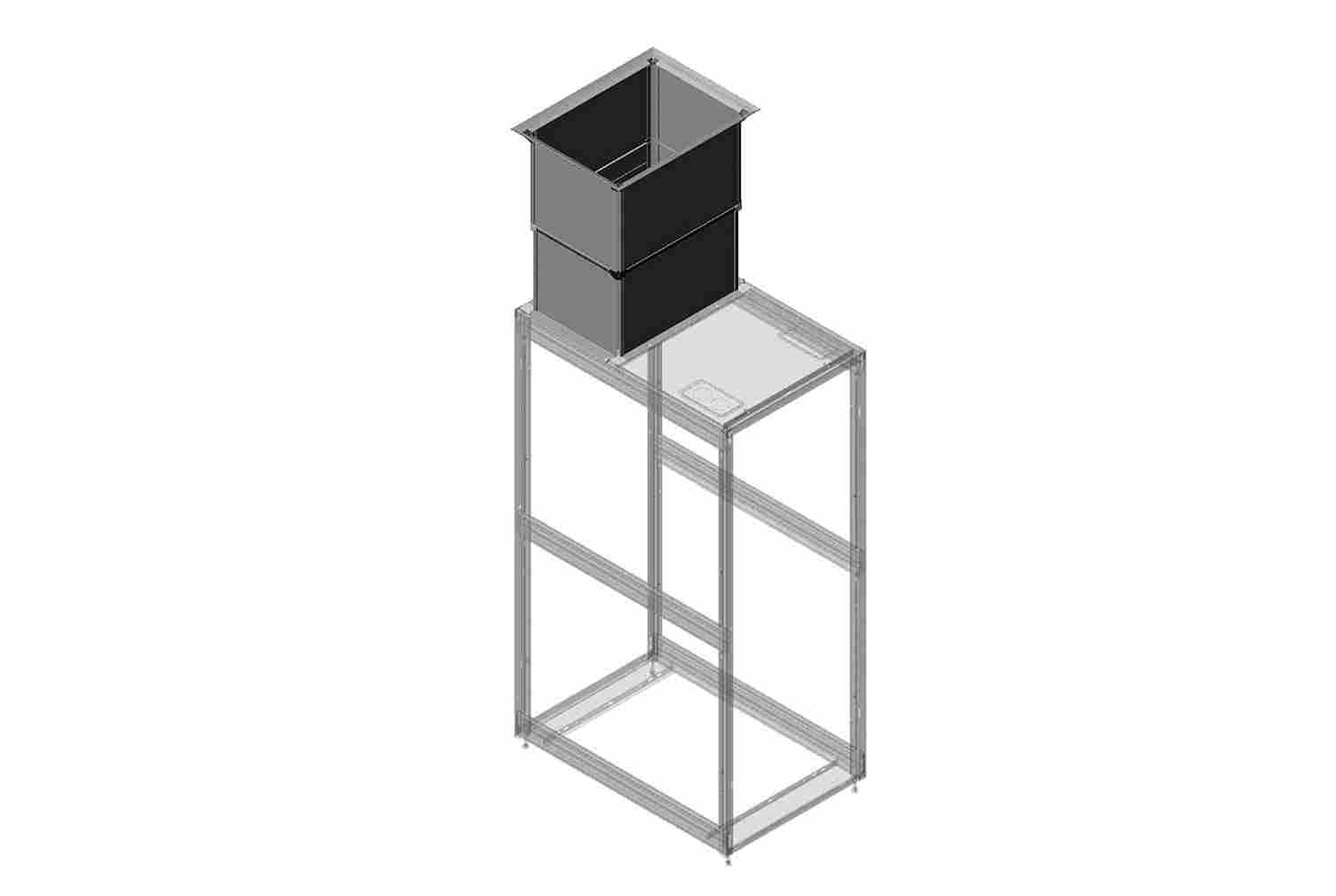

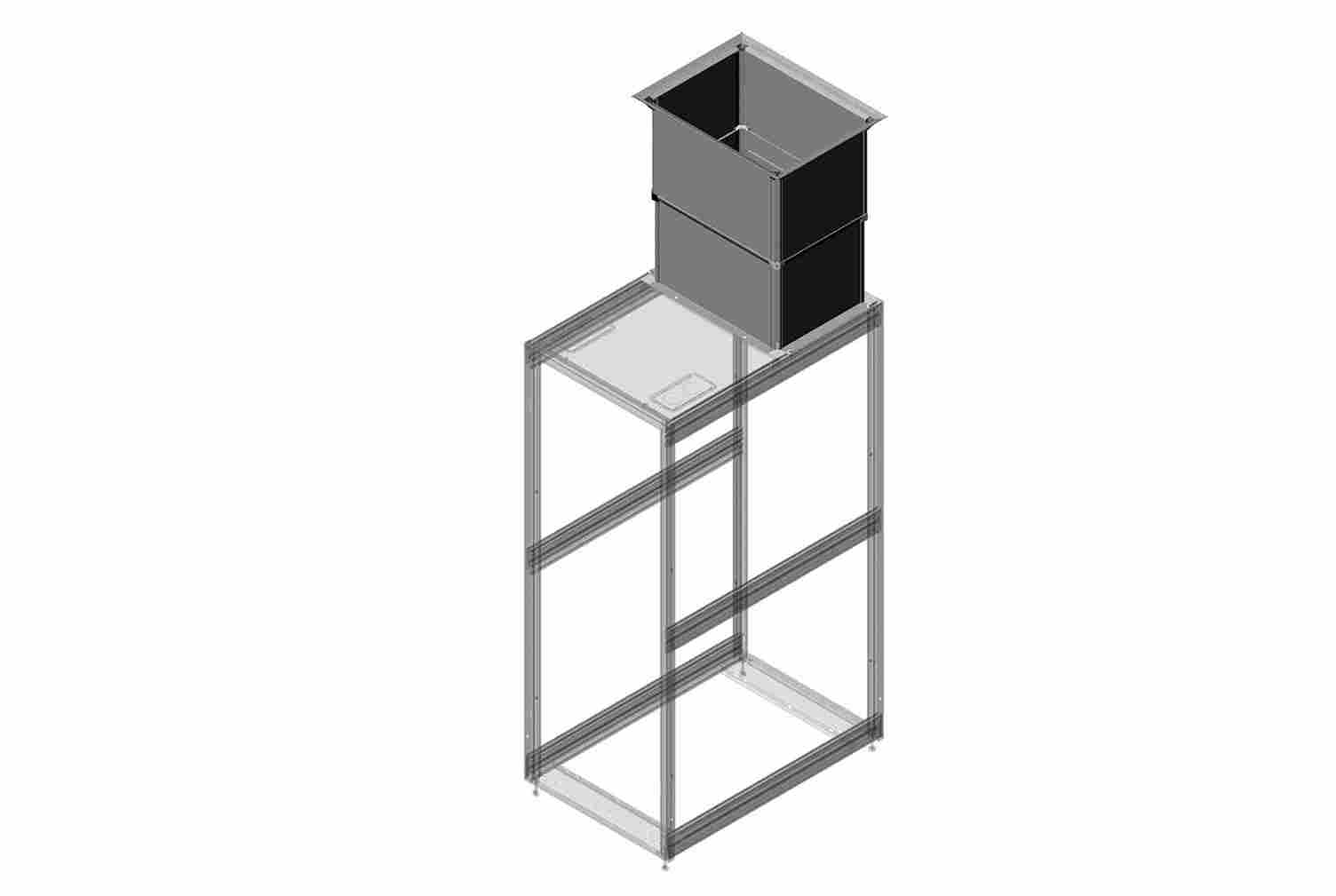

The Vertical Exhaust Duct attaches to the top of the cabinet to provide a sealed pathway for exhaust air from the top of the cabinet to an overhead drop ceiling as part of a closed hot air return.
Key Features and Benefits
- Used with Solid Rear Door, Bottom Panel, Air Dam, Snap-In Filler Panels and Air Director for a complete and effective airflow containment strategy
- Fits cabinets that are 41.3”D (1050 mm) or deeper
- Two-piece duct adjusts in height to span the distance between the top of the cabinet and the overhead drop ceiling; available in three sizes (see description in order table)
- Features easy height adjustment, has a flexible seal at the top to accommodate variations in the drop ceiling
- Includes a brush-sealed cable opening on the back of the duct to allow power cords to enter the back of the cabinet when the duct is installed
- Includes: Vertical Exhaust Duct and installation hardware
- Material: Aluminum duct panels; top seal and duct corners are plastic
- Finish: Black or Glacier White; seal and corners are black
- Select part number to match the width and color of the cabinet
Product Information
Key Features and Benefits of Vertical Exhaust Ducts
The Vertical Exhaust Duct for ZetaFrame® Cabinet is a critical accessory designed to optimize thermal management in data center environments. By attaching to the top of the cabinet, it provides a sealed pathway that channels exhaust air directly to an overhead drop ceiling as part of a closed hot air return system. This configuration prevents hot air from recirculating, thereby enhancing cooling efficiency and protecting sensitive equipment from overheating. Key features include an adjustable two-piece design that spans various heights, a flexible top seal for ceiling variations, and a brush-sealed cable opening for power cord entry without compromising containment. Constructed from durable aluminum with plastic corners and seals, this exhaust duct is available in Black or Glacier White to match cabinet finishes. Benefits include improved cabinet exhaust control, reduced energy costs, and support for high-density computing applications by maintaining optimal airflow. The duct works alongside other accessories like solid rear doors and air directors for a comprehensive airflow containment strategy. Various duct options allow customization based on cabinet width and height requirements, ensuring a tailored solution for diverse data center setups. Implementing proper exhaust ductwork is essential for maximizing performance, regulatory compliance, and equipment longevity in modern infrastructure.
