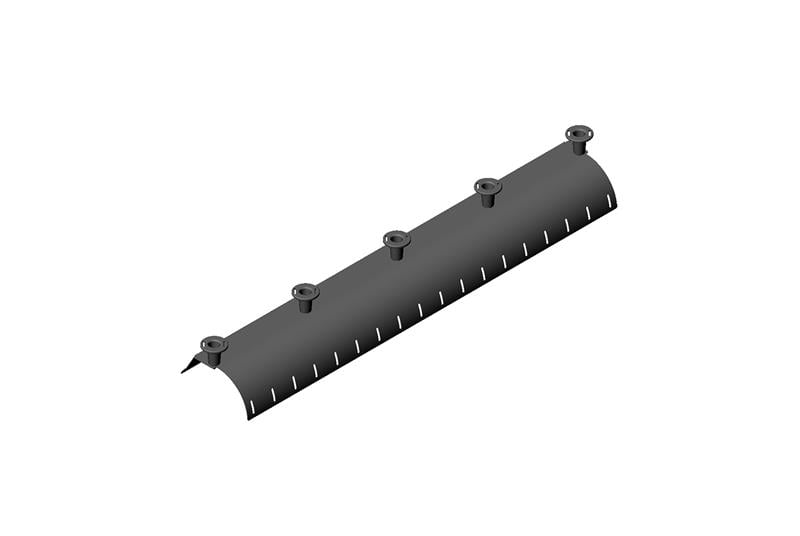

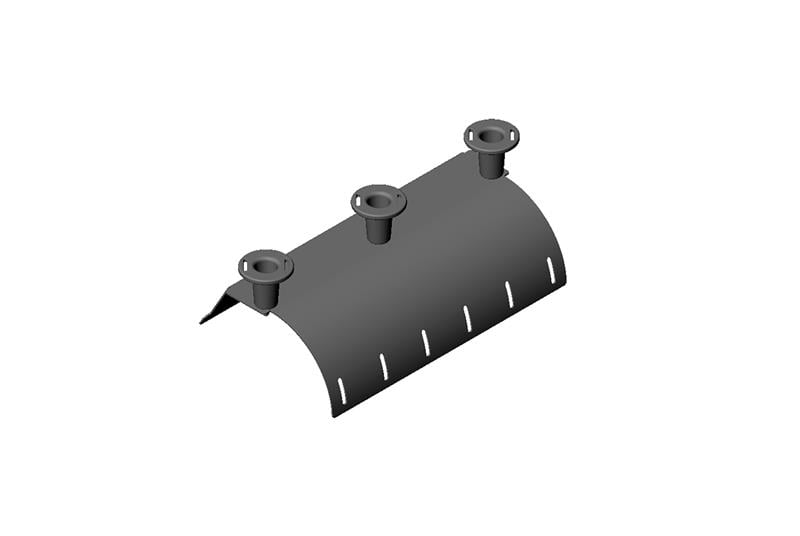

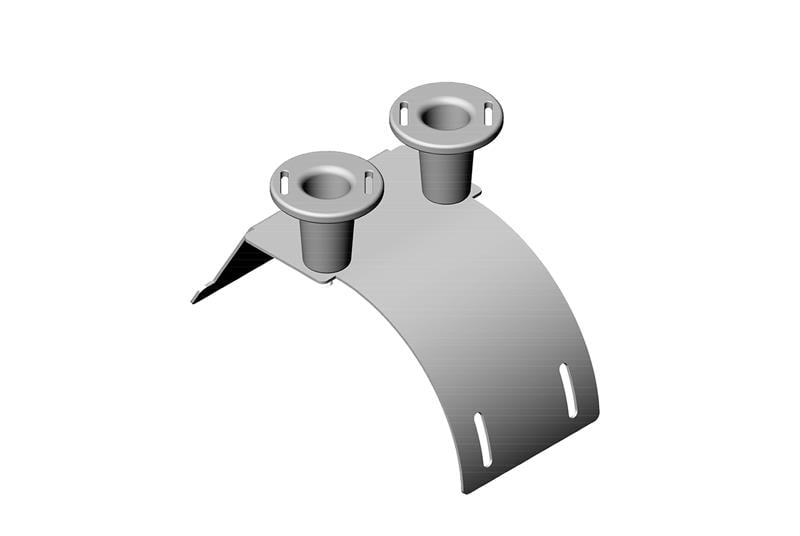

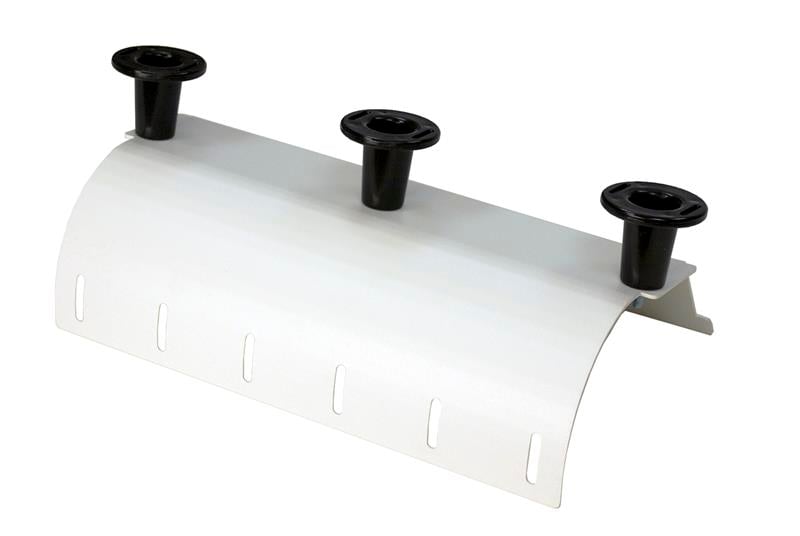

Tool-less Cross Member Radius Drop
Explore Sizes & Options
| Add to Cart Add | ||||
|---|---|---|---|---|
14304-130 | 30" (762 mm) | Gray | $78.14 | |
14304-124 | 24" (610 mm) | Gray | $67.95 | |
14304-106 | 6" (152 mm) | Gray | $46.43 | |
14304-109 | 9" (229 mm) | Gray | $51.04 | |
14304-704 | 4" (102 mm) | Black | $44.08 | |
14304-118 | 18" (457 mm) | Gray | $61.76 | |
14304-112 | 12" (305 mm) | Gray | $56.13 | |
14304-136 | 36" (914 mm) | Gray | $85.91 | |
14304-709 | 9" (229 mm) | Black | $51.04 | |
14304-115 | 15" (381 mm) | Gray | $59.01 | |
14304-104 | 4" (102 mm) | Gray | $44.08 | |
14304-724 | 24" (610 mm) | Black | $67.95 | |
14304-706 | 6" (152 mm) | Black | $46.43 | |
14304-730 | 30" (762 mm) | Black | $78.14 | |
14304-736 | 36" (914 mm) | Black | $85.91 | |
14304-712 | 12" (305 mm) | Black | $56.13 | |
14304-718 | 18" (457 mm) | Black | $61.76 | |
14304-715 | 15" (381 mm) | Black | $59.01 | |
14304-E06 | 6" (152 mm) | Glacier White | $51.06 | |
14304-E04 | 4" (102 mm) | Glacier White | $48.51 |
Product Description
CPI’s patent-pending Tool-less Cross Member Radius Drop supports and guides cable loads as they enter and exit the runway, allowing cables to maintain proper bend radius. The Tool-less Cross Member Radius Drop is designed for compatibility with 1.5” x 3/8” (38.1 mm x 9.53 mm) Stringers and installs without the need for tools, mounting directly to the sides of the runway.
Key Features and Benefits
- Tool-less Cross Member Radius Drops may be positioned over or between the Runway Cross Members
- Use Saf-T-Grips or cable ties, along with the tie-down slots to fully deploy the cable support solutions
- Provides 3” (76.2 mm) bend radius
- Includes 1.4”H (36 mm), 1” (25 mm) diameter ABS cable spools to separate and guide cables
- Compatible with Universal, TELCO, UL Classified and Adjustable Cable Runway
- Sold individually
- Manufactured from steel; spools are plastic
Product Information
Tool-Free Drop Tool Features and Benefits
The tooless radius drop provides a streamlined solution for guiding cables as they transition onto a cable runway. By maintaining a consistent 3‑in. bend radius, it protects fiber and copper assemblies from excessive stress. Engineers appreciate the reduction in cable strain, which contributes to longer service life and higher network reliability. Designed for seamless integration, the device attaches directly to existing cross members without requiring additional hardware. It aligns with both Universal and Adjustable cable runways, ensuring versatility across data center, colocation, and hyperscale environments. The cross member interface supports widths from 4 in. to 36 in., allowing precise placement for any rack configuration. Installation is accomplished with a simple drop tool that slides into pre‑drilled slots, eliminating the need for screws or wrenches. The tool‑free approach reduces labor time and minimizes the risk of installation errors. Maintenance crews can reposition the radius drop quickly, adapting to evolving cable layouts with minimal disruption. The cable runway radius drop incorporates dual ABS spools of 1.4 in. (36 mm) height and 1 in. (25 mm) diameter to separate and guide individual bundles. These spools, together with Saf‑T‑Grip slots, secure cables while preserving the specified bend radius across the runway. Overall cable management benefits include cleaner pathways, reduced airflow obstruction, and improved cooling efficiency. Customers can select from a range of finishes, including black, Glacier White, and gray, to match enclosure aesthetics. Width options span from 4 in. (102 mm) to 36 in. (914 mm), providing flexibility for diverse enclosure dimensions. For detailed specifications, the product's spec sheet and installation instructions are available for download, ensuring confident deployment in any IT infrastructure.
