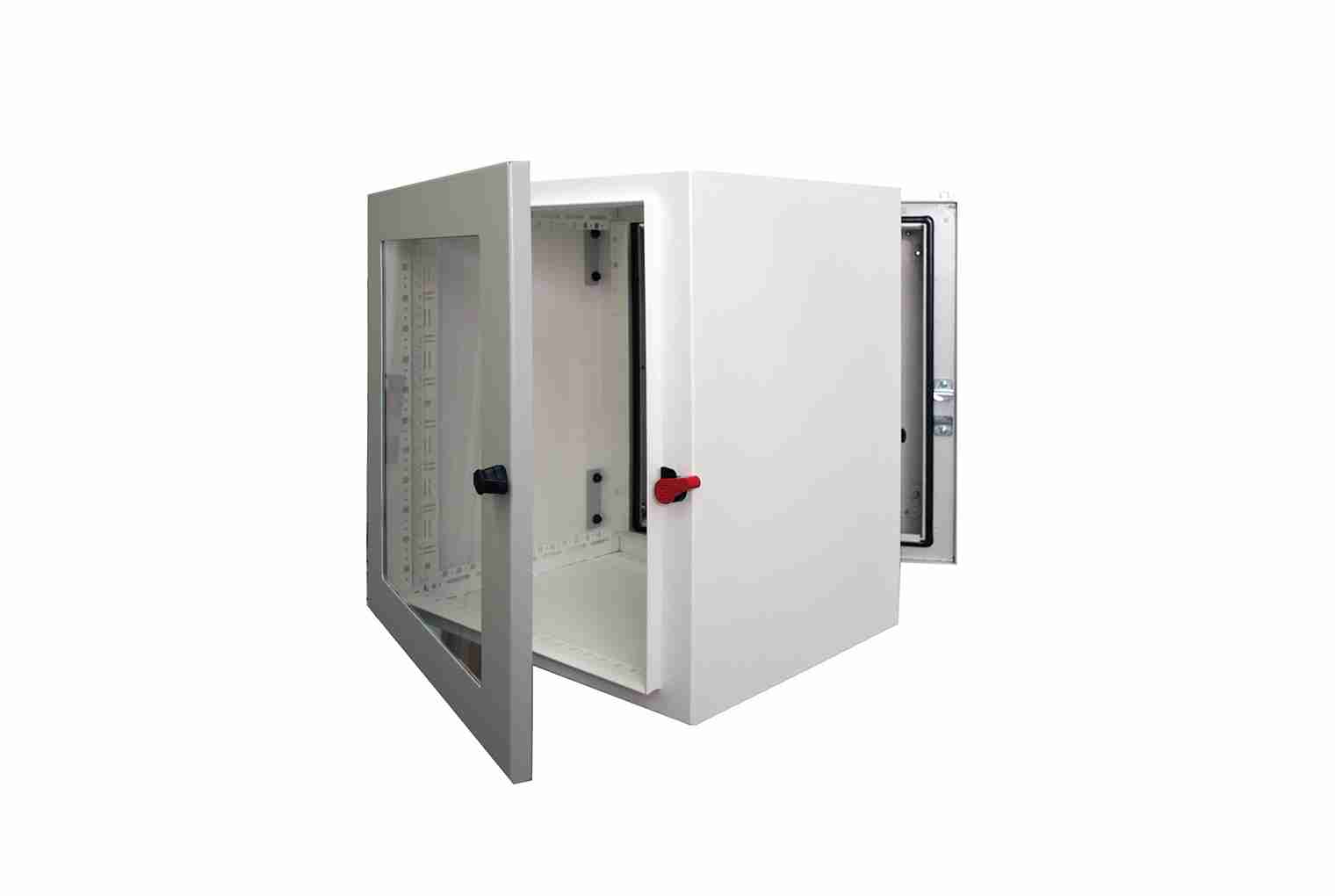

A3-52CA-2122-G11
RMR SWING WALL-MOUNT ENCLOSURE (A3);HEIGHT: 21U;WIDTH: 700MM;OVERALL DEPTH: 760MM;COLOR: HAMMER GRAY RAL 7035;CENTER: CHASSIS WITH SIDE FAN/FILTER OPENINGS;LEFT SIDE: INTAKE FAN W/ FILTER, 115V, 38CFM, HAMMER GRAY RAL 7035;RIGHT SIDE: 38 CFM FILTER, HAMMER GRAY RAL 7035;REAR: SOLID METAL CHASSIS;FRONT DOOR: TEMPERED GLASS WINDOW;RAIL: SQUARE PUNCHED, PAIR (QTY: 1);LATCH: WING KNOB, CH751;MOUNTING: LAG BOLT MOUNTING KIT;INCLUDES: GROUND LUG
| Height | 36.75" (933.45 mm) |
| Width | 27.55" (700 mm) |
| Depth | 29.92" (760 mm) |
| Color | Hammer Gray (RAL 7035) |
Product Description
RMR Swing Wall-Mount Enclosure is a NEMA 12 enclosure that feature a swing out main chassis design, permitting access to the rear of installed equipment.Ventilation and cooling options are available to meet airflow requirements of advanced IT equipment. The enclosure can be configured with equipment mounting rails, sealed cable entry, cable management, PDU and accessories to suit the exact requirement without field modification.
Key Features and Benefits
RMR Swing Wall-Mount Enclosure features a three-part design with a solid rear section, hinged center section and a solid or windowed front door, equipped with a CH751 key-latch for security purposes. The enclosure’s center section enables the front portion to release, swinging away from the wall section to provide front and rear access to equipment. This allows for quick installation and maintenance, which limits the amount of time that sensitive equipment is exposed to the environment. As a security measure to prevent unauthorized access, the center section of the RMR Swing Wall-Mount Enclosure is only accessible when the front door is unlatched.
Technical Specifications
- Provides equipment with NEMA Type 12 and IP 55 rated protection against ingress of solid foreign objects and dripping noncorrosive liquids, using advanced formed-in-place foam gasket technology at each panel and cable entry point
- Enables quick access to the front and rear of equipment through a double-hinged, swing-out design
- Supports airflow and cooling options specially certified for industrial applications to maintain equipment cooling requirements outside of normal IT settings and equipment rooms
- Features attachment points along the front, rear, top, bottom and sides, providing quick and secure mounting of plates, rails and accessories at any point along the frame
- Allows a complete enclosure solution to be configured under a single part number, including the exact size frame, mounting system, doors, gland plates and ventilation that you require
- Offers short lead times for modified enclosures–change size or color, and add openings for connections, controls and HMI
- Series A3; Sample Part number: A3-XXXX-XXXX-XXX
Product Information
Key Features of the RMR® Swing Wall‑Mount Enclosure
The RMR® Swing Wall‑Mount Enclosure delivers NEMA 12, IP 55 protection for equipment in harsh industrial environments. Its solid rear chassis and tempered‑glass front door provide a secure barrier while allowing visual monitoring of installed hardware. The enclosure's dimensions of 36.75″ H x 27.55″ W x 29.92″ D (933 mm x 700 mm x 760 mm) meet standard rack‑mount specifications for seamless integration. A double‑hinged, swing‑out center section enables rapid front‑ and rear‑access without removing the entire cabinet. The design limits exposure time, reducing the risk of contamination or accidental damage during service. The CH751 key‑latch secures the front door, ensuring only authorized personnel can open the enclosure. Ventilation is addressed with factory‑installed intake fans delivering 38 CFM and optional filter openings on both sides of the chassis. This airflow strategy maintains temperature stability for high‑density IT equipment and supports additional cooling solutions when required. The solid metal rear panel further protects against dust ingress while providing a sturdy mounting surface. The enclosure can be configured with square‑punched rails, sealed cable entry, and a range of accessories such as PDU brackets and grounding lugs--all under a single part number. This modular approach eliminates field modifications and accelerates deployment in data‑center or edge installations. Engineers can select the exact rail length, door type, and ventilation option to match project specifications. CPI offers short lead times for custom modifications, including changes to size, color, or added openings for controls and HMI interfaces. Global distributor coverage ensures rapid availability across North America, Europe, and Asia‑Pacific regions. The RMR® Swing Wall‑Mount Enclosure combines robust protection, flexible access, and customizable options to meet the demanding needs of modern industrial NEMA Enclosures.
