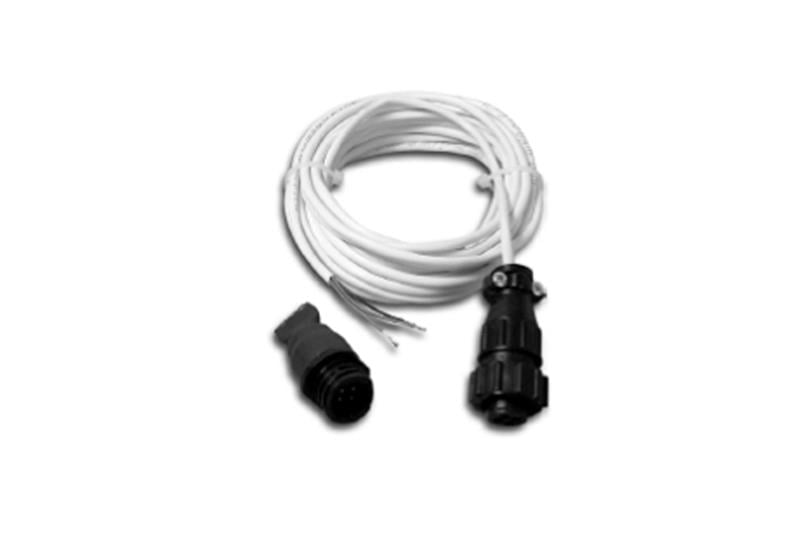

Leak Detection Lead Cable for RIM-750
Leak Detection Lead Cable for RIM-750
1 Option
Leak Detection Lead Cable for RIM-750
Product Description
- Includes one 15’L (4.57 m) leader cable for attaching Sensor Rope(s), and an End of Line Terminator for attachment to the Sensor Rope
- Leader Cable: 22 AWG, 4-conductor cable, .121” (.307 cm) nominal outside diameter
- Standards: NEC Article 725-CL2P, CMP, MPP
- Operating Temperature: 32°F to 122°F (0°C to 50°C)
- Operating Humidity: 5% to 95% RH, non-condensing
- Maximum Altitude: 15,000 ft (4,572m)
- Storage Temperature: -4°F to 158°F (-20°C to 70°C)
- Cable Length: 15 feet (4.57 meters)
- EOL Terminator Dimensions: 0.9”W x 2.0”L (22.9 mm x 50.8 mm)
- Weight: Cable-4.24 oz (120.2g); EOL-0.4 oz (11.3g)
- Material: Plastic housing
- Color: White/Black
