Customize Your Product
Phase
Cabinet Compatibility
Explore Sizes & Options
| Add to Cart Add | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
E0-1010-CE | IEC 60309 60A 3P+N+E | (30) C13 Locking + (12) C19 Locking Outlets | 220-240/380-415V | Three-Phase | 60A | 34.5kW | 42U or Higher | 1 Black + 1 Glacier White | $3,894.16 | |
E0-1011-C | AC Terminal Block 3P4W | (30) C13 Locking + (12) C19 Locking Outlets | 208V | Three-Phase | 100A | 28.8kW | 42U or Higher | Black | $1,746.04 | |
E0-1011-E | AC Terminal Block 3P4W | (30) C13 Locking + (12) C19 Locking Outlets | 208V | Three-Phase | 100A | 28.8kW | 42U or Higher | Glacier White | $1,746.04 | |
E0-1010-C | IEC 60309 60A 3P+N+E | (30) C13 Locking + (12) C19 Locking Outlets | 220-240/380-415V | Three-Phase | 60A | 34.5kW | 42U or Higher | Black | $1,986.55 | |
E0-1011-CE | AC Terminal Block 3P4W | (30) C13 Locking + (12) C19 Locking Outlets | 208V | Three-Phase | 100A | 28.8kW | 42U or Higher | 1 Black + 1 Glacier White | $3,422.30 | |
E0-1089-E | IEC 60309 100A 3P+E | (30) C13 Locking + (12) C19 Locking Outlets | 208V | Three-Phase | 100A | 28.8kW | 42U or Higher | Glacier White | $2,664.04 | |
E0-1192-C | IEC 60309 100A 3P+N+E | (12) C13 Locking + (24) C19 Locking Outlets | 220-240/380-415V | Three-Phase | 100A | 57.5kW | 45U or Higher | Black | $3,370.90 | |
E0-1089-C | IEC 60309 100A 3P+E | (30) C13 Locking + (12) C19 Locking Outlets | 208V | Three-Phase | 100A | 28.8kW | 42U or Higher | Black | $2,664.04 | |
E0-1192-E | IEC 60309 100A 3P+N+E | (12) C13 Locking + (24) C19 Locking Outlets | 220-240/380-415V | Three-Phase | 100A | 57.5kW | 45U or Higher | Glacier White | $3,370.90 | |
E0-1192-CE | IEC 60309 100A 3P+N+E | (12) C13 Locking + (24) C19 Locking Outlets | 220-240/380-415V | Three-Phase | 100A | 57.5kW | 45U or Higher | 1 Black + 1 Glacier White | $6,607.76 | |
E0-1001-C | C20 Inlet to NEMA L5-20P | (24) 5-20 Standard Outlets | 120V | Single-Phase | 20A | 1.9kW | 42U or Higher | Black | $773.64 | |
E0-1001-E | C20 Inlet to NEMA L5-20P | (24) 5-20 Standard Outlets | 120V | Single-Phase | 20A | 1.9kW | 42U or Higher | Glacier White | $773.64 | |
E0-1089-CE | IEC 60309 100A 3P+E | (30) C13 Locking + (12) C19 Locking Outlets | 208V | Three-Phase | 100A | 28.8kW | 42U or Higher | 1 Black + 1 Glacier White | $5,221.58 | |
E0-1010-E | IEC 60309 60A 3P+N+E | (30) C13 Locking + (12) C19 Locking Outlets | 220-240/380-415V | Three-Phase | 60A | 34.5kW | 42U or Higher | Glacier White | $1,986.55 | |
E0-1002-C | NEMA L5-30P | (24) 5-20 Standard Outlets | 120V | Single-Phase | 30A | 2.9kW | 42U or Higher | Black | $969.57 | |
E0-1003-E | C20 Inlet to NEMA L6-20P | (24) C13 Locking Outlets | 208V | Single-Phase | 20A | 3.3kW | 42U or Higher | Glacier White | $718.39 | |
E0-1004-C | NEMA L6-30P | (24) C13 Locking Outlets | 208V | Single-Phase | 30A | 5kW | 42U or Higher | Black | $773.64 | |
E0-1007-C | CS8365C | (30) C13 Locking + (12) C19 Locking Outlets | 208V | Three-Phase | 50A | 14.4kW | 42U or Higher | Black | $1,497.96 | |
E0-1004-E | NEMA L6-30P | (24) C13 Locking Outlets | 208V | Single-Phase | 30A | 5kW | 42U or Higher | Glacier White | $773.64 | |
E0-1002-E | NEMA L5-30P | (24) 5-20 Standard Outlets | 120V | Single-Phase | 30A | 2.9kW | 42U or Higher | Glacier White | $969.57 |
Product Description

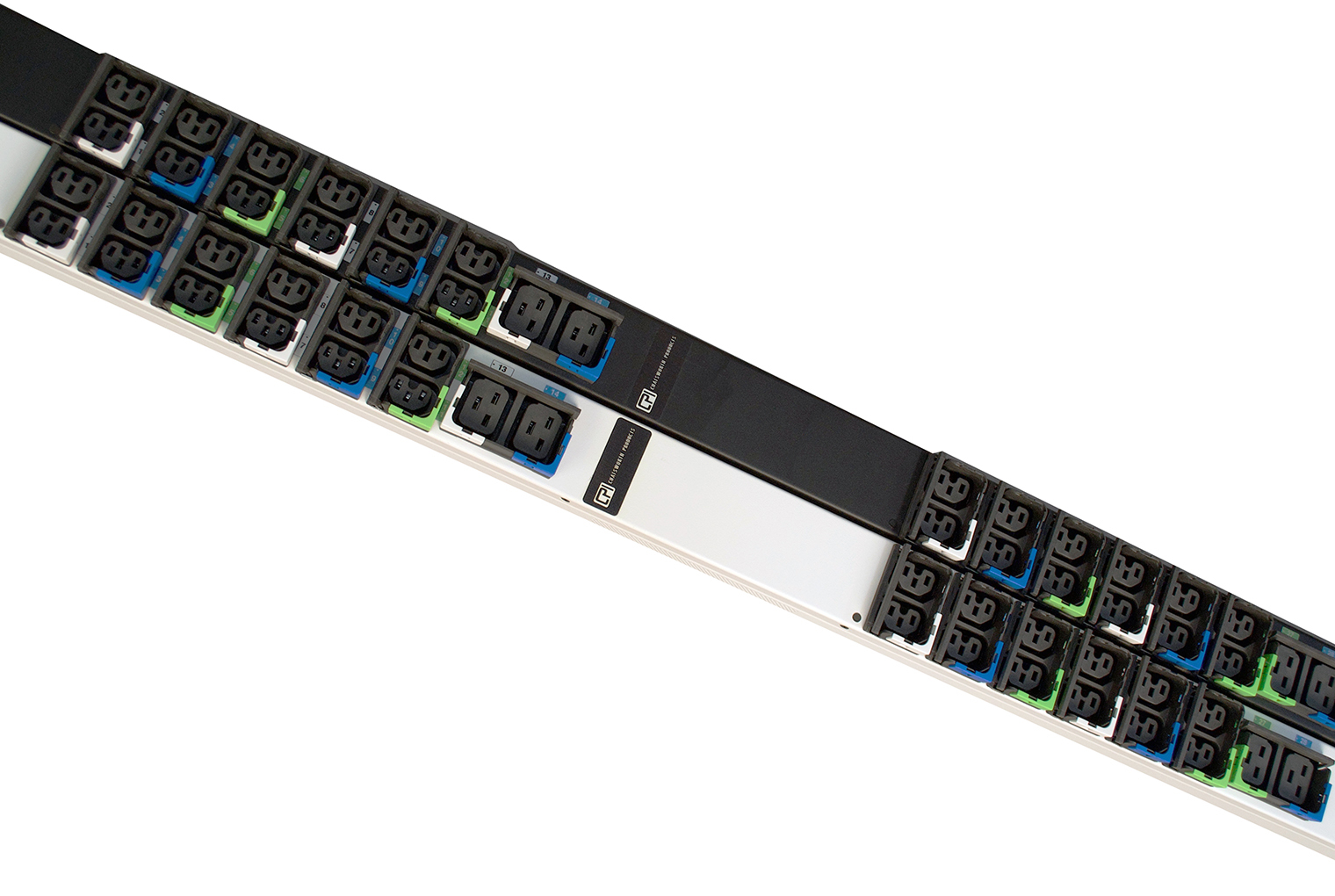

Basic eConnect® PDUs provide reliable power distribution in high-density applications where no power monitoring is required.
Key Features and Benefits
- Resistance to High Temperature – Marketleading temperature ratings of up to 149°F (65°C) ensures reliability when mounted toward hot aisles.
- Simplified Load Balancing – Phase-balance outlets on three-phase models ensure equal loading across all phases; allows use of shorter equipment power cords for better cable and airflow management.
- No Accidental Disconnections – Patented, low-profile locking outlets prevent accidental disconnections without requiring special cords.

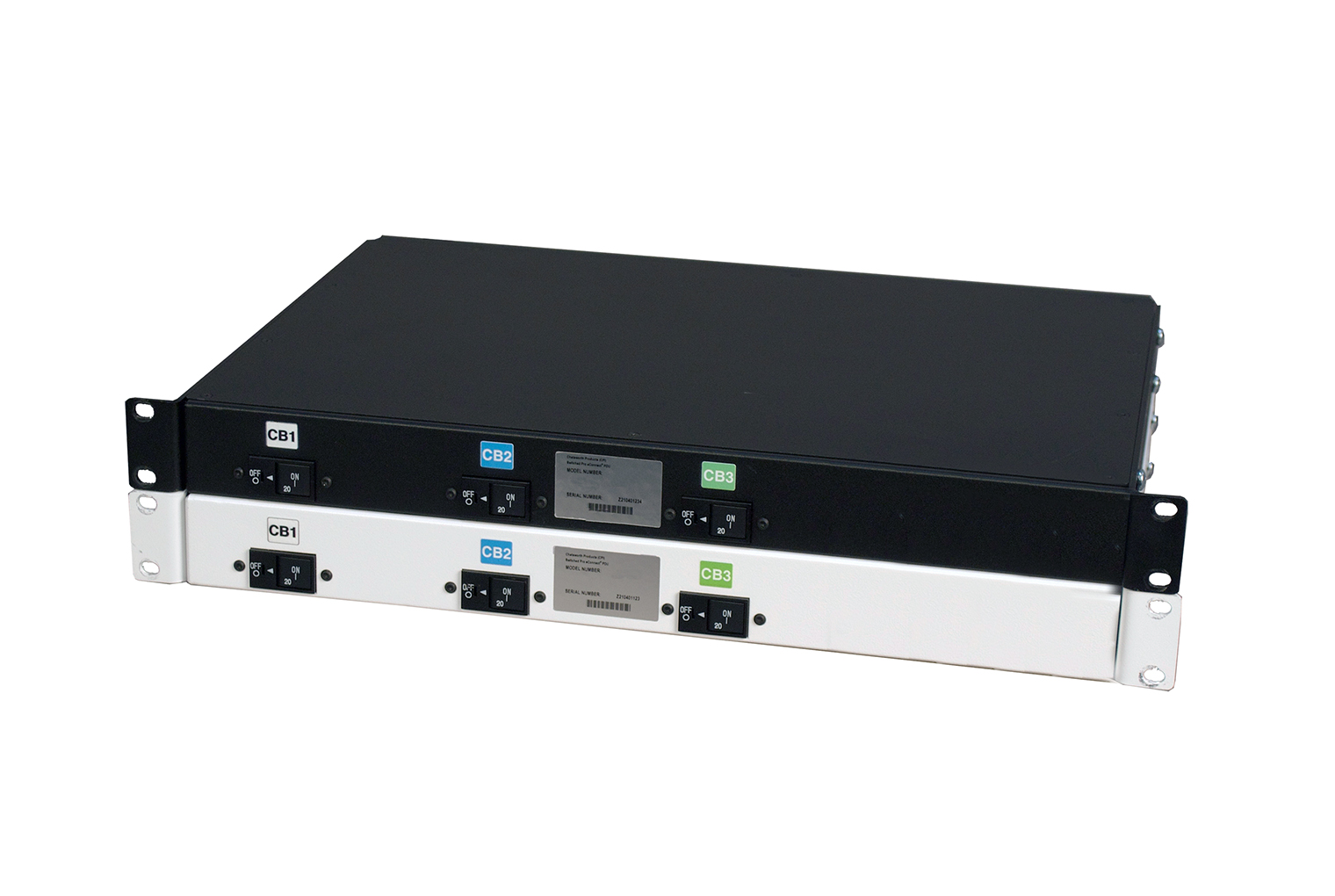

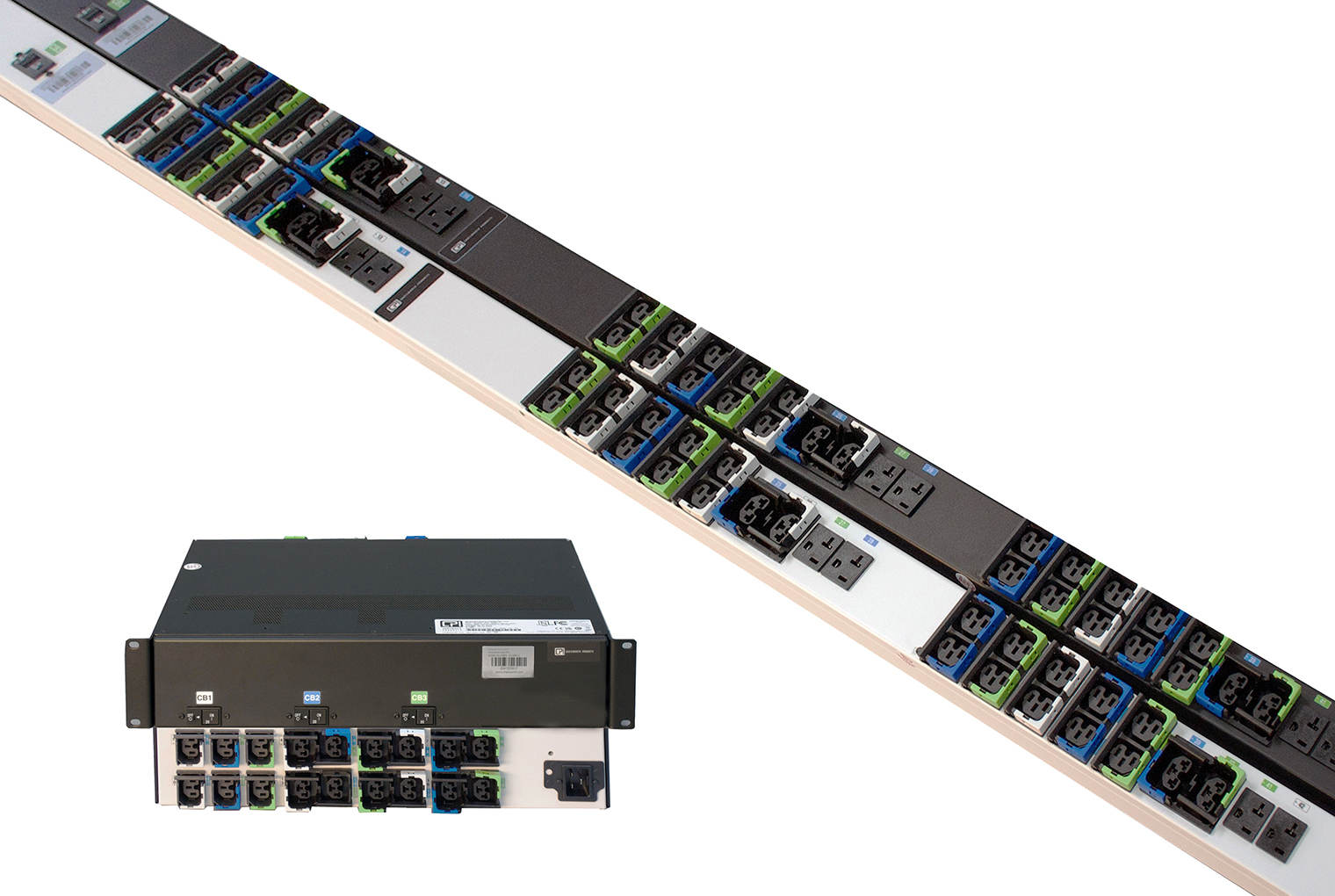

- Easy Identification of Failover Unit – Redundancy Pack includes 2 PDUs (one in Black and one in Glacier White) for easy identification of the primary and secondary unit.
- Latest UL Compliance – Meets UL and IEC 62368 for compliance with new listing requirements for North America and the European Union.
- Cabinet Preinstallation – Complete ecosystem ships ready for IT equipment integration, and saves deployment time and reduces packaging waste.
- High Power Configurations – Configurations supporting up to 100A Input provide an optimized solution for GPU & AI based applications. 30A branch circuit breakers provide flexibility when plugging high power IT equipment.
- Quickly select and customize your solution with CPI consultation services.
- Get in contact with Tech Support today.
