Monitored eConnect PDU
Explore Sizes & Options
| Add to Cart Add | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
EA-3089-C | IEC 60309 100A 3P+E | (30) C13 Locking + (12) C19 Locking Outlets | 208V | Three-Phase | 100A | 28.8kW | 42U or Higher | Black | $3,969.43 | |
EA-3011-C | AC Terminal Block 3P4W | (30) C13 Locking + (12) C19 Locking Outlets | 208V | Three-Phase | 100A | 28.8kW | 42U or Higher | Black | $2,959.63 | |
EA-3089-E | IEC 60309 100A 3P+E | (30) C13 Locking + (12) C19 Locking Outlets | 208V | Three-Phase | 100A | 28.8kW | 42U or Higher | Glacier White | $3,969.43 | |
EA-3010-C | IEC 60309 60A 3P+N+E | (30) C13 Locking + (12) C19 Locking Outlets | 220-240/380-415V | Three-Phase | 60A | 34.5kW | 42U or Higher | Black | $3,224.02 | |
EA-3011-E | AC Terminal Block 3P4W | (30) C13 Locking + (12) C19 Locking Outlets | 208V | Three-Phase | 100A | 28.8kW | 42U or Higher | Glacier White | $2,959.63 | |
EA-3010-CE | IEC 60309 60A 3P+N+E | (30) C13 Locking + (12) C19 Locking Outlets | 220-240/380-415V | Three-Phase | 60A | 34.5kW | 42U or Higher | 1 Black + 1 Glacier White | $6,319.51 | |
EA-3011-CE | AC Terminal Block 3P4W | (30) C13 Locking + (12) C19 Locking Outlets | 208V | Three-Phase | 100A | 28.8kW | 42U or Higher | 1 Black + 1 Glacier White | $5,801.76 | |
EA-3002-C | NEMA L5-30P | (24) 5-20 Standard Outlets | 120V | Single-Phase | 30A | 2.9kW | 42U or Higher | Black | $1,706.98 | |
EA-3010-E | IEC 60309 60A 3P+N+E | (30) C13 Locking + (12) C19 Locking Outlets | 220-240/380-415V | Three-Phase | 60A | 34.5kW | 42U or Higher | Glacier White | $3,224.02 | |
EA-3089-CE | IEC 60309 100A 3P+E | (30) C13 Locking + (12) C19 Locking Outlets | 208V | Three-Phase | 100A | 28.8kW | 42U or Higher | 1 Black + 1 Glacier White | $7,780.97 | |
EA-3003-CE | C20 Inlet to NEMA L6-20P | (24) C13 Locking Outlets | 208V | Single-Phase | 20A | 3.3kW | 42U or Higher | 1 Black + 1 Glacier White | $2,921.37 | |
EA-3003-E | C20 Inlet to NEMA L6-20P | (24) C13 Locking Outlets | 208V | Single-Phase | 20A | 3.3kW | 42U or Higher | Glacier White | $1,490.46 | |
EA-3004-C | NEMA L6-30P | (24) C13 Locking Outlets | 208V | Single-Phase | 30A | 5kW | 42U or Higher | Black | $1,582.08 | |
EA-3001-CE | C20 Inlet to NEMA L5-20P | (24) 5-20 Standard Outlets | 120V | Single-Phase | 20A | 1.9kW | 42U or Higher | 1 Black + 1 Glacier White | $2,959.91 | |
EA-3002-E | NEMA L5-30P | (24) 5-20 Standard Outlets | 120V | Single-Phase | 30A | 2.9kW | 42U or Higher | Glacier White | $1,706.98 | |
EA-3001-C | C20 Inlet to NEMA L5-20P | (24) 5-20 Standard Outlets | 120V | Single-Phase | 20A | 1.9kW | 42U or Higher | Black | $1,510.17 | |
EA-3001-E | C20 Inlet to NEMA L5-20P | (24) 5-20 Standard Outlets | 120V | Single-Phase | 20A | 1.9kW | 42U or Higher | Glacier White | $1,510.17 | |
EA-3002-CE | NEMA L5-30P | (24) 5-20 Standard Outlets | 120V | Single-Phase | 30A | 2.9kW | 42U or Higher | 1 Black + 1 Glacier White | $3,345.67 | |
EA-3004-E | NEMA L6-30P | (24) C13 Locking Outlets | 208V | Single-Phase | 30A | 5kW | 42U or Higher | Glacier White | $1,582.08 | |
EA-3005-C | C20 Inlet to IEC 60309 16A 1P+N+E | (24) C13 Locking Outlets | 220-240V | Single-Phase | 16A | 3.8kW | 42U or Higher | Black | $1,422.73 |
Product Description
Monitored eConnect® PDUs provide remote power monitoring to the input and branch circuit level, making it possible to obtain and manage power consumption at the cabinet level.
Key Features and Benefits
- Reduced Networking Costs and Complexity – Secure Array® allows the use of a single IP address for up to 48 connected PDUs (32 when electronic locks are integrated). Second IP address for the entire array provides failover capability.
- Resistance to High Temperature – Marketleading temperature ratings of up to 149°F (65°C) ensures reliability when mounted toward hot aisles.
- Simplified Load Balancing – Phase-balance outlets on three-phase models ensure equal loading across all phases; allows use of shorter equipment power cords for better cable and airflow management.

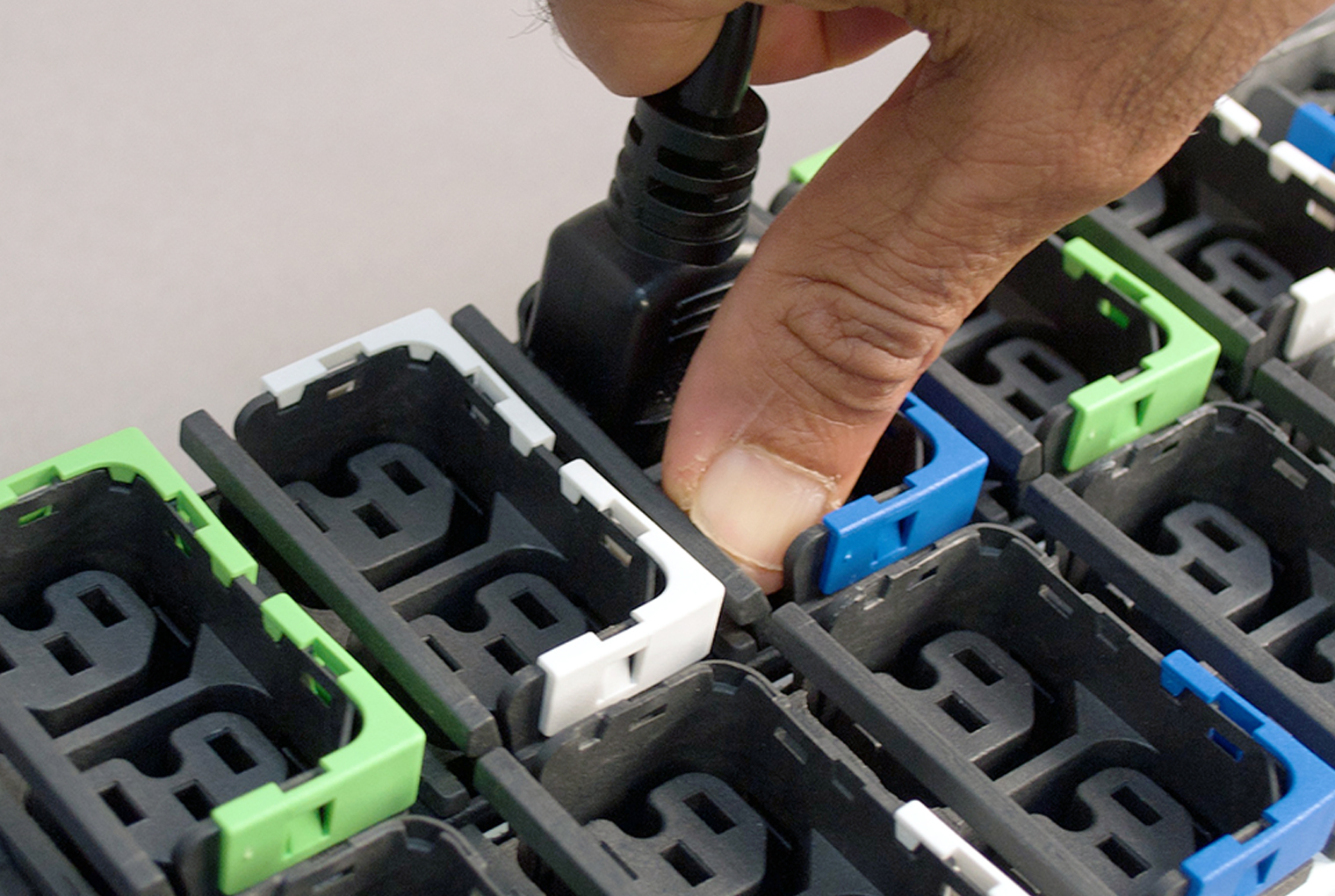

- No Accidental Disconnections – Patented, low-profile locking outlets prevent accidental disconnections without requiring special cords

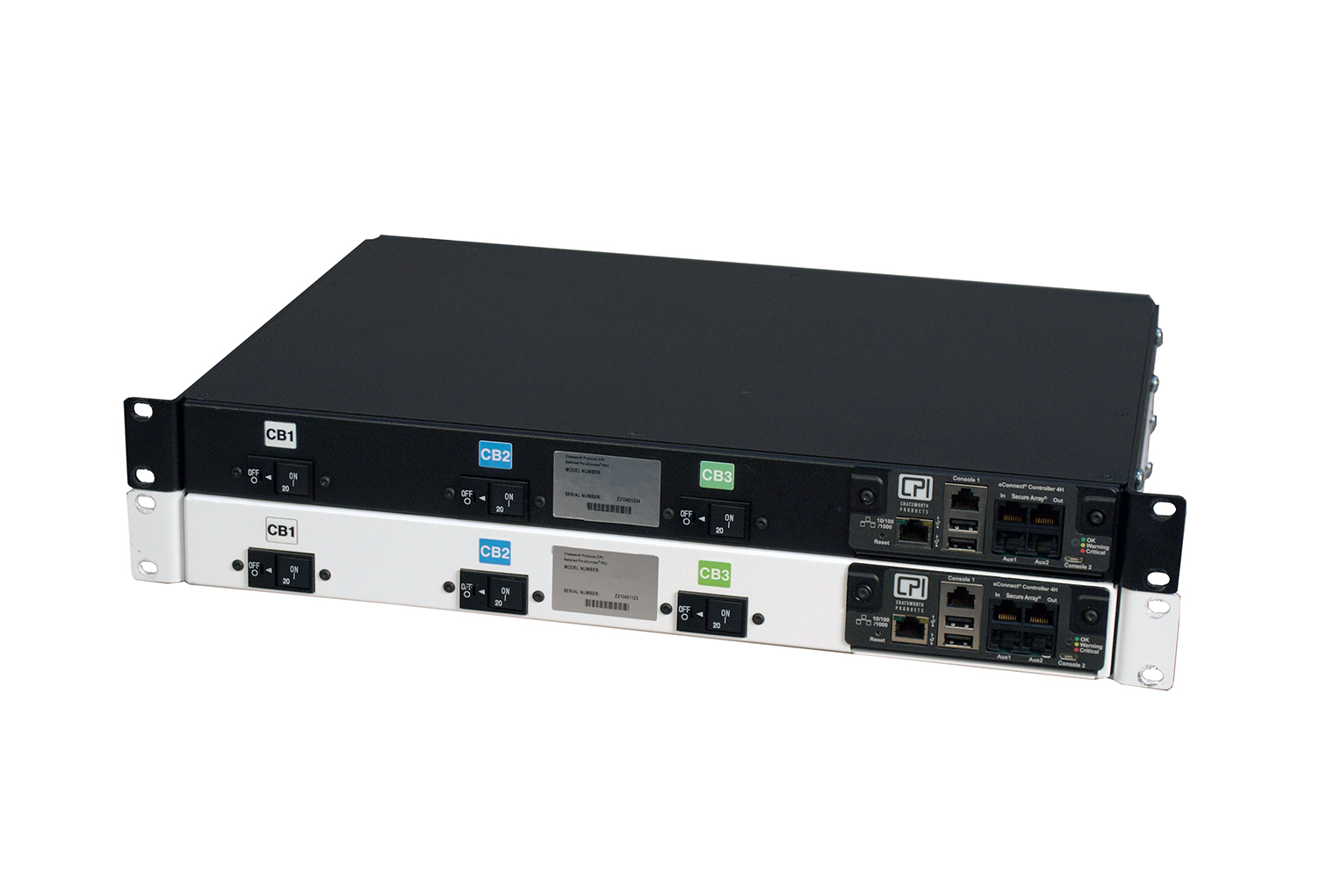

- Easy Identification of Failover Unit – Redundancy Pack includes 2 PDUs (one in Black and one in Glacier White) for easy identification of the primary and secondary unit.
- Electronic Lock Integration – Patented technology seamlessly integrates PDU, environmental sensors and electronic locks into a single hardware and software solution
- Gigabit Ethernet – Ensures compatibility with enterprise routers and switches.
- Latest UL Compliance – Meets UL and IEC 62368 for compliance with new listing requirements for North America and the European Union.
- Cabinet Preinstallation – Complete ecosystem ships ready for IT equipment integration, and saves deployment time and reduces packaging waste.
- High Power Configurations – Configurations supporting up to 100A Input provide an optimized solution for GPU & AI based applications. 30A branch circuit breakers provide flexibility when plugging high power IT equipment.
Product Information
Advanced Power Monitoring with Secure Array Technology
Monitored eConnect® PDUs deliver comprehensive remote power monitoring at both input and branch circuit levels, enabling precise management of power consumption within data center cabinets. This capability helps optimize energy usage and reduce operational costs by providing real-time insights into power draw. Efficient monitoring supports proactive maintenance and enhances overall system reliability.
The Secure Array® technology allows consolidation of multiple PDUs under a single IP address, simplifying network management and reducing infrastructure complexity. With support for up to 48 connected units and failover capabilities, this intelligent IP PDU solution ensures continuous operation and scalability. High-temperature resistance up to 149 degrees Fahrenheit (65 degrees Celsius) maintains performance in demanding environments, supporting uptime in high-density setups.
Phase-balance outlets on three-phase models facilitate equal loading across all phases, streamlining load balancing and improving power distribution. Patented locking outlets prevent accidental disconnections without special cords, enhancing safety and reducing downtime risks. These features contribute to better cable management and airflow optimization within server cabinets.
Integration with electronic locks and environmental sensors creates a unified hardware and software platform for enhanced security and monitoring. Gigabit Ethernet compatibility ensures seamless connectivity with enterprise networks, supporting robust data transmission. Compliance with UL and IEC 62368 standards meets current regulatory requirements for North America and the European Union, ensuring safety and interoperability.
Monitored PDUs are ideal for high-performance applications, including AI and GPU-based computing, with configurations supporting inputs up to 100A for flexibility in power-intensive environments. Cabinet preinstallation options accelerate deployment and minimize packaging waste, aligning with sustainable practices. CPI offers global availability and rapid customization to address diverse data center needs, backed by decades of expertise in power management solutions.
