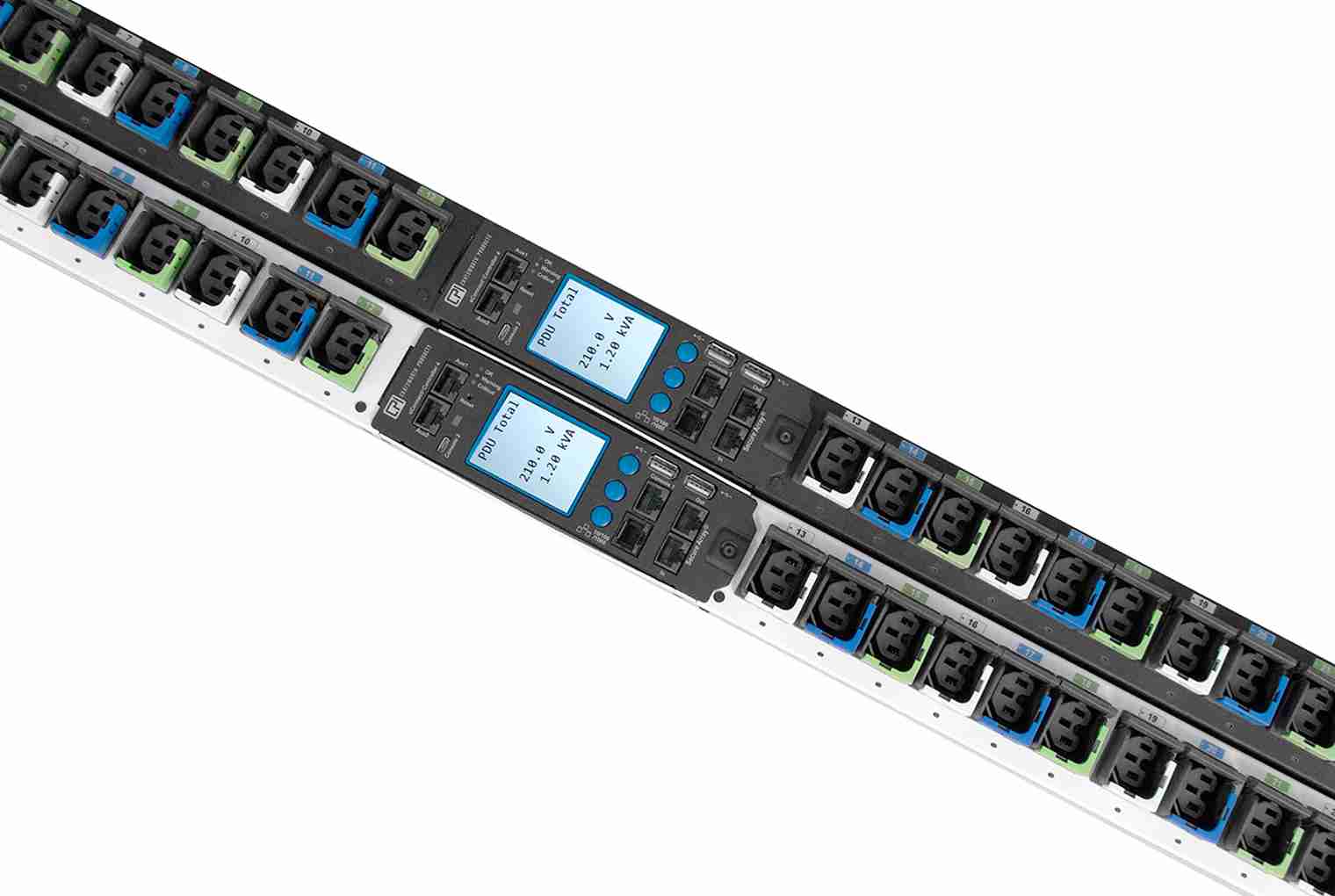

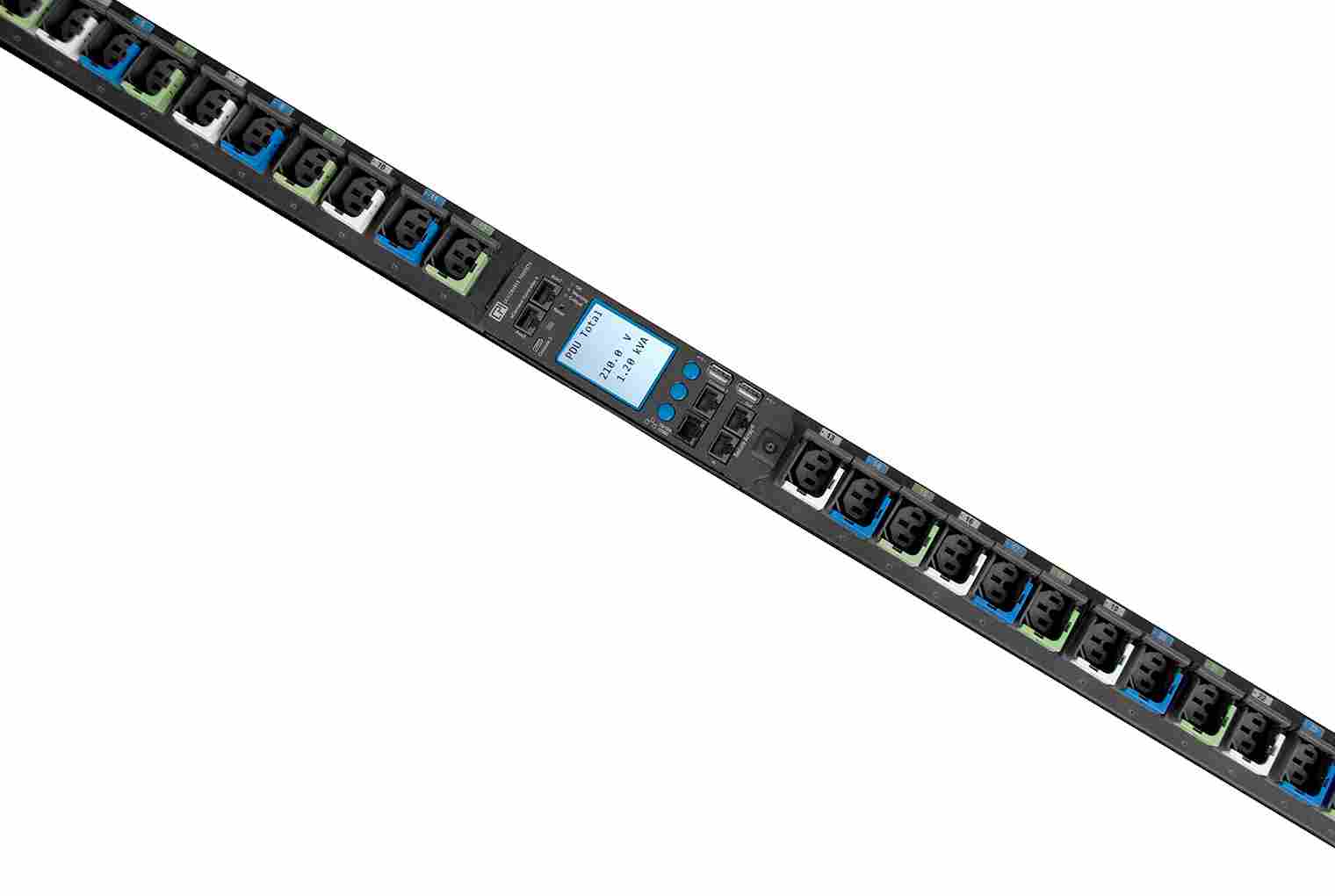

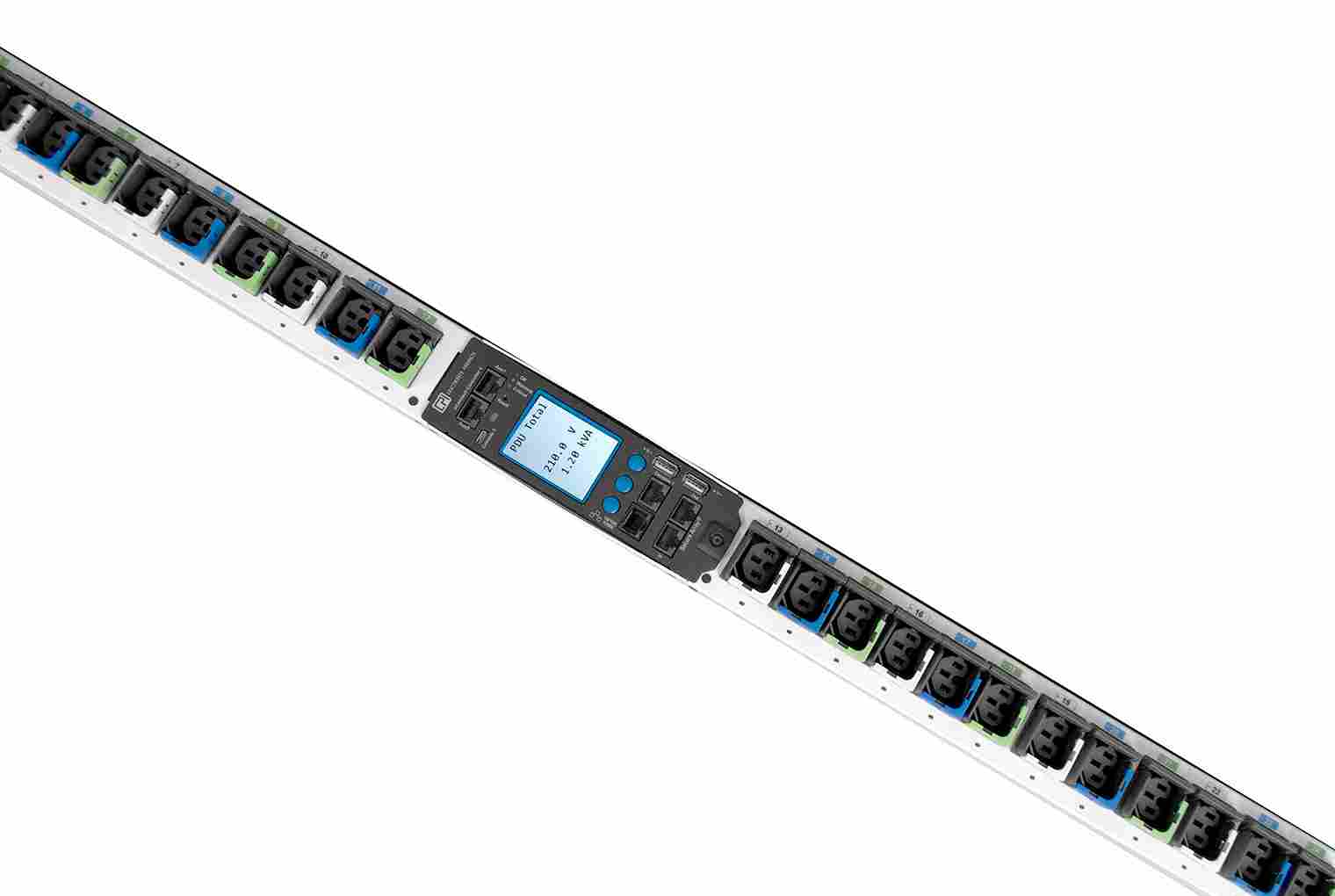

Switched eConnect PDU
Explore Sizes & Options
| Add to Cart Add | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
EA-5001-C | C20 Inlet to NEMA L5-20P | (24) 5-20 Standard Outlets | 120V | Single-Phase | 20A | 1.9kW | 42U or Higher | Black | $1,971.41 | |
EA-5001-E | C20 Inlet to NEMA L5-20P | (24) 5-20 Standard Outlets | 120V | Single-Phase | 20A | 1.9kW | 42U or Higher | Glacier White | $1,971.41 | |
EA-5002-E | NEMA L5-30P | (24) 5-20 Standard Outlets | 120V | Single-Phase | 30A | 2.9kW | 42U or Higher | Glacier White | $2,150.82 | |
EA-5005-C | NEMA L15-30P | (24) C13 Locking Outlets | 208V | Three-Phase | 30A | 8.6kW | 42U or Higher | Black | $2,778.60 | |
EA-5004-E | NEMA L6-30P | (24) C13 Locking Outlets | 208V | Single-Phase | 30A | 5kW | 42U or Higher | Glacier White | $2,061.08 | |
EA-5002-C | NEMA L5-30P | (24) 5-20 Standard Outlets | 120V | Single-Phase | 30A | 2.9kW | 42U or Higher | Black | $2,150.82 | |
EA-5005-E | NEMA L15-30P | (24) C13 Locking Outlets | 208V | Three-Phase | 30A | 8.6kW | 42U or Higher | Glacier White | $2,778.60 | |
EA-5007-E | NEMA L21-30P | (24) C13 Locking Outlets | 120/208V | Three-Phase | 30A | 8.6kW | 42U or Higher | Glacier White | $2,688.95 | |
EA-5004-C | NEMA L6-30P | (24) C13 Locking Outlets | 208V | Single-Phase | 30A | 5kW | 42U or Higher | Black | $2,061.08 | |
EA-5006-E | NEMA L21-20P | (24) C13 Locking Outlets | 120/208V | Three-Phase | 20A | 5.7kW | 42U or Higher | Glacier White | $2,330.18 | |
EA-5009-E | IEC 60309 32A 1P+N+E | (24) C13 Locking Outlets | 220-240V | Single-Phase | 32A | 7.7kW | 42U or Higher | Glacier White | $2,191.60 | |
EA-5010-C | IEC 60309 16/20A 3P+N+E | (24) C13 Locking Outlets | 220-240/380-415V | Three-Phase | 16A | 11.5kW | 42U or Higher | Black | $2,688.12 | |
EA-5007-C | NEMA L21-30P | (24) C13 Locking Outlets | 120/208V | Three-Phase | 30A | 8.6kW | 42U or Higher | Black | $2,688.95 | |
EA-5006-C | NEMA L21-20P | (24) C13 Locking Outlets | 120/208V | Three-Phase | 20A | 5.7kW | 42U or Higher | Black | $2,330.18 | |
EA-5010-E | IEC 60309 16/20A 3P+N+E | (24) C13 Locking Outlets | 220-240/380-415V | Three-Phase | 16A | 11.5kW | 42U or Higher | Glacier White | $2,688.95 | |
EA-5012-C | NEMA L6-30P | (18) C13 Locking + (6) C19 Locking Outlets | 208V | Single-Phase | 30A | 5kW | 42U or Higher | Black | $2,061.08 | |
EA-5008-C | C20 Inlet to IEC 60309 16A 1P+N+E | (24) C13 Locking Outlets | 220-240V | Single-Phase | 16A | 3.8kW | 42U or Higher | Black | $2,074.59 | |
EA-5008-E | C20 Inlet to IEC 60309 16A 1P+N+E | (24) C13 Locking Outlets | 220-240V | Single-Phase | 16A | 3.8kW | 42U or Higher | Glacier White | $2,074.59 | |
EA-5009-C | IEC 60309 32A 1P+N+E | (24) C13 Locking Outlets | 220-240V | Single-Phase | 32A | 6.1(UL) / 7.7(CE) kW | 42U or Higher | Black | $2,191.60 | |
EA-5013-E | NEMA L15-30P | (18) C13 Locking + (6) C19 Locking Outlets | 208V | Three-Phase | 30A | 8.6kW | 42U or Higher | Glacier White | $2,778.60 |
Product Description
Switched eConnect® PDUs provide remote monitoring of power at the rack level and individual outlet control, making it possible to remotely turn power on or off at each outlet.
Key Features and Benefits
- Reduced Networking Costs and Complexity – Secure Array® allows the use of a single IP address for up to 48 connected PDUs (32 when electronic locks are integrated). Second IP address for the entire array provides failover capability.
- Resistance to High Temperature – Marketleading temperature ratings of up to 149°F (65°C) ensures reliability when mounted toward hot aisles.
- Simplified Load Balancing – Phase-balance outlets on three-phase models ensure equal loading across all phases; allows use of shorter equipment power cords for better cable and airflow management.
- No Accidental Disconnections – Patented, low-profile locking outlets prevent accidental disconnections without requiring special cords.
- Easy Identification of Failover Unit – Redundancy Pack includes 2 PDUs (one in Black and one in Glacier White) for easy identification of the primary and secondary unit.
- Electronic Lock Integration – Patented technology seamlessly integrates PDU, environmental sensors and electronic locks into a single hardware and software solution.
- Gigabit Ethernet – Ensures compatibility with enterprise routers and switches Latest UL Compliance – Meets UL and IEC 62368 for compliance with new listing requirements for North America and the European Union.
- Cabinet Preinstallation – Complete ecosystem ships ready for IT equipment integration, and saves deployment time and reduces packaging waste.
Product Information
Remote Monitoring and Outlet Control Capabilities
The Switched eConnect® PDU is an advanced power distribution unit designed for modern data centers, providing reliable rack power distribution with intelligent features. It enables precise management of power at the rack level, ensuring optimal performance for critical IT equipment. This solution supports efficient operations in high-density environments with its robust design.
With remote outlet control, administrators can individually manage each power outlet from a centralized interface, allowing for seamless power cycling and troubleshooting. Remote monitoring capabilities deliver real-time insights into power consumption, enhancing visibility and reducing downtime. This feature empowers data center teams to maintain uptime and respond quickly to issues without physical access.
The Secure Array® technology reduces networking costs and complexity by enabling multiple PDUs to share a single IP address, streamlining infrastructure. This innovation provides failover capabilities for continuous operation, ensuring reliability in diverse network conditions. By consolidating IP addresses, it simplifies management while maintaining high security standards across the power distribution system.
Engineered for high-temperature environments, these PDUs operate reliably up to 149 degrees Fahrenheit, ensuring durability in demanding conditions. Phase-balance outlets on three-phase models promote equal loading across all phases, improving efficiency and preventing overloads. The patented locking outlets prevent accidental disconnections, contributing to stable and secure power delivery.
Integration with electronic locks and environmental sensors creates a unified solution for power management and security, enhancing overall data center protection. Gigabit Ethernet support ensures compatibility with enterprise networks, facilitating fast and reliable data transmission. These features make the Switched eConnect PDU a versatile choice for optimizing power distribution in various applications.
