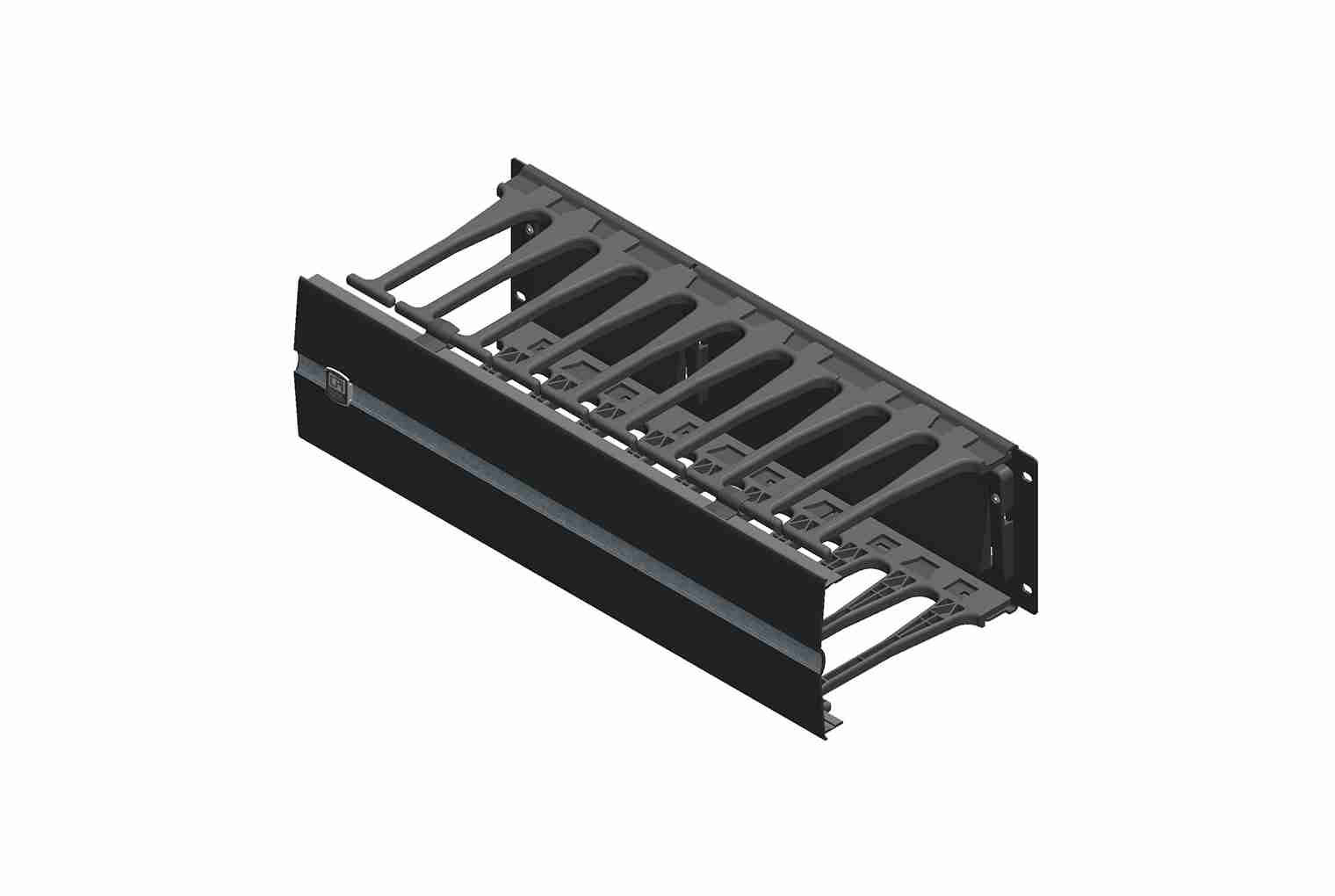

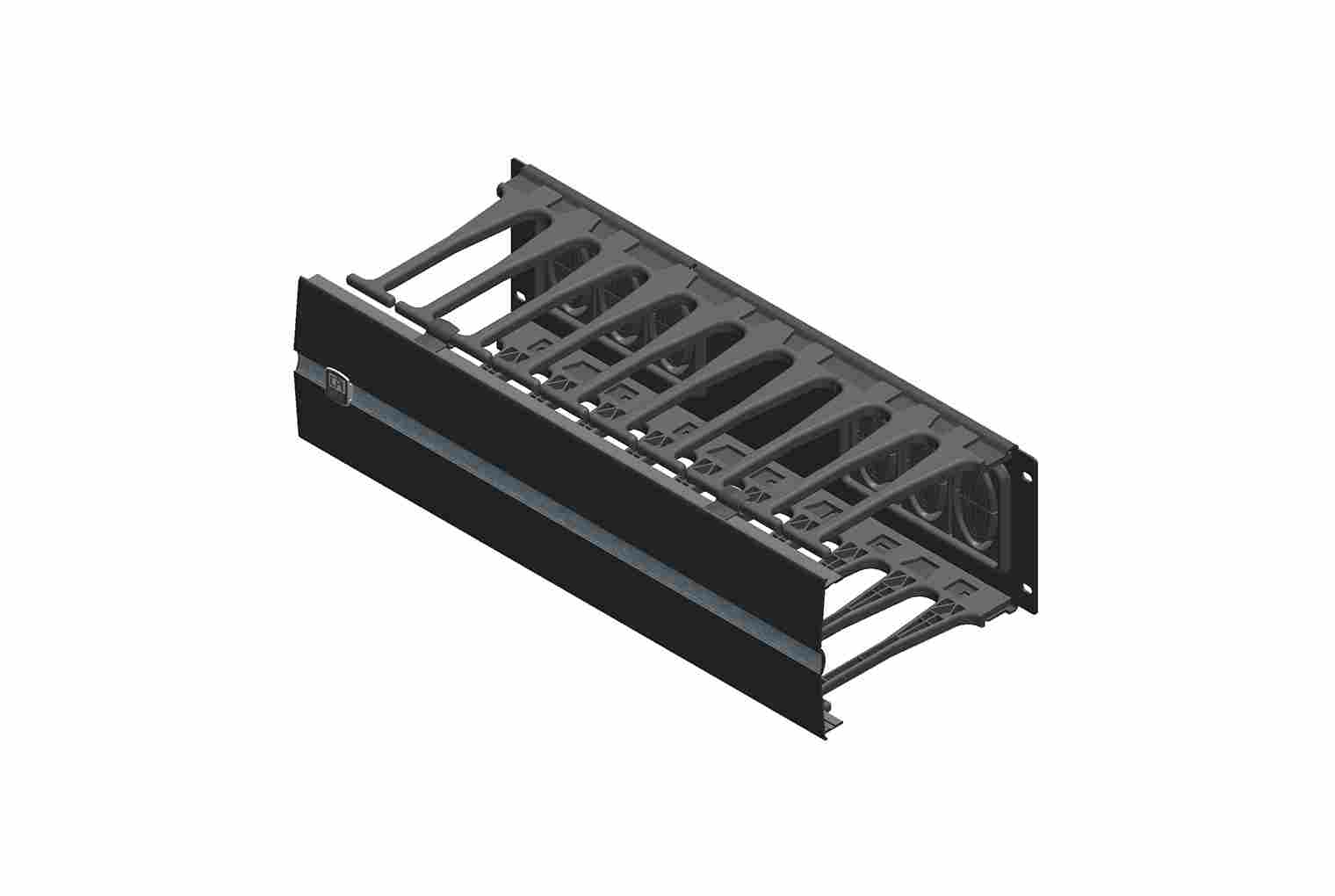

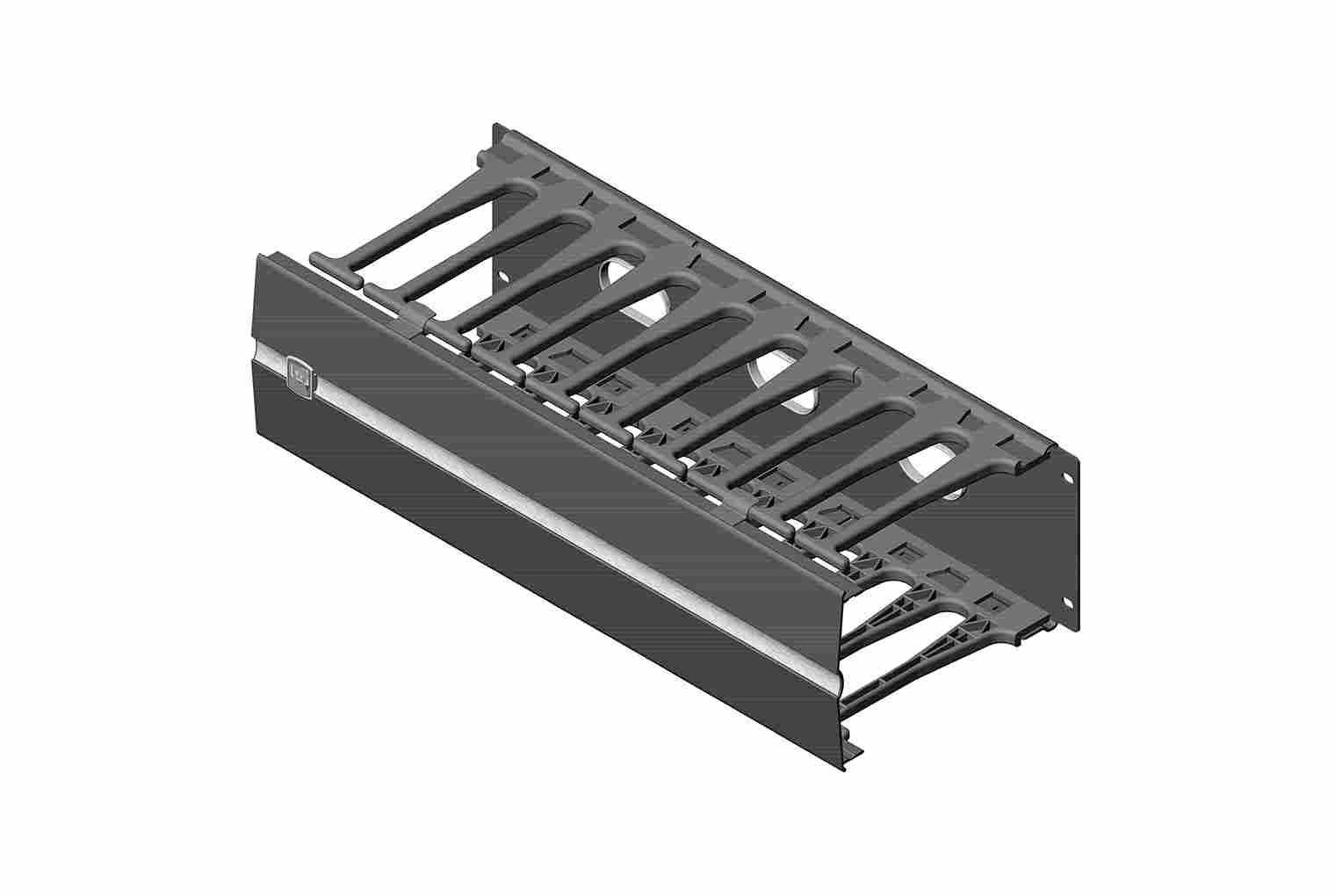

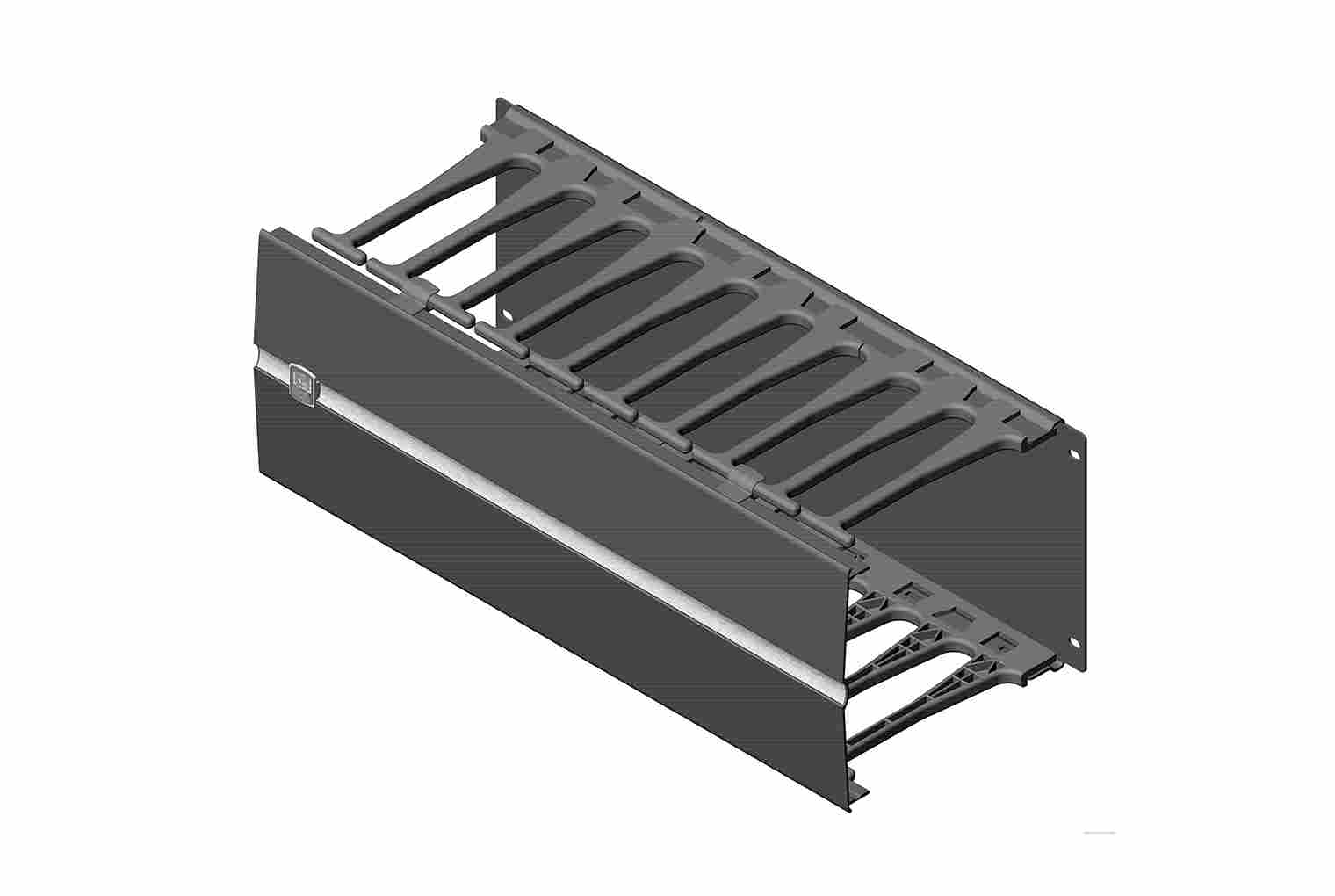

Evolution® Horizontal Cable Manager
Helpful Downloads & Links
Design Tools
Overview

Use Evolution® Horizontal Cable Managers above and below patch panels and network switches to organize and store cables. Horizontal managers include plastic T-shaped cable guides to organize patch cords and jumper cords as the cords enter and exit the manager to make individual equipment connections. The snap-on cover matches the door styling on the vertical manager. Swing the cover up or down to access cables; the cover stays in the open position while cabling. Three edge-protected, oval-shaped pass-through ports allow patch cords to pass front-to-rear. Horizontal managers are available in three heights.

Key Features and Benefits

  • T-shaped cable guides to organize patch cords and jumper cords
  • ​Available in four heights, one width and one depth.
  • Contoured front door with snap-hinges and longitudinal center feature contrasting aluminum finish
  • Three 1.25”H x 2.12”W (31 mm x 53 mm) edge-protected oval cable pass-through ports at the rear of the cable manager
  • Improved T-shaped cable guides decrease deflection when loaded with cables; especially important when deploying Cat 6a cable
  • Rounded edges on the cable guides protect cables as they enter and exit the storage space
  • Snap-On cover opens up or down and stays in the open position
  • Tool-less snap together assembly is simple and quick
Explore Product Options
Refine By
Refine By
  • Type
  • Height
  • Finish/ Color
Explore Sizes & Options (14 Product Options)
Product Number Type Height Finish/ Color Price (USD MSRP)
No Products Matching Your Filters
