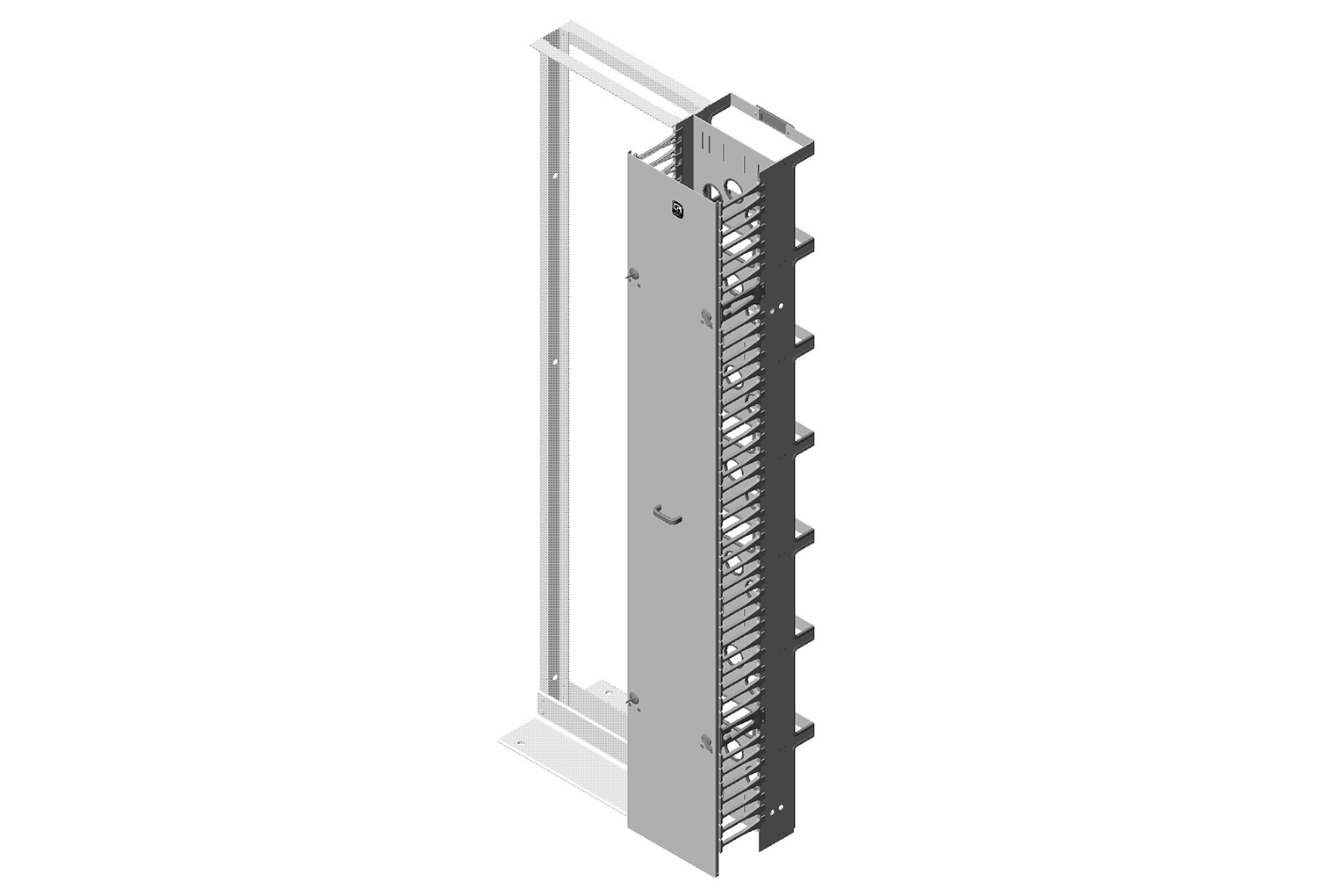

CCS-EFX Combination Cabling Section with Extended Fingers
Explore Sizes & Options
| Add to Cart Add | ||||||
|---|---|---|---|---|---|---|
40098-E03 | 45U Rack | 6" (152 mm) | 7' (2.1 m) | Glacier White | $1,166.59 | |
40098-E05 | 48U Rack | 6" (152 mm) | 7.5' (2.3 m) | Glacier White | $1,236.58 | |
40098-E15 | 51U Rack | 6" (152 mm) | 8' (2.4 m) | Glacier White | $1,341.62 | |
40099-705 | 48U Rack | 10" (254 mm) | 7.5' (2.3 m) | Black | $1,371.09 | |
40099-703 | 45U Rack | 10" (254 mm) | 7' (2.1 m) | Black | $1,293.43 | |
40099-715 | 51U Rack | 10" (254 mm) | 8' (2.4 m) | Black | $1,487.49 | |
40098-705 | 48U Rack | 6" (152 mm) | 7.5' (2.3 m) | Black | $1,124.20 | |
40099-E15 | 51U Rack | 10" (254 mm) | 8' (2.4 m) | Glacier White | $1,636.24 | |
40100-703 | 45U Rack | 12" (305 mm) | 7' (2.1 m) | Black | $1,483.93 | |
40100-705 | 48U Rack | 12" (305 mm) | 7.5' (2.3 m) | Black | $1,572.99 | |
40100-715 | 51U Rack | 12" (305 mm) | 8' (2.4 m) | Black | $1,706.49 | |
40100-E03 | 45U Rack | 12" (305 mm) | 7' (2.1 m) | Glacier White | $1,632.28 | |
40100-E05 | 48U Rack | 12" (305 mm) | 7.5' (2.3 m) | Glacier White | $1,730.23 | |
40099-E03 | 45U Rack | 10" (254 mm) | 7' (2.1 m) | Glacier White | $1,422.77 | |
40098-715 | 51U Rack | 6" (152 mm) | 8' (2.4 m) | Black | $1,219.67 | |
40098-703 | 45U Rack | 6" (152 mm) | 7' (2.1 m) | Black | $1,060.57 | |
40100-E15 | 51U Rack | 12" (305 mm) | 8' (2.4 m) | Glacier White | $1,877.18 | |
40099-E05 | 48U Rack | 10" (254 mm) | 7.5' (2.3 m) | Glacier White | $1,508.15 |
Product Description
The CCS-EFX is manufactured from a combination of strong, lightweight aluminum sheet and plenum-rated composite materials for maximum strength at minimal weight. CCS-EFX is packaged in a single carton for easy handling and includes installation hardware.
Key Features and Benefits
- Cable openings on the front are sized to fit 48 patch cords, twice the capacity of the CCS; openings have rounded edges to protect cable and will not deform or break
- Cable openings on front of CCS-EFX align with rack-mount unit on rack, allowing cables to exit by rack-mount unit
- The front door hinges open to the right or left and locks in the closed position to protect cables
- Open cabling section on the rear of CCS-EFX allows large premise cable bundles to exit the manager into the rack-mount space. Spin closure latches secure cables
- Attach to 3”D (80 mm) Standard Racks, Universal Racks or QuadraRack
- Mounting hardware and doors are included
Product Information
Design Tools
Key Features and Benefits of CCS-EFX Systems
The CCS-EFX Combination Cabling Section with Extended Fingers delivers robust cable management for modern data centers, supporting high-density environments with ease. This EFX solution features extended fingers that provide secure routing for combined power and data cables, reducing clutter and enhancing airflow. By integrating CCS products into your infrastructure, you ensure reliable performance and scalability for evolving network demands.
Engineered with lightweight aluminum and plenum-rated materials, the CCS-EFX offers maximum strength while minimizing weight for straightforward installation. Front cable openings accommodate up to 48 patch cords, doubling the capacity of standard CCS sections and aligning perfectly with rack-mount units. The rear open cabling section allows large premise cable bundles to exit efficiently, secured by spin closure latches for added protection.
Extended fingers on the CCS-EFX protect cables from deformation and damage, with rounded edges that safeguard against wear over time. This design supports EFX solutions by enabling seamless cable management in vertical applications, such as 45U, 48U, and 51U racks. Users benefit from reduced installation time and improved organization, making it ideal for demanding settings like AI facilities and hyperscale data centers.
Installation is simplified with included mounting hardware and doors that hinge left or right, locking securely to prevent unauthorized access. The CCS-EFX attaches to 3-inch deep standard racks, Universal Racks, or QuadraRack® systems, ensuring compatibility across various configurations. This versatility makes CCS cabling a go-to choice for enterprises seeking future-ready infrastructure that adapts to technological advancements.
Overall, the CCS-EFX enhances data center efficiency by streamlining cable management and supporting high-performance applications. Its ability to handle combined power and data cable bundles reduces the need for additional components, saving space and costs. Investing in EFX products from CPI means gaining a durable, scalable solution backed by decades of expertise in ICT infrastructure.
