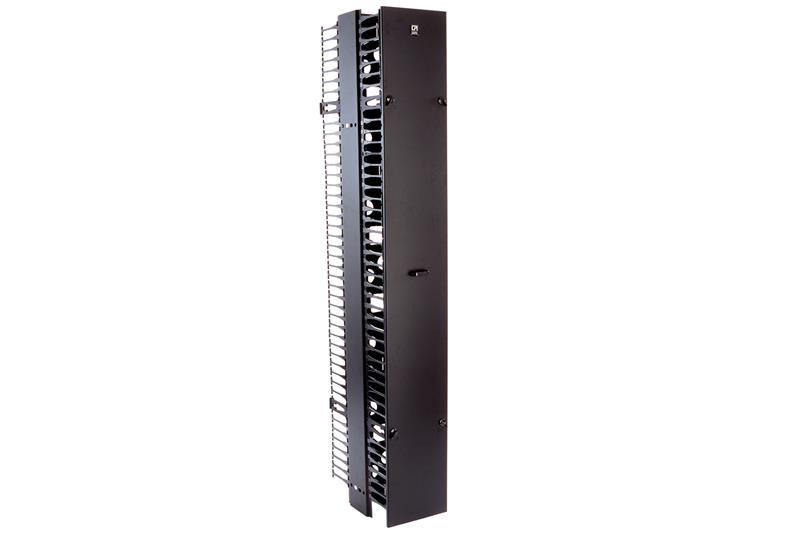

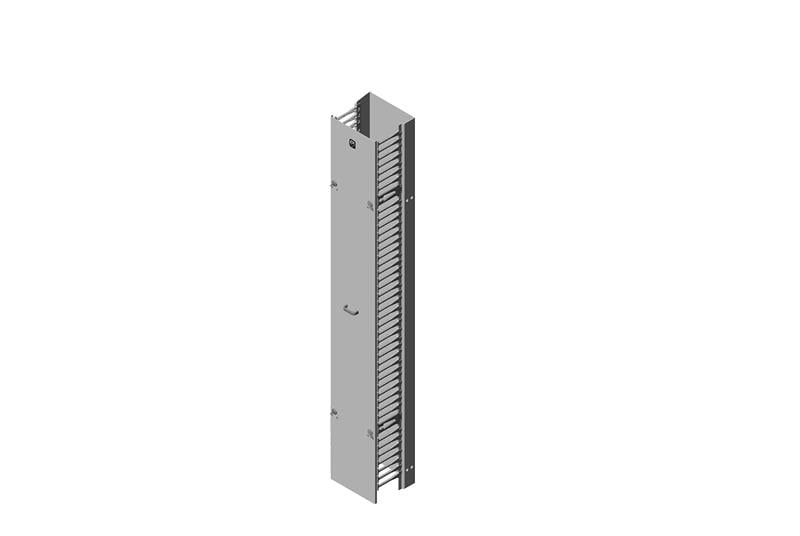

MCS-EFX Master Cabling Section with Extended Fingers Double-Sided
Explore Sizes & Options
| Add to Cart Add | ||||||
|---|---|---|---|---|---|---|
40095-705 | 48U Rack | 6" (152 mm) | 7.5' (2.3 m) | Black | $1,534.97 | |
40095-703 | 45U Rack | 6" (152 mm) | 7' (2.1 m) | Black | $1,448.03 | |
40095-E15 | 51U Rack | 6" (152 mm) | 8' (2.4 m) | Glacier White | $1,831.76 | |
40095-505 | 41U Rack | 6" (152 mm) | 7.5' (2.3 m) | Clear | $1,534.97 | |
40095-515 | 51U Rack | 6" (152 mm) | 8' (2.4 m) | Clear | $1,665.27 | |
40095-503 | 45U Rack | 6" (152 mm) | 7' (2.1 m) | Clear | $1,448.03 | |
40096-515 | 51U Rack | 10" (254 mm) | 8' (2.4 m) | Clear | $1,853.50 | |
40095-E03 | 45U Rack | 6" (152 mm) | 7' (2.1 m) | Glacier White | $1,592.82 | |
40096-503 | 45U Rack | 10" (254 mm) | 7' (2.1 m) | Clear | $1,611.79 | |
40095-715 | 51U Rack | 6" (152 mm) | 8' (2.4 m) | Black | $1,665.27 | |
40096-E05 | 48U Rack | 10" (254 mm) | 7.5' (2.3 m) | Glacier White | $1,879.29 | |
40096-703 | 45U Rack | 10" (254 mm) | 7' (2.1 m) | Black | $1,611.79 | |
40096-705 | 48U Rack | 10" (254 mm) | 7.5' (2.3 m) | Black | $1,708.43 | |
40096-715 | 51U Rack | 10" (254 mm) | 8' (2.4 m) | Black | $1,853.50 | |
40096-E03 | 45U Rack | 10" (254 mm) | 7' (2.1 m) | Glacier White | $1,772.97 | |
40095-E05 | 48U Rack | 6" (152 mm) | 7.5' (2.3 m) | Glacier White | $1,688.44 | |
40097-705 | 48U Rack | 12" (305 mm) | 7.5' (2.3 m) | Black | $2,084.06 | |
40096-505 | 48U Rack | 10" (254 mm) | 7.5' (2.3 m) | Clear | $1,708.43 | |
40097-703 | 45U Rack | 12" (305 mm) | 7' (2.1 m) | Black | $1,966.08 | |
40097-715 | 51U Rack | 12" (305 mm) | 8' (2.4 m) | Black | $2,261.05 |
Product Description
The MCS Master Cabling Section virtually eliminates the need for horizontal cable managers by providing frequent 1U spacing of the cable guides that aligns precisely with the rack spacing.
Key Features and Benefits
- Patented cable guide fingers at 1U intervals for easy management of patch cords
- UL 94V-0 fire-rated composite materials for use in plenum areas
- Sturdy, reversible aluminum SwitchGate Door/Cover with handle included
- Four widths (4.4”, 6”, 10” or 12”), a variety of heights (5’6” through 9’), and single-sided (8.08”D or 10.62"D) or double-sided (16.15”D or 21.23”D) to suit your needs
- 288 to 1,052 Cat 5e cable capacity (with 40% fill) per side
- Edge-protected pass-through ports and vertical slots to secure cable with optional Saf-T-Grip® straps on double-sided versions
- Preassembled for easy installation and a more cohesive appearance
- CPI’s most sturdy vertical cabling section for high-profile applications Also available in larger, higher capacity version called MCS-EFX Master Cabling Section with Extended Fingers
Product Information
Design Tools
Key Benefits of EFX Products for Cable Organization
The MCS-EFX Master Cabling Section with extended fingers delivers superior cable management for data centers and enterprise networks. This section master solution organizes patch cords at precise 1U intervals, reducing the need for horizontal managers. Its double-sided design supports high-density environments, ensuring optimal airflow and accessibility.
Constructed with UL 94V-0 fire-rated composite materials, the MCS master cabling section meets stringent safety standards for plenum areas. The reversible aluminum SwitchGate Door includes a handle for easy access and durability. EFX products like this offer preassembled installation, saving time and enhancing reliability in critical applications.
With cable capacities ranging from 288 to 1,052 Cat 5e cables per side at 40 percent fill, this section master solution handles extensive networking needs. Edge-protected pass-through ports and vertical slots secure cables with optional Saf-T-Grip® straps. The MCS cable management system supports various rack sizes, including 41U, 45U, 48U, and 51U configurations.
The MCS-EFX master cabling section comes in multiple widths and heights, such as 6 inches (152 mm), 10 inches (254 mm), and 12 inches (305 mm), and heights from 7 feet (2.1 m) to 8 feet (2.4 m). This flexibility allows customization for different master racks and data center layouts. EFX products ensure a cohesive appearance and sturdy performance in high-profile applications.
Engineered for ease of use, the MCS master cabling section simplifies cable routing and maintenance in evolving IT environments. Its patented fingers and robust design protect cables from damage and improve organization. By integrating this section with extended fingers, data centers achieve enhanced efficiency and future-ready infrastructure.
