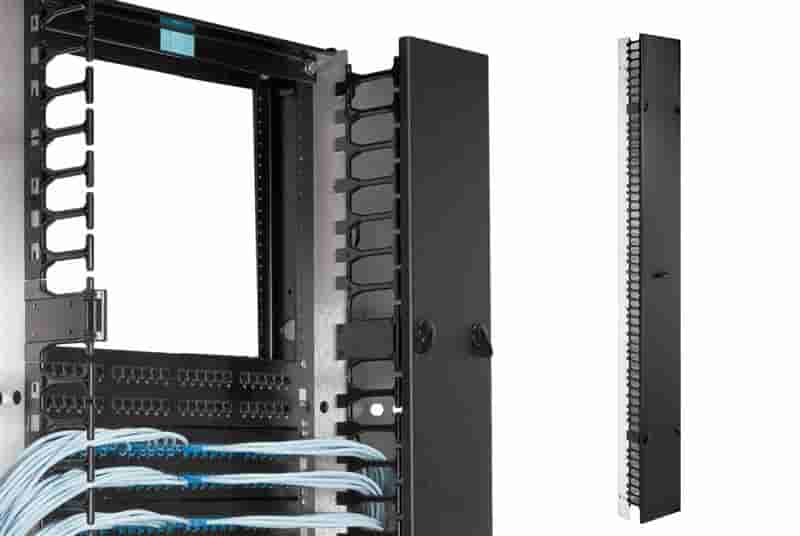

MCS Master Cabling Section Single-Sided
Explore Sizes & Options
| Add to Cart Add | ||||||
|---|---|---|---|---|---|---|
30091-500 | 34U Rack | 4.4" (112 mm) | 5.5' (1.7 m) | Clear | $705.46 | |
30091-508 | 58U Rack | 4.4" (112 mm) | 9' (2.7 m) | Clear | $1,067.71 | |
30091-501 | 38U Rack | 4.4" (112 mm) | 6' (1.8 m) | Clear | $724.50 | |
30091-505 | 48U Rack | 4.4" (112 mm) | 7.5' (2.3 m) | Clear | $808.41 | |
30091-700 | 34U Rack | 4.4" (112 mm) | 5.5' (1.7 m) | Black | $705.46 | |
30091-701 | 38U Rack | 4.4" (112 mm) | 6' (1.8 m) | Black | $724.50 | |
30091-702 | 41U Rack | 4.4" (112 mm) | 6.5' (2 m) | Black | $743.58 | |
30091-502 | 41U Rack | 4.4" (112 mm) | 6.5' (2 m) | Clear | $743.58 | |
30091-503 | 45U Rack | 4.4" (112 mm) | 7' (2.1 m) | Clear | $762.62 | |
30091-708 | 58U Rack | 4.4" (112 mm) | 9' (2.7 m) | Black | $1,067.71 | |
30091-715 | 51U Rack | 4.4" (112 mm) | 8' (2.4 m) | Black | $877.04 | |
30091-E00 | 34U Rack | 4.4" (112 mm) | 5.5' (1.7 m) | Glacier White | $776.00 | |
30091-E01 | 38U Rack | 4.4" (112 mm) | 6' (1.8 m) | Glacier White | $796.95 | |
30091-E02 | 41U Rack | 4.4" (112 mm) | 6.5' (2 m) | Glacier White | $817.96 | |
30091-E03 | 45U Rack | 4.4" (112 mm) | 7' (2.1 m) | Glacier White | $838.91 | |
30091-703 | 45U Rack | 4.4" (112 mm) | 7' (2.1 m) | Black | $762.62 | |
30091-515 | 51U Rack | 4.4" (112 mm) | 8' (2.4 m) | Clear | $877.04 | |
30091-705 | 48U Rack | 4.4" (112 mm) | 7.5' (2.3 m) | Black | $808.41 | |
30092-502 | 41U Rack | 6" (152 mm) | 6.5' (2 m) | Clear | $800.96 | |
30092-503 | 45U Rack | 6" (152 mm) | 7' (2.1 m) | Clear | $821.55 |
Product Description
The MCS Master Cabling Section virtually eliminates the need for horizontal cable managers by providing frequent 1U spacing of the cable guides that aligns precisely with the rack spacing.
Key Features and Benefits
- Patented cable guide fingers at 1U intervals for easy management of patch cords
- UL 94V-0 fire-rated composite materials for use in plenum areas
- Sturdy, reversible aluminum SwitchGate Door/Cover with handle included
- Four widths (4.4”, 6”, 10” or 12”), a variety of heights (5’6” through 9’), and single-sided (8.08”D or 10.62"D) or double-sided (16.15”D or 21.23”D) to suit your needs
- 288 to 1,052 Cat 5e cable capacity (with 40% fill) per side
- Edge-protected pass-through ports and vertical slots to secure cable with optional Saf-T-Grip® straps on double-sided versions
- Preassembled for easy installation and a more cohesive appearance
- Also available in larger, higher capacity version called MCS-EFX Master Cabling Section with Extended Fingers
Product Information
Design Tools
Key Benefits of Single‑Sided MCS Cabling
The MCS cable solution provides a single‑sided master cabling section designed for vertical rack installations. Engineered for high‑density environments, the system aligns cable guides at precise 1U intervals to match standard rack spacing. This approach streamlines cabling organization and supports the rapid deployment of data‑center infrastructure. Patented cable guide fingers create a reliable pathway for patch cords, reducing the need for separate horizontal cable managers. Constructed from UL 94V‑0 fire‑rated composite material, the section meets stringent plenum requirements for safe cabling. Edge‑protected pass‑through ports and optional Saf‑T‑Grip® straps secure cables on both sides of the master cable assembly. The MCS master cabling hardware is offered in four widths--4.4″ (112 mm), 6″ (152 mm), 10″ (254 mm), and 12″--and a range of heights from 5′6″ (1.7 m) to 9′ (2.7 m) to accommodate diverse rack configurations. Color options include black, clear, and Glacier White, allowing seamless integration with existing enclosure aesthetics. Each configuration maintains the same 1U cable guide density, ensuring consistent performance across all sizes. Preassembled components simplify installation, eliminating the need for on‑site field assembly and reducing labor time. The reversible aluminum SwitchGate door with handle provides easy access for maintenance while preserving a cohesive visual appearance. By consolidating cable management into a single vertical section, floor space is optimized and airflow pathways remain unobstructed. Chatsworth Products (CPI) backs the MCS cable series with global availability and rapid product customization to meet specific project requirements. Technical support and design tools such as the CPI Product Designer enable engineers to model the solution within BIM and CAD environments. The result is a reliable, scalable cabling infrastructure that supports AI, HPC and future‑ready data‑center deployments.
