Adjustable QuadraRack
Explore Sizes & Options
| Add to Cart Add | |||||
|---|---|---|---|---|---|
15215-E03 | 84" (2134 mm) 45U | Glacier White | 15.8" (400 mm) | $1,128.39 | |
15215-115 | 96" (2438 mm) 51U | Gray | 15.8" (400 mm) | $1,168.98 | |
15215-715 | 96" (2438 mm) 51U | Black | 15.8" (400 mm) | $1,113.28 | |
15215-101 | 72" (1829 mm) 38U | Gray | 15.8" (400 mm) | $1,044.56 | |
15215-108 | 108" (2740 mm) | Gray | 15.8" (400 mm) | $1,323.43 | |
15215-E15 | 96" (2438 mm) 51U | Glacier White | 15.8" (400 mm) | $1,224.61 | |
15215-103 | 84" (2134 mm) 45U | Gray | 15.8" (400 mm) | $1,077.05 | |
15216-101 | 72" (1829 mm) 38U | Gray | 22.6" (575 mm) | $1,075.31 | |
15216-E01 | 72" (1829 mm) 38U | Glacier White | 22.6" (575 mm) | $1,126.53 | |
15215-E01 | 72" (1829 mm) 38U | Glacier White | 15.8" (400 mm) | $1,094.27 | |
15215-703 | 84" (2134 mm) 45U | Black | 15.8" (400 mm) | $1,025.74 | |
15216-703 | 84" (2134 mm) 45U | Black | 22.6" (575 mm) | $1,055.11 | |
15215-E08 | 108" (2740 mm) | Glacier White | 15.8" (400 mm) | $1,386.40 | |
15216-E03 | 84" (2134 mm) 45U | Glacier White | 22.6" (575 mm) | $1,160.65 | |
15216-103 | 84" (2134 mm) 45U | Gray | 22.6" (575 mm) | $1,107.88 | |
15216-108 | 108" (2740 mm) | Gray | 22.6" (575 mm) | $1,354.16 | |
15216-115 | 96" (2438 mm) 51U | Gray | 22.6" (575 mm) | $1,199.73 | |
15216-715 | 96" (2438 mm) 51U | Black | 22.6" (575 mm) | $1,142.58 | |
15215-701 | 72" (1829 mm) 38U | Black | 15.8" (400 mm) | $994.80 | |
15215-708 | 108" (2740 mm) | Black | 15.8" (400 mm) | $1,260.38 |
Product Description

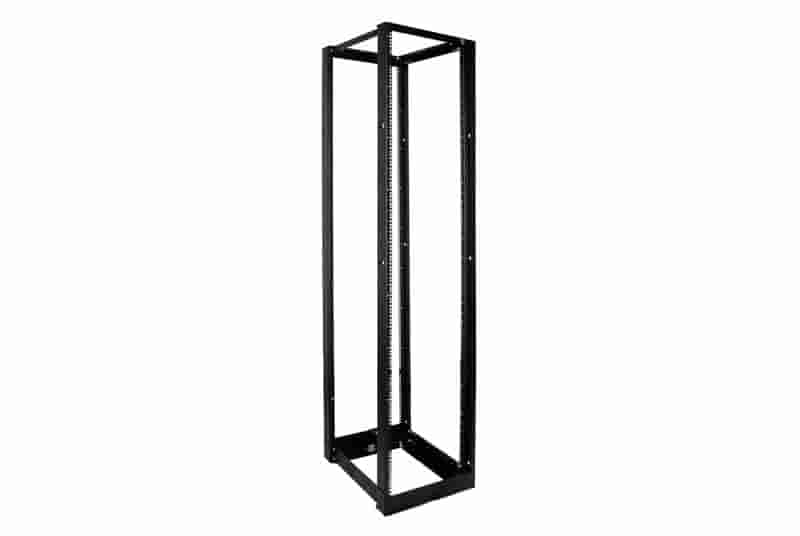

The Adjustable QuadraRack® provides a sturdy, cost-effective solution for support rack-mount network, computer server an data storage equipment in data centers, computer equipment rooms and other IT facilities. Features #12-24 tapped rails. Front and rear depth can be adjusted during assembly.
Key Features and Benefits
- Stability and strength of a welded steel enclosure in an open four-post frame
- Open design for unrestricted airflow and easy access to equipment and cabling
- Self-squaring assembly with welded front and rear frames reduces assembly time
- Mounting channels adjust in depth to provide front and rear support for equipment
- Maximizes floor space with a minimal rack footprint
- Rack components are bonded together during assembly in accordance with industry standards
- Includes a Two Mounting Hole Ground Terminal Block for easy attachment to the Telecommunications Grounding Busbar
- Threaded equipment mounting holes
- Rack-mount units are marked and numbered on the mounting channels
- Easy to bay together to create multi-rack configurations
- Use with any CPI Cabling Section to manage cables
- Supports up to 2000 lb (907.2 kg)
- UL Listed; File E227626; Category NWIN (US), NWIN7 (Canada) – Information Technology and Communications Equipment Cabinet, Enclosure and Rack
Product Information
Design Tools
Benefits of Adjustable QuadraRack® for IT Infrastructure
The Adjustable QuadraRack® provides a cost-effective solution for supporting rack-mount network, server and data storage equipment in data centers and IT facilities. Its four-post design ensures stability and strength for reliable equipment mounting. This adjustable rack is engineered to maximize floor space with a minimal footprint.
Featuring threaded equipment mounting holes, the rack allows for easy installation and adjustment of front and rear depth during assembly. The open design promotes unrestricted airflow and easy access to equipment and cabling. This adjustable server rack supports up to 2000 lb (907.2 kg) for heavy-duty applications.
Self-squaring assembly with welded frames reduces setup time and ensures precision in multi-rack configurations. Components are bonded together per industry standards, including a grounding terminal block for safety. The 4 post rack is UL Listed for compliance in information technology environments.
Ideal for data centers, computer rooms and edge computing sites, the rack enhances cooling efficiency and simplifies maintenance. Its versatility makes it suitable for 4 post data rack installations in high-density setups. Choose CPI for durable, customizable solutions that protect your IT investment.
With global availability and rapid customization, CPI delivers agile infrastructure support for advanced applications. The Adjustable QuadraRack® represents decades of expertise in engineering reliable rack systems. Trust CPI for innovative solutions that power and protect your growing technology needs.
