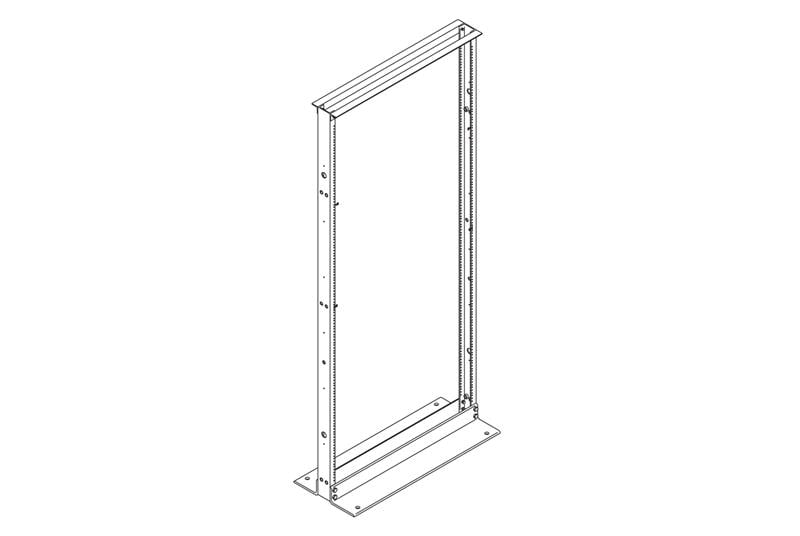

35" x 3" (889 mm x 80 mm) Universal Rack
Explore Sizes & Options
| Add to Cart Add | |||||
|---|---|---|---|---|---|
46363-101 | Two Top Angles | 72" (1829 mm) 38U | Gray | $914.35 | |
46363-701 | Two Top Angles | 72" (1829 mm) 38U | Black | $870.87 | |
46763-101 | Two Top Angles, Flush Bolted | 72" (1829 mm) 38U | Gray | $1,242.94 | |
46363-503 | Two Top Angles | 84" (2134 mm) 45U | Clear | $926.37 | |
46763-E03 | Two Top Angles, Flush Bolted | 84" (2134 mm) 45U | Glacier White | $1,385.13 | |
46363-E03 | Two Top Angles | 84" (2134 mm) 45U | Glacier White | $1,019.05 | |
46763-103 | Two Top Angles, Flush Bolted | 84" (2134 mm) 45U | Gray | $1,322.18 | |
46363-103 | Two Top Angles | 84" (2134 mm) 45U | Gray | $972.73 | |
46363-501 | Two Top Angles | 72" (1829 mm) 38U | Clear | $870.87 | |
46363-E01 | Two Top Angles | 72" (1829 mm) 38U | Glacier White | $957.99 | |
46763-E01 | Two Top Angles, Flush Bolted | 72" (1829 mm) 38U | Glacier White | $1,302.16 | |
46763-503 | Two Top Angles, Flush Bolted | 84" (2134 mm) 45U | Clear | $1,259.24 | |
46363-703 | Two Top Angles | 84" (2134 mm) 45U | Black | $926.37 | |
46763-703 | Two Top Angles, Flush Bolted | 84" (2134 mm) 45U | Black | $1,259.24 | |
46763-501 | Two Top Angles, Flush Bolted | 72" (1829 mm) 38U | Clear | $1,183.80 | |
46763-701 | Two Top Angles, Flush Bolted | 72" (1829 mm) 38U | Black | $1,183.80 |
Product Description
High-strength, lightweight 6061-T6 aluminum extrusion construction with two top angles and heavy-duty assembly hardware for a stronger rack to handle heavier loading. Weight capacity of 1500 lb (weight must be evenly distributed).
Key Features and Benefits
- Supports 19” rack-mount equipment designed for two-post panel mounting like patch panels and network switches or use with shelves to support computer servers.
- Easy positioning of equipment or shelves with marked and numbered rack-mount spaces.
- Quick attachment of equipment with threaded equipment mounting holes and included equipment-mounting screws.
- Delivers unassembled in a single carton — quick and easy bolt-together assembly takes less than 10 minutes.
- Lightweight aluminum construction for easy transport and positioning during installation.
- Integrated grounding with a built-in attachment point for a ground (earthing) connection.
- Attach CPI vertical cable managers to the side of the rack through pre-punched holes.
- Secure the rack to the floor quickly with a concrete, wood or raised floor installation kit through pre-punched holes in base angle.
Product Information
Design Tools
Key Features of the 35x3 Universal Rack
The 35x3 universal rack delivers a sturdy 6061‑T6 aluminum extrusion that supports up to 1500 lb when weight is evenly distributed. Its 35" x 3" (889 mm x 80 mm) footprint fits tight aisles while providing ample space for 19‑inch equipment. Integrated grounding points and pre‑punched cable‑manager holes simplify installation and maintenance. Customers can select from 72" (1829 mm) 38U or 84" (2134 mm) 45U heights to match rack‑mount requirements. Available colors include black, glacier white, gray, and clear, allowing seamless integration into any data‑center aesthetic. The two‑top‑angle design offers enhanced rigidity for heavy loading and reduces vibration. Assembly requires less than ten minutes thanks to a bolt‑together design that arrives unassembled in a single carton. No specialized tools are needed, and the rack can be securely anchored to concrete, wood, or raised‑floor surfaces using the provided installation kits. This rapid deployment accelerates project timelines and reduces labor costs. The rack's lightweight construction eases transport and repositioning during upgrades or re‑configurations. Pre‑punched holes enable quick attachment of CPI vertical cable managers, improving cable organization and airflow management. The design also accommodates optional accessories such as shelving and power distribution units. By choosing the 35x3 universal rack, data‑center operators benefit from a reliable, high‑capacity solution that scales with evolving infrastructure demands while maintaining the quiet confidence of CPI engineering excellence.
