Universal Rack
Explore Sizes & Options
| Add to Cart Add | ||||||
|---|---|---|---|---|---|---|
46053-100 | Two Top Bars | 19" (483 mm) | Gray | 66" (1676 mm) 34U | $679.14 | |
46053-101 | Two Top Bars | 19" (483 mm) | Gray | 72" (1829 mm) 38U | $699.59 | |
46053-103 | Two Top Bars | 19" (483 mm) | Gray | 84" (2134 mm) 45U | $744.06 | |
46053-117 | Two Top Bars | 19" (483 mm) | Gray | 102" (2591 mm) 55U | $834.28 | |
46053-115 | Two Top Bars | 19" (483 mm) | Gray | 96" (2438 mm) 51U | $803.14 | |
46053-102 | Two Top Bars | 19" (483 mm) | Gray | 78" (1981 mm) 41U | $722.41 | |
46053-105 | Two Top Bars | 19" (483 mm) | Gray | 90" (2286 mm) 48U | $780.52 | |
46053-500 | Two Top Bars | 19" (483 mm) | Clear | 66" (1676 mm) 34U | $646.79 | |
46053-502 | Two Top Bars | 19" (483 mm) | Clear | 78" (1981 mm) 41U | $688.00 | |
46053-108 | Two Top Bars | 19" (483 mm) | Gray | 108" (2743 mm) 58U | $835.86 | |
46053-508 | Two Top Bars | 19" (483 mm) | Clear | 108" (2743 mm) 58U | $796.05 | |
46053-515 | Two Top Bars | 19" (483 mm) | Clear | 96" (2438 mm) 51U | $764.86 | |
46053-120 | Two Top Bars | 19" (483 mm) | Gray | 48" (1219 mm) 24U | $667.68 | |
46053-119 | Two Top Bars | 19" (483 mm) | Gray | 60" (1524 mm) 31U | $707.37 | |
46053-531 | Two Top Bars | 19" (483 mm) | Clear | 36" (914 mm) 17U | $553.04 | |
46053-700 | Two Top Bars | 19" (483 mm) | Black | 66" (1676 mm) 34U | $646.79 | |
46053-501 | Two Top Bars | 19" (483 mm) | Clear | 72" (1829 mm) 38U | $666.30 | |
46053-505 | Two Top Bars | 19" (483 mm) | Clear | 90" (2286 mm) 48U | $743.32 | |
46053-703 | Two Top Bars | 19" (483 mm) | Black | 84" (2134 mm) 45U | $708.64 | |
46053-705 | Two Top Bars | 19" (483 mm) | Black | 90" (2286 mm) 48U | $743.32 |
Product Description
High-strength, lightweight 6061-T6 aluminum extrusion construction with two top angles and heavy-duty assembly hardware for a stronger rack to handle heavier loading.
Key Features and Benefits
- Supports 19” rack-mount equipment designed for two-post panel mounting like patch panels and network switches or use with shelves to support computer servers.
- Easy positioning of equipment or shelves with marked and numbered rack-mount spaces.
- Quick attachment of equipment with threaded equipment mounting holes and included equipment-mounting screws.
- Delivers unassembled in a single carton — quick and easy bolt-together assembly takes less than 10 minutes.
- Lightweight aluminum construction for easy transport and positioning during installation.
- Integrated grounding with a built-in attachment point for a ground (earthing) connection.
- Attach CPI vertical cable managers to the side of the rack through pre-punched holes.
- Secure the rack to the floor quickly with a concrete, wood or raised floor installation kit through pre-punched holes in base angle.
Product Information
Design Tools
Key Features and Benefits of the Universal Rack
The CPI Universal Rack provides robust support for 19-inch rack-mount equipment like patch panels and network switches. Its high-strength 6061-T6 aluminum extrusion construction ensures durability while remaining lightweight for easy transport and installation. This universal racking solution simplifies equipment positioning with marked and numbered rack-mount spaces for quick attachment.
Easy bolt-together assembly takes less than 10 minutes, reducing deployment time in data center environments. The rack includes threaded equipment mounting holes and screws for secure attachment of various devices. Integrated grounding points and pre-punched holes allow for straightforward cable management and safety compliance.
Supporting 19-inch equipment rack configurations, this two-post rack handles heavier loading with heavy-duty assembly hardware. It is available in multiple widths, including 19 inches (483 mm), 23 inches (584 mm), and 35 inches (889 mm), to accommodate diverse networking needs. The universal rack design facilitates efficient use of space in telecommunication rooms and enterprise data centers.
Lightweight aluminum construction makes the Universal Rack ideal for environments requiring frequent reconfigurations or mobility. It attaches seamlessly to CPI vertical cable managers, enhancing organization and airflow management. Pre-punched holes in the base angle enable secure floor mounting with concrete, wood, or raised floor installation kits.

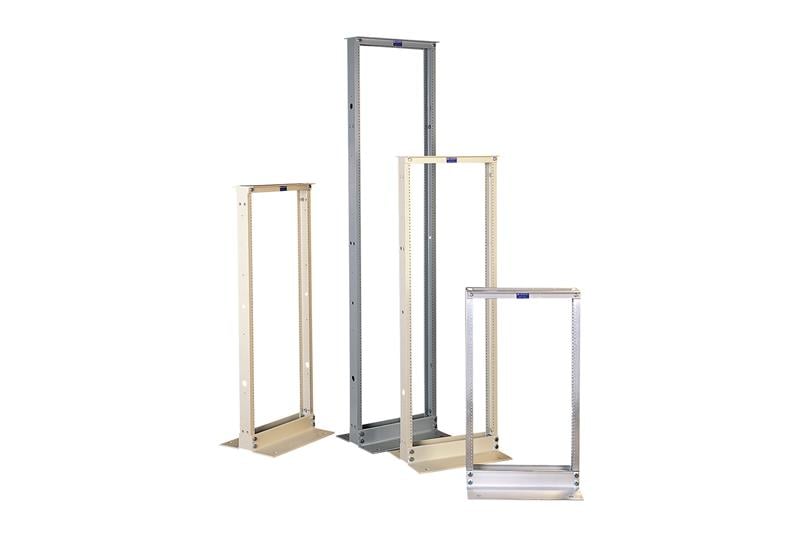

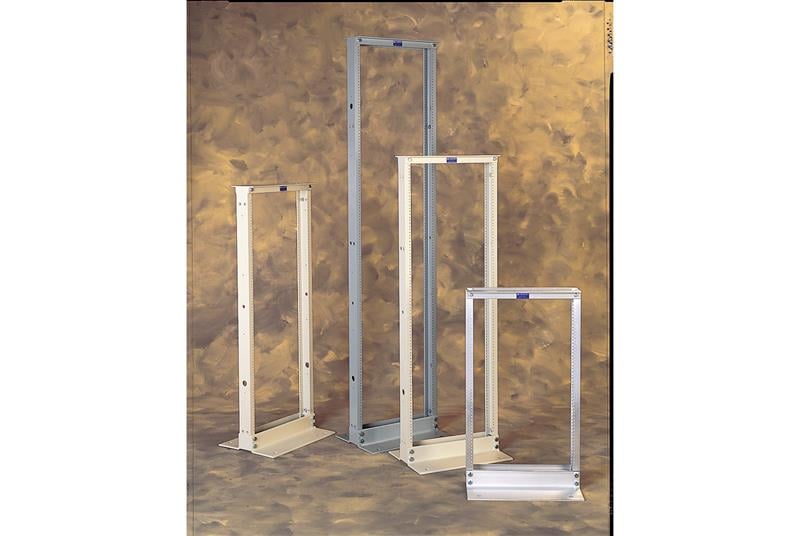

This equipment rack supports a range of heights from 36 inches (914 mm) to 108 inches (2743 mm), offering flexibility for different U-space requirements. The Universal Rack's design ensures compatibility with shelves for supporting computer servers and other heavy devices. It delivers reliable performance in hyperscale, colocation, and edge data center applications, meeting today's demanding IT infrastructure challenges.
