Elevate Adjustable Containment Solution End of Row Panel
Explore Sizes & Options
| Add to Cart Add | |||||
|---|---|---|---|---|---|
14625-701 | 20"-34" (508-864 mm) | 49.9" (1267 mm) | Black | $1,390.01 | |
14625-700 | 14"-20" (356-508 mm) | 49.9" (1267 mm) | Black | $1,318.47 | |
14625-E02 | 34"-60" (864-1524 mm) | 49.9" (1267 mm) | Glacier White | $1,514.85 | |
14625-706 | 14"-20" (356-508 mm) | 90" (2286 mm) | Black | $1,393.54 | |
14625-702 | 34"-60" (864-1524 mm) | 49.9" (1267 mm) | Black | $1,514.85 | |
14625-708 | 34"-60" (864-1524 mm) | 90" (2286 mm) | Black | $1,601.09 | |
14625-E03 | 14"-20" (356-508 mm) | 57.8" (1468 mm) | Glacier White | $1,356.02 | |
14625-703 | 14"-20" (356-508 mm) | 57.8" (1468 mm) | Black | $1,356.02 | |
14625-704 | 20"-34" (508-864 mm) | 57.8" (1468 mm) | Black | $1,442.42 | |
14625-705 | 34"-60" (864-1524 mm) | 57.8" (1468 mm) | Black | $1,543.40 | |
14625-707 | 20"-34" (508-864 mm) | 90" (2286 mm) | Black | $1,494.81 | |
14625-E07 | 20"-34" (508-864 mm) | 90" (2286 mm) | Glacier White | $1,494.82 | |
14625-E05 | 34"-60" (864-1524 mm) | 57.8" (1468 mm) | Glacier White | $1,543.40 | |
14625-E08 | 34"-60" (864-1524 mm) | 90" (2286 mm) | Glacier White | $1,601.09 | |
14625-E04 | 20"-34" (508-864 mm) | 57.8" (1468 mm) | Glacier White | $1,442.42 | |
14625-E06 | 14"-20" (356-508 mm) | 90" (2286 mm) | Glacier White | $1,393.54 | |
14625-E00 | 14"-20" (356-508 mm) | 49.9" (1267 mm) | Glacier White | $1,318.47 | |
14625-E01 | 20"-34" (508-864 mm) | 49.9" (1267 mm) | Glacier White | $1,390.01 |
Product Description

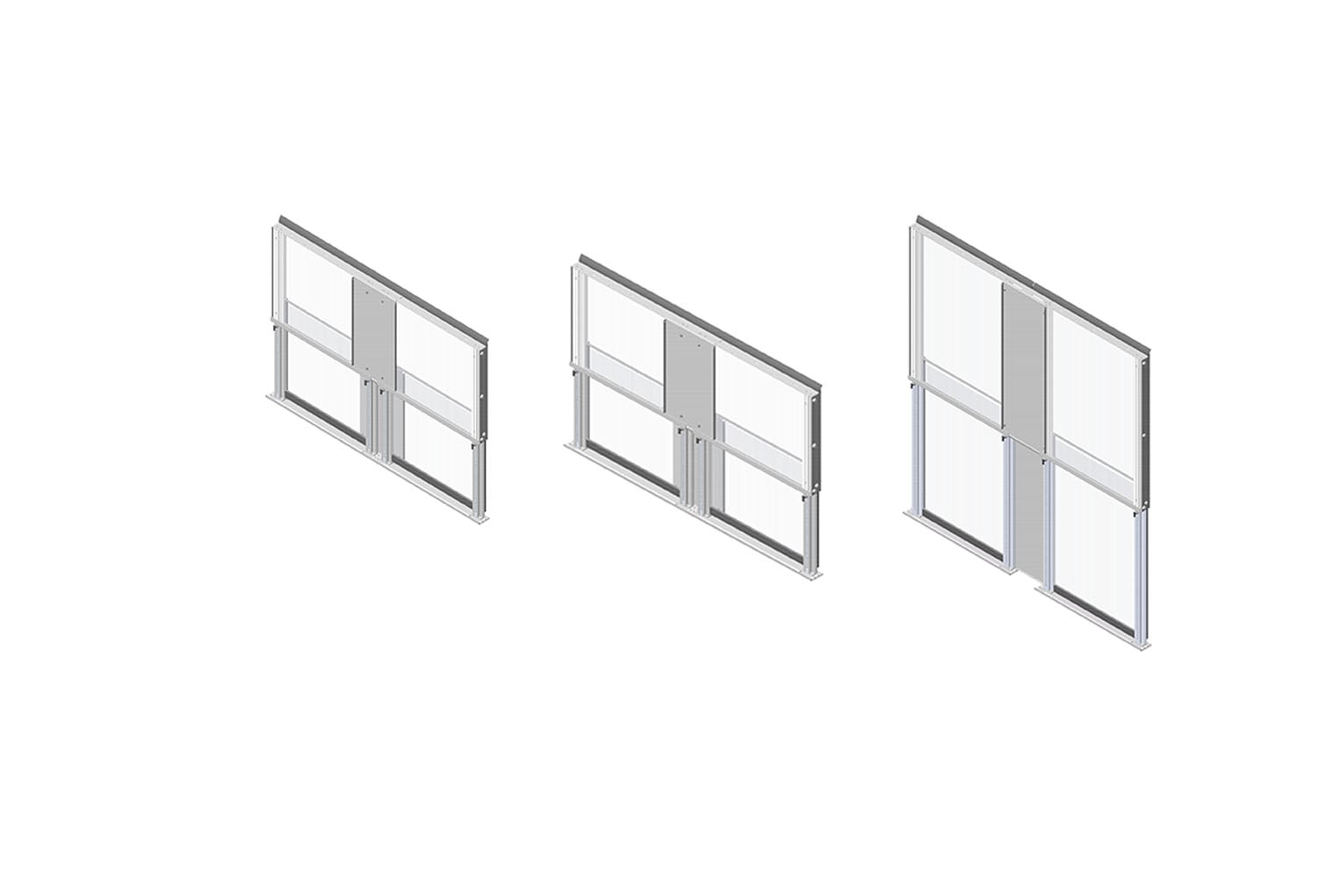

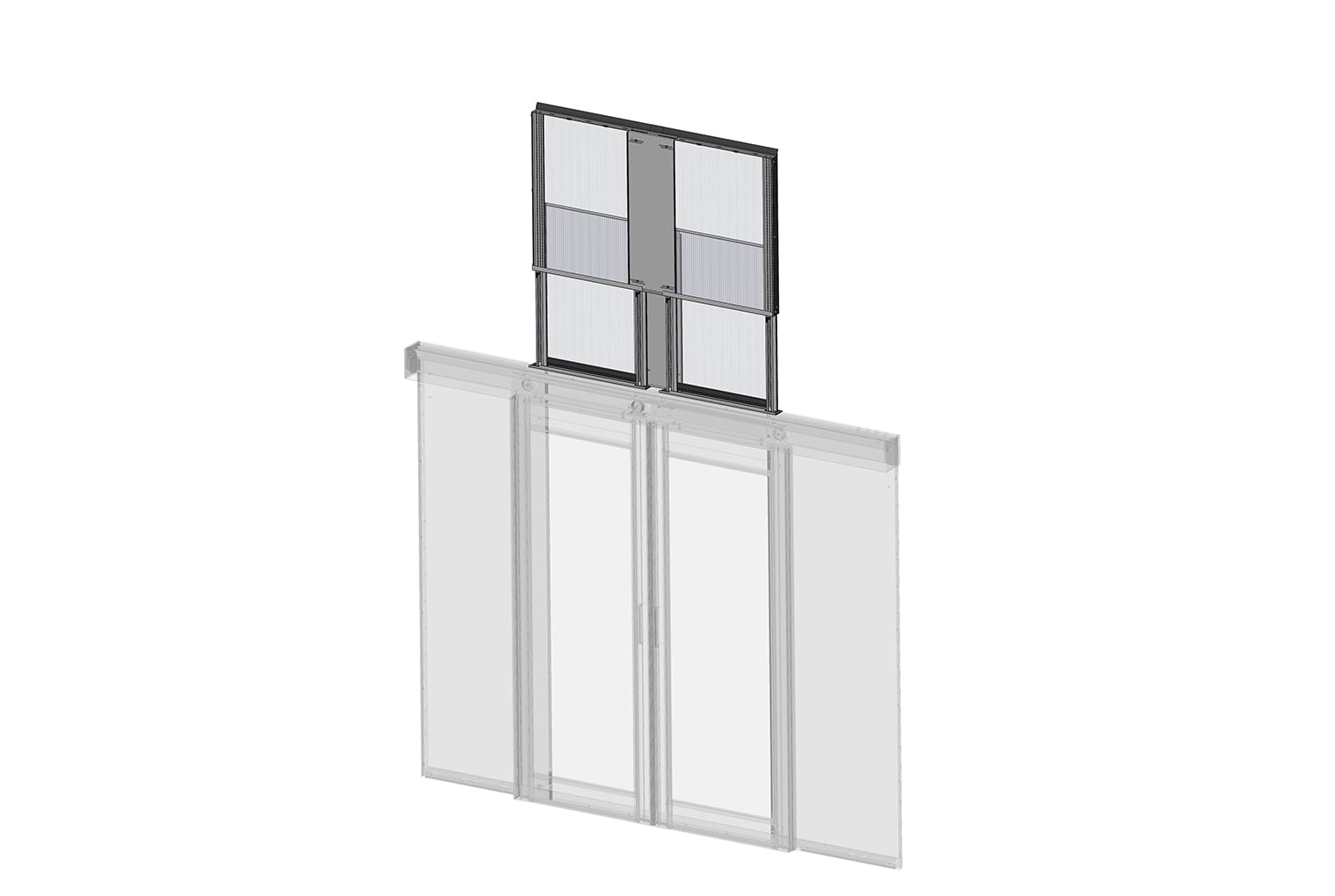

Panels span across the aisle between two rows of cabinets to create a Hot Aisle Containment Duct. The telescoping panels allow infinite adjustment within the specified height range. The panels mount to the top of Aisle Containment Double Door Assemblies (32770-XXX). Panel size options allow rear frame alignment or mid-span alignment for 1200 mm – 1100 mm depth cabinets.
Elevate™ Adjustable Containment Solution for Hot Aisle Containment offers a cutting-edge approach to improve data center efficiency through effective hot air management. This innovative system links two rows of cabinets, forming a sealed pathway that channels hot air from the cabinet tops to an overhead drop ceiling. This creates an efficient closed hot air return system. The solution features a telescoping two-piece panel that precisely fits between the cabinet roof and the ceiling, allowing for seamless adjustment to form a duct connecting the ZetaFrame® cabinet to the ceiling and eliminating the need for custom modifications on-site.
Key Features and Benefits
Telescoping Design
Versatile design that easily adjusts to form a duct connecting the ZetaFrame cabinet to the ceiling
Flexibility to adjust the containment height as needed, minimizing complexity and maximizing efficiency
Time to Deploy
Pre-assembled panels, no on-site fabrication required for frames or panels
No drilling required, mounts to ZetaFrame top track
Mounting hardware pre-loaded onto part
Engineered for quick setup - less than 2 minutes per panel per cabinet
Reduced deployment times
Ease of Specification
Width sizes matched to standard ZetaFrame cabinet widths
Telescoping design in 3 height ranges
Supports hot aisle containment or row level vertical exhaust duct applications
Streamlined experience with our ZetaFrame cabinet-supported containment solution
Serviceability
Sliding service panel allows access to cabling infrastructure and other overhead structures
Options for alignment to frame rear or cabinet mid-point for maximum airflow
Product Information
Design Tools
Key Features of the Elevate™ Adjustable Panel
The Elevate™ Adjustable Containment Solution provides a sealed hot‑aisle duct that directs heated exhaust from cabinet tops to an overhead drop ceiling. This containment solution improves airflow management and reduces cooling costs in high‑density data centers. It also supports broader product containment strategies across row‑level and aisle‑level deployments. A telescoping two‑piece panel delivers infinite height adjustment within three defined ranges, allowing precise alignment with ZetaFrame® cabinets. The design eliminates the need for on‑site fabrication and enables installation in less than two minutes per panel. Engineers appreciate the flexibility that maintains optimal containment performance as rack layouts evolve. Width options include 49.9 in (1267 mm), 57.8 in (1468 mm) and 90 in (2286 mm), providing compatibility with standard cabinet dimensions. Users can verify the Elevate™ width in mm to ensure proper fit during planning. Selecting the appropriate width enhances the effectiveness of the containment solution and supports uniform airflow across the aisle. All mounting hardware is pre‑loaded onto the ZetaFrame® top track, so no drilling or custom frames are required. The sliding service panel grants easy access to cabling and overhead infrastructure without compromising the sealed environment. This streamlined approach reduces deployment time and simplifies ongoing maintenance. The Elevate™ system is listed in the containment solutions price list, enabling planners to compare configurations quickly. By integrating with ZetaFrame® cabinet systems, the solution delivers comprehensive product containment for both hot‑aisle and row‑level applications. Customers benefit from a reliable, scalable method to manage heat and protect equipment.
