Elevate Adjustable Containment Solution Panel
Explore Sizes & Options
| Add to Cart Add | |||||
|---|---|---|---|---|---|
14500-700 | 23.6" (600 mm) | 14"-20" H (356-508 mm) | Black | $732.55 | |
14500-704 | 27.6" (700 mm) | 20"-34" H (508-864 mm) | Black | $798.90 | |
14500-701 | 23.6" (600 mm) | 20"-34" H (508-864 mm) | Black | $779.31 | |
14500-705 | 27.6" (700 mm) | 34"-60" H (864-1524 mm) | Black | $862.82 | |
14500-702 | 23.6" (600 mm) | 34"-60" H (864-1524 mm) | Black | $841.65 | |
14500-706 | 31.5" (800 mm) | 14"-20" H (356-508 mm) | Black | $787.81 | |
14500-703 | 27.6" (700 mm) | 14"-20" H (356-508 mm) | Black | $750.98 | |
14500-708 | 31.5" (800 mm) | 34"-60" H (864-1524 mm) | Black | $905.15 | |
14500-710 | 29.5" (750 mm) | 20"-34" H (508-864 mm) | Black | $818.50 | |
14500-707 | 31.5" (800 mm) | 20"-34" H (508-864 mm) | Black | $838.10 | |
14500-711 | 29.5" (750 mm) | 34"-60" H (864-1524 mm) | Black | $883.98 | |
14500-E03 | 27.6" (700 mm) | 14"-20" H (356-508 mm) | Glacier White | $750.98 | |
14500-E06 | 31.5" (800 mm) | 14"-20" H (356-508 mm) | Glacier White | $787.81 | |
14500-709 | 29.5" (750 mm) | 14"-20" H (356-508 mm) | Black | $769.39 | |
14500-E05 | 27.6" (700 mm) | 34"-60" H (864-1524 mm) | Glacier White | $862.82 | |
14500-E00 | 23.6" (600 mm) | 14"-20" H (356-508 mm) | Glacier White | $732.55 | |
14500-E01 | 23.6" (600 mm) | 20"-34" H (508-864 mm) | Glacier White | $779.31 | |
14500-E10 | 29.5" (750 mm) | 20"-34" H (508-864 mm) | Glacier White | $818.50 | |
14500-E02 | 23.6" (600 mm) | 34"-60" H (864-1524 mm) | Glacier White | $841.65 | |
14500-E09 | 29.5" (750 mm) | 14"-20" H (356-508 mm) | Glacier White | $769.39 |
Product Description

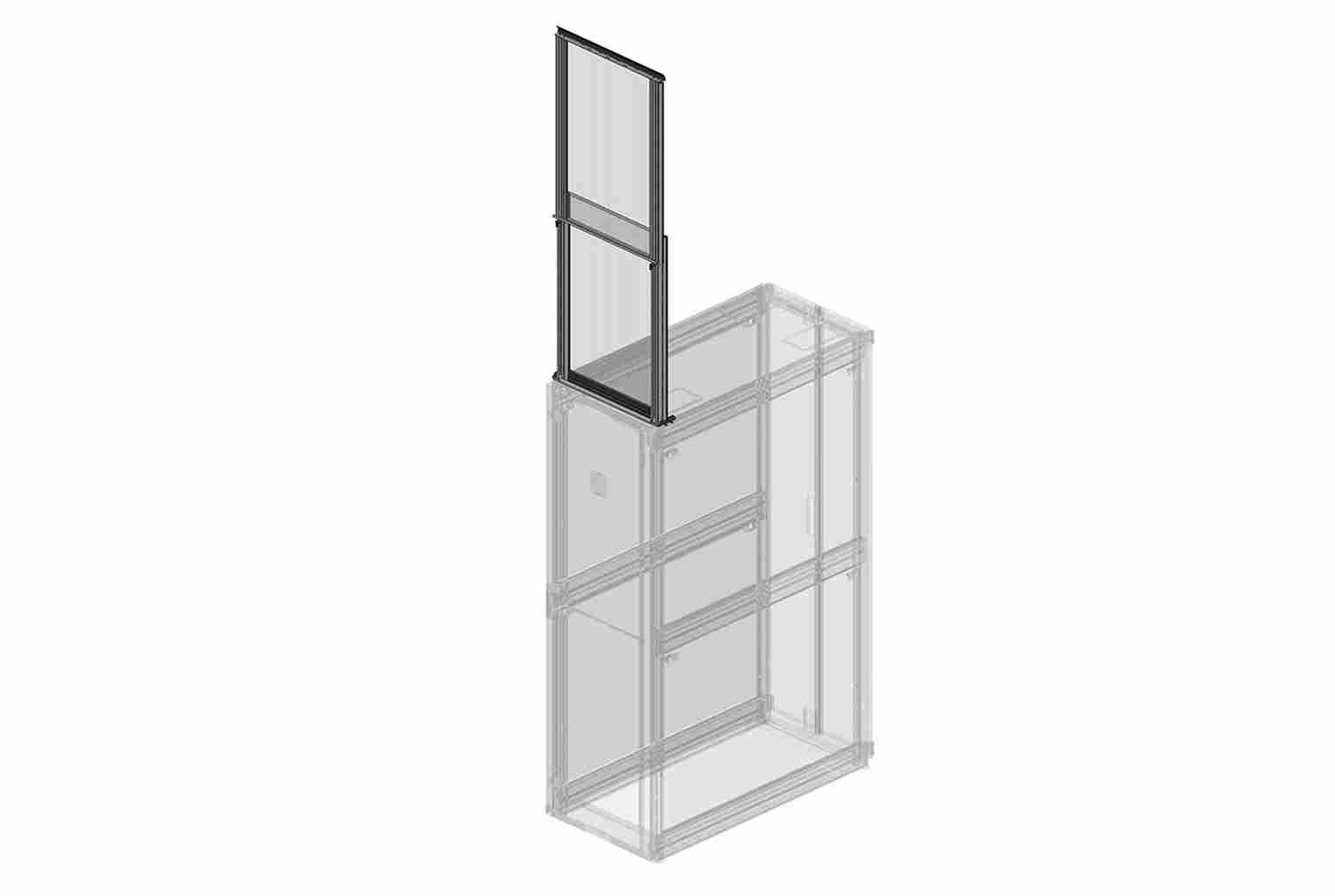

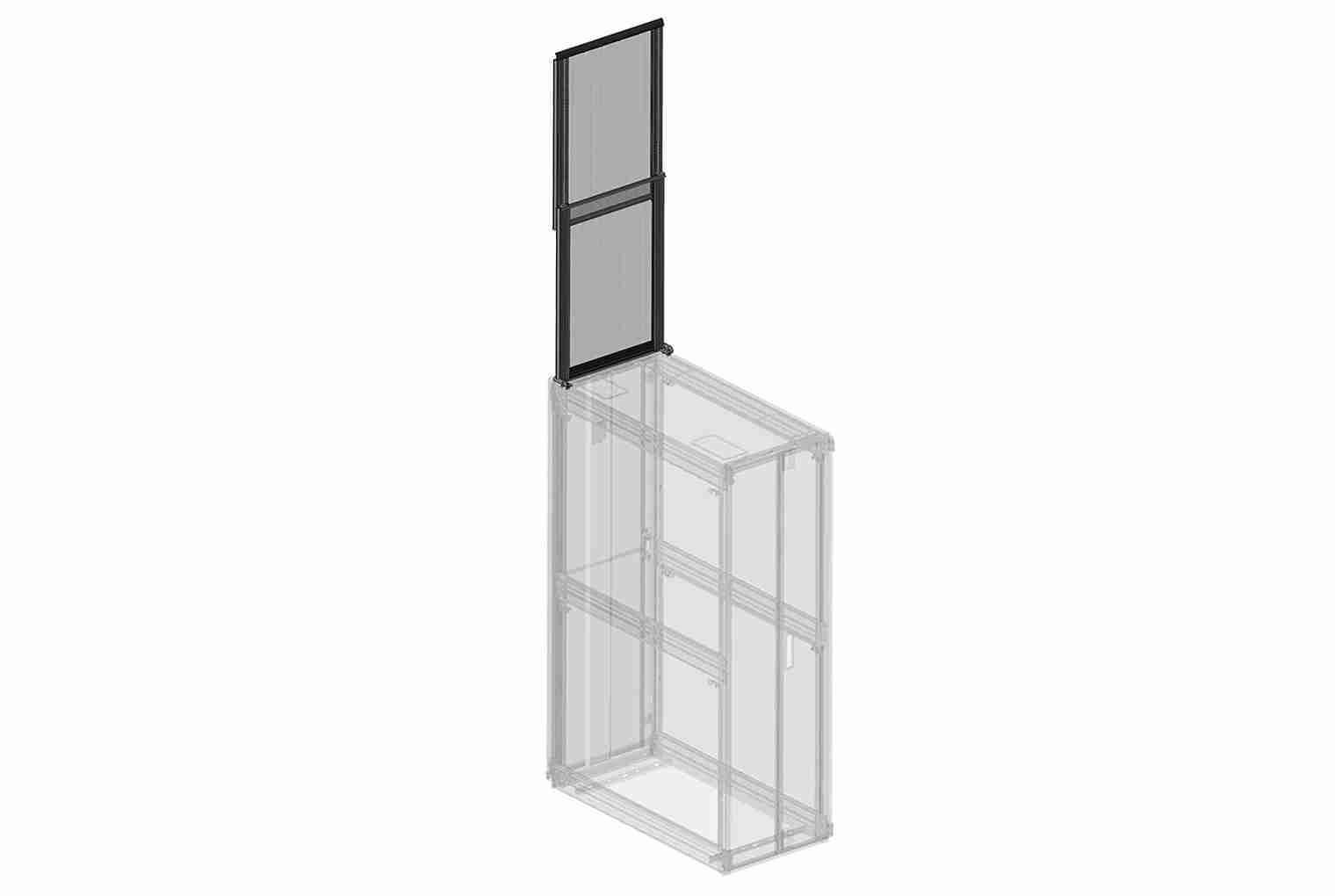

Adjustable panels mount effortlessly on top of a row of cabinets to create a Hot Aisle Containment Duct. The panels feature a unique telescoping design that allows infinite adjustment within the specified height range. Panels are sized to match the width of each cabinet. One panel is required per cabinet.
Elevate™ Adjustable Containment Solution for Hot Aisle Containment offers a cutting-edge approach to improve data center efficiency through effective hot air management. This innovative system links two rows of cabinets, forming a sealed pathway that channels hot air from the cabinet tops to an overhead drop ceiling. This creates an efficient closed hot air return system. The solution features a telescoping two-piece panel that precisely fits between the cabinet roof and the ceiling, allowing for seamless adjustment to form a duct connecting the ZetaFrame® cabinet to the ceiling and eliminating the need for custom modifications on-site.
Key Features and Benefits
Telescoping Design
Versatile design that easily adjusts to form a duct connecting the ZetaFrame cabinet to the ceiling
Flexibility to adjust the containment height as needed, minimizing complexity and maximizing efficiency
Time to Deploy
Pre-assembled panels, no on-site fabrication required for frames or panels
No drilling required, mounts to ZetaFrame top track
Mounting hardware pre-loaded onto part
Engineered for quick setup - less than 2 minutes per panel per cabinet
Reduced deployment times
Ease of Specification
Width sizes matched to standard ZetaFrame cabinet widths

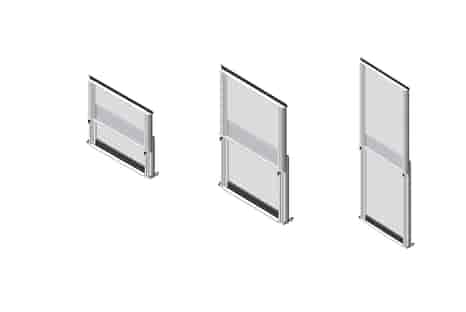

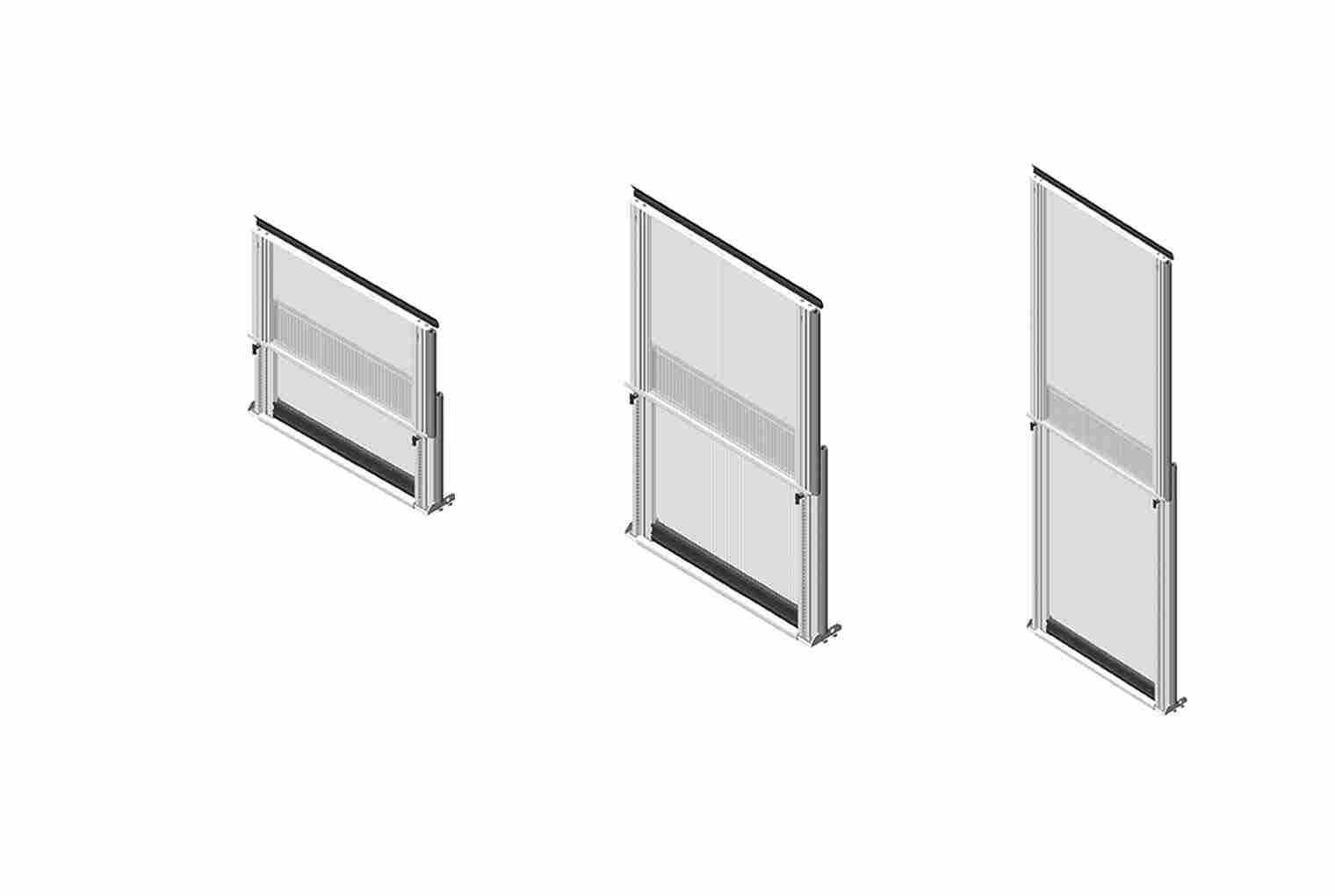

Telescoping design in 3 height ranges
Supports hot aisle containment or row level vertical exhaust duct applications
Streamlined experience with our ZetaFrame cabinet-supported containment solution
Serviceability
Sliding service panel allows access to cabling infrastructure and other overhead structures
Options for alignment to frame rear or cabinet mid-point for maximum airflow
Product Information
Design Tools
Optimize Airflow Management with Adjustable Containment Panels
The Elevate™ Adjustable Containment Solution Panel delivers precise hot aisle containment for modern data centers, enhancing thermal management by sealing hot air pathways. This innovative system features a telescoping design that allows infinite height adjustments within specified ranges, ensuring a perfect fit between cabinet tops and ceilings. By channeling hot air efficiently to overhead returns, it reduces cooling costs and improves overall data center performance.
Engineered for rapid deployment, the pre-assembled panels mount effortlessly onto ZetaFrame® cabinets without on-site fabrication or drilling. Each panel installs in less than two minutes per cabinet, significantly cutting labor time and minimizing disruption to operations. The sliding service panel provides easy access to cabling infrastructure, maintaining serviceability while maximizing airflow efficiency in high-density environments.
Compatibility with standard ZetaFrame cabinet widths ensures seamless integration into existing data center layouts, supporting both hot aisle containment and row-level vertical exhaust duct applications. The adjustable panels are available in multiple height ranges and colors, offering flexibility to meet diverse operational needs. This streamlined specification process simplifies planning and accelerates project timelines for enterprise and hyperscale facilities.
The telescoping two-piece design forms a sealed duct that connects cabinet roofs to drop ceilings, creating an effective closed hot air return system. This containment solution eliminates the need for custom modifications, reducing complexity and potential errors during installation. As a result, data centers achieve higher cooling efficiency, lower energy consumption, and improved PUE metrics, supporting sustainability goals.
With decades of expertise in thermal management, CPI provides reliable data center containment solutions that power and protect critical IT infrastructure. The Elevate Adjustable Containment Panel embodies our commitment to quality, innovation, and global availability, helping organizations maintain a competitive edge. Trust CPI for integrated solutions that optimize airflow, enhance security, and future-proof your data center investments.
